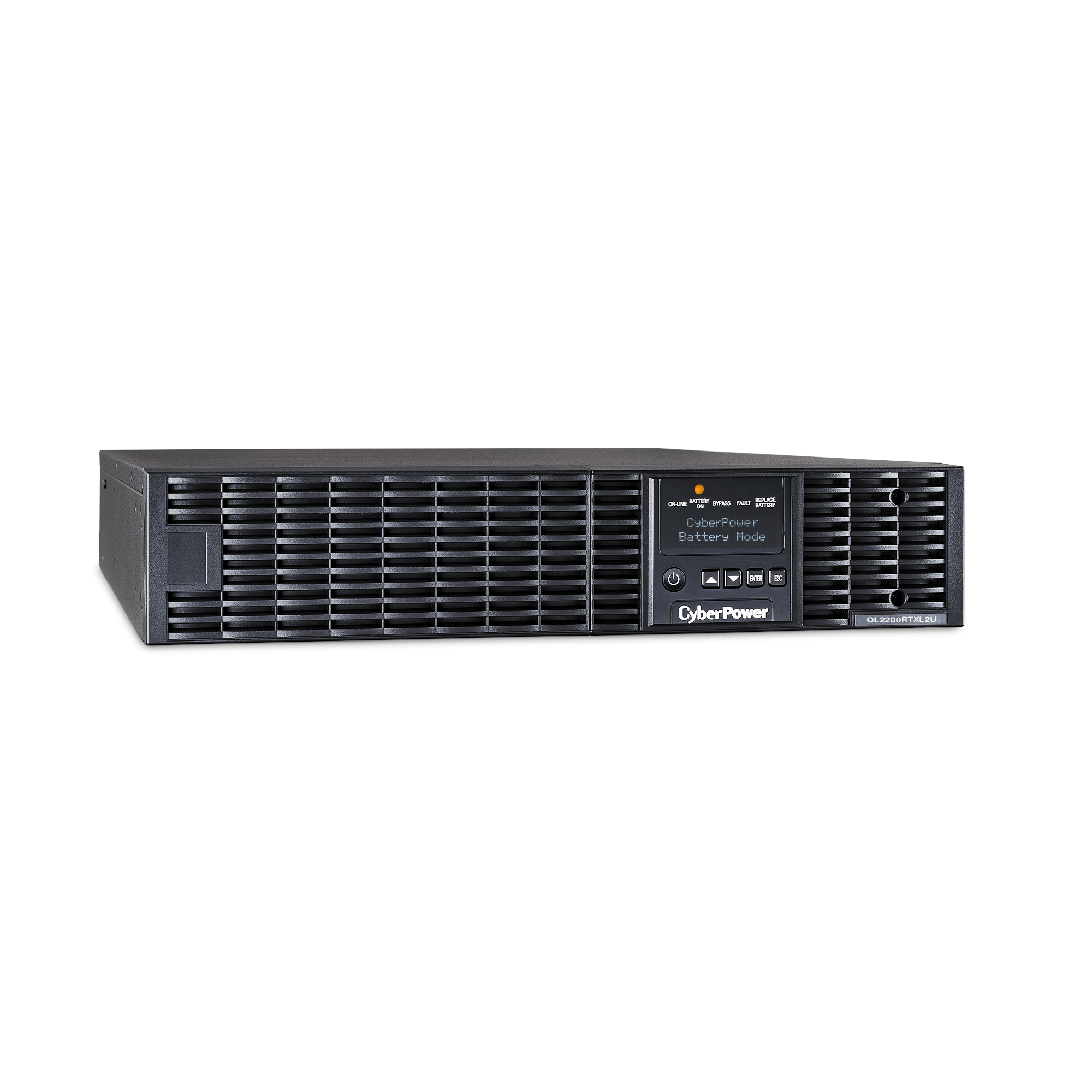

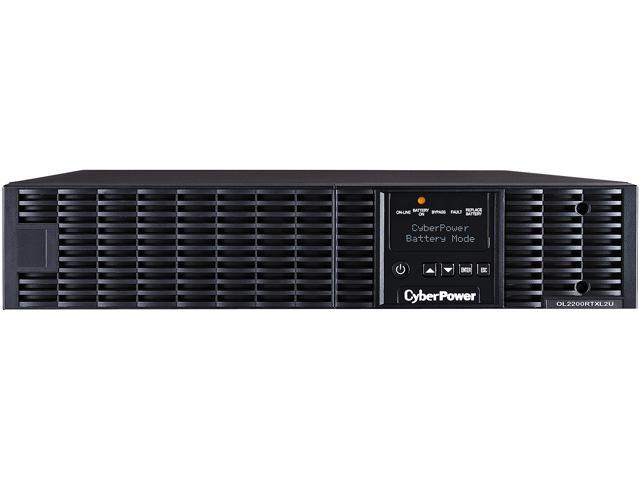

CyberPower Smart App Online OL2200RTXL2UN 2200VA Rack/Tower UPS

Why Do You Need a UPS System?

Even brief power outages can result in data loss or potential hardware damage. A UPS system provides battery backup power to keep your devices running during short outages and provides enough runtime to properly shut down electronics during extended outages.

Media

Corporate & Enterprise Servers

Protect mission-critical IT equipment and data centers from potential data loss and costly business interruptions.

PBX and VoIP Installations

Keep your communication lines open and running during power outages.

Product Comparison

	OL2200RTXL2U	OL2200RTXL2UN	OL3000RTXL2U	OL3000RTXL2UN
	Add to Cart	Add to Cart	Add to Cart	Add to Cart
Price	−	−	−	−
Battery Power	2200	2200	3000	3000
Watts	1800	1800	2700	2700
Runtime (Half/Full)	20/6.5 Minutes	20/6.5 Minutes	11/3.5 Minutes	11/3.5 Minutes

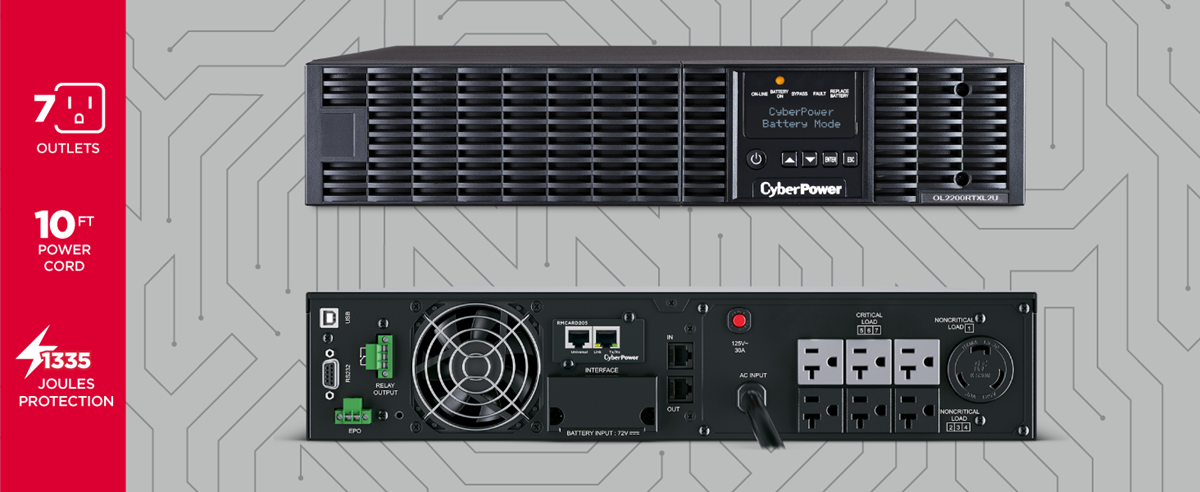

Battery & Surge Protected	7 Outlets	7 Outlets	7 Outlets	7 Outlets
Extended Runtime Option	BP72V60ART2U	BP72V60ART2U	BP72V60ART2U	BP72V60ART2U
Network Card Included
LCD Screen
Topology	Double Conversion	Double Conversion	Double Conversion	Double Conversion
Waveform	Sine Wave	Sine Wave	Sine Wave	Sine Wave
Model Type	Rack/Tower	Rack/Tower	Rack/Tower	Rack/Tower
Management Software	PowerPanel Business	PowerPanel Business	PowerPanel Business	PowerPanel Business

Product Q&A

How long will the UPS power my systems after the power goes out?

Run times vary based on the power required by connected devices. This system is estimated to run for 20 minutes at half load, 6.5 minutes for a full load. The LCD provides an estimated run time based on the required power usage during blackouts.

Can this UPS model be monitored?

Yes, the OL2200RTXL2UN comes with a free download of PowerPanel Business that provides a user-friendly dashboard interface for controlling and monitoring the UPS.

Can this UPS be managed remotely?

Yes, this UPS can be managed remotely with the pre-installed RMCARD205 network management card. This will allow administrators to control and configure the UPS without being onsite.

Does this come with rackmount hardware?

Yes, all CyberPower rackmount units come with the necessary hardware to mount the UPS. However, the unit does not have to be mounted to work. It can operate in any well-ventilated environment within 32 °F to 104 °F (0 °C to 40 °C).

Can the UPS be used in conjunction with a generator?

This UPS includes a Generator Mode. It provides stable sine wave output (free of harmonics and distortion) without switching to battery mode when running on generator input power.

Documents

CyberPower OL2200RTXL2UN Smart App Online UPS – Data Sheet

CyberPower OL2200RTXL2UN Smart App Online UPS – User Manual
