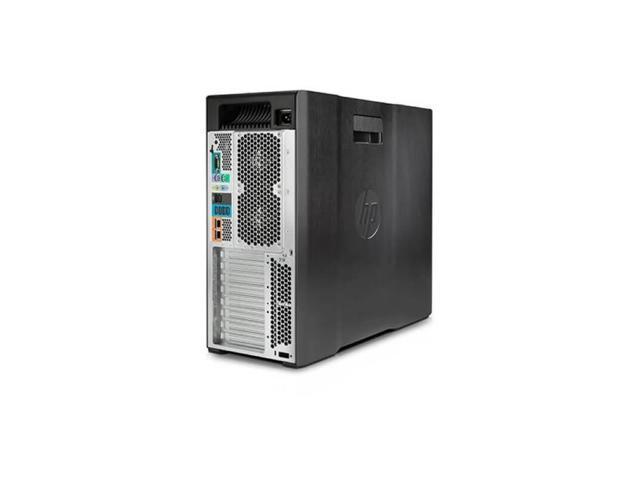

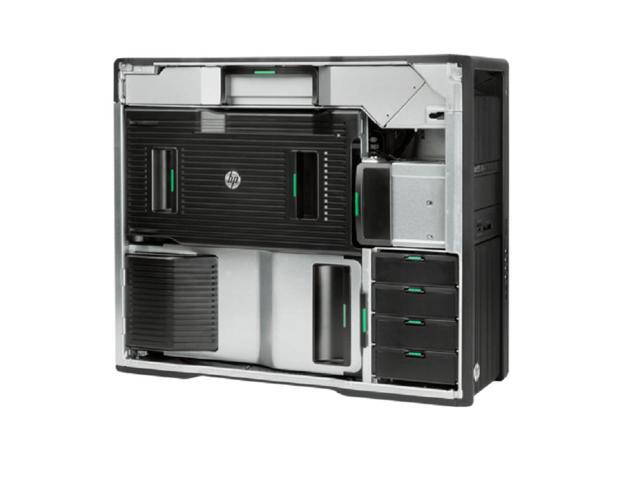

HP Z840 SOLIDWORKS E5-2643 V3 6 Cores 3.4Ghz 32GB 1TB NVMe M5000 Win 10
SKU: 9SIA68F9V4634959.594.535₫
Ideal for SOLIDWORKSE5-2643v3 6C 3.4Ghz CPU32GB of RAM1TB NVMe M.2 SSD with PCIe Adapter CardNvidia Quadro M5000 8GB GDDR5 Graphic CardWin 10 Pro
Description
SOLIDWORKS 3D CAD workstations are designed for optimal performance to give you the power you need to efficiently complete your work. Recommended for performance: Processors Speed – Faster the better. Recommend 3Ghz or higher. Processor Cores – Higher core counts are only utilized when rendering. We recommend 4 cores or more. Memory (RAM) – 20x of your compacted central project file is a good rule of thumb. Recommend 16GB or higher. Storage – Faster drives will improve overall workstation responsiveness. Its recommended to use a SSD for the Operating system and program loading, and HDD for file storage. Graphic Card (GPU) – Dedicated video cards supporting DirectX 11 or later are strongly recommended. This workstation is certified to work with SOLIDWORKS.
Processor: Single Intel Xeon E5-2643v3 Six Core 3.4Ghz Processor 6 Cores, 12 Virtual Cores in Hyperthreading Mode! (Additional processor configurations available)
Memory: 32GB DDR4-2133 Memory. Supports up to 512GB of total memory, 16 DIMM slots, 8 channels per CPU
PCIe Solid State Drive: 1TB NVMe M.2 SSD with PCIe Adapter Card
Drive Bays: Up to three 3.5” or 2.5” (adapter needed for 2.5”) internal SATA, SAS or SSD hard drives 3 external 52.5” bays
Raid Controller: SATA RAID level 0, 1, 5 and 10 and SAS RAID level 0, 1, 10 available on motherboard
Graphics: Nvidia Quadro M5000 8GB GDDR5 Graphic Card, DirectX 12 (Certified Hardware for SOLIDWORKS)
Operating System: Windows 10 Professional 64-Bit Pre-Installed
Software: SOLIDWORKS Software is not included
Power Supply: 1125W 90% Efficient wide-ranging, active Power Factor Correction
Optical: DVDRW Drive
Networking Integrated Intel I218LM PCIe GbE
Controller
Slots: 2 PCIe Gen3 x16; 1 PCIe Gen3 x16 (when 2nd CPU installed); 1 PCIe Gen2 x4 (when 1 CPU installed) OR PCIe Gen3 x8 (when 2nd CPU installed); 1 PCIe Gen3 x8; 1 PCIe Gen3 x4; 1 PCIe Gen2 x1; 1 PCIe Gen2 x 4 when 1 CPU is installed Transforms to PCIe Gen3 x8 when 2nd CPU installed The PCIe x8 connectors are open ended, allowing a PCIe x16 card to be seated in the slot
Front Ports: 4 USB 3.0; 1 combo headset; 1 microphone
Rear Ports: 4 USB 3.0; 2 USB 2.0; 1 serial; 2 PS/2; 2 RJ-45; 1 audio line in; 1 audio line out
Internal Ports: 2 USB 2.0; 1 USB 3.0
Peripherals: Power Cable Included Mouse, Keyboard, and Video Cable Not Included
Condition: Seller refurbished unit may have minor scratches and scuffs
*Systems are built to order and fully customizable. Please call for more information. Note that a stock photo is used and unit may differ depending on configuration.
Learn more about the HP Z840
| Brand | HP |
|---|---|
| Series | Z Series |
| Model | Z840 |
| Type | Business Desktops & Workstations |
|---|---|
| Form Factor Form Factor | Tower |
| Colors | Black/Silver |
| Power Supply | 1125W |
| Monitor | Monitor not included |
| Operating System Operating System | Windows 10 Pro |
| Chipset Chipset | Integrated |
|---|
| CPU Type CPU Type | Intel Xeon |
|---|---|
| CPU Speed CPU Speed | E5-2643 v3 (3.40 GHz) |
| CPU Socket Type CPU Socket Type | LGA 2011-3 |
| CPU Main Features | Hyperthreading |
| GPU/VGA Type GPU/VGA Type | NVIDIA Quadro M5000 |
|---|---|
| Graphics Card | Nvidia Quadro M5000 8GB GDDR5 Graphic Card |
| Memory Capacity Memory Capacity | 32 GB DDR4 |
|---|---|
| Memory Speed Memory Speed | DDR4 2133 |
| SSD SSD | 1 TB |
|---|---|
| HDD | No |
| Optical Drive Type | DVD±RW |
|---|---|
| Optical Drive Features | DVD±RW |
| Screen Size Screen Size | No Screen |
|---|
| LAN Chipset | Integrated |
|---|---|
| LAN Speed LAN Speed | 10/100/1000Mbps |
| Front USB Front USB | 4 |
|---|---|
| Front Audio Ports | 1 |
| Rear USB Rear USB | 6 |
|---|---|
| Rear Audio Ports | 1 port |
| Internal Bays | Up to four 3.5” or 2.5” (adapter needed for 2.5”) internal SATA, SAS or SSD hard drives. 3 external 5.25” bays. |
|---|---|
| Storage Controller | Factory integrated RAID available for SATA/SAS drives (RAID 0, 0 Data, 1, 5, and 10). |
| Dimensions (H x W x D) | 12.00 in. x 24.00 in. x 24.00 in. |
|---|---|
| Weight | 63LBS |
| Date First Available | August 13, 2019 |
|---|
Anonymous
Ownership: 1 month to 1 year
Verified Owner
Related products
Yên tâm mua sắm
NGUỒN HÀNG ĐẢM BẢO
Hàng hóa trên HQG.VN được bán bởi các các nhà cung cấp lớn và uy tín nhất thế giới.
GIÁ CẢ CẠNH TRANH
HQG.VN đem đến cơ hội mua sắm hàng hóa chất lượng quốc tế, giá Việt Nam cho tất cả mọi người.
GIAO HÀNG TOÀN QUỐC
HQG.VN giao hàng miễn phí tới tất cả 63 tỉnh thành trên toàn quốc.
THANH TOÁN THUẬN TIỆN
Hỗ trợ nhiều phương thức thanh toán. Được đảm bảo an toàn tuyệt đối bởi nganluong.vn
BẢO HÀNH SẢN PHẨM
HQG.VN có chính sách bảo hành chính hãng cho các sản phẩm
HỖ TRỢ 24/7
Tổng đài hỗ trợ: 028.7309.6999
Bảo hành 24/7: 1900636106
Description
SOLIDWORKS 3D CAD workstations are designed for optimal performance to give you the power you need to efficiently complete your work. Recommended for performance: Processors Speed – Faster the better. Recommend 3Ghz or higher. Processor Cores – Higher core counts are only utilized when rendering. We recommend 4 cores or more. Memory (RAM) – 20x of your compacted central project file is a good rule of thumb. Recommend 16GB or higher. Storage – Faster drives will improve overall workstation responsiveness. Its recommended to use a SSD for the Operating system and program loading, and HDD for file storage. Graphic Card (GPU) – Dedicated video cards supporting DirectX 11 or later are strongly recommended. This workstation is certified to work with SOLIDWORKS.
Processor: Single Intel Xeon E5-2643v3 Six Core 3.4Ghz Processor 6 Cores, 12 Virtual Cores in Hyperthreading Mode! (Additional processor configurations available)
Memory: 32GB DDR4-2133 Memory. Supports up to 512GB of total memory, 16 DIMM slots, 8 channels per CPU
PCIe Solid State Drive: 1TB NVMe M.2 SSD with PCIe Adapter Card
Drive Bays: Up to three 3.5” or 2.5” (adapter needed for 2.5”) internal SATA, SAS or SSD hard drives 3 external 52.5” bays
Raid Controller: SATA RAID level 0, 1, 5 and 10 and SAS RAID level 0, 1, 10 available on motherboard
Graphics: Nvidia Quadro M5000 8GB GDDR5 Graphic Card, DirectX 12 (Certified Hardware for SOLIDWORKS)
Operating System: Windows 10 Professional 64-Bit Pre-Installed
Software: SOLIDWORKS Software is not included
Power Supply: 1125W 90% Efficient wide-ranging, active Power Factor Correction
Optical: DVDRW Drive
Networking Integrated Intel I218LM PCIe GbE
Controller
Slots: 2 PCIe Gen3 x16; 1 PCIe Gen3 x16 (when 2nd CPU installed); 1 PCIe Gen2 x4 (when 1 CPU installed) OR PCIe Gen3 x8 (when 2nd CPU installed); 1 PCIe Gen3 x8; 1 PCIe Gen3 x4; 1 PCIe Gen2 x1; 1 PCIe Gen2 x 4 when 1 CPU is installed Transforms to PCIe Gen3 x8 when 2nd CPU installed The PCIe x8 connectors are open ended, allowing a PCIe x16 card to be seated in the slot
Front Ports: 4 USB 3.0; 1 combo headset; 1 microphone
Rear Ports: 4 USB 3.0; 2 USB 2.0; 1 serial; 2 PS/2; 2 RJ-45; 1 audio line in; 1 audio line out
Internal Ports: 2 USB 2.0; 1 USB 3.0
Peripherals: Power Cable Included Mouse, Keyboard, and Video Cable Not Included
Condition: Seller refurbished unit may have minor scratches and scuffs
*Systems are built to order and fully customizable. Please call for more information. Note that a stock photo is used and unit may differ depending on configuration.
Learn more about the HP Z840
| Brand | HP |
|---|---|
| Series | Z Series |
| Model | Z840 |
| Type | Business Desktops & Workstations |
|---|---|
| Form Factor Form Factor | Tower |
| Colors | Black/Silver |
| Power Supply | 1125W |
| Monitor | Monitor not included |
| Operating System Operating System | Windows 10 Pro |
| Chipset Chipset | Integrated |
|---|
| CPU Type CPU Type | Intel Xeon |
|---|---|
| CPU Speed CPU Speed | E5-2643 v3 (3.40 GHz) |
| CPU Socket Type CPU Socket Type | LGA 2011-3 |
| CPU Main Features | Hyperthreading |
| GPU/VGA Type GPU/VGA Type | NVIDIA Quadro M5000 |
|---|---|
| Graphics Card | Nvidia Quadro M5000 8GB GDDR5 Graphic Card |
| Memory Capacity Memory Capacity | 32 GB DDR4 |
|---|---|
| Memory Speed Memory Speed | DDR4 2133 |
| SSD SSD | 1 TB |
|---|---|
| HDD | No |
| Optical Drive Type | DVD±RW |
|---|---|
| Optical Drive Features | DVD±RW |
| Screen Size Screen Size | No Screen |
|---|
| LAN Chipset | Integrated |
|---|---|
| LAN Speed LAN Speed | 10/100/1000Mbps |
| Front USB Front USB | 4 |
|---|---|
| Front Audio Ports | 1 |
| Rear USB Rear USB | 6 |
|---|---|
| Rear Audio Ports | 1 port |
| Internal Bays | Up to four 3.5” or 2.5” (adapter needed for 2.5”) internal SATA, SAS or SSD hard drives. 3 external 5.25” bays. |
|---|---|
| Storage Controller | Factory integrated RAID available for SATA/SAS drives (RAID 0, 0 Data, 1, 5, and 10). |
| Dimensions (H x W x D) | 12.00 in. x 24.00 in. x 24.00 in. |
|---|---|
| Weight | 63LBS |
| Date First Available | August 13, 2019 |
|---|
Anonymous
Ownership: 1 month to 1 year
Verified Owner
Pros: Great quality components
Loads of upgrade options (extra CPU, more GPU slots, more ram, more hdd slots)
Case look mean
Cons: Product is a refurbished server
Needs work to be used as a PC
Mismatched ram installed
Hardware dating from 2016
Overall Review: Beware, nowhere in the listing it says that this product is a server, not a PC.
The hardware is designed as such and it behave as such.
I thought I was getting a better deal by buying this rather than building a computer from scratch but I’m not convinced.
When I received my product, it was still configured as a server. During the boot sequence, it was first trying to connect to an external network and when that failed (timed out) it then boot to the installed hard drive, the process was extremely long, we are talking about a 2 min boot time.
After lots of research, and formatting the SSD, I was able to disconnect the ”boot to network” feature in the BIOS and force boot to the installed SSD. The boot sequence was down to about 55 seconds, and no way to bring it down further and still miles (or seconds) from a proper desktop personal computer.
Tbh, I’m a bit disappointed by this computer for that price. If I had known it was a server and what it implies, I don’t think I would have bought it.
I managed to make it work okayish, the performance is okay for a 5 year old PC, I’m not blown away by its speed as I thought I would be. Its not made to be shutdown constantly, so I put it to sleep instead of shutting it down at the end of the day, its annoying but I will live with it.
I use it with Solidworks 2021, because its supposed to be ”certified” for it, and its okayish. I have some issues with it but I think it can be pointed to the software, but that’s an other story.
For that kind of investment, you can find or build a decent PC, no, you might not have all that fancy hardware but you’ll still have a decent PC.
TL;DR : Its a server, not a PC, 2016 hardware, its expensive, might not fulfill your needs
