HP Z840 AutoCAD 2x E5-2643 V3 12 Cores 3.4Ghz 256GB 2TB SSD K620 Win 10

AutoCAD workstations are designed for optimal performance to give you the power you need to efficiently complete your work. Recommended for performance: Processors Speed – Faster the better. Recommend 3Ghz or higher. Processor Cores – Higher core counts are only utilized when rendering. We recommend 4 cores or more. Memory (RAM) – 20x of your compacted central project file is a good rule of thumb. Recommend 16GB or higher. Storage – Faster drives will improve overall workstation responsiveness. Its recommended to use a SSD for the Operating system and program loading, and HDD for file storage. Graphic Card (GPU) – Dedicated video cards supporting DirectX 11 or later are strongly recommended. Nvidia Quadro are supported and certified by AutoDesk. This workstation is certified to work with AutoCAD

Processor: Dual Intel Xeon E5-2643v3 Six Core 3.4Ghz Processors 12 Cores, 24 Virtual Cores in Hyperthreading Mode! (Additional processor configurations available)

Memory: 256GB DDR4-2133 Memory. Supports up to 512GB of total memory, 16 DIMM slots, 8 channels per CPU

Storage: 2TB 6Gb/s SATA Solid State Drive

Drive Bays: Up to three 3.5” or 2.5” (adapter needed for 2.5”) internal SATA, SAS or SSD hard drives 3 external 52.5” bays

Raid Controller: SATA RAID level 0, 1, 5 and 10 and SAS RAID level 0, 1, 10 available on motherboard

Graphics: Nvidia Quadro K620 2GB GDDR3 Graphic Card, DirectX 11.2 (Certified Hardware for AutoCAD 2019)

Operating System: Windows 10 Professional 64-Bit Pre-Installed

Software: AutoCAD Software is not included

Power Supply: 1125W 90% Efficient wide-ranging, active Power Factor Correction

Optical: DVDRW Drive

Networking Integrated Intel I218LM PCIe GbE Controller

Slots: 2 PCIe Gen3 x16; 1 PCIe Gen3 x16 (when 2nd CPU installed); 1 PCIe Gen2 x4 (when 1 CPU installed) OR PCIe Gen3 x8 (when 2nd CPU installed); 1 PCIe Gen3 x8; 1 PCIe Gen3 x4; 1 PCIe Gen2 x1; 1 PCIe Gen2 x 4 when 1 CPU is installed Transforms to PCIe Gen3 x8 when 2nd CPU installed The PCIe x8 connectors are open ended, allowing a PCIe x16 card to be seated in the slot

Front Ports: 4 USB 3.0; 1 combo headset; 1 microphone

Rear Ports: 4 USB 3.0; 2 USB 2.0; 1 serial; 2 PS/2; 2 RJ-45; 1 audio line in; 1 audio line out

Internal Ports: 2 USB 2.0; 1 USB 3.0

Peripherals: Power Cable Included Mouse, Keyboard, and Video Cable Not Included

Condition: Seller refurbished unit may have minor scratches and scuffs

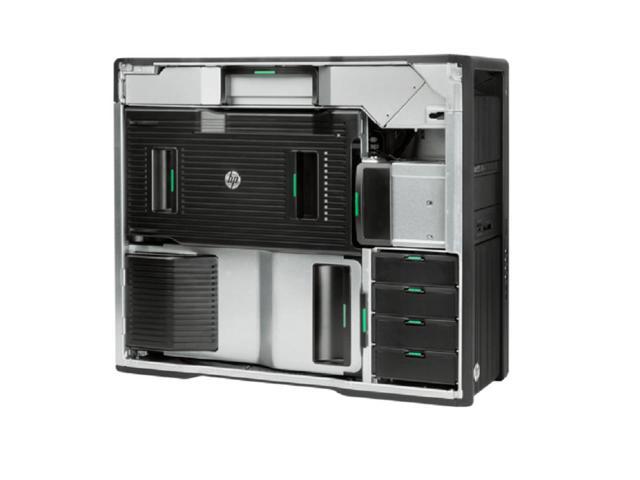

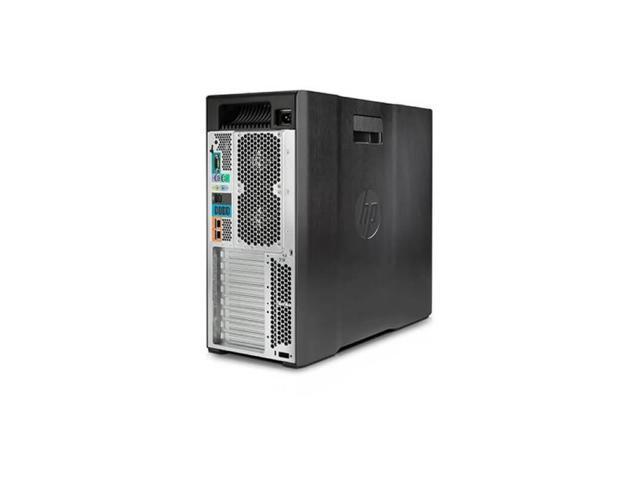

*Systems are built to order and fully customizable. Please call for more information. Note that a stock photo is used and unit may differ depending on configuration.
