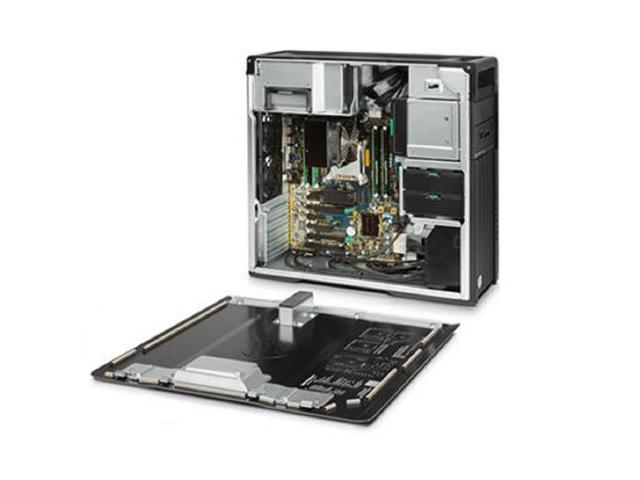

HP Z640 Workstation E5-2630 V3 Eight Core 2.4Ghz 16GB 1TB NVS310 Win 10 Pre-Install

Processor: Single Intel Xeon E5-2630V3 Eight Core 2.4Ghz Processor. 16 Virtual Cores in Hyperthreading Mode! (Additional processor configurations available).

Memory: 16GB. Supports up to 256GB of total memory, 8 DIMM slots for DDR4 ECC Registered Memory – 4 DIMM slots on the motherboard and 4 on the Optional 2nd CPU and Memory Riser Module (included with dual processor configurations). .

Hard Drives: 1TB 7.2K PC SATA Drive (Additional hard drive configurations available).

Drive Bays: Up to two 3.5” or 2.5” (adapter needed for 2.5”) internal SATA, SAS or SSD hard drives. 2 external 5.25” bays available for additional two 3.5″ or four 2.5″ drives (adapter required for 5.25″ bays).

Raid Controller: Factory integrated RAID available for SATA/SAS drives (RAID 0, 0 Data, 1, 5, and 10)

Graphics: Nvidia NVS 310 Graphic Card (Additional graphic cards available).

Operating System: Windows 10 Professional 64-Bit Pre-Installed (32-bit available on request).

Power Supply: Tool-free 925W 90% Efficient wide-ranging, active Power Factor Correction, with two graphics power cables.

Optical Drive(s): DVDRW Drive.

Dimensions: 43 Lbs, 18.3” x 6.75” x 17.45” (L x W x H)

Networking: Integrated Intel I218LM PCIe GbE
Controller

Slots:

• Slot 1: PCI Express Gen2 x1 with open-ended connector Full-height, Half-length (Not available when 2nd processor/memory module is installed)
• Slot 2: PCI Express Gen3 x16 Full-height, Full-length (with extender)
• Slot 3: PCI Express Gen2 x4 with open-ended connector Full-height, Full-length (with extender)
• Slot 4: PCI Express Gen3 x8 with open-ended connector Full-height, Full-length (with extender)
• Slot 5: PCI Express Gen3 x16 Full-height, Full-length (with extender)
• Slot 6: PCI 32bit/33MHz Full-height, Full-length (with extender) Open-ended connector allows a greater bandwidth (e.g., x16) card to be installed physically into a lower bandwidth connector/slot.

Front Ports: 4 USB 3.0, 1 Headset, 1 Microphone

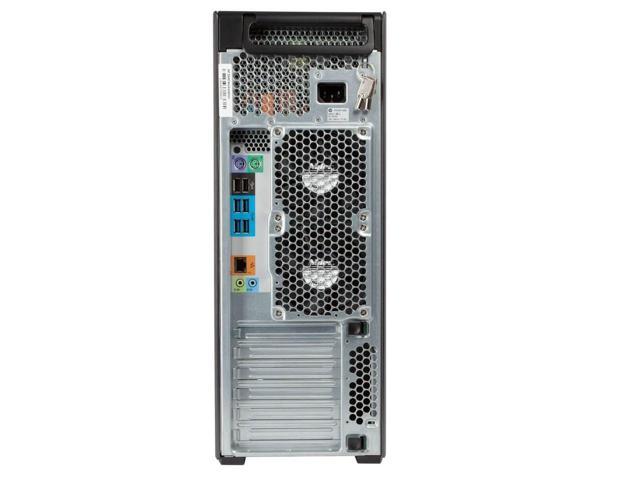

Rear Ports: 4 USB 3.0, 2 USB 2.0, 2 PS/2, 1 RJ-45 (NIC), 1 Audio Line-In, 1 Audio Line-Out. Serial supported with optional connector on PCI bracket cabled to system board connector.

Internal Ports: 2 USB 2.0 ports available with a single 2×5 header. The 2×5 header can be converted to a standard (Type-A) USB connector through the use one HP Internal USB Port Kit (EM165AA). This port kit uses one half of the 2×5 header. The 2×5 header also supports up to one 15-in-1 Media Card Reader. 1 USB 3.0 port available by a 2×10 header.

Peripherals: Power Cable Included. Mouse, Keyboard, and Video Cable Not Included.

*Systems are built to order and fully customizable. Please call for more information. Note that a stock photo is used and unit may differ depending on configuration.
