HP Z6 G4 Gold 6148 20C 2.4Ghz 8GB RAM 250GB NVMe 2TB W2100 Win 10

Processor: Single Intel Xeon Gold 6148 Twenty Core 2.4Ghz Processor. 20 Total Cores, 40 Virtual Cores in Hyperthreading Mode! (Additional processor configurations available).

Memory: 8GB. Supports up to 768GB of total memory, Six channel memory up to 2666MHz DDR4 ECC memory with dual CPUs, 12 DIMM Slots (6 DIMMS on the optional 2nd CPU Riser)
.

Storage: 250GB NVMe M.2 SSD and 2TB 7.2K PC SATA (Additional solid state or hard drive configurations available).

Storage Controller: Onboard SATA Controller, Raid 0,1,5,10

Expansion Bays:

• 2 internal 3.5″ bays (with acoustic dampening rail assemblies pre-installed)
• 2 external 5.25″ bays
• 1 dedicated 9.5mm slim optical disk drive bay

Interface Support:

• 6 channel SATA 6.0 Gb/s interface, supports Raid 0/1/5/10
• 6 channels are eSATA configurable for use with eSATA CTO/AMO Kit (No hot plug / hot swap
  supported)
• USB 2.0, USB 3.1 G1 (aka USB 3.0), USB 3.1 G2 (optional)

Graphics: AMD FirePro W2100 2GB GDDR3 Graphic Card Ports: (2) DP (Additional graphic cards available). Support for 2 PCI Express x16 Gen 3 graphics cards -includes two 6-pin graphics power cables.

Operating System: Windows 10 Professional 64-Bit Pre-Installed.

Power Supply: 1000W 90% Efficient Power Supply

Optical Drive(s): DVDRW Drive.

Expansion Slots:

• Slot 1: PCI Express Gen3 x4 – CPU with open-ended connector
• Slot 2: PCI Express Gen3 x16 – CPU
• Slot 3: PCI Express Gen3 x4 – PCH with open-ended connector*
• Slot 4: PCI Express Gen3 x8 CPU with open-ended connector (slot converts to x4 electrical when SSD is
  installed in 2nd M.2 slot)*
• Slot 5: PCI Express Gen3 x16 – CPU
• Slot 6: PCI Express Gen3 x4 – PCH with open-ended connector*
• M.2 Slot 1: M.2 PCIe Gen 3 x4 – CPU up to 80mm storage devices
• M.2 Slot 2: M.2 PCIe Gen 3 x4 – CPU up to 80mm storage devices
• * Open-ended connector allows a greater bandwidth (e.g. x16) card to be installed physically into a lower bandwidth connector/slot.

Networking: 2 RJ-45 to integrated Integrated Intel I219LM GbE LAN

Front Ports:

• Included: Power button, 1 Headset audio port, 4 USB 3.1 G1 Type A (1 charging)
• Optional: Power button, 1 Headset audio port, 2 USB 3.1 G2 Type C, 2 USB 3.1 G1
  Type A (1 charging)

Rear Ports:

• Included: 6 USB 3.1 G1 (aka USB 3.0) Type A ports, 2 1Gbe LAN ports (1x supporting Intel® AMT), Audio: 1 Line
  out, 1 Line in (Line in can be retasked as microphone), 1 PS/2 mouse port, 1 PS/2 keyboard port, 1
  Rear power button
• Optional: 1 serial port (cable up to rear bulkhead)

Internal Ports:

• 1 USB 3.1 G1 (aka USB 3.0) single-port header
• 1 USB 2.0 single-port header
• 1 USB 2.0 dual-port header

Audio Controller: Integrated Realtek HD ALC221 Audio

Speakers: Internal Speaker

Peripherals: Power Cable Included. Mouse, Keyboard, and Video Cable Not Included.

Dimensions: 50 Lbs, 18.3” x 6.65” x 17.5” (L x W x H)

Condition: Refurbished – Fully Tested. Seller refurbished units may have minor cosmetic blemishes.

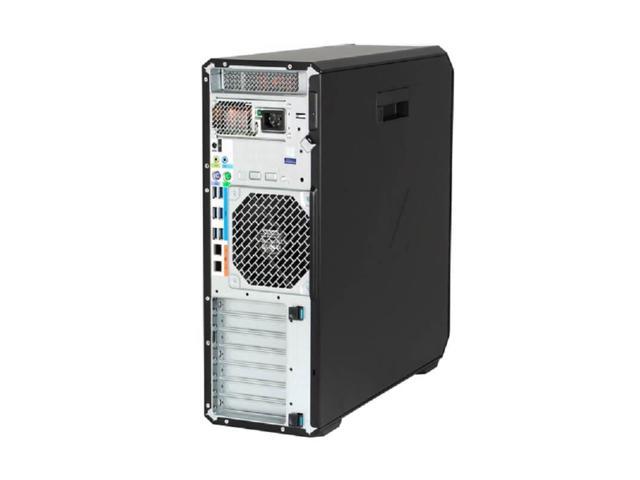

*Systems are built to order and fully customizable. Please call for more information. Note that a stock photo is used and unit may differ depending on configuration.
