Dell 7910 SOLIDWORKS E5-2687w V3 10 Cores 3.1Ghz 128GB 1TB NVMe 2TB M2000 Win 10

SOLIDWORKS 3D CAD workstations are designed for optimal performance to give you the power you need to efficiently complete your work. Recommended for performance: Processors Speed – Faster the better. Recommend 3Ghz or higher. Processor Cores – Higher core counts are only utilized when rendering. We recommend 4 cores or more. Memory (RAM) – 20x of your compacted central project file is a good rule of thumb. Recommend 16GB or higher. Storage – Faster drives will improve overall workstation responsiveness. Its recommended to use a SSD for the Operating system and program loading, and HDD for file storage. Graphic Card (GPU) – Dedicated video cards supporting DirectX 11 or later are strongly recommended. This workstation is certified to work with SOLIDWORKS.

Processor: Single Intel Xeon E5-2687wv3 Ten Core 3.1Ghz Processor 10 Cores, 20 Virtual Cores in Hyperthreading Mode! (Additional processor configurations available)

Memory: 128GB DDR4-2133 Memory. Supports up to 1024GB of total memory, Quad channel memory up to 2400MHz DDR4 ECC memory with dual CPUs, 16 DIMM Slots (8 DIMMs per CPU).

PCIe Solid State Drive: 1TB NVMe M.2 SSD with PCIe Adapter Card

Storage: 2TB 7.2K PC SATA Drive

Drive Bays: Support for up to (4) M.2 PCIe SSDs and up to (4) 3.5” SATA or (8) 2.5” SATA/SAS drives. Optional PCIe controller required for RAID 5 support.

Raid Controller: Integrated: LSI SAS 3008 12Gb/s SAS (6Gb/s SATA) controller supports software RAID 0, 1, 10 with up to 8 hard drives. 2 integrated Intel
controller (6Gb/s) SATA ports for optical drives.

Graphics: Nvidia Quadro M2000 4GB GDDR5 Graphic Card, DirectX 12 (Certified Hardware for SOLIDWORKS)

Operating System: Windows 10 Professional 64-Bit Pre-Installed

Software: SOLIDWORKS Software is not included

Power Supply: 1300W 90% Efficient wide-ranging, active Power Factor Correction

Optical: DVDRW Drive

Networking Intel I217 & I210 Gigabit Ethernet controllers with Intel Remote Wake UP, PXE and Jumbo frames support .

Slots: (2) PCIe x16 Gen 3 [(2) more with 2nd CPU]; (1) PCIe x16 Gen 3 [wired as x4 – Slot 1], (1) PCIe x16 Gen 2 [wired as x4]; (1) PCI 32Bit.

Front Ports: 3 USB 2.0, 1 USB 3.0, 1 Microphone, 1 Headphone, 2 RJ45

Rear Ports: 3 USB 2.0, 3 USB 3.0, 2 PS2, 1 Serial, 1 Audio Line Out, 1 Audio Line In, 1 RJ45

Internal Ports: 1 USB 2.0, 8 SAS 12Gbps (Supports 6Gbps SATA as well)

Peripherals: Power Cable Included. Mouse, Keyboard, and Video Cable Not Included.

Condition: Seller refurbished unit may have minor scratches and scuffs

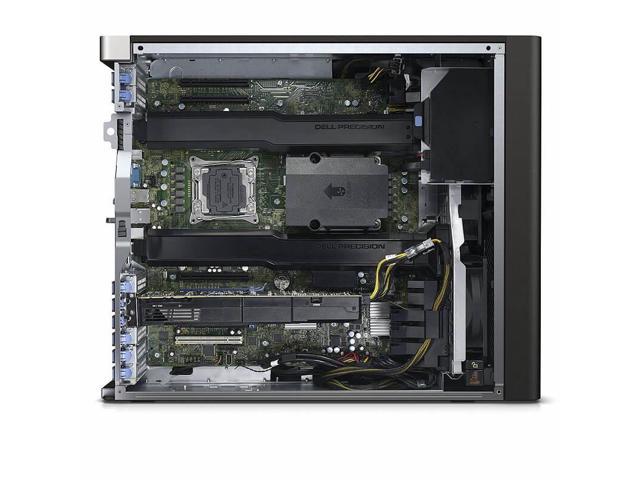

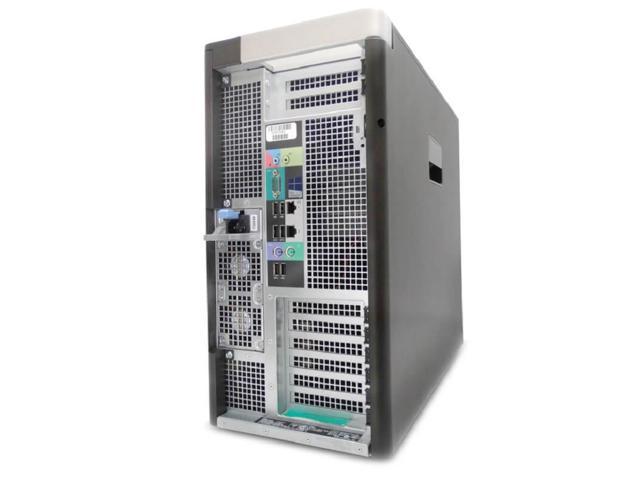

*Systems are built to order and fully customizable. Please call for more information. Note that a stock photo is used and unit may differ depending on configuration.
