Dell 5810 SOLIDWORKS E5-1620 V3 4 Cores 3.5Ghz 128GB 1TB NVMe 2TB P2000 Win 10

SOLIDWORKS 3D CAD workstations are designed for optimal performance to give you the power you need to efficiently complete your work. Recommended for performance: Processors Speed – Faster the better. Recommend 3Ghz or higher. Processor Cores – Higher core counts are only utilized when rendering. We recommend 4 cores or more. Memory (RAM) – 20x of your compacted central project file is a good rule of thumb. Recommend 16GB or higher. Storage – Faster drives will improve overall workstation responsiveness. Its recommended to use a SSD for the Operating system and program loading, and HDD for file storage. Graphic Card (GPU) – Dedicated video cards supporting DirectX 11 or later are strongly recommended. This workstation is certified to work with SOLIDWORKS.

Processor: Single Intel Xeon E5-1620v3 Quad Core 3.5Ghz Processor 4 Cores, 8 Virtual Cores in Hyperthreading Mode! (Additional processor configurations available)

Memory: 128GB DDR4-2133 Memory. Supports up to 256GB of total memory, Quad channel, 8 DIMM Slots , up to 2133 MHz DDR4 ECC RDIMM memory

PCIe Solid State Drive: 1TB NVMe M.2 SSD with PCIe Adapter Card

Storage: 2TB 7.2K PC SATA Drive

Drive Bays: Two internal 3.5″ hard drive bay, one external 5.25″ bay, and one external slimline optical bay.

Raid Controller: Intel AHCI 6Gb/s SATA controller with six ports at 6Gb/s, two reserved for optical drives, Intel RSTe supports software RAID 0,1,5,10

Graphics: Nvidia Quadro P2000 5GB GDDR5 Graphic Card, DirectX 12 (Certified Hardware for SOLIDWORKS)

Operating System: Windows 10 Professional 64-Bit Pre-Installed

Software: SOLIDWORKS Software is not included

Power Supply: 685W 90% Efficient wide-ranging, active Power Factor Correction

Optical: DVDRW Drive

Networking Integrated Intel I217 Gigabit Ethernet controller, Single Port. Controller

Slots: 5 full-length slots, 1 half length, two PCIe x16 Gen 3; 1 PCIe x16 Gen 3 wired x8 (half-length); 1 PCIe x4 Gen 2; 1 PCIe x1 gen2; one PCI 32 bit/33MHz

Front Ports: 3 USB 2.0, 1 USB 3.0, 1 Microphone, 1 Headphone, 2 RJ45

Rear Ports: 3 USB 2.0, 3 USB 3.0, 2 PS2, 1 serial, 1 RJ45 (Intel Gigabit Ethernet)

Internal Ports: 3 USB 2.0, 4 SATA/SAS 6Gb/s, 2 SATA 6GB/s (for optical drive(s)), 1 Serial

Peripherals: Power Cable Included. Mouse, Keyboard, and Video Cable Not Included.

Condition: Seller refurbished unit may have minor scratches and scuffs

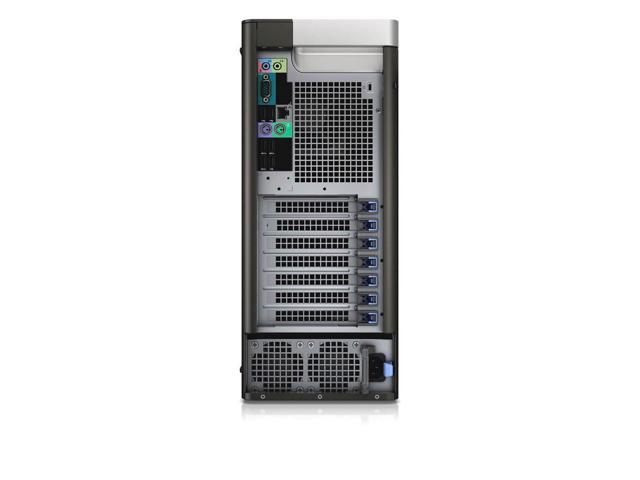

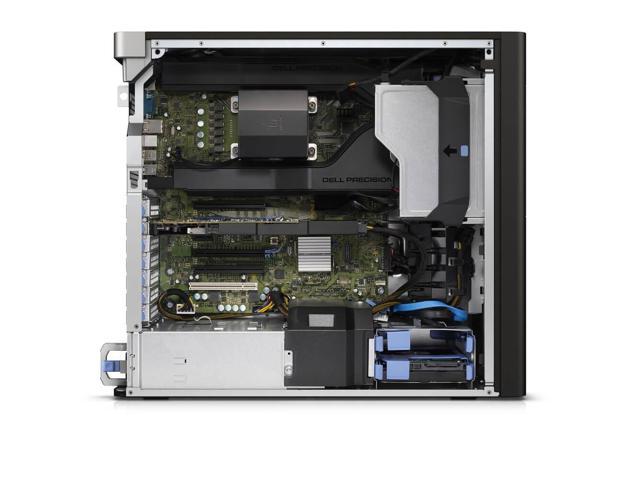

*Systems are built to order and fully customizable. Please call for more information. Note that a stock photo is used and unit may differ depending on configuration.
