Tripp Lite SmartOnline 120V 1.5 kVA 1.35 kWatts Double-Conversion UPS, 2U Rack / Tower, Extended Run, WEBCARDLX Network Interface, LCD, USB, DB9 (SU1500RTXLCDN)
SKU: 9SIAFJ87N0066254.750.150₫
Zero transfer time suitable for advanced network applications
Expandable runtime with optional external battery packs
2% output voltage regulation in online and battery modes
14 minutes runtime at half load; 4.2 minutes at full load

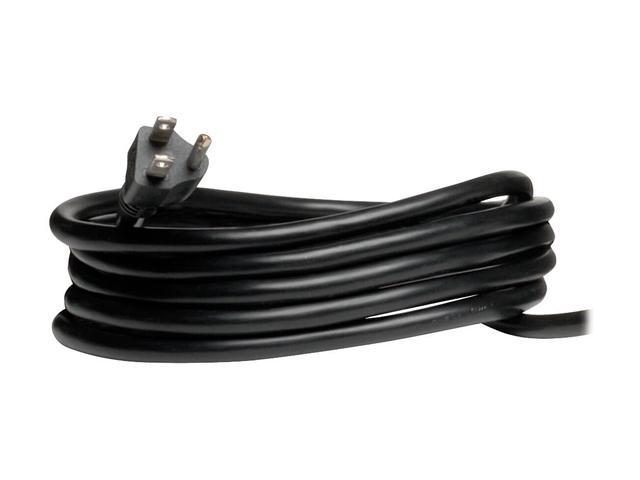

10.0 Feet power cord with NEMA 5-15P input
Description
var ccs_cc_args = ccs_cc_args || []; ccs_cc_args.push([‘mf’,’Tripp Lite’]); ccs_cc_args.push([‘pn’,’SU1500RTXLCDN’]); ccs_cc_args.push([‘upcean’, ”]); ccs_cc_args.push([‘lang’, ‘en’]); ccs_cc_args.push([‘market’, ‘US’]); (function () { var o = ccs_cc_args; o.push([‘_SKey’, ‘1b1e8766’]); o.push([‘_ZoneId’, ‘faa3fafd5b’]); var sc = document.createElement(‘script’); sc.type = ‘text/javascript’; sc.async = true; sc.src = (‘https:’ == document.location.protocol ? ‘https://’ : ‘//’) + ‘cdn.cnetcontent.com/jsc/h.js’; var n = document.getElementsByTagName(‘script’)[0]; n.parentNode.insertBefore(sc, n); })();
Learn more about the Tripp Lite SU1500RTXLCDN
| Brand | TRIPP LITE |
|---|---|
| Model | SU1500RTXLCDN |
| Input Voltage Range | 100 – 127 V |
|---|---|
| Input Connection | NEMA 5-15P |
| VA Rating VA Rating | 1500 VA |
|---|---|
| Watts Watts | 1350 Watts |
| Output Voltage | 127V |
| Output Frequency | 50 / 60 Hz |
| Outlets Outlets | 6 |
| Outlet Type | NEMA 5-15R |
| Battery Type | Valve Regulated Lead Acid (VRLA) |
|---|---|
| Battery Run Time Battery Run Time | Half load: 14 minutes
Full load: 4.2 minutes |
| Battery Recharge Time | <3 Hours |
| Battery Replaceable | RBC94-2U |
| Alarms | Audible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown conditions |
|---|---|
| Interface Port | DB-9, USB |
| Management Software | POWERALERT12 |
| Approvals | Meets FCC Part 15 Category A (EMI); ROHS (Restriction of Hazardous Substances); Tested to CSA (Canada); Tested to UL1778 (USA) |
| Rackmountable | Yes |
| Data Line Protection | 1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet |
|---|---|
| Surge Energy Rating Surge Energy Rating | 570 Joules |
| Features | Protects Mission-Critical Rack-Mounted Equipment
Reliable Battery Backup with Expandable Runtime Included SNMP / Web Capability Switchable Numbered Load Banks Interactive LCD Screen EMI / RFI Line Noise Filtering Audible Alarm Communications Ports Versatile Installation Options |
|---|
| Weight | 54 |
|---|
| Date First Available | July 25, 2020 |
|---|
Pros: great price for the VA it is rated to deliver.
Eco mode option or dual conversion possible, Eco mode switches fast enough for my equipment so a nice plus.

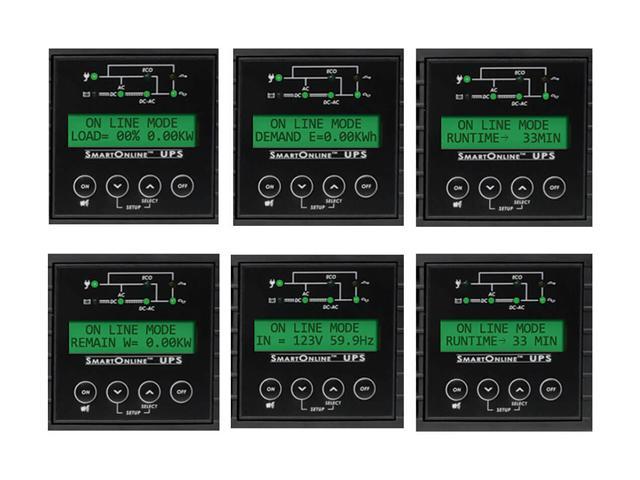

LEDs indicate status (mains AC, battery, ECO mode, bypass, etc) and are always on, so it’s easy to see.
Cons: Assembly/build quality issues. Battery pack is 4x12V sealed lead acid batteries, but the wiring connecting them used crimp connectors that simply fell off. Every connector felt loose, it took a couple hours of my time to fix.
The front bezel feels chincy, and the LCD text display is both crooked and refreshes too slowly to display fast changing input, e.g. the measured load.
The cooling fan cycles between low/high speeds very regularly (every 6 seconds or so?). I can hear it from where I usually sit, can be quite distracting. I believe it cycles due to my load cycling so this may not be an issue for other users.
The menus and buttons would be very difficult to navigate without the manual. Keep it around!
We apologize for the issues you experienced with the SU2200RTXLCD2U. It appears you were able to resolve the issue, but please keep in mind this product is backed by a 2-Year Warranty and we are always happy to replace a product when it does not work accordingly. If you have any questions or need any assistance, please reach out to our Chicago-based Tech Support Team at 773-869-1234 (M-F 7AM-6PM Central).
Pros: Newegg RMA process works
Cons: I have ordered three of these devices. The first arrived with no damage and I have had no problems with it. The second unit arrived with a cracked LCD display and was unusable. The RMA unit that replaced it had the same issue. Both broken units had no shipping damage. I know this is not a Newegg issue, however when I contacted customer service to attempt to have them inspect the next RMA, they said that they were unable to verify the equipment prior to shipping. This is the first time I have had an issue with any product from Newegg. I will be in contact with Tripp Lite to see if they can be of assistance.
We apologize that your SU1500RTXLCD2U arrived in less than perfect condition. Please contact Tripp Lite’s Chicago-based Technical Support team at 773-869-1234 and they will take the necessary action to replace the unit.
Pros: Easy setup, easy load on the server. The server interface was easy to setup and provides good information on the status of the UPS. No problems encountered
Cons: Have some help handy because it is heavy as any ups this size.
Rick
Written by a customer while visiting Tripp Lite
Overall Review: This product distributes connectivity in our Radio Communications Equipment cabinet
AmonH
Written by a customer while visiting Tripp Lite
Overall Review: This device powered my whole server room at the office, and shows barely any usage. 6 ports gave me room for expansion and its compact size left me with plenty of room in the rack.
the 13th Doctor
Written by a customer while visiting Tripp Lite
Overall Review: We needed to protect multiple items on a bench but didn’t want to sacrifice space. Mounted this type underneath the desktop and it did the job brilliantly.
kingermark
Written by a customer while visiting Tripp Lite
Overall Review: Great product. Display is easy to read and tells you what is going on.
