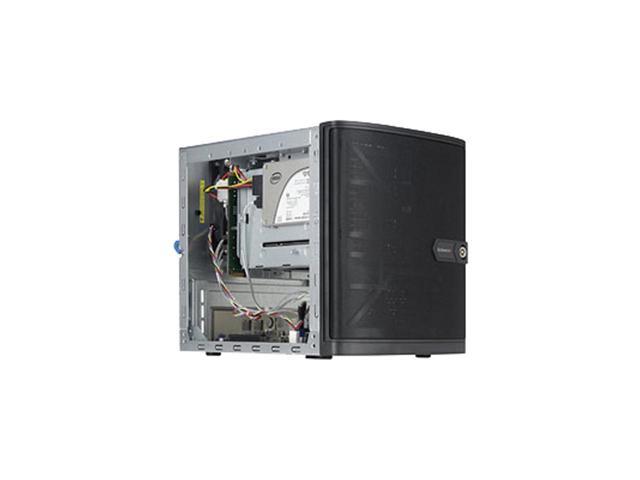

Supermicro SYS-5029AP-TN2 Intel® Atom processor E3940 Mini Tower Server

Super A2SAV

Processor/Cache

CPU
Intel® Atom® Processor E3940
FCBGA 1296
System-on-Chip

System Memory

Memory Capacity
1x 204-pin DDR3 SO-DIMM socket
Memory Type
1866/1600/1333MHz Unbuffered non-ECC SO-DIMM DDR3, 204-pin gold-plated DIM
Ms
DIMM Sizes
8GB, 4GB, 2GB
Memory Voltage
1.5 V, 1.35 V

On-Board Devices

SATA
SoC controller for 2 SATA3 (6Gbps) ports
Marvel 88SE9230 controller for 4 SATA3 (6Gbps) ports; RAID 0, 1, 5, 10
Network Controllers
Dual GbE LAN with Intel i210-AT controller
Virtual Machine Device Queues reduce I/O overhead
Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Video
Intel HD Graphics

Input / Output

SATA
6 SATA3 (6Gbps) ports
LAN
2 RJ45 Gigabit Ethernet LAN ports
USB
2 USB 3.0 (2 rear)
4 USB 2.0 (2 rear, 2 front)
1 USB 2.0 (Type A)
COM Port
2 serial ports
DOM
1 SATA DOM (Disk on Module) power connector
Video
1 VGA, 1 DP (Display Port), 1 HDMI, 1 eDP (Embedded Display Port), 1 Intel HD Graphics
TPM
1 TPM 1.2 onboard Header

Management

Software
SuperDoctor® 5
Watch Dog
Power Configurations
ACPI Power Management
ATX Power connector
Control of power-on for recovery from AC power loss
CPU thermal trip support for processor protection
Chassis

Form Factor
Mini Tower
Model

Dimensions and Weight

Height
9.45″ (240mm) / 13.78″ (350mm) pkg.
Width
8.27″ (210mm) / 12.4″ (315mm) pkg.
Depth
11″ (279mm) / 16.14″ (410mm) pkg.
Weight
Net Weight: 15 lbs ( 6.8 kg)
Available Colors
Black

Front Panel

Buttons
Power On/Off button
System Reset button
LEDs
Power LED
Hard drive activity LED
Network activity LEDs
System Overheat LED

Expansion Slots

PCI-E
1 PCI-E 2.0 x2 (in x8) slot
1 M. 2 PCIe 2.0 x2, M Key 2242/80
1 Mini-PCIe with mSATA

Drive Bays

HDD
4 Hot-swap 3.5″ drive bays
2 Internal 2.5″ fixed drive bays
Peripheral
1 slim DVD-ROM drive bay (shared with 1 internal 2.5″ fixed drive bay)

Power Supply

250W Flex ATX Multi-output Bronze Power Supply
AC Voltage
100 – 240V, 50 – 60Hz, 5Amp
+5V
Max: 14 Amp; Min: 0.5 Amp
+12V
Max: 18 Amp; Min: 1 Amp @100V-240V
-12V
Max: 3 Amp; Min: 0 Amp
+ 3.3V
Max: 12 Amp Min: 0.3A mp
5VSB
Max: 2.5 Amp Min: 0 Amp

System BIOS

BIOS Type
64Mb SPI Flash EEPROM with AMI UEFI BIOS
BIOS Features
Plug and Play (PnP)
DMI 2.3
ACPI 5.0
USB Keyboard support
SMBIOS 2.7. 1
UEFI

Operating Environment / Compliance

RoHS
RoHS Compliant
Environmental Spec.
Operating Temperature:
10°C to 35°C (50°F to 95°F)
Non-operating Temperature:
-40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity:
8% to 90% (non-condensing)
Non-operating Relative Humidity:
5% to 95% (non-condensing)
