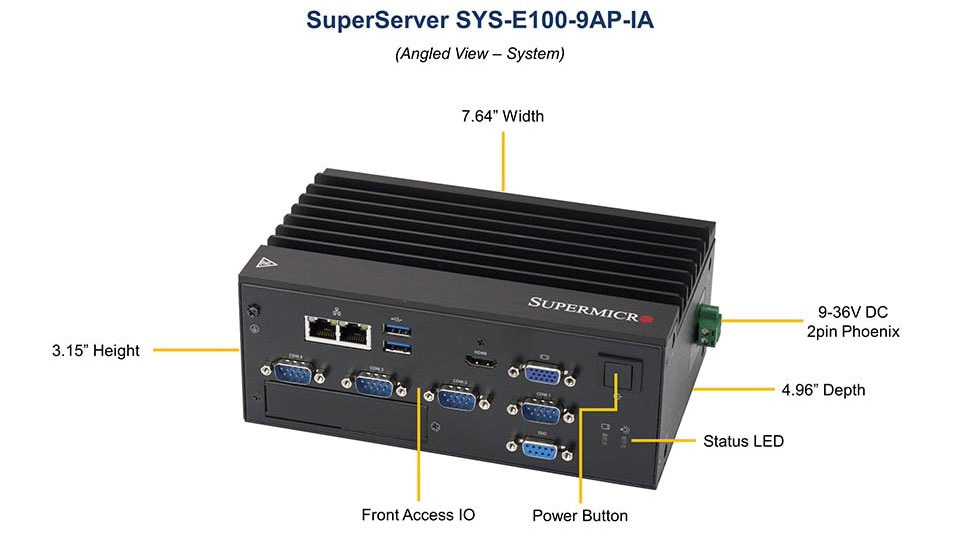

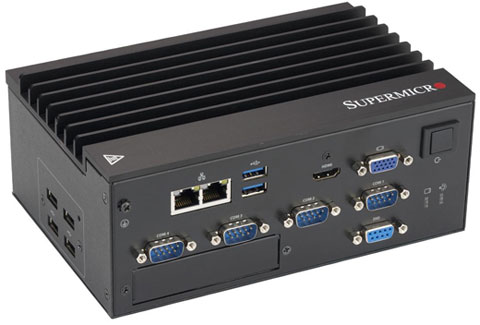

SuperServer E100-9AP-IA barebone system, from Supermicro
With four Serial COM ports, this PC is designed for interfacing and controlling industrial automation systems, scientific devices, Point of Sale devices, and more. It’s armed with Intel Atom x5-E3940 quad-core processor for responsive multitasking performance. The passive cooling design with dense fins on the exterior guarantees efficient dissipation for stable, reliable performance. For robust expandability, this system also comes with dual RJ 45, one HDMI + one VGA, dual USB 3.0 + quad USB 2.0, and a DIO via DB9, all in an ultra-compact footprint.
Please note:
this is a barebone system only. System memory, storage and operating system are required to complete this system. All sold separately.
Key Features
- IoT Gateway for Smart Factory/Building
- Machine Automation
- Industrial Application
1. Intel Atom Processor E3940, Single Socket FCBGA 1296
2. System-on-Chip
3. 1 Full size Mini-PCIe, 1 M.2 2280 B-Key for SATA or PCIe SSD
4. 1 non-ECC DDR3L SODIMM; up to 8GB
5. Dual GbE LAN ports via Intel I210-IT

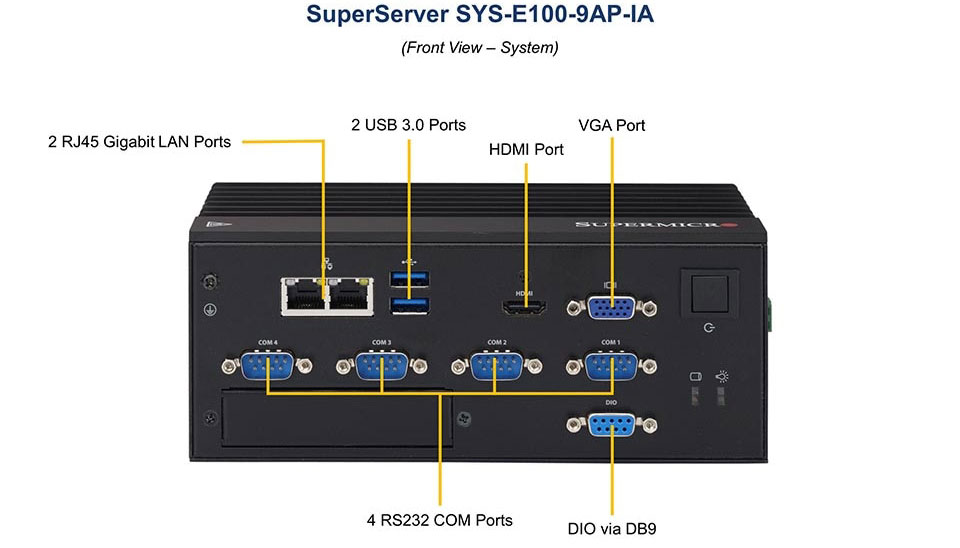

6. 1 HDMI, 1 VGA, 2 USB 3.0, 4 USB 2.0
7. 2 RS232, 2 RS232/422/485 (RS-485 supports auto flow control), 1 DIO via DB9
8. Fanless design
9. 12V DC 60W power adapter with Terminal Block, support 9-36V DC-in
