Supermicro SuperServer 5029S-TN2 Mini-Tower Server, Core i7-6700, 8GB, 256GB SSD
SKU: 9SIB7VEHF1869668.884.200₫
Intel i7-6700 Quad Core Processor with vProDual Intel Gigabit Ethernet (vPro, AMT)4 x 3.5″ Hot-swap Drive BaysSupports M.2 (SATA and PCIe)Supports 5 x SATA 6.0Gb/sRAID 0, 1, 5, 10256GB 2.5″ SATA SSD Included8GB DDR4 Memory Included; 32GB MAX250W 80 PLUS Bronze Power Supply
Description

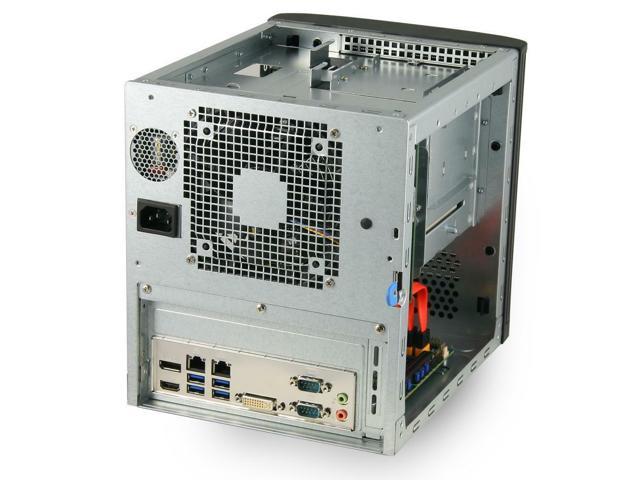

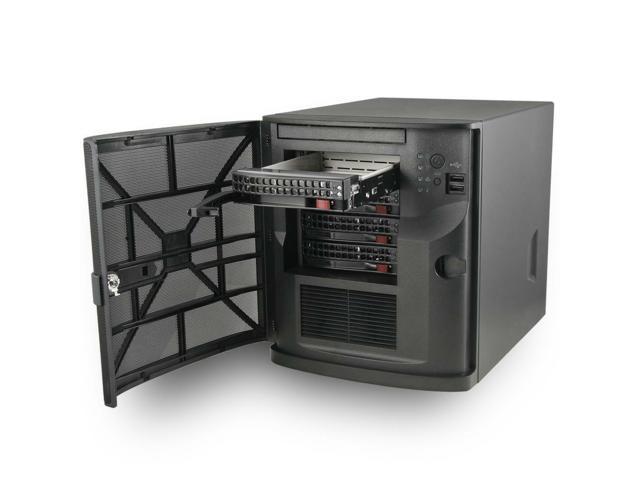

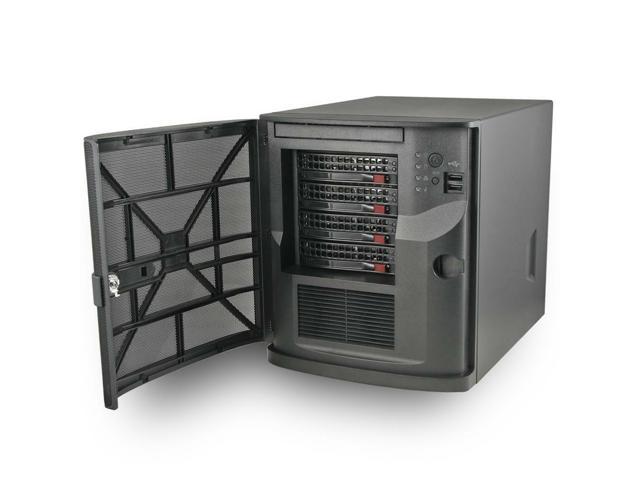

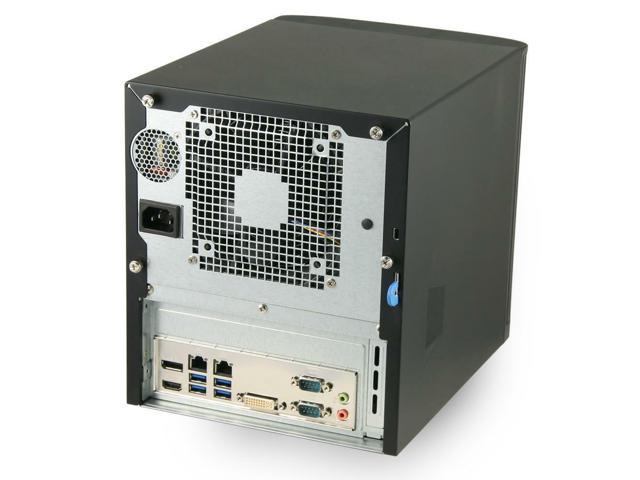

This listing features the Supermicro SuperServer 5029S-TN2 Mini-Tower server configured with an Intel Core i7-6700 Quad Core processor (with vPro) along with 8GB of DDR4 memory and a 256GB SATA Solid State Drive. The Mini Tower server features a locking front bezel with 4 x hot-swap drive bays that support 3.5″ SATA drives or 2.5″ drives with optional drive carriers (not included). Dual Gigabit Ethernet controllers and Intel vPro support (AMT) round off the networking features of this Mini-Tower server. With support for Intel HD Graphics (1080p and 4K UHD) and 3 indepedent display output ports, this Mini-Tower server can excel as a digital-media, content server as well as digital signage server.
Complete System: Fully assembled. To complete this system, you will need Operating System Software. Product ID 5029S-TN2-I7 CPU Intel Core i7-6700 3.4 – 4.0GH z 4 Cores / 8 Threads 65W TDP, 8MB Cache, 64-bit Chipset Intel Q170 Chipset Memory 8GB DDR4 SODIMM Memory Included (1 x 8GB) 2 260-pin DDR4 SODIMM Slots 32GB Maximum Capacity 2400/2133/1866/1600MHz Non-ECC DDR4 Unbuffered SDRAM Video Intel HD Graphics 530 350 MHz – 1.05
GHz HDMI: 4096 x 2304 @ 24Hz

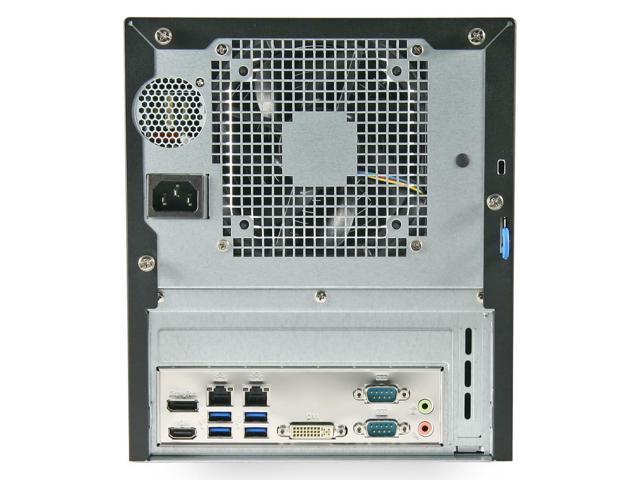

DP: 4096 x 2304 @ 60HZ Audio Realtek ALC888S HD Audio Storage Technologies 4 SATA 6Gb/s Ports RAID 0, 1, 5, 10 1 SATA 6GB/s Port 1 M. 2 (PCIe or SATA) M Key 2242/2280 M. 2 SATA and SATA0 (mux); SATA0 and SATA1 also support pin-8 power with compatible SATA DOM Drive Support 256GB 2.5″ SATA Solid State Drive Installed 4 Hot-swappable 3.5″ SATA 2 Fixed 2.5″ SATA 1 M. 2 (PCIe or SATA) Supports a combined total of 5 x SATA drives. Connectivity 1 Intel 1219LM GbE PHY (supports vPro, AMT) 1 Intel I210-AT GbE Expansion 1 PCI-E x16 ( 3.0 ) Low Profile 1 TPM 1.2 Rear Panel I/O 1 DisplayPort 1 HDMI 2 RJ45 GbE 4 USB 3.0 1 DVI-I 2 Serial 2 Audio I/O Front Panel I/O 1 Power LED 1 Hard Drive activity LED 2 Network activity LED 1 System LED 1 Reset Button 1 Power Switch 2 USB 2.0 Power Supply 250W 80 PLUS Bronze AC-DC power supply
AC Voltage: 100 ~ 240V, 50-60Hz, 5
Amp Max +5V: 14A;
Min: 0.5A
+12V: 18A;
Min: 1A
-12V: 3A;
Min: 0A
+ 3.3V: 12A;
Min: 0.3A
5VSB: 2.5A;
Min: 0A Cooling 120mm x 120mm Case Fan Case Dimensions 240mm x 210mm x 279mm 9.45″ x 8.27″ x 11″ (in inches) Warranty 1-Year Warranty on Parts and Labor
Learn more about the Detailed Specifications
| Type | Mini-tower |
|---|
| Date First Available | April 11, 2022 |
|---|
