Supermicro SuperServer 5029S-TN2 Mini-Tower Server, Core i5-6500, 8GB, 256GB SSD
SKU: 9SIB7VEJ3R411158.523.850₫

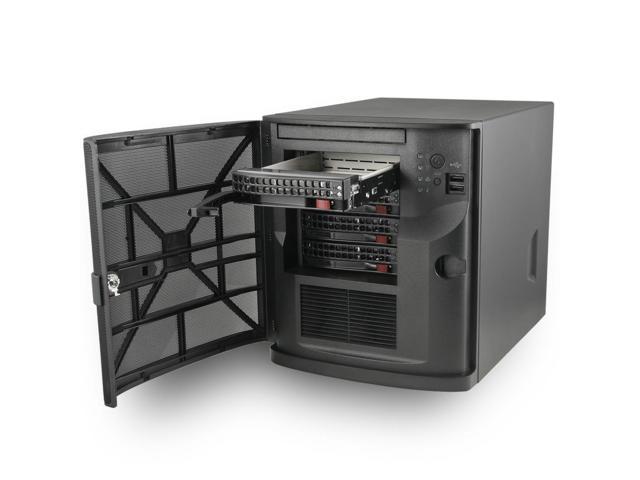

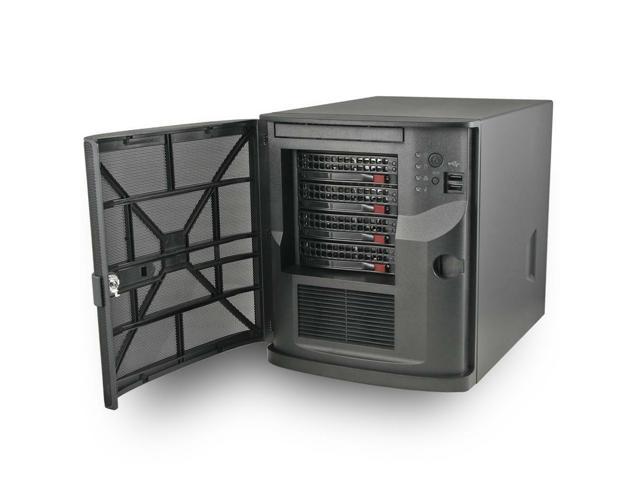

This listing features the Supermicro SuperServer 5029S-TN2 Mini-Tower server configured with an Intel Core i5-6500 Quad Core processor (with vPro) along with 8GB of DDR4 memory and a 256GB SATA Solid State Drive. The Mini Tower server features a locking front bezel with 4 x hot-swap drive bays that support 3.5″ SATA drives or 2.5″ drives with optional drive carriers (not included). Dual Gigabit Ethernet controllers and Intel vPro support (AMT) round off the networking features of this Mini-Tower server. With support for Intel HD Graphics (1080p and 4K UHD) and 3 indepedent display output ports, this Mini-Tower server can excel as a digital-media, content server as well as digital signage server.Intel i5-6500 Quad Core Processor with vProDual Intel Gigabit Ethernet (vPro, AMT)4 x 3.5″ Hot-swap Drive BaysSupports M.2 (SATA and PCIe)Supports 5 x SATA 6.0Gb/sRAID 0, 1, 5, 10256GB 2.5″ SATA SSD Included8GB DDR4 Memory Included; 32GB MAX250W 80 PLUS Bronze Power Supply
Description
Complete System: Fully assembled. To complete this system, you will need Operating System Software.
Supermicro SuperServer 5029S-TN2 Intel Core i5-6500 Mini-Tower server w/ 8GB & 256GB 2.5″ SSD
Product ID 5029S-TN2-I5
CPU Intel Core i5-6500
3.2 – 3.6GH z
4 Cores / 4 Threads
65W TDP, 6MB Cache, 64-bit
Chipset Intel Q170 Chipset
Memory 8GB DDR4 SODIMM Memory Included (1 x 8GB)
2 260-pin DDR4 SODIMM Slots
32GB Maximum Capacity
2400/2133/1866/1600MHz Non-ECC DDR4 Unbuffered SDRAM
Video Intel HD Graphics 530
350 MHz – 1.05 GHz
HDMI: 4096 x 2304 @ 24Hz
DP: 4096 x 2304 @ 60HZ
Audio Realtek ALC888S HD Audio
Storage Technologies 4 SATA 6Gb/s Ports RAID 0, 1, 5, 10
1 SATA 6GB/s Port
1 M. 2 (PCIe or SATA) M Key 2242/2280
M. 2 SATA and SATA0 (mux); SATA0 and SATA1 also support pin-8 power with compatible SATA DOM
Drive Support 256GB 2.5″ SATA Solid State Drive Installed
4 Hot-swappable 3.5″ SATA
2 Fixed 2.5″ SATA
1 M. 2 (PCIe or SATA)
Supports a combined total of 5 x SATA drives.
Connectivity 1 Intel 1219LM GbE PHY (supports vPro, AMT)
1 Intel I210-AT GbE
Expansion 1 PCI-E x16 ( 3.0 ) Low Profile
1 TPM 1.2

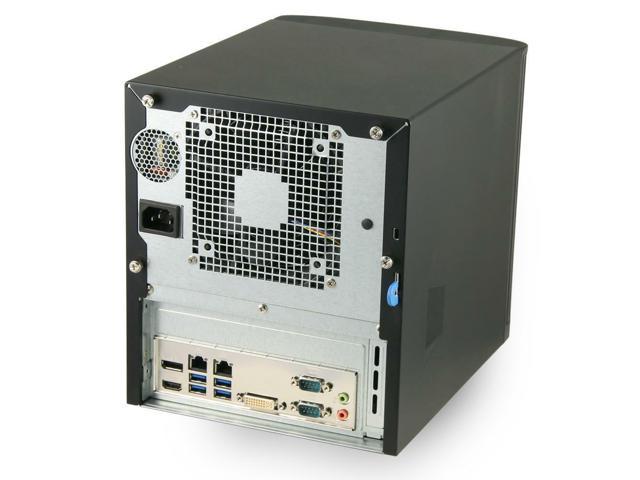

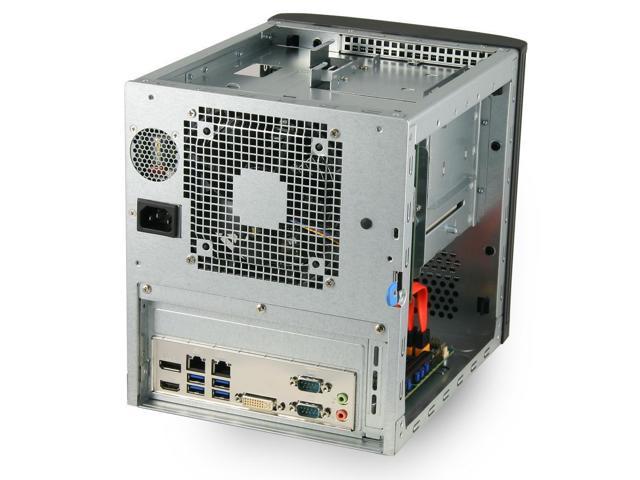

Rear Panel I/O 1 DisplayPort
1 HDMI
2 RJ45 GbE
4 USB 3.0
1 DVI-I
2 Serial
2 Audio I/O
Front Panel I/O 1 Power LED
1 Hard Drive activity LED
2 Network activity LED
1 System LED
1 Reset Button
1 Power Switch
2 USB 2.0
Power Supply 250W 80 PLUS Bronze AC-DC power supply
AC Voltage: 100 ~ 240V, 50-60Hz, 5 Amp Max
+5V: 14A; Min: 0.5A
+12V: 18A; Min: 1A
-12V: 3A; Min: 0A
+ 3.3V: 12A; Min: 0.3A
5VSB: 2.5A; Min: 0A
Cooling 120mm x 120mm Case Fan
Case Dimensions 240mm x 210mm x 279mm
9.45″ x 8.27″ x 11″ (in inches)
Warranty 1-Year Warranty on Parts and Labor
Supermicro SuperServer 5029S-TN2 Intel Core i5-6500 Mini-Tower server w/ 8GB & 256GB 2.5″ SSD
Product ID 5029S-TN2-I5
CPU Intel Core i5-6500
3.2 – 3.6GH z
4 Cores / 4 Threads
65W TDP, 6MB Cache, 64-bit
Chipset Intel Q170 Chipset
Memory 8GB DDR4 SODIMM Memory Included (1 x 8GB)
2 260-pin DDR4 SODIMM Slots
32GB Maximum Capacity
2400/2133/1866/1600MHz Non-ECC DDR4 Unbuffered SDRAM
Video Intel HD Graphics 530
350 MHz – 1.05 GHz
HDMI: 4096 x 2304 @ 24Hz
DP: 4096 x 2304 @ 60HZ
Audio Realtek ALC888S HD Audio
Storage Technologies 4 SATA 6Gb/s Ports RAID 0, 1, 5, 10
1 SATA 6GB/s Port
1 M. 2 (PCIe or SATA) M Key 2242/2280
M. 2 SATA and SATA0 (mux); SATA0 and SATA1 also support pin-8 power with compatible SATA DOM
Drive Support 256GB 2.5″ SATA Solid State Drive Installed
4 Hot-swappable 3.5″ SATA
2 Fixed 2.5″ SATA
1 M. 2 (PCIe or SATA)
Supports a combined total of 5 x SATA drives.
Connectivity 1 Intel 1219LM GbE PHY (supports vPro, AMT)
1 Intel I210-AT GbE
Expansion 1 PCI-E x16 ( 3.0 ) Low Profile
1 TPM 1.2
Rear Panel I/O 1 DisplayPort
1 HDMI
2 RJ45 GbE
4 USB 3.0
1 DVI-I
2 Serial
2 Audio I/O
Front Panel I/O 1 Power LED
1 Hard Drive activity LED
2 Network activity LED
1 System LED
1 Reset Button
1 Power Switch
2 USB 2.0
Power Supply 250W 80 PLUS Bronze AC-DC power supply
AC Voltage: 100 ~ 240V, 50-60Hz, 5 Amp Max
+5V: 14A; Min: 0.5A
+12V: 18A; Min: 1A
-12V: 3A; Min: 0A
+ 3.3V: 12A; Min: 0.3A
5VSB: 2.5A; Min: 0A
Cooling 120mm x 120mm Case Fan
Case Dimensions 240mm x 210mm x 279mm
9.45″ x 8.27″ x 11″ (in inches)
Warranty 1-Year Warranty on Parts and Labor
Learn more about the Detailed Specifications
| Type | Desktop |
|---|
| Date First Available | August 02, 2022 |
|---|
