Supermicro SuperServer 5029S-TN2 Mini-Tower Barebone Server, Intel Core, Hotswap Fully assembled
SKU: 9SIB7VEJ3R401448.440.700₫
Intel 6th-Generation LGA 1151 Processor SupportDual Intel Gigabit Ethernet (vPro, AMT)4 x 3.5″ Hot-swap Drive Bays and 2 x 2.5″ Drive SupportSupports M.2 (SATA and PCIe)Supports 5 x SATA 6.0Gb/sRAID 0, 1, 5, 10Supports 32GB DDR4 Memory250W 80 PLUS Bronze Power SupplyThe Supermicro SuperServer 5029S-TN2 Mini-Tower server features support for the 6th-generation Intel Core i3, i5 and i7 processors as well as the Celeron and Pentium LGA 1151 processors. Dual Gigabit Ethernet controllers and Intel vPro support (AMT) round off the networking features of this Mini-Tower server. The Mini Tower features a locking front bezel with 4 x hot-swap drive bays that support 3.5″ SATA drives or 2.5″ drives with optional drive carriers (not included). With support for Intel HD Graphics (1080p and 4K UHD) and 3 indepedent display output ports, this Mini-Tower server can excel as a digital-media, content server as well as digital signage server.
Description
Barebone: Fully assembled. To complete this system, you will need System Memory, a Storage Drive and Operating System Software.
Supermicro SuperServer 5029S-TN2 Mini-Tower Barebone Server w/ 4 x 3.5″ Hotswapable SATA drive bays
Supermicro SuperServer 5029S-TN2 Mini-Tower Barebone Server w/ 4 x 3.5″ Hotswapable SATA drive bays
Product ID 5029S-TN2
CPU Single-socket H4 (LGA 1151)
Supports 6th-Generation Intel Core i3/i5/i7, Celeron and Pentium Processors
Supports vPro
80W TDP Maximum
Chipset Intel Q170 Chipset
Memory 2 260-pin DDR4 SODIMM Slots
32GB Maximum Capacity
2400/2133/1866/1600MHz Non-ECC DDR4 Unbuffered SDRAM
Video Intel HD Graphics (Processor Dependent)
Audio Realtek ALC888S HD Audio
Storage Technologies 4 SATA 6Gb/s Ports RAID 0, 1, 5, 10
1 SATA 6GB/s Port
1 M. 2 (PCIe or SATA) M Key 2242/2280
M. 2 SATA and SATA0 (mux); SATA0 and SATA1 also support pin-8 power with compatible SATA DOM

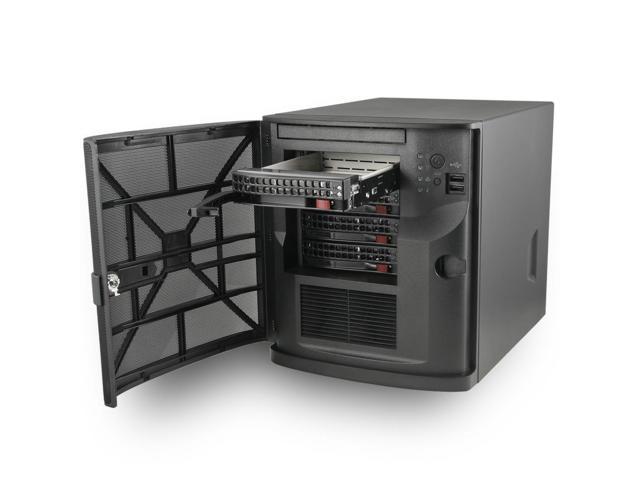

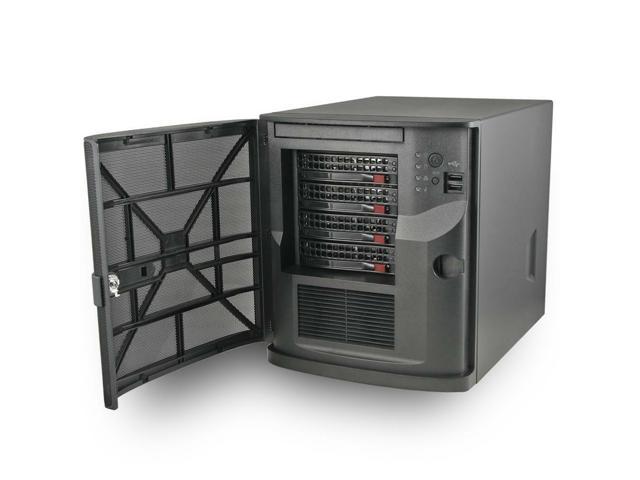

Drive Support 4 Hot-swappable 3.5″ SATA
2 Fixed 2.5″ SATA
1 M. 2 (PCIe or SATA)
Supports a combined total of 5 x SATA drives.
Connectivity 1 Intel 1219LM GbE PHY (supports vPro, AMT)
1 Intel I210-AT GbE
Expansion 1 PCI-E x16 ( 3.0 ) Low Profile
1 TPM 1.2

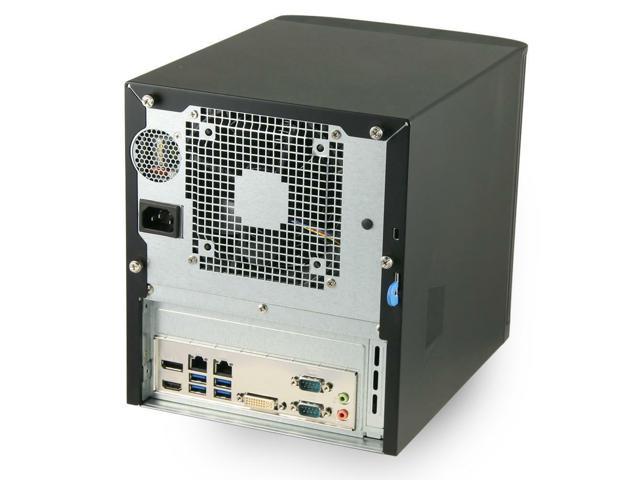

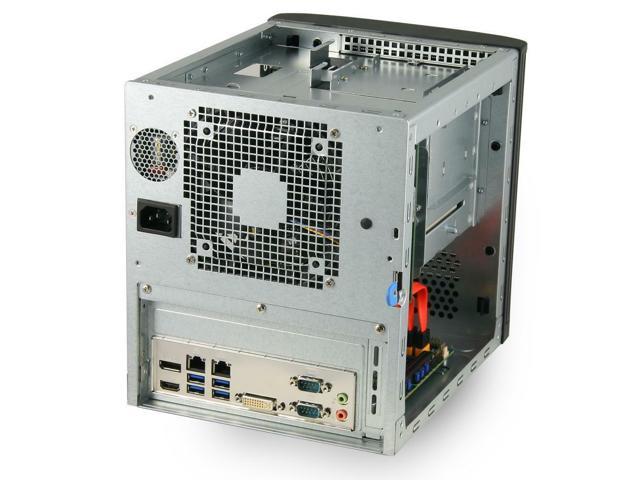

Rear Panel I/O 1 DisplayPort
1 HDMI
2 RJ45 GbE
4 USB 3.0
1 DVI-I
2 Serial
2 Audio I/O
Front Panel I/O 1 Power LED
1 Hard Drive activity LED
2 Network activity LED
1 System LED
1 Reset Button
1 Power Switch
2 USB 2.0
Power Supply 250W 80 PLUS Bronze AC-DC power supply
AC Voltage: 100 ~ 240V, 50-60Hz, 5 Amp Max
+5V: 14A; Min: 0.5A
+12V: 18A; Min: 1A
-12V: 3A; Min: 0A
+ 3.3V: 12A; Min: 0.3A
5VSB: 2.5A; Min: 0A
Cooling 120mm x 120mm Case Fan
Case Dimensions 240mm x 210mm x 279mm
9.45″ x 8.27″ x 11″ (in inches)
Warranty 1-Year Warranty on Parts and Labor
Learn more about the Detailed Specifications
| Type | Desktop |
|---|
| Date First Available | August 02, 2022 |
|---|
