Supermicro Super Workstation SYS-730A Black

Processor
CPU
Dual Socket P+ (LGA-4189)
3rd Gen Intel® Xeon® Scalable processors
Support CPU TDP 270W *
Cores
Up to 40C/80T; Up to 60MB Cache
Note
*Certain CPU SKUs are conditionally supported, please contact Supermicro Technical Support for additional information about specialized system optimization

System Memory
Memory
Memory Capacity: 16 DIMM slots
Up to 2TB: 16x 128 GB DRAM
Up to 5TB: 8x 128 GB DRAM and 8x 512 GB PMem
Memory Type: 3200MHz ECC DDR4 RDIMM, LRDIMM
Intel® Optane persistent memory 200 series
Note
Memory DIMM capacities larger than 16GB are supported under certain conditions, please contact Supermicro Technical Support for additional information about specialized system optimization
Memory Voltage
1.2 V
Error Detection
ECC

On-Board Devices
SATA
SATA3 (6Gbps); RAID 0/1/5/10 support
Chipset
Intel® C621A
Network Connectivity
2x 1GbE port (s)
IPMI
Support for Intelligent Platform Management Interface v. 2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Input / Output
SATA
2 SuperDOM port (s)
LAN
2 RJ45 1GbE (IPMI Shared on LAN port1)
USB
2 USB 3.2 Gen2 port (s) (1 Front_USB; 1 Rear_USB)
6 USB 3.2 Gen1 port (s) (2 Front_USB; 4 Rear_USB)
Video
1 VGA port (s)

System BIOS
BIOS Type
AMI 32MB SPI FLASH ROM

Management
Software
Redfish API
IPMI 2.0
SSM
SPM
KVM with dedicated LAN
SUM
NMI
Watch Dog
SuperDoctor® 5
Power Configurations
ACPI/APM Power Management

PC Health Monitoring
CPU
Monitors for CPU Cores, Chipset Voltages, Memory.
FAN
Pulse Width Modulated (PWM) fan connectors
Status monitor for speed control
Temperature
Monitoring for CPU and chassis environment
Thermal Control for fan connectors

Chassis
Form Factor
Mid-Tower
Model
CSE-735D4-1K26B

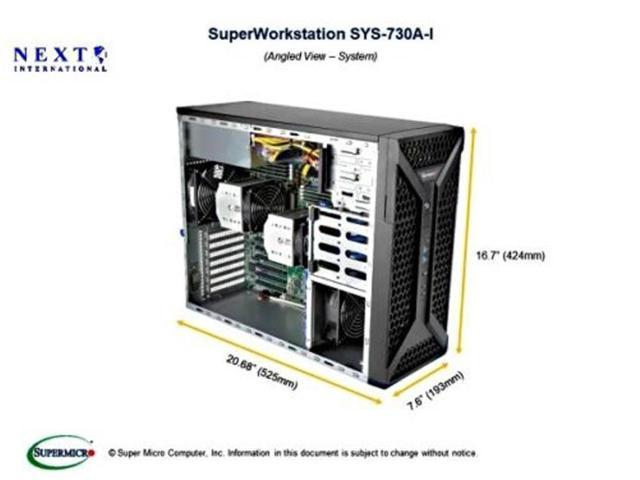

Dimensions and Weight
Height
16.7″ (424mm)
Width
7.6″ (193mm)
Depth
20.68″ ( 525.3 mm)
Package
21.38″ (H) x 11.97″ (W) x 25.28″ (D)
Weight
Net Weight: 27 lbs ( 12.25 kg)
Gross Weight: 30 lbs ( 13.61 kg)
Available Color
black

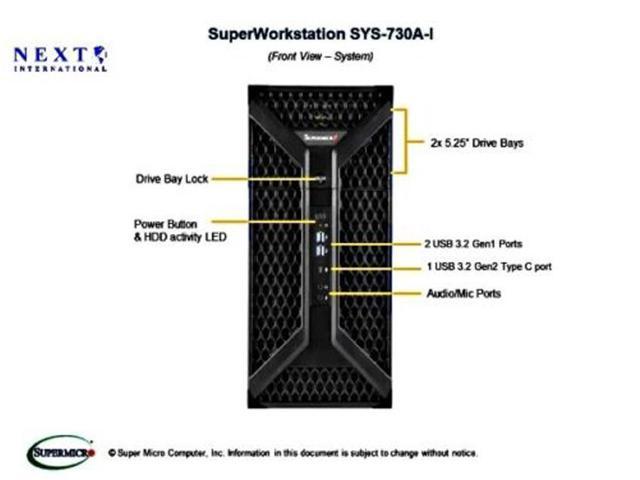

Front Panel
Buttons
Power On/Off button
LEDs
HDD activity LED

Expansion Slots
PCI-Express (PCI-E)
Slot 1: PCI-E 4.0 x16 FHFL
Slot 2: PCI-E 4.0 x16 FHFL
Slot 3: PCI-E 4.0 x16 FHFL
Slot 4: PCI-E 4.0 x16 FHFL
Slot 5: PCI-E 4.0 x16 FHFL
Slot 6: PCI-E 4.0 x8 FHHL

Drive Bays / Storage
Drive Bays
4x 3.5″ SATA (NVMe optional) drive bays (4x 2.5″ NVMe hybrid)
M. 2
2 M. 2 NVMe
Peripheral Bays
2x 5.25″ drive bays (optional)

System Cooling
Fans
2x 12cm heavy duty fans with optimal fan speed control

Power Supply
1200W PS2 Multi output power supply with modular cable
Dimension
(W x H x L)
150 x 86 x 185 mm
AC Input
100-240Vac / 8A Max / 50-60Hz
Output Type
Modular Cable Output
Certification Platinum Level Certified Platinum Level

[ Test Report ]

Operating Environment
Environmental Spec.
Operating Temperature:
10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
-40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity:
8% to 90% (non-condensing)
Non-operating Relative Humidity:
5% to 95% (non-condensing)
Parts List – (Items Included)

Part Number
Qty
Description
Motherboard / Chassis MBD-X12DAI-N6
CSE-735D4-1K26B 1
1 Super X12DAI-N6 Motherboard
Mid-Tower Chassis
Cable 1 CBL-0082L 2 Y SPLIT SATA POWER ADAPTER, PB FREE
Cable 2 CBL-SAST-0624 4 70cm SATA Cable S-S 30AWG
Parts MCP-260-00115-0N 1 Standard I/O Shield for X11DAi with EMI Gasket
Manual MNL-2390-QRG 1 730A-I Quick Reference Guide
*Cable 3 CBL-PWCD-0160-IS 1 PWCD, US, NEMA5-15P TO IEC60320 C13, 6FT, 16AWG, RoHS/REACH
*Power Supply PWS-1K26P-PQ 1 1000W/1200W PS2 Multi output power supply with modular cable
*Cable 4 CBL-CDAT-0560 1 Audio Cable HD / AC97 -80cm, 28AWG, HF, RoHS/REACH, PBF
*Cable 5 CBL-CDAT-0680-55 1 NCSI, 2x10F to 2x10F, IDC, PH 2.54, 55cm, shield, 28AWG, RoHS
*Cable 6 CBL-CUSB-0860 1 USB 3.0, INT, 20 PIN/F TO 20PIN/F, 60CM, 30/26AWG
*Cable 7 CBL-CUSB-0999 1 USB 3.2 Gen2X2 TypeC INT 20M to USB 3.2 TypeC 24F, 45CM, 30AWG, R
*Cable 8 CBL-CUSB-0999 1 USB 3.2 Gen2X2 TypeC INT 20M to USB 3.2 TypeC 24F, 45CM, 30AWG, R
*FAN 1 FAN-0077L4-1 2 120x120x38 mm, 4K RPM, Optional Rear Exhaust Fan for SC732
*Front Panel FPB-FP735 1 Front control board for CSE735, RoHS
Notes:
Parts with * are inside the chassis
Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables….. etc.
Optional Parts List
Part Number Qty Description
DVD-RW Drive DVM-LITE-DVDRW24-HBT1 – BLACK LITE-ON 5.25″ HH 24X DVD-RW SATA DRIVE
HDD Cage MCP-220-73201-0N – 2.5″ HDD Cage (supports up to 4x 2.5″ HDD/SSD)
Heat Sink SNK-P0080AP4 – 4U Active CPU Heat Sink for X12 Generation DP Workstations
Management Software SFT-DCMS-SINGLE – Supermicro System Managment Software Suite – 1 per node
NVMe Cable CBL-SAST-0953 – Slimline x8 to PCIe 2x SFF-8639 (1 cable supports up two 2.5″ NVMe drives)
OOB License SFT-OOB-LIC – License for out of band management
SATA Cable CBL-SAST-0624 – 70cm SATA Cable (1pc required for DVD Drive)
SATA Power adapter CBL-0082L – Y SPLIT SATA POWER ADAPTER (1pc required for DVD Drive)
TPM security module AOM-TPM-9670V – SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor
