HP Z8 G4 Workstation Gold 6148 Twenty Core 2.4Ghz 384GB RAM 500GB SSD Quadro P600 Win 10

Processor: Single Intel Xeon Gold 6148 Twenty Core 2.4Ghz Processor. 20 Total Cores, 40 Virtual Cores in Hyperthreading Mode! (Additional processor configurations available).

Memory: 384GB. Supports up to 3TB of total memory, Six channel memory up to 2666MHz DDR4 ECC memory with dual CPUs, 24 DIMM Slots (12 DIMMs per CPU).
.

Storage: New 512GB 6Gb/s SATA Solid State Drive (Additional storage configurations available).

Storage Controller: Onboard SATA Controller, Raid 0,1,5,10

Expansion Bays:

• 4 internal 3.5″ bays (All 4 include acoustic dampening rail assemblies)
• 2 external 5.25″ bays (175mm depth limit)
• 1 dedicated 9.5mm slim optical disk drive bay

Interface Support:

• 10 channel SATA 6.0 Gb/s interface
• Factory integrated RAID available for SATA drives (RAID 0, 1 and 10)
• Internal USB 3.1 Gen1, USB 3.1 Gen2, USB 2.0

Graphics: Nvidia Quadro P600 2GB GDDR5 Graphic Card Ports: (4) Mini DP 1.4 (Additional graphic cards available). Support for 4 PCI Express x16 Gen 3 graphics cards -includes four 6+2-pin graphics power cables.

Operating System: Windows 10 Professional 64-Bit Pre-Installed.

Power Supply: 1125W/100V/15A 90% Efficient wide-ranging, active Power Factor Correction

Optical Drive(s): DVDRW Drive.

Expansion Slots:

• Slot 1: PCIe Gen3 x4 – Transforms to PCIe Gen3 x8 when 2nd CPU is installed
• Slot 2: PCIe Gen3 x16
• Slot 3: PCIe Gen3 x16 – Available ONLY when 2nd processor is installed
• Slot 4: PCIe Gen3 x16
• Slot 5: PCIe Gen3 x4
• Slot 6: PCIe Gen3 x16 – Available ONLY when 2nd processor is installed
• Slot 7: PCIe Gen3 x4
• Note:The PCIe x4 and PCIe x8 connectors above are open ended, allowing a PCIe x16 card to be seated in the slot.

Networking: 2 RJ-45 to integrated Gigabit LAN

Front Ports:

• Included: 4 USB 3.1 Gen1 Type-A connector. Left most connector has charging capability, 1 Combo Headset, 1 Optional Media Card Reader
• Optional: 2 USB 3.1 Gen1 Type-A connector. Left most connector has charging capability, 2 USB 3.1 Gen2 Type-C connector, 1 Combo Headset, 1 Optional Media Card Reader

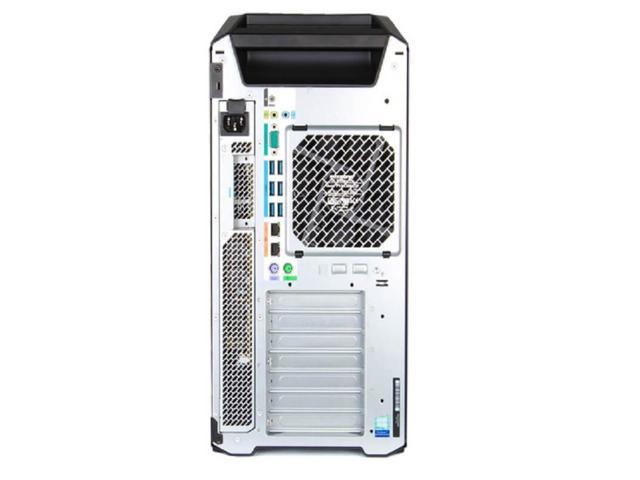

Rear Ports:

• Included: 6 USB 3.1 Gen1 (aka USB 3.0), 1 Serial, PS/2 keyboard and mouse, 2 RJ-45 to integrated Gigabit LAN, 1 Audio Line-In (can be retasked as microphone), 1 Audio Line-Out
• Optional: 2 RJ-45 to 10GbE LAN ports

Internal Ports:

• Internal Slot 1 CPU1: PCIe Gen3 x8 – always available
• Internal Slot 2 CPU2: PCIe Gen3 x8 – available when 2nd CPU is installed
• 2 USB 2.0 ports available with a single 2×5 header
• 1 USB 2.0 port available with a 1×6 header
• 1 USB 3.1 Gen1 and 1 USB 2.0 port available with a 2×6 header

Audio Controller: Integrated Realtek HD ALC221 Audio

Speakers: Internal Speaker

Peripherals: Power Cable Included. Mouse, Keyboard, and Video Cable Not Included.

Dimensions: 50 Lbs, 21.46” x 8.5” x 17.13” (L x W x H)

*Systems are built to order and fully customizable. Please call for more information. Note that a stock photo is used and unit may differ depending on configuration.
