HP ProLiant DL580 G8 Tower/Rack-mountable Server System Intel Xeon E7-4850 v2 2.3GHz 128GB 1R x4 PC3-14900-13 10 728546-001

Breakthrough Performance and Scalability

• The HP ProLiant DL580 Gen8 Server provides up to 2x processor performance and 50% more cores with Intel Xeon E7-4800 v2 processors than the previous generation.
• Allows you to implement large-scale in-memory computing and virtualization with more memory slots (96 DIMMs).
• Supports more PCIe flash storage or co-processor cores to boost performance with greater I/O bandwidth: 9 PCIe Gen3 slots including 5 x16 FL/FH slots.
• Increases SSD performance with 12 Gbps HP Smart Array SAS Controllers and greater internal storage capacity for faster access to more data.

Leading Availability and Reliability

• The HP ProLiant DL580 Gen8 Server provides increased system availability and less need for service with enhanced error recovery, improved error diagnosis, and built-in redundancy.
• Improves reliability and data protection with HP Smart Array Controllers featuring 4 G cache, Advanced Data Mirroring, and HP SmartDrive technology.
• Increases security with support for Unified Extensible Firmware Interface (UEFI) mode, Secure Boot, HP Secure Encryption, and Intel Secure Key.
• HP Proactive Care Services integrates uptime and productivity into a personalized, simplified support experience.

Compelling Efficiencies with Intelligent Manageability and Scale-up Consolidation

• The HP ProLiant DL580 Gen8 Server provides total cost of ownership savings with scale-up consolidation efficiencies and software licensing cost savings.
• Faster, lower-cost infrastructure management and a single integrated view of your IT infrastructure with HP OneView.
• Provides up to 3x faster administrative updates with 93% less downtime and 69% less operator time through industry-leading maintenance tools with HP Smart Update Manager (SUM).
• Comprehensive embedded manageability with HP iLO 4, HP Agentless Management, HP Active Health System, HP Intelligent Provisioning, and HP Embedded Remote Support.
• User-inspired features such as FlexibleLOM for a choice in networking, front access processor/memory drawer for ease of serviceability, and QR code for quick access to product information.

HP ProLiant DL580 Gen8

• The HP ProLiant DL580 Gen8 Server is an enterprise-grade four socket (4S) x86 server offering breakthrough performance, rocksolid
  reliability, and compelling consolidation and manageability efficiencies. It is ideal for mission-critical enterprise, business
  intelligence, and database applications.
• Featuring Intel® Xeon® E7-4800/8800 v2 processors, the DL580 Gen8 offers blazing fast results with enhanced processor
  performance, more memory slots (96 DIMMs), greater IO bandwidth (9 PCIe Gen3.0 slots), and increased storage performance (12
  Gbps SAS). HP ProLiant DL580 Gen8 has security and data protection features for system resiliency that your business can depend
  on. With intelligent manageability through HP OneView, iLO 4, and user-inspired features, you get faster, lower cost infrastructure
  management.

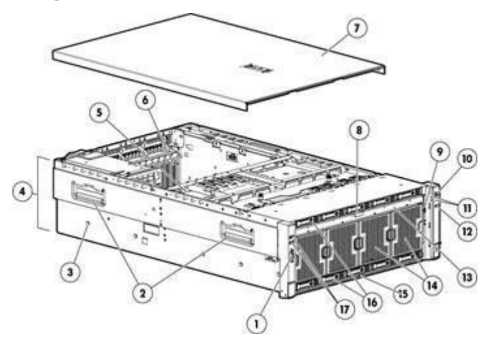

Front view

1. One front video port
2. Server lifting handles
3. Universal Tool-less “Snap in” sliding rail solution
4. 4U (7″ height) form factor
5. Support for up to four Intel® Xeon® 4800/8800 v2 Processors
6. Up to 9 slots supported; all full-length/full-height
7. Quick removal access panel
8. Quick release lever for Processor and Memory drawer
9. Slide out Systems Insight Display
10. Power button
11. Health and Network LEDs
12. Unit ID LED
13. Front accessible Processor and memory drawer
14. 4 Hot Plug Fans (eight rotors with N+1 redundancy)
15. Asset tag
16. Support for up to 10 Small Form-Factor (SFF) drives
17. Two front accessible USB 2.0 ports

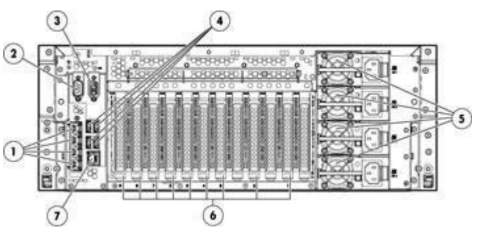

Rear view

1. NIC ports
2. Serial port
3. Video port
4. Four (4) USB ports
5. Hot Plug Redundant Power Supplies (2 or 4 depending on the model)
6. 9 PCIe 3.0 IO Expansion Slots
7. iLO connector

• Enhanced memory speeds for 4GB, 8GB, 16GB DIMMs in performance and lockstep mode
• Support for HP IB FDR/EN 40Gb 2P 544+FLR-QSFP adapter
• Support for 64 GB DIMMs. Extends DL580 Gen8 maximum memory up to 6 TB
• Support for 81E and 82E 8 Gbps Fibre-Channel Host Bus adapter
• Support for FibreChannel over Ethernet (FCOE) functionality in CN1100R and 534FLR-SFP+
