HP ProLiant DL160 G9 Rack Server System Intel Xeon E5-2603 v3 1.60 GHz 8GB DDR4-2133/PC4-17000 4 LFF HDD Bays 769503-B21

/* Insert SKU number in place of “sku-59-108-604” */
#overview-content.sku-59-108-604 .banner {width:100%; height:71px; margin-bottom:0; background:url(‘//images10.newegg.com/BizIntell/item/59/108/59-108-604/hp_111015.jpg’) no-repeat left; }
#overview-content .st {margin:0 auto 20px;background:url(‘//images10.newegg.com/BizIntell/item/59/108/59-108-604/title_111015.jpg’) no-repeat center center; text-align:center; font-size:20px; font-weight:bold; color: #ffffff; text-transform: uppercase; height:35px; line-height:35px; clear:both;}
#overview-content .blank20{clear:both;display:block;margin:0;padding:0;width:100%;height:20px;background:none;}
#overview-content .line2{clear:both;margin:10px 0;padding:0;width:100%;height:52px; background:url(‘//images10.newegg.com/BizIntell/item/59/108/59-108-604/line_spacer_111015.png’) no-repeat center center #fff}
#overview-content .twoCola {width:48%;float:left; clear:none;}
#overview-content .twoColb {width:48%;float:right;clear:none;}
#overview-content h3{ color:#333333; font-weight:bold; font-size:16px;}
#overview-content img{max-width: 480px;}
#overview-content .features-box{clear: both;}

HP ProLiant DL160 Gen9 E5-2603v3 1P 8GB-R B140i 4LFF 550W PS Entry Server

• Do you need a server with essential features for your IT environment, which is constrained by budget, space or IT resources? The HP ProLiant DL160 Gen9 Server delivers the right balance of performance, storage, reliability, manageability and efficiency in a dense and compact chassis, to meet the needs of a diverse set of customers – from SMBs to service providers with a wide range of deployments – from general purpose IT infrastructure to the emerging “New Style of IT” deployments like cloud and big data in distributed computing environments.

Processor
Intel® Xeon® E5-2603 v3 (6 core, 1.6 GHz, 15MB, 85W)

Storage controller
Dynamic Smart Array B140i

Memory
8GB (1x8GB) RDIMM

Power supply
550W factory integrated power supply Multi-output

Features

Essential Combination of Performance, Manageability and Storage for the IT Needs of SMBs

• The HP ProLiant DL160 Gen9 Server offers (16) DIMM slots of HP DDR4 SmartMemory, with built-in intelligence to reduce downtime and up to 14% 1 better throughput performance.
• Embedded management to deploy, monitor and support your server remotely, out of band with HP iLO makes it easier to manage complex IT environments thereby minimizing the IT resource requirements.
• Supports up to (2) Intel Xeon processor E5-2600 v3 processors offering improved performance and efficiency.
• HP SmartDrives continue to deliver optimal performance, capacity, and reliability to meet various customer segments and workload requirements at the right economics. Supports up to (4) LFF and (8) SFF 12 Gb/s with flexibility of (4) LFF NHP option.
• Embedded SATA HP Dynamic Smart Array B140i Controller for boot and data. Choice of HP Smart Array Controllers with increased performance, data availability with the 12Gb/s SAS technology or HP Smart HBAs with reliable high performance SAS connectivity capable of running HBA mode or simple RAID mode.

Scalability and Efficiency in a Dense Design for Hyperscale Environments

• The HP ProLiant DL160 Gen9 Server offers dense and efficient design at a price point that provides agile horizontal expansion capability for distributed computing environments like Hadoop, NoSQL to cope-up with fast growing business needs.
• Standard with 2x1GbE, up to (3) PCIe slots and choice of HP FlexibleLOM provide you flexibility of networking bandwidth and fabric so you can adapt and grow to changing business needs.
• Up to 92% efficient 80 PLUS certified entry-level HP Power Supplies and ENERGY STAR® qualified server configurations illustrate a continued commitment to helping customers conserve energy and save money.
• Improved ambient temperature standard with ASHRAE A3 and A4 2 helps customers reduce cooling expense.

Agile Infrastructure Management for Accelerating IT Service Delivery

• With HP ProLiant DL160 Gen9 Server, HP OneView provides infrastructure management for automation simplicity across servers, storage and networking.
• Online personalized dashboard for converged infrastructure health monitoring and support management with HP Insight Online.
• Configure in UEFI boot mode, provision local and remote with Intelligent Provisioning and Scripting Toolkits.
• Embedded management to deploy, monitor and support your server remotely, out of band with HP iLO and optimize firmware and driver updates and reduce downtime with HP Smart Update, consisting of HP SUM (Smart Update Manager) and SPP (Service Pack for ProLiant).

HP ProLiant DL160 Generation9 (Gen9)

• The HP ProLiant DL160 Gen9 is the next generation 2P 1U value server replacing DL360e Gen8. It delivers the right balance of
  performance, storage, reliability, manageability and efficiency in a dense and compact chassis, to meet the needs of a diverse set
  of customers- from SMBs and service providers with a wide range of workloads – from general purpose IT to the New Style of IT,
  such as, Big Data and Cloud.

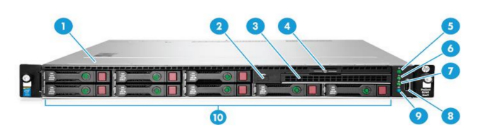

Front view

1. Access Panel
2. Optional USB3.0 (optional with 8SFF only)
3. Optical disk drive bay
4. Serial label pull tab
5. Power On/Standby button and system power LED
6. Health LED
7. NIC status LED
8. USB 2.0 connector
9. UID button/LED
10. 8SFF drive cage

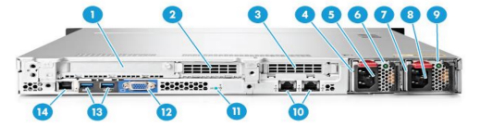

Rear view

1. PCIe3 slot 1 (primary, associated with processor 1)
2. PCIe3 slot 2 (primary, associated with processor 1)
3. PCIe3 slot 3 (secondary, associated with processor 2)
4. Power supply 1 bay
5. Power supply 1 Power Connector (optional)
6. Power supply 1 LED (Optional)
7. Power supply 2 bay
8. Power supply 2 power connector
9. Power Supply 2 LED
10. Embedded 2x1GbE network adapter
11. Unit ID LED
12. Video Connector
13. USB3.0 connectors
14. Dedicated iLO connector (optional)

Internal view

1. Hot Swappable fans (up to 7)
2. Processor heat sinks (processors with HP Smart Sockets placed below heat sinks)
3. HP Smart Storage Battery (optional)
4. DDR4 DIMM slots (up to 16)
5. Entry level power supply bay (1x900W shown)
6. Connector for secondary PCIe riser (associated with CPU2)
7. Embedded 2x1GbE network adapter
8. HP Smart Array P440 controller (optional)
9. Primary PCIe riser (2 PCIe3 slots associated with CPU1)
10. Dedicated iLO module connector (optional)
11. MicroSD card slot
12. Internal SATA ports (one for ODD and another one reserved)
13. Internal USB 3.0 connector
14. Embedded B140i SATA controller (2x SATA ports for up to eight drives)
