Dell PowerVault MD3200 SAS SAN Redundant Quad-Port 6Gb SAS Controllers 48.0TB (12 x 4TB SAS)

Model: Dell PowerVault MD3200

Controller(s): Redundant Quad-Port 6Gb SAS Controllers

Hard Drives: 12 x Dell 4TB 7.2K 6Gbps 3.5” SAS hard drives, 48.0TB total

Capacity: Up to twelve (12) hot-pluggable SAS Hard Disk Drives (HDDs) at 7.2K, 10K, and 15K rpm and SAS Solid State Drives (SSDs). Max capacity 48TB using twelve (12) 2TB 7,200 RPM 6Gb/s SAS disk drives.

Raid: 2GB of battery-backed-up cache per controller ( RAID levels 0, 1, 10, 5, 6)

Expansion Capabilities: PERC H800 HostRAID adapter enables expansion to 8 enclosures (4 enclosures per port)

Host Connectivity (per controller): Four x4 6Gb SAS (SFF8088 mini connector) (cables not included and can added above)

Expansion Connectivity (per controller): One x4 6Gb SAS (SFF8088 mini connector) (cables not included and can added above)

Remote Management: One RJ-45 1Gb Ethernet

Service Management: One PS/2 Serial (cables not included and can added above)

Power Supplies: Redundant 600W Power Supplies (power cables included)

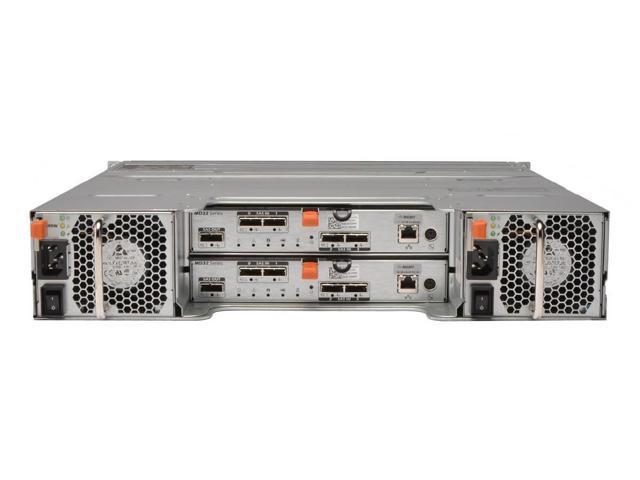

*Systems are built to order and fully customizable. Please call for more information. Note that a stock photo is used and unit may differ depending on configuration.
