Dell PowerVault MD3000 SAS SAN Redundant Dual-Port SAS/SATA Controllers 30.0TB (15 x 2TB SAS)

Model: Dell PowerVault MD3000

Controller(s): Redundant Dual-Port SAS/SATA Controllers

Hard Drives: 15 x Dell 2TB 7.2K 3Gbps 3.5” SAS hard drives, 30.0TB total

Capacity: Up to Fifteen (15) hot-pluggable SAS Hard Disk Drives (HDDs) at 7.2K, 10K, and 15K rpm. Max capacity 30TB using fifteen (15) 2TB 7,200 RPM 3Gb/s SAS disk drives.

Raid: 512MB of battery-backed-up cache per controller (RAID levels 0, 1, 10, 5, and 6)

Expansion Capabilities: Expands to three (3) shelves with two PowerVault MD1000 expansion arrays

Host Connectivity (per controller): One x4 3GB SAS (SFF 8470) (cables not included and can added above)

Expansion Connectivity (per controller): One x4 3GB SAS (SFF 8470) (cables not included and can added above)

Remote Management: One RJ-45 10/100MB Ethernet

Service Management: One 6-pin UART mini-DIN connector (cables not included and can added above)

Power Supplies: Redundant 478W Power Supplies (power cables included)

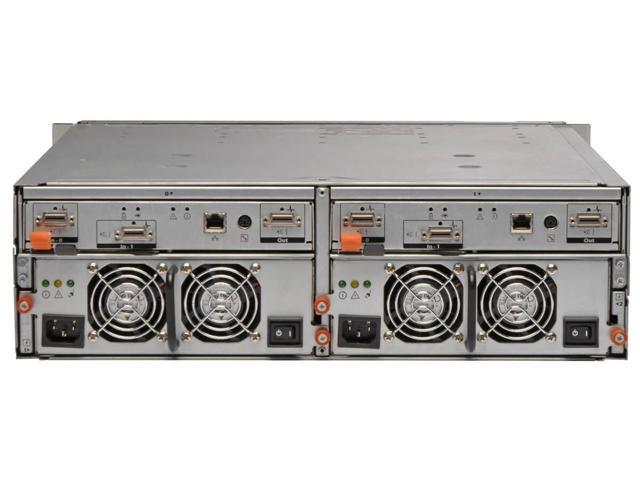

*Systems are built to order and fully customizable. Please call for more information. Note that a stock photo is used and unit may differ depending on configuration.
