Dell PowerEdge R520 8x 3.5″ Hot Plug E5-2430 Six Core 2.2Ghz 12GB H310 2x 495W

Processor: Single Intel Xeon E5-2430 Six Core 2.2Ghz Processor. 12 Virtual Cores in Hyperthreading Mode! (Additional processor configurations available).

Memory: 12GB. Supports up to 384GB of total memory, 12 DIMM slots, 6 per processor. (2GB/4GB/8GB/16GB/32GB DDR3 up to 1600MT/s, actual memory speed dependent on the processor capability).

Hard Drives: No Hard Drives or Trays Included.

Drive Bays: Up to 8x 3.5″ Hot Plug SAS or SATA Hard Drives.

Raid Controller: H310 6Gbps Raid Controller, RAID 0/1/5/10/50/60

Operating System: Not Included.

Power Supply: 2x 495W Redundant Power Supplies

Optical Drive(s): DVD Drive.

Dimensions: 45 Lbs, 24.06” x 3.42” x 17.09” (L x W x H)

Networking: Broadcom 5720 Dual Port 1Gb LOM.

Slots: 4 PCIe slots

With two processors:

• One x16 PCIe slot with x16 bandwidth, 3.0, half-length, half-height
• One x16 PCIe slot with x8 bandwidth, 3.0, full-length, full-height
• Two x16 PCIe slots with x8 bandwidth, 3.0, half-length, full-height

With one processor:

• One x8 PCIe slot with x4 bandwidth, 2.0, half-length, half-height
• One x16 PCIe slot with x8 bandwidth, 3.0, full-length, full-height
• Two x8 PCIe slots with x4 bandwidth, 3.0, half-length, full-height

Remote Management:

• Basic management (default)
• iDRAC7 with Lifecycle Controller
• iDRAC7 Express (upgrade)
• iDRAC7 Enterprise (upgrade),
  8GB vFlash (upgrade)
• 16GB vFlash (upgrade)

Video: Matrox G200 with 8MB of cache.

Peripherals: Power Cable Included. Rail Kit, Bezel, Mouse, Keyboard, and Video Cable Not Included.

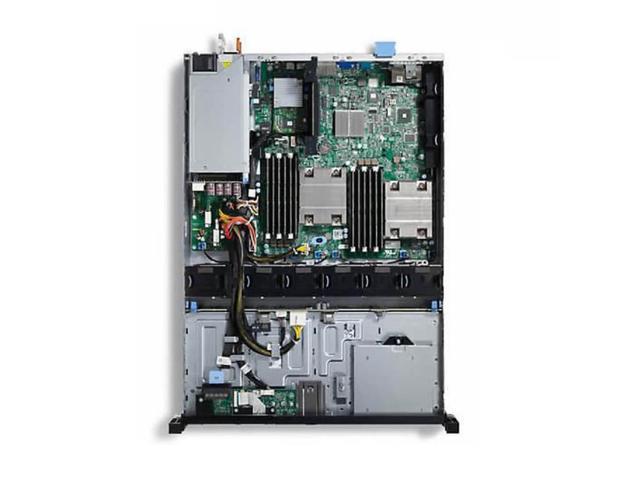

*Systems are built to order and fully customizable. Please call for more information. Note that a stock photo is used and unit may differ depending on configuration.
