Dell PowerEdge M1000e Chassis with 16x M630 Blade Server, Per Blade (1x Intel Xeon E5-2697 V3 2.6GHz 14 Core, 768GB DDR4 Memory, S130 RAID, 2x 800GB SATA 6Gbps 2.5 SSDs, 10GbE), 6x 2700W PSUs, Rails

System: Dell PowerEdge M1000e Chassis with 16x M630 Blade Server

Processor:
Per Blade: 1x Intel Xeon E5-2697 V3 2.6GH z 14 Core 35MB Cache Processors

Memory:
Per Blade: 768GB DDR4 ECC Registered Memory (24 x 32GB)

Controller:
Per Blade: Dell PERC H330 12Gbps SAS RAID Controller (0 1 10 JBOD)

Hard Drive Bays: 32x 800GB SATA 6Gbps 2.5 Solid State Drives

Management: iDRAC 8 Express with Lifecycle Controller

Network: Dell PowerEdge 10GbE 57810S-k Network Daughter Card

Power Supply: 6x Redundant 2700W Power Supplies

Rail Kit: Rail Kit Included

Chassis Management and Interfaces: CMC, 1 iKVM, Front Control Panel, Graphical LCD Control Panel

Fan: 9x Hot Pluggable Redundant Fan Modules

I/O Module: Dell Broadcom DF10MXL Force10 MXL 10/40GbE 4-Port SFP+ Switch Module

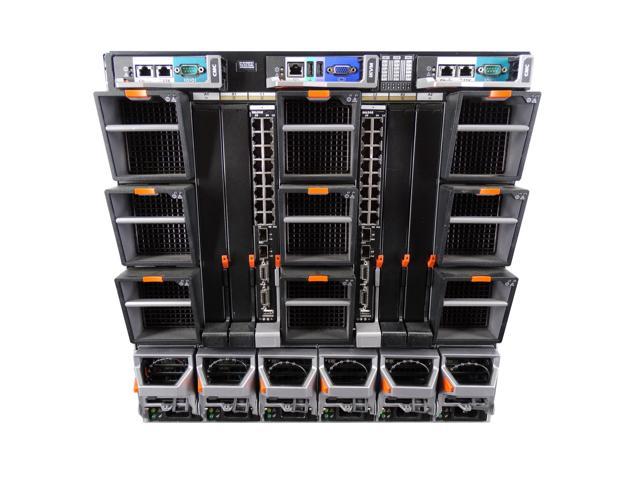

The PowerEdge M1000e Modular Server Enclosure solution supports server modules, network, storage, and cluster interconnect modules (switches and passthrough modules), a high-performance and highly available passive midplane that connects server modules to the infrastructure components, power supplies, fans, integrated KVM and Chassis Management Controllers (CMC). The PowerEdge M1000e uses redundant and hot-pluggable components throughout to provide maximum uptime.

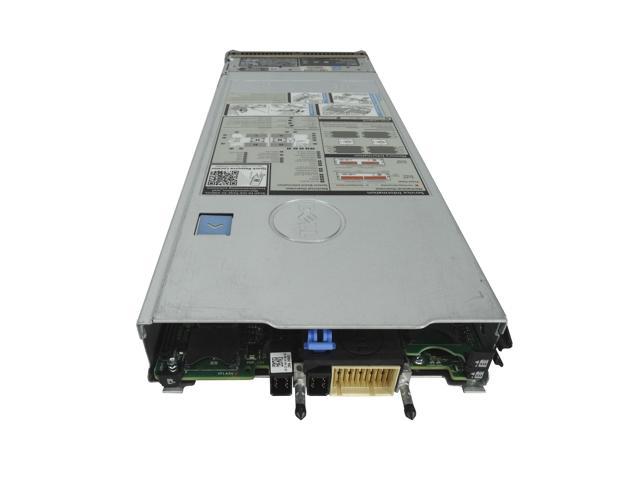

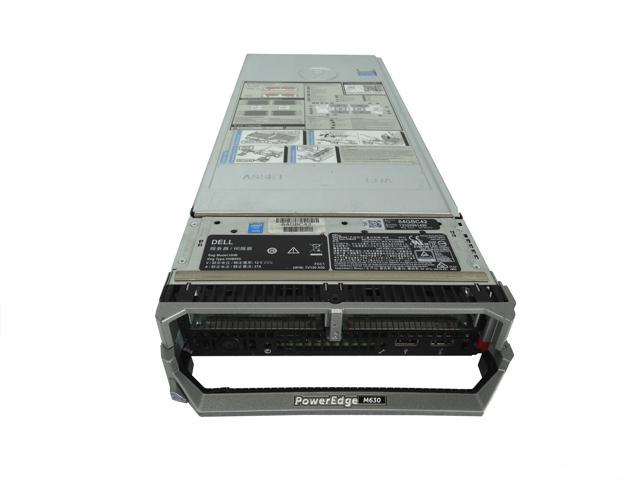

This product is for a complete M1000e with 8 Dell PowerEdge M630 blades. The M630 is powered by dual Intel Xeon E5-2600 v3 and v4 processors, offers exceptional scalability in environments ranging from IT as a service (XaaS) providers and private clouds to remote and branch offices.

This product is for a complete M1000e with 16 M630 blades included and configured.
