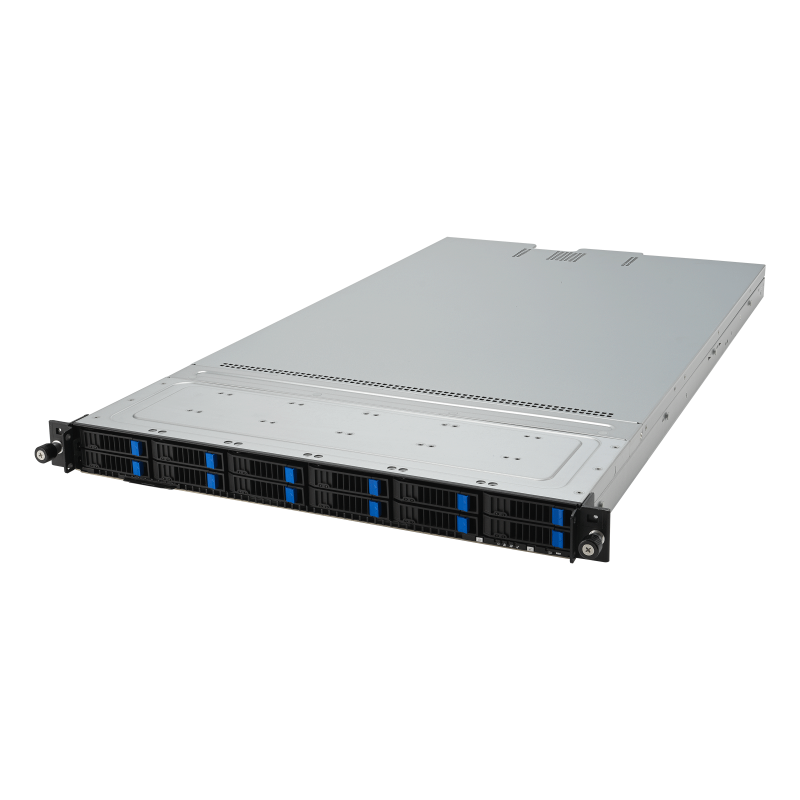

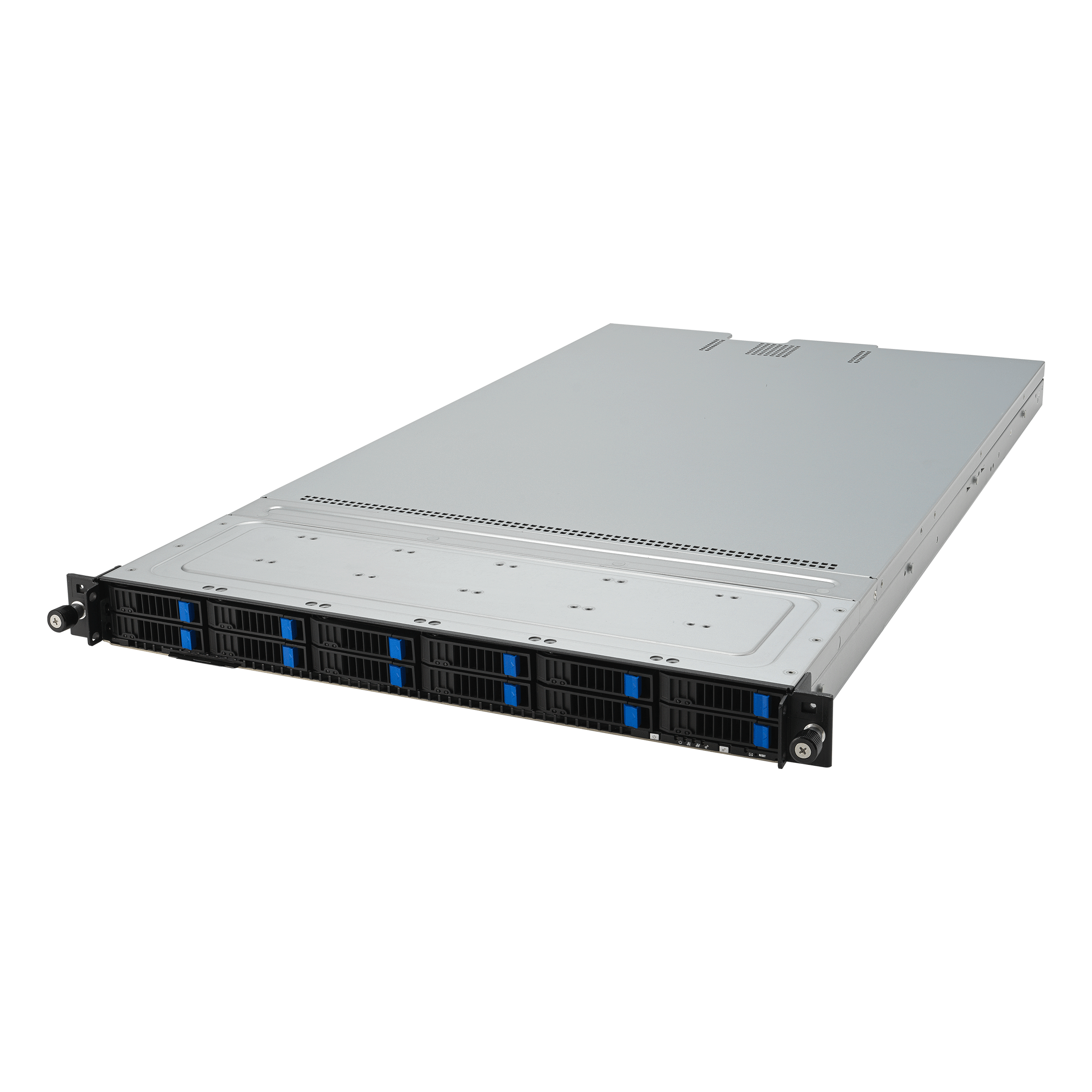

SERVER ASUS RS500A-E12-RS12U
SKU: serverasusstock11631423440Liên hệ
- Powerful performance:Powered by AMD EPYC 9004 processors with 96 Zen 4 cores, 12-channel, up to 4800 MHz DDR5 and support for a maximum TDP of up to 400 watts
- Scale-up storage and expansion design: Up to 12 all-flash NVMe drives on the front panel, 4 NVMe in middle bay, and 3 PCIe 5.0 slots for higher bandwidth and system upgrade
- Flexible networking module design:On-board LAN module, and OCP 3.0 module with PCIe 5.0 slot in rear panel for faster connectivity
- Advanced air cooling solution: Features enhanced volume air cooling (EVAC) heatsink for processors with higher TDP
- Enhanced IT-infrastructure management:ASUS ASMB11-iKVM remote control with ASPEED AST2600, ASUS Control Center IT management software and hardware-level Root-of-Trust solution
- Read for AI and HPC workloads:Up to two single-slot GPUs.
Description
Thông số kỹ thuật Máy chủ RS500A-E12-RS12U :
Máy chủ RS500A-E12-RS12U |
|
| Processor Support | 1 x Socket SP5 (LGA-6096) Supports AMD EPYC™ 9004 series processors (up to 400W) |
| Memory | 24 12-channel, 2 DIMM per channel Capacity : Up to 6,144GB Memory Type : DDR5 4800 RDIMM/LRDIMM/LRDIMM 3DS Memory Size : 256GB, 128GB, 64GB, 32GB, 16GB *Refer to ASUS server AVL for the latest update |
| Expansion Slots | Total Slots : 3+1 Slot Type : 1 x PCIe x16 slot (Gen5 x16 link, FH, HL) 1 x PCIe x16 slot (Gen5 x16 link, LP, HL) 1 x PCIe x16 slot (Gen5 x8 link, LP, HL) 1 x OCP3.0 socket (Gen5 x16 link) |
| Security | Optional TPM module Optional PFR modul |
| Storage Bays | Front:12 x 2.5″ Hot-swap Storage Bays (12 x SATA/SAS/ U.2 or U.3 NVMe Devices) Optional 4 x 2.5” Internal Storage Bays (4 x SATA/U.2 or U.3 NVMe Devices) |
| Networking | 1 x Dual Port Intel I350-AM2 Gigabit LAN controller 1 x Dedicated Management port (BMC AST2600 |
| Switch/LED | Front: 1 x Power Button/LED 1 x Location Button/LED 1 x Message LED 2 x LAN LED Rear: 1 x Port80 LED (Q-Code) 1 x Power Switch w/ LED 1 x Location Switch w/ LED 1 x Message LED |
| Auxiliary storage Device Bay | – |
| Front I/O Ports | – |
| Rear I/O Ports | 2 x USB 3.2 Gen1 ports 2 x Gigabit LAN ports (RJ45) 1 x Management port (RJ45) 1 x VGA port 1 x COM port |
| Management Solution |
Software : ASUS Control Center (in-band) Out of Band Remote Management ASMB11-iKVM (BMC AST2600) |
| Power Supply | 1+1 Redundant 1200W /1600W 80 PLUS Platinum Power Supply 1+1 Redundant 1600W 80 PLUS Titanium Power Supply |
| Environment | Operation temperature: 10℃ ~ 35℃ Non operation temperature: -40℃ ~ 70℃ Non operation humidity: 20% ~ 90% ( Non condensing) |
