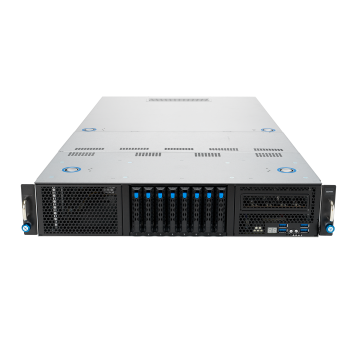

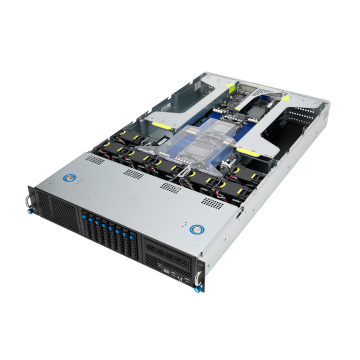

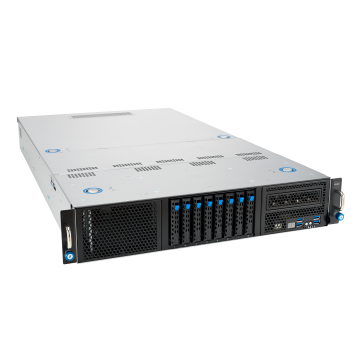

ESC4000-E10S 2-Socket 2U
SKU: serverasusstock11631423447 Sale99.000.000₫
- GPU-optimized design allows four dual-slot GPUs for AI workloads
- Up to four NVMe and eight SATA/SAS drives on front panel to enable extensive storage and high-throughput performance
- Up to eleven PCIe® 4.0 slots to enable higher bandwidth and improved data-transfer rates
- Flexible air- solution to achieve lower power-usage effectiveness (PUE) and optimized TCO for data centers
- Onboard ASUS ASMB10-iKVM for out-of-band management with ASPEED AST2600 controller
- Integrated PFR FPGA as the platform Root-of-Trust solution for firmware resiliency
- High power efficiency with redundant 2200W or 1600W 80 Plus® Platinum power supplies
- Two hot-plug, hot-swap fans design for fully redundancy protection and thermal efficiency
Description
Thông số kỹ thuật máy chủ ESC4000-E10S 2-Socket 2U :
Server ASUSESC4000-E10S 2-Socket 2U |
|
| Processor Support | Dual socket P+ (LGA 4189) 3rd Generation Intel® Xeon® Scalable Processors Support (up to 235W |
| Memory | Total Slots : 16 DIMM slots (8-channel per CPU, 1DPC) Capacity : Up to 4,096GB Memory Type : DDR4 3200/2933 RDIMM Intel® Optane™ Persistent Memory Memory Size : 256GB, 128GB, 64GB, 32GB, 16GB |
| Expansion Slots | Total Slots : 11 Slot Type : Rear: – 4 x PCIe x16 slots (Gen4 x16 link, FH,FL) for dual-slot GPU cards or 8 x PCIe x16 slots (Gen4 x8 link, FH,FL) for single-slot GPU cards – 2 x PCIe x16 slots (Gen4 x16 link, LP,HL) Front: – SKU-1 (default) 1 x PCIe x8 slot (Gen4 x8 link, LP,HL) – SKU-2 (by request) 1 x PCIe x8 slot (Gen4 x8 link, LP,HL) or 1 x OCP3.0 slot (Gen4 x8 link) by switching cables – SKU-3 (by request) 1 x PCIe x8 slot (Gen4 x8 link, LP,HL) or 2 x M.2 sockets (Gen4 x4 link, up to 22110 module) by switching cables |
| Security | TPM / PFR Module (optional) |
| Storage Bays | 8 x 2.5″ Hot-swap Storage Bays (Backplane Supports 4 x SATA/SAS + 4 x SATA/SAS/NVMe Devices*) 1 x M.2 socket (Gen4 x4 link, up to 2280 on-motherboard) |
| Networking | 2 x Gigabit LAN ports (Intel® I350-AM2) 1 x dedicated management port (BMC AST2600) |
| Graphic | – |
| Auxiliary storage Device Bay | – |
| Front I/O Ports | 4 x USB 3.2 Gen1 ports |
| Rear I/O Ports | 2 x USB 3.2 Gen1 ports 2 x Gigabit LAN ports (RJ45) 1 x Management port (RJ45) 1 x VGA port |
| Switch/LED | Front : 1 x Power Button/LED 1 x Location Button/LED 2 x LAN LED 1 x Message LED 1 x HDD Access LED 1 x Q-Code/Port 80 LED Rear : 1 x Power Button/LED 1 x Location LED 1 x Message LED 1 x HDD Access LED |
| Power Supply | 1+1 Redundant 1600W 80 PLUS Platinum Power Supply 1+1 Redundant 2200W 80 PLUS Platinum Power Suppl |
| Environment | Operation temperature: 10℃ ~ 35℃ Non operation temperature: -40℃ ~ 70℃ |
