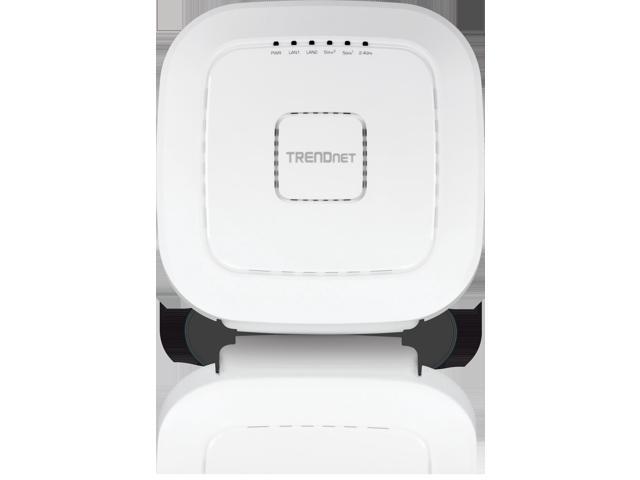

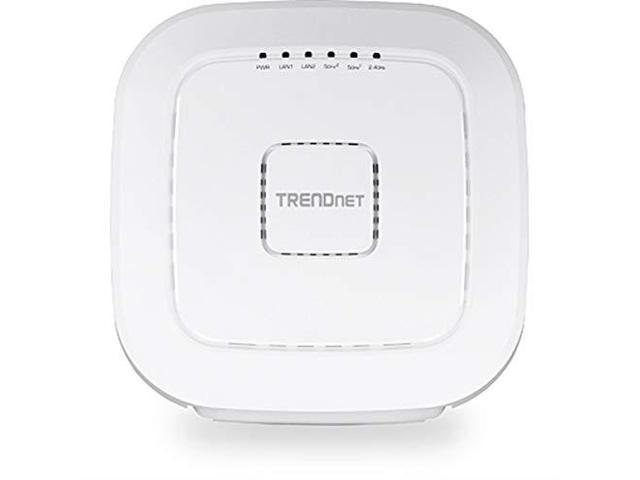

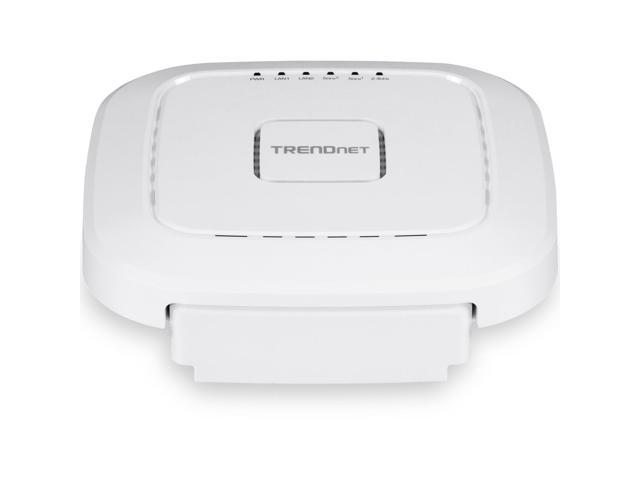

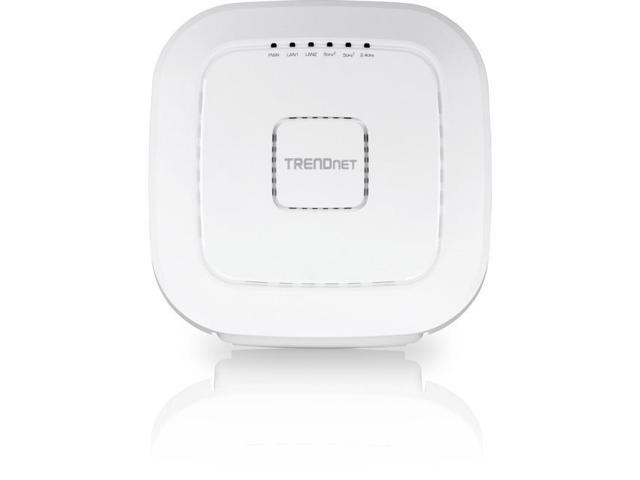

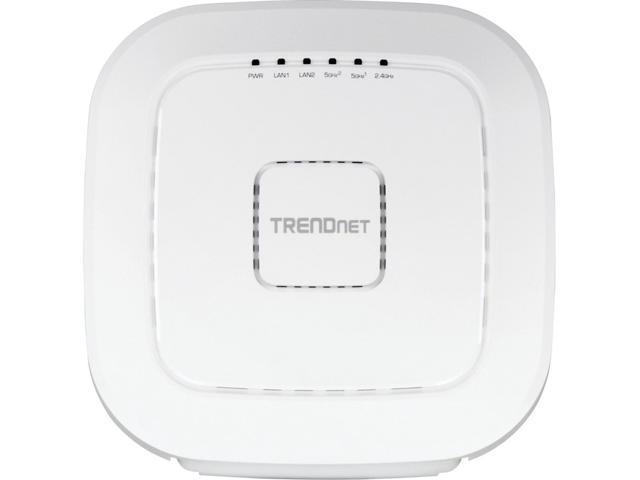

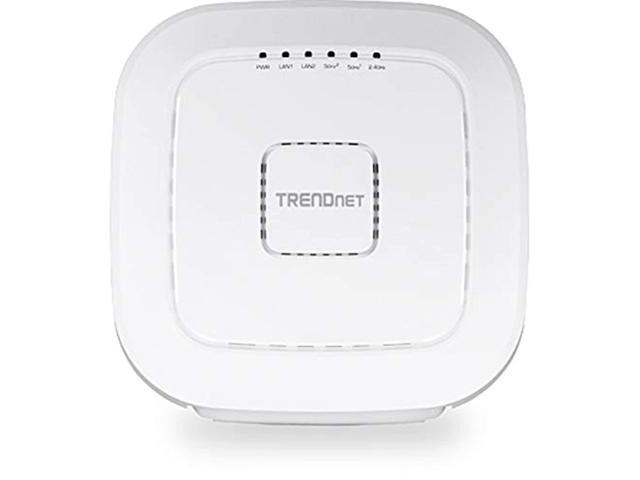

TRENDnet TEW-826DAP (v1.0R) AC2200 Tri-Band PoE+ Indoor Wireless Access Point
SKU: 9SIAHFEJ1096967.411.755₫
Up to 2.2Gbps Wireless Data Rates
IEEE 802.3IEEE 802.3uIEEE 802.3xIEEE 802.3abIEEE 802.3atIEEE 802.1QIEEE 802.11aIEEE 802.11bIEEE 802.11gIEEE 802.11n (up to 400 Mbps @ 256 QAM)IEEE 802.11ac Wave 2 (5 GHz 1: up to 867 Mbps, 5 GHz 2: up to 867 Mbps @ 256 QAM)
1 x PoE+ Gigabit LAN port (power input)1 x Gigabit LAN portPower port (optional non-PoE installation)LED indicatorsMounting plate and cable guardOn/Off power buttonReset button
2.4 GHz: 2.412 – 2.472 GHz5 GHz 1: 5.180 – 5.320 GHz5 GHz 2: 5.500 – 5.825 GHz
Description
MAIN OVERVIEW FEATURES: Wireless LAN Standard: IEEE 802.11acWireless Transmission Speed: 2.15 Gbit/sPoE PD Port: YesHeight: 1.4″Width: 8.4″Depth: 8.4″
Learn more about the TRENDnet TEW-826DAP (v1.0R)
| Brand | TRENDnet |
|---|---|
| Model | TEW-826DAP (v1.0R) |
| Standards Standards | IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3ab IEEE 802.3at IEEE 802.1Q IEEE 802.11a IEEE 802.11b IEEE 802.11g IEEE 802.11n (up to 400 Mbps @ 256 QAM) IEEE 802.11ac Wave 2 (5 GHz 1: up to 867 Mbps, 5 GHz 2: up to 867 Mbps @ 256 QAM) |
|---|---|
| Wireless Data Rates | Up to 2.2Gbps |
| Security Security | WEP, WPA / WPA2-PSK, WPA / WPA2-RADIUS, WPA3 |
| Frequency Band Frequency Band | 2.4 GHz: 2.412 – 2.472 GHz 5 GHz 1: 5.180 – 5.320 GHz 5 GHz 2: 5.500 – 5.825 GHz |
| Antenna Antenna | 2.4 GHz: 2 x 4 dBi internal 5 GHz 1: 2 x 4 dBi internal 5 GHz 2: 2 x 4 dBi internal |
| Receiver Sensitivity | 802.11a: -70 dBm (typical) @ 54 Mbps 802.11b: -85 dBm (typical) @ 11 Mbps 802.11g: -72 dBm (typical) @ 54 Mbps 802.11n (2.4 GHz): -67 dBm (typical) @ 400 Mbps 802.11n (5 GHz): -67 dBm (typical) @ 400 Mbps 802.11ac: -64 dBm (typical) @ 867 Mbps |
| Modulation | DBPSK / DQPSK / CCK for DSSS technique BPSK / QPSK / 16-QAM / 64-QAM / 256-QAM for OFDM technique |

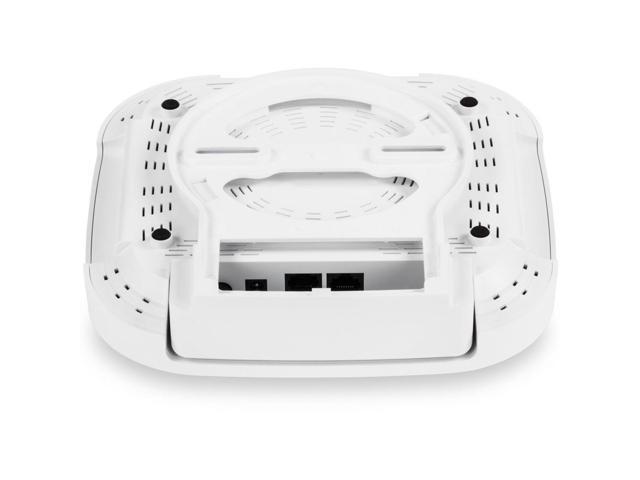

| Interface | 1 x PoE+ Gigabit LAN port (power input) 1 x Gigabit LAN port Power port (optional non-PoE installation) LED indicators Mounting plate and cable guard On/Off power button Reset button |
| Power Adapter | IEEE 802.3at Type 2 PoE PD Class 4 Input: 100-240V AC, 50/60 Hz, Output: 12V DC, 2A external power adapter (optional) Max. consumption: 18.96W |
| Features | High performance AC2200 PoE+ Wi-Fi access point
Wireless AC wave 2 MU-MIMO technology boosts performance in a busy environment Three concurrent Wi-Fi bands maximize device networking speeds AC2200 Tri-Band: 867 Mbps (5 GHz) + 867 Mbps (5 GHz) + 400 Mbps (2.4 GHz) bands Access Point, Client Bridge, WDS AP, WDS Bridge, WDS Station, and Repeater modes 1 x Gigabit PoE+ LAN port, 1 x Gigabit LAN port Low-profile housing blends into most environments Includes wall / ceiling mounting plate with cable guard Captive portal for hotspot applications Compatible with TRENDnet’s TEW-WLC100 and TEW-WLC100P wireless controllers |
|---|

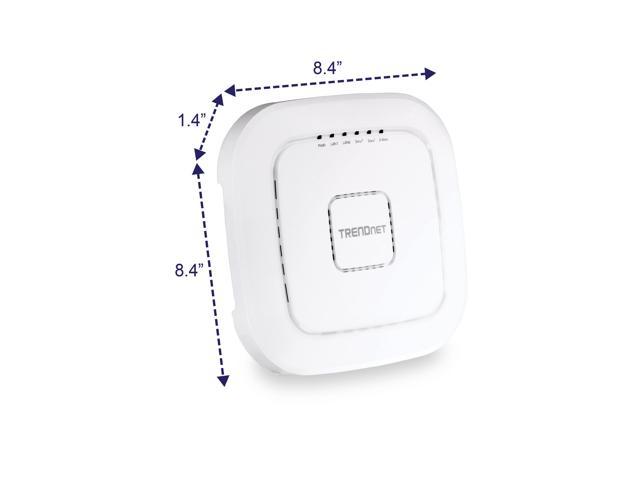

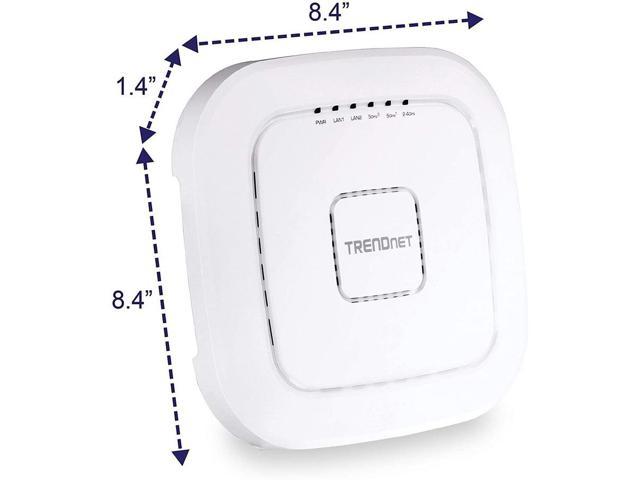

| Dimensions | 1.40″ x 8.40″ x 8.40″ |
|---|---|
| Weight | 1.51 lbs. |
| Temperature | Operating Temperature: 0 ~ 40 degree Celsius (32 ~ 104 degree Fahrenheit) |
|---|---|
| Humidity | Operating Humidity: Max. 95% non-condensing |
| Package Contents | TEW-826DAP Network cable (1.5m / 5 ft.) Quick Installation Guide Power adapter (12V DC, 2A) Mounting plate and cable guard |
|---|
| Date First Available | July 05, 2022 |
|---|
