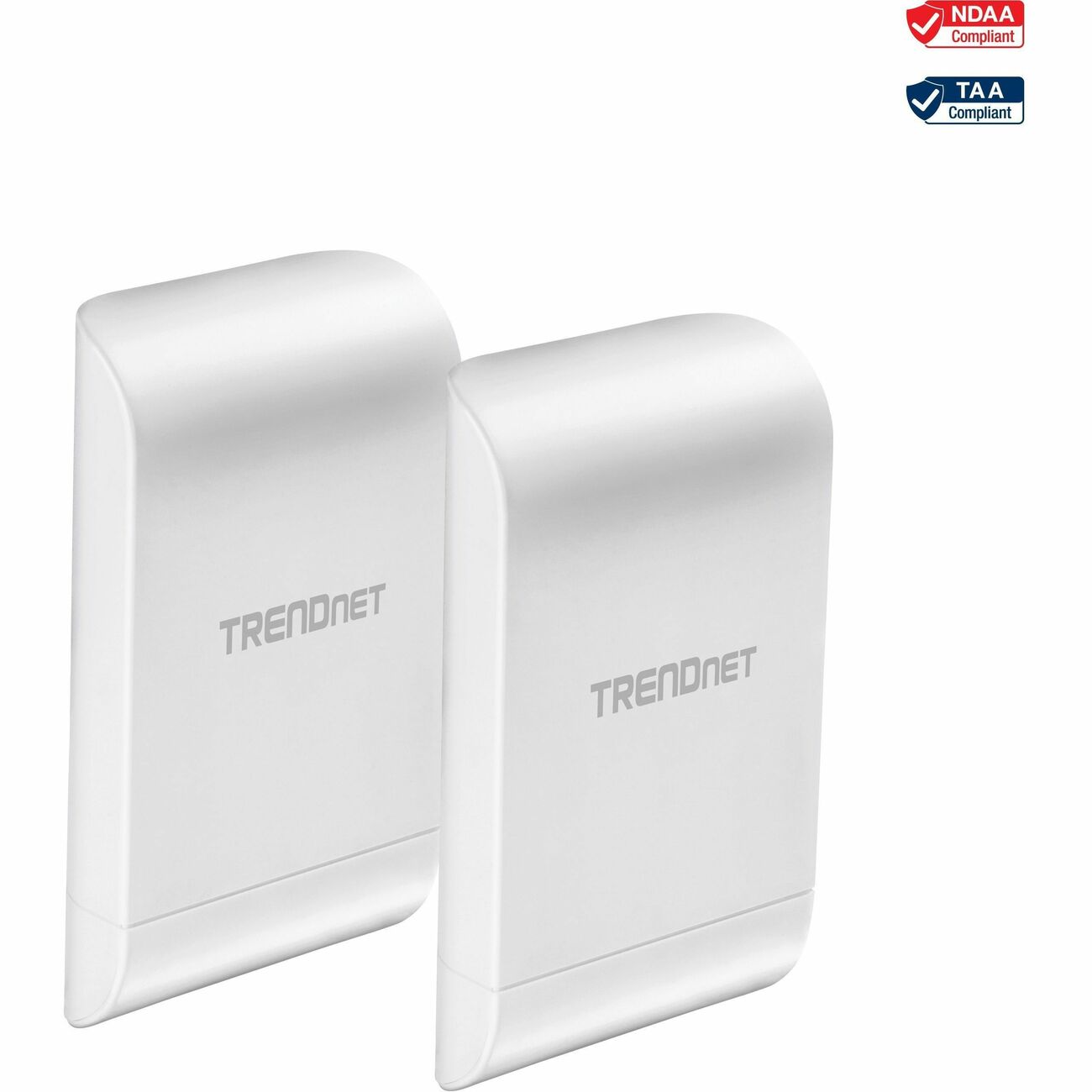

TrendNet TEW-740APBO2K 10 dBi Wireless N300 Outdoor PoE Preconfigured Point-to-Point Bridge Kit
SKU: 9SIAHFEBJ488867.411.755₫
Wireless N300 point-to-point networking (2.4 GHz)
Includes two preconfigured wireless N access points
IP56 outdoor weather rated housing
Built-in 10 dBi directional antenna
Supports Access Point, WDS Bridge, WDS Access Point, WDS Station, and Client Bridge modes
Proprietary PoE power adapters included

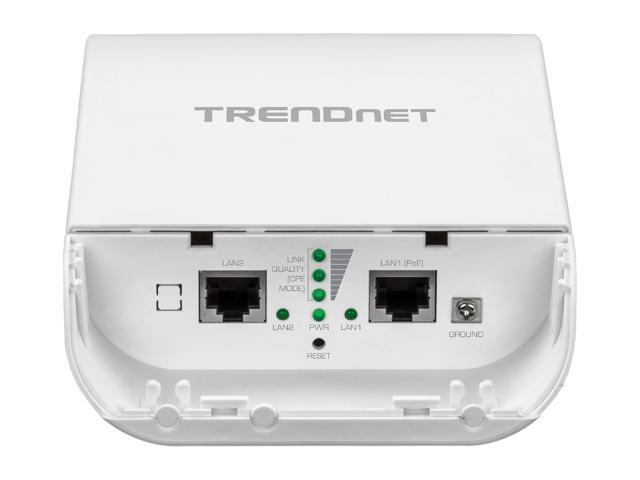

1 x 10/100Mbps PoE-in port, and 1 x 10/100Mbps port
Description
Installing Outdoor Wireless Access Points
Learn more about the TRENDnet TEW-740APBO2K (Version v3.0R)
| Brand | TRENDnet |
|---|---|
| Model | TEW-740APBO2K (Version v3.0R) |
| Standards Standards | IEEE 802.3 IEEE 802.3u IEEE 802.1d IEEE 802.1p IEEE 802.1Q IEEE 802.1X IEEE 802.11d IEEE 802.11e IEEE 802.11f IEEE 802.11h IEEE 802.11i IEEE 802.11b IEEE 802.11g IEEE 802.11k IEEE 802.11n (2.4GHz up to 300Mbps) IEEE 802.11r |
|---|---|
| Wireless Data Rates | Up to 300Mbps |
| Frequency Band Frequency Band | FCC: 2.412 – 2.462 GHz ETSI: 2.412 – 2.472 GHz IC: 2.412 – 2.462 GHz |
| Channels Channels | FCC: 1-11 ETSI: 1-13 |
| Antenna Antenna | 10 dBi internal sector antenna |
| Transmitted Power Transmitted Power | 802.11b: FCC: 26 dBm (max.) / CE: 10.4 dBm (max.) / IC: 26 dBm (max.) @ 11Mbps 802.11g: FCC: 25 dBm (max.), CE: 10.5 dBm (max.) / IC: 25 dBm (max.) @ 54Mbps 802.11n: FCC: 28 dBm (max.), CE: 10.6 dBm (max.) / IC: 28 dBm (max.) @ 150Mbps 802.11n: FCC: 27 dBm (max.), CE: 10.6 dBm (max.) / IC: 27 dBm (max.) @ 300Mbps |
| Receiver Sensitivity | 802.11b: -88 dBm (typical) @ 11Mbps 802.11g: -74 dBm (typical) @ 54Mbps 802.11n: -71 dBm (typical) @ 150Mbps 802.11n: -69 dBm (typical) @ 300Mbps |
| Modulation | 802.11b: DBPK, DQPSK, CCK with DSSS 802.11g/n: BPSK, QPSK, 16-QAM, 64-QAM with OFDM |
| Interface | RJ-45 |
| WAN Ports WAN Ports | 1 x 10/100Mbps LAN1 port (proprietary PoE max. cable length 60m (197 ft.)) 1 x 10/100Mbps LAN2 port |
| Power Adapter | Input: 100 – 220V AC, 50/60Hz, 0.5A Output: 12V DC, 1A proprietary/passive PoE injector Max. Consumption: 6.6W |
| Features | Wireless N300 building-to-building networking (2.4 GHz)
Supports Access Point (AP), Wireless Distribution System (WDS), Repeater, and Wireless Client modes IP67 rated housing Built in 10 dBi directional sector antenna |
|---|
| Dimensions | 7.60″ x 4.60″ x 2.40″ |
|---|---|
| Weight | 0.67 lb. |
| Temperature | -22° – 60° C (-7.6° – 140° F) |
|---|---|
| Humidity | Max. 99% non-condensing |

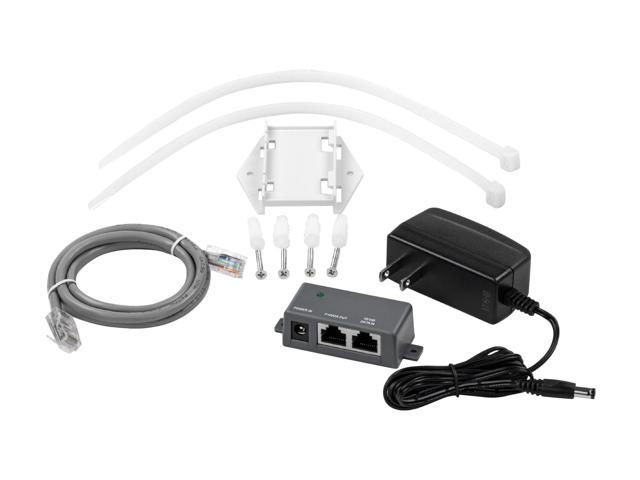

| Package Contents | 2 x TEW-740APBO Quick Installation Guide Proprietary/Passive PoE injectors Power adapters (12V DC, 1A) Grounding wires Mounting hardware 2 x Rubber seals |
|---|
| Date First Available | July 02, 2020 |
|---|
Customer Reviews of the TRENDnet TEW-740APBO2K (Version v3.0R)
