RB911G-5HPacD-QRT – MikroTik QRT 5 ac 5GHz 802.11ac (11.5W, Gigabit) 24dBi Dual-Pol Integrated Antenna MMCX
SKU: 9SIA29J3YG21787.784.205₫
Frequencies: 4.9-5.875 GHz802.11acSuper high power 5GHz wireless transmitterGain: 24dBi
Description

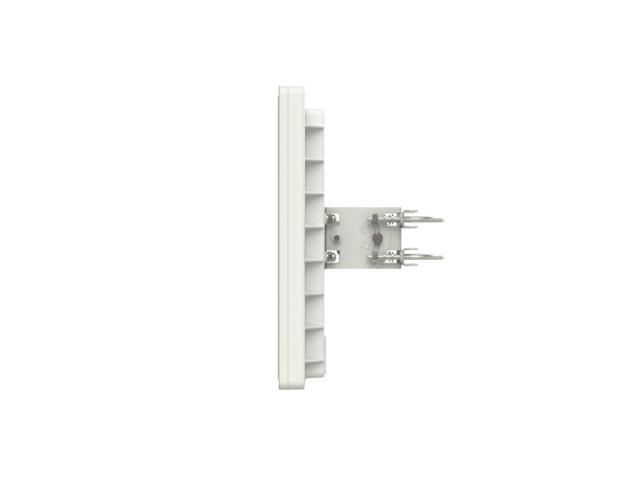

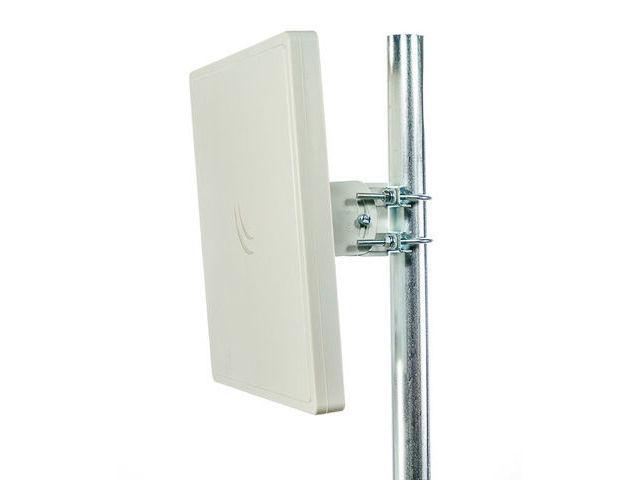

The Mikro Tik QRT 5 ac is a rugged outdoor flat panel antenna, with a built in Mikro
Tik Router
BOARD. This device has a 24dBi antenna and a high power 5GHz wireless transmitter, which now supports 802.11 ac and is backwards compatible with 802.11 a/n. Inside the QRT 5 ac is a high power RB911G-5HPacD dual chain wireless device, with high performance and a high output power wireless transmitter. It also features a Gigabit Ethernet port, to fully utilize the benefit of 802.11 ac high speed wireless. It’s easy to use and quick to deploy; the QRT is ideal for longer point to point links at 802.11 ac speeds. Product Features • Super high power 5GHz wireless transmitter • Ready to mount enclosure • 802.11 ac • Special shielding to improve operation in high interference areas • Dual-Polarity antennas built-in • Router
OS license: L4 Product
Specifications • CPU: 720MHz •
RAM: 128MB •
Wireless chip model: QCA9882-BR4A-R •
Number of chains: 2 •
Frequencies: 4.9 – 5.875 GHz •
Gain: 24dBi •
RF connector type: MMCX •
Operating temperature range: -22 to 140deg F (-30 to 60deg C) •
Max Power consumption: 11.5W •
Supported input voltage: 8V-30V •
VSWR:
1.37: 1 • 3 dB Beam-Width, H-Plane: 10.5 deg • 3 dB Beam-Width, E-Plane, typ.: 10.5 deg •
Polarization: Dual, Vertical and horizontal • Port to
Port Isolation: -50 dB • Cross Polarization, min.: -25 dB • Front to Back Ratio, min.: 35 dB Product Includes • 1 x QRT 5 ac device • 1 x QRT antenna mount • 2 x U Bolts • 1 x U mast clamp • 1 x Screw Kit • 1 x 24V 1.2A Power Adapter • 1 x Gigabit PoE Injector
Tik Router
BOARD. This device has a 24dBi antenna and a high power 5GHz wireless transmitter, which now supports 802.11 ac and is backwards compatible with 802.11 a/n. Inside the QRT 5 ac is a high power RB911G-5HPacD dual chain wireless device, with high performance and a high output power wireless transmitter. It also features a Gigabit Ethernet port, to fully utilize the benefit of 802.11 ac high speed wireless. It’s easy to use and quick to deploy; the QRT is ideal for longer point to point links at 802.11 ac speeds. Product Features • Super high power 5GHz wireless transmitter • Ready to mount enclosure • 802.11 ac • Special shielding to improve operation in high interference areas • Dual-Polarity antennas built-in • Router
OS license: L4 Product
Specifications • CPU: 720MHz •
RAM: 128MB •
Wireless chip model: QCA9882-BR4A-R •
Number of chains: 2 •
Frequencies: 4.9 – 5.875 GHz •
Gain: 24dBi •
RF connector type: MMCX •
Operating temperature range: -22 to 140deg F (-30 to 60deg C) •
Max Power consumption: 11.5W •
Supported input voltage: 8V-30V •
VSWR:
1.37: 1 • 3 dB Beam-Width, H-Plane: 10.5 deg • 3 dB Beam-Width, E-Plane, typ.: 10.5 deg •
Polarization: Dual, Vertical and horizontal • Port to
Port Isolation: -50 dB • Cross Polarization, min.: -25 dB • Front to Back Ratio, min.: 35 dB Product Includes • 1 x QRT 5 ac device • 1 x QRT antenna mount • 2 x U Bolts • 1 x U mast clamp • 1 x Screw Kit • 1 x 24V 1.2A Power Adapter • 1 x Gigabit PoE Injector
Learn more about the Detailed Specifications
| Brand | Mikrotik |
|---|
| Wireless Data Rates | Up to 1.2Gbps |
|---|---|
| Antenna Antenna | Internal Antenna |
| Interface | RJ-45 |
| Temperature | -30C to +60C |
|---|

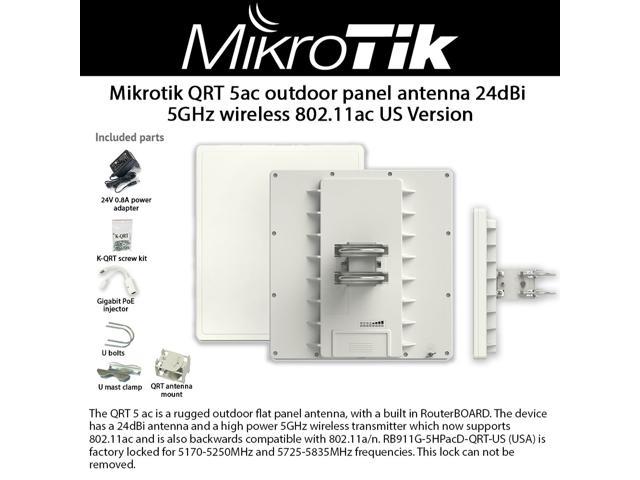

| Package Contents | 1x 24 V 0.8 A power adapter – 1x K-QRT screw kit – 1x QRT antenna – 1x Gigabit PoE injector – 2x U bolts – 1x U mast clamp mount |
|---|
| Disclaimer | QRT 5 ac-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed. |
|---|
| Date First Available | March 22, 2016 |
|---|
