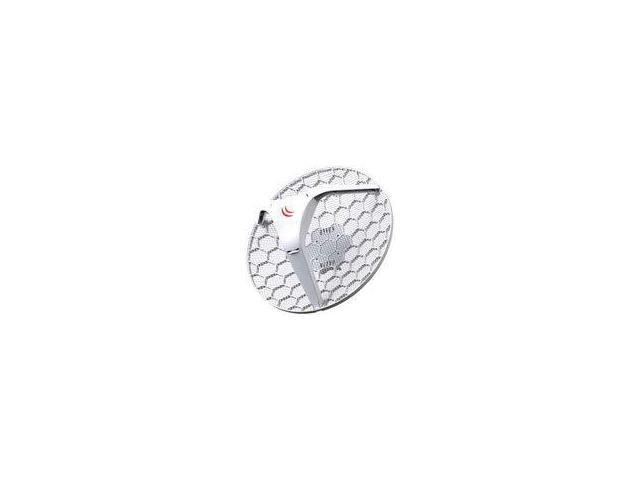

Mikrotik LHG XL 5 ac RBLHGG-5acD-XL CPE/Point-to-Point Dual Chain 5GHz with Integrated 27 dBi grid Antenna

MikroTik RouterBOARD RBLHGG-5acD-XL-US LHG XL 5 ac, Long Range 27dBi 5GHz with 802.11 ac support The LHG XL 5 ac is Long Range 5GHz 802.11 ac wireless device with an integrated dual polarization 27 dBi grid antenna at a revolutionary price. It is perfect for point to point links or for use as a CPE at longer distances and supports Nv2 TDMA protocol. The device includes one 10/100/1000 Mbit Ethernet port to fully utilize speeds that 802.11 ac protocol provides. The Light Head Grid (LHG) is a compact and light wireless device with an integrated dual polarization grid antenna at a revolutionary price.

It is perfect for point to point links or for use as a CPE at longer distances. Several models are available with standard power, high power and even the XL with a higher gain and larger grid. The grid design ensures protection against wind, and the fact that the antenna element is built into the wireless unit means no loss on cables. The device comes disassembled for compact shipping, but is very easy to assemble and includes a simple to use grounding attachment point.
Included: RouterOS L3 license Gigabit PoE injector power supply and pole mount Specifications LHG XL 5 ac CPU nominal frequency 716 MHz Size of RAM 256 MB Storage 16 MB Flash Ethernet ports 1x 10/100/1000 Wireless Built-in 5 GHz 802.11 ac, dual-chain Wireless chip model IPQ-4018 Operating frequency
International: 5150 – 5875
MHz USA: 5170 – 5250 MHz; 5725 – 5835 MHz Antenna gain 27 +/- 0.5 dBi Antenna beam width 7° PoE in Yes Supported input voltage 10 V – 30 V (passive PoE) Wind loading 186N @ 205 km/h Operating temperature -40 to 70° C Operating humidity 5 to 95% noncondensing Shock and vibration ETSI300-019- 1.4 ETSI specification EN 302 326 DN2 Dimensions Ø 550 x 245 mm; package 585 x 595 x 138 mm
Weight Unit: 945
g; package: 2.99 kg Max Power consumption 7 W
