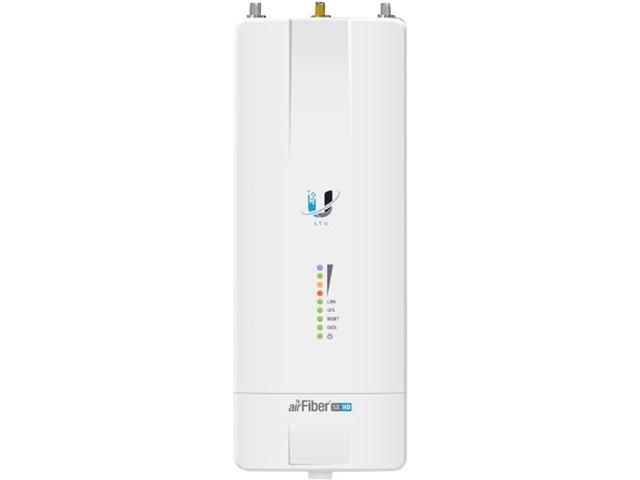

Overview
Ubiquiti Networks continues to
disrupt the wireless broadband
market with revolutionary
technology at breakthrough
pricing by introducing the
airFiber® AF-5XHD. Designed
for use in the 5 GHz frequency
band, the AF-5XHD features the
newest radio technology, offering
greater channel bandwidths (up to
100 MHz) and more advanced RF
components.

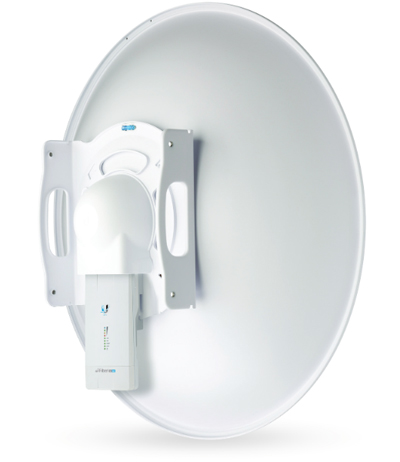

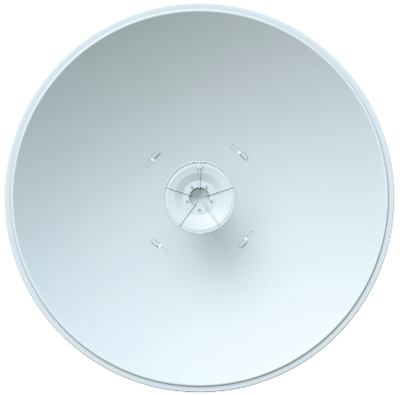

The AF-5XHD is also compatible
with a number of existing Ubiquiti®
antennas for the 5 GHz band,
including airFiber X antennas and
certain RocketDish™ antennas. Pair
the AF-5XHD with a compatible
Ubiquiti antenna for a complete
5 GHz Point-to-Point (PtP) solution.

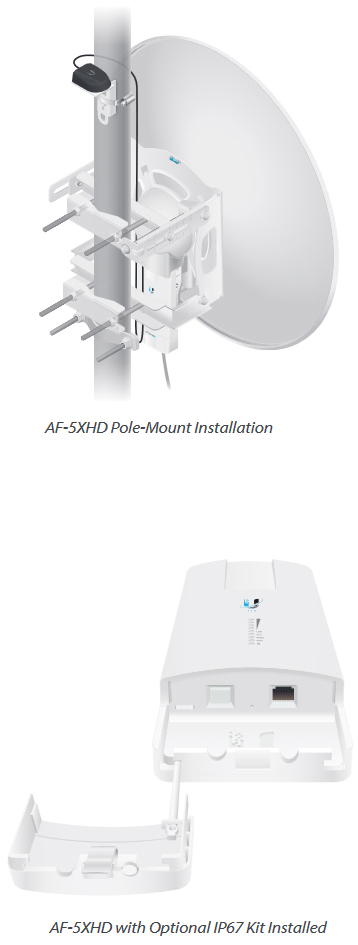

The AF-5XHD also includes a special
IP67 upgrade kit for enhanced
protection from dust and water.

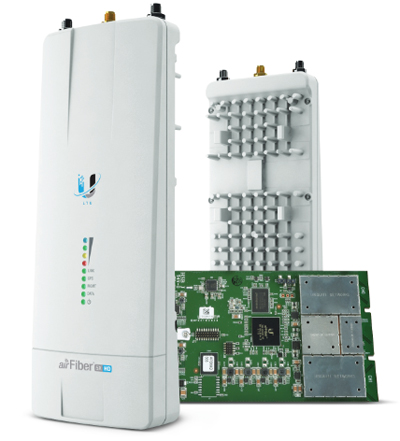

Engineered for Performance
Ubiquiti’s custom silicon and
proprietary radio architecture
are designed specifically for
long-distance, outdoor wireless
applications.
Our core communications
processing engine surpasses all
of the limitations inherent to
generic Wi-Fi chips to provide
superior performance, long-range
capability, DFS flexibility, higher
constellations, and power
output, along with better receive
sensitivity.
The AF-5XHD features industry leading 10.6 bps/Hz spectral
efficiency, line-rate data packet
processing for up to 1 Gbps of real
data throughput, and innovative
xtreme Range Technology (xRT™)
for up to 100 km in range.
Key Features
The AF-5XHD offers the following advanced features:
- Programmable Transmit Power The radio’s transmit
power level can be programmed up to +29 dBm.
- Programmable Duty Cycle (GPS synchronized
frames) The AF-5XHD allows configuration of
asymmetric TX and RX duty cycles. TX ratios include
25%, 33%, 50%, 66.7%, and 75%.
- Configurable GPS Synchronization The AF-5XHD
offers configurable support for 2, 2.5, 4, and
5ms frames. Timing is compatible with all other
synchronous systems.
- Split TX and RX Frequency* The radio can operate
on different frequencies for TX and RX, allowing great
flexibility for interference avoidance.
- Split TX and RX Channel Bandwidth* Support for
different channel bandwidths for TX and RX allows
users to scale required data capacity more efficiently.
- Adaptive Modulation up to 1024QAM Adaptive
modulation rates of up to 1024QAM (4096QAM with
targeted upgrade) are supported.
- Dual Redundant Gigabit Ethernet Ports with PoE
The AF-5XHD has two Gigabit Ethernet ports that can
be used to provide redundant PoE power.
- OFDM and OFDMA Support* The radio offers
flexible scheduling for 2, 4, or 8 subchannels.
- Bluetooth Wireless Configuration Use the built-in
Bluetooth interface for wireless configuration.
- AlignLock™ Antenna Aiming Guard This alerts the
user when the radio or antenna aiming is changed
due to tampering, impact, or storm damage.
- User-Configurable Interference Mitigation Three
user-selectable profiles support both high-interference
and greenfield deployments for robust, optimal
performance.
- Redundant Images for Fail-Safe Configuration
Creation of backup firmware images ensures fail-safe
configuration and enhances reliability.
- Persistent Spectrum Analysis with Dedicated RX
Perform real-time spectral analysis for the full band on
live links without interrupting the link operation.
- Wide Voltage Range, Enhanced Surge Protection
The AF-5XHD has an operating voltage range of
24-48VDC and provides enhanced surge protection.
* Available with a future firmware upgrade.
5 GHz Backhaul

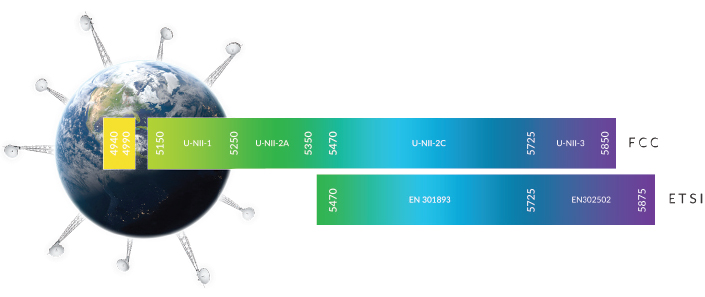

Full-Band Certification with DFS
The AF-5XHD covers the entire,
license-free, 5 GHz spectrum and
includes DFS approval. Anyone
around the world can deploy and
operate the AF-5XHD in the 5 GHz
range practically anywhere they
choose (subject to local country
regulations).
Optimal Operation in
Unlicensed Bands

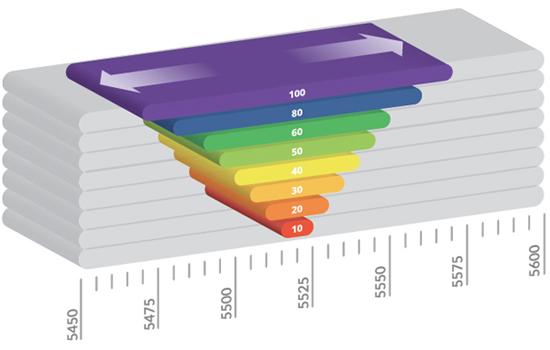

Channel width flexibility
(10/20/30/40/50/60/80/100 MHz)
allows independent TX and RX
channel frequency configurations
anywhere within the radio band to
avoid local interference, and the
channel centers are selectable in
1 MHz increments. You also have
the ability to program different
uplink and downlink duty cycles
to support asymmetric traffic
requirements.
Ultra-Low Latency with
HDD Technology
The AF-5XHD is designed
to provide the highest TDD
throughput available and is
engineered with proprietary
Hybrid Division Duplexing (HDD)
technology.
In a backhaul link, two AF-5XHD
radios use patent-pending HDD
technology to calculate the
propagation delay and know
when each radio can transmit and
receive, so they send packets in
precise synchronization. Packet
transmission latency is virtually
eliminated.

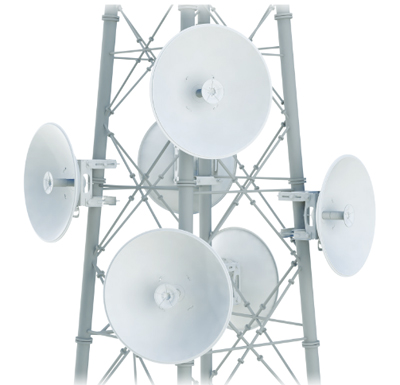

Co-Location
Co-location is vital in many
scenarios. For example, a WISP may
have limited tower space, so it must
co-locate all equipment within that
allotted footprint.
GPS Synchronization
Precise GPS frame synchronization
frees the AF-5XHD from
interference for superior
co-location capability. GPS enables
the concurrency of TX and RX
frames so you can co-locate the
AF-5XHD radios and enhance
the overall performance of your
backhaul links.
Clean Power Output
Using digital pre-distortion
compensation and multi-IFFT
processing, the innovative RF
design delivers ultra-clean
power output that improves
noise immunity and co-location

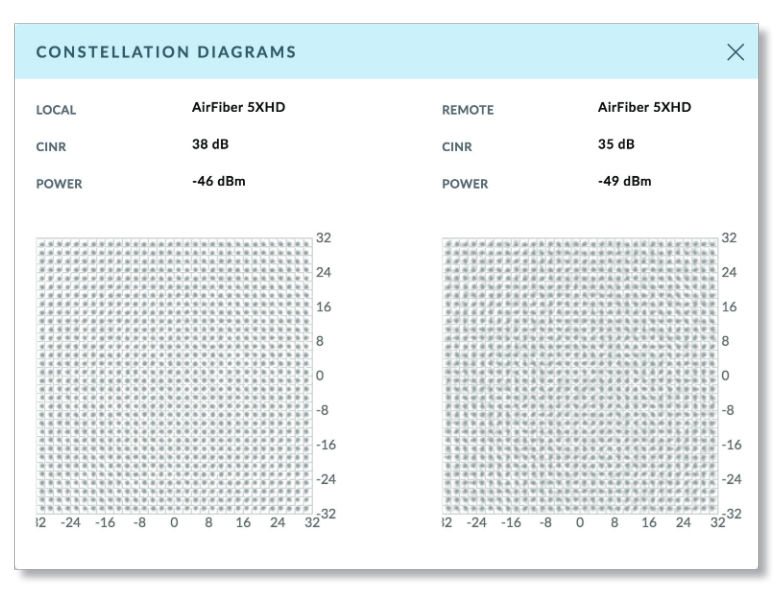

performance. This reduces the
potential impact on the RF noise
environment and allows for the use
of higher-order modulation, such
as 1024QAM.
