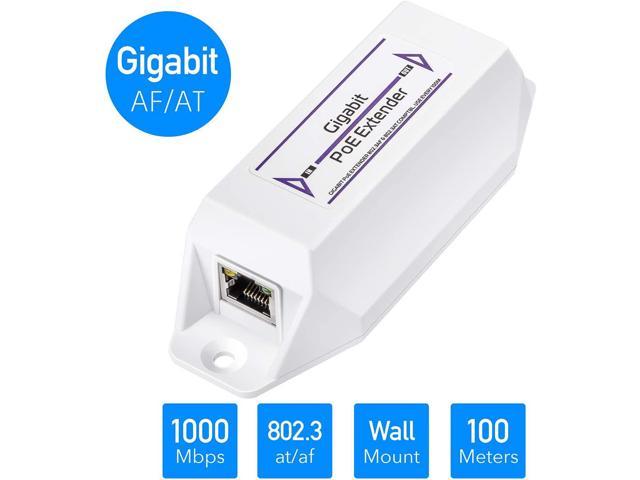

Cudy POE10 Gigabit PoE Extender, 10/100/1000Mbps, 1 Channel PoE Repeater, PoE Amplifier, PoE Booster, Wall-Mount, Comply with IEEE 802.3at / 802.3af, Not Support Passive PoE, Plug and Play
SKU: 9SIB7VEJAD13903.128.580₫

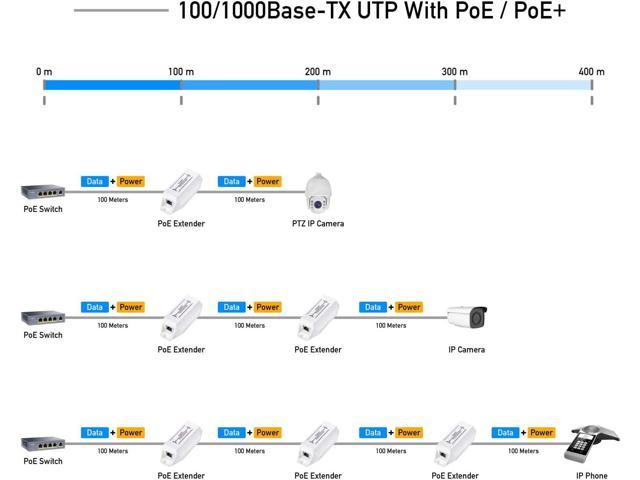

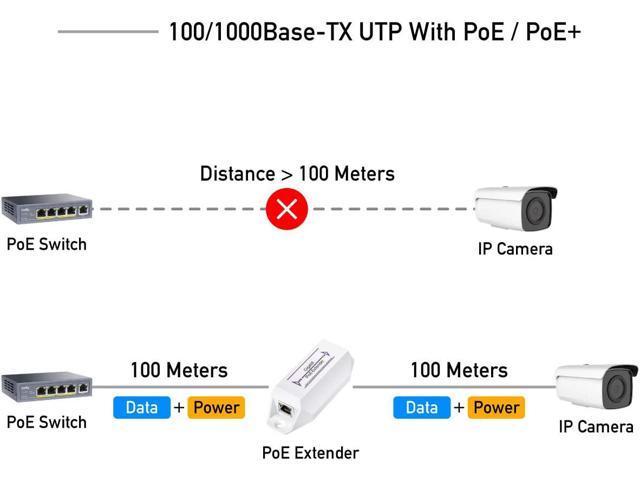

Gigabit Speed. The PoE Extender features one 10/100/1000Mbps PoE+ input port and one 10/100/1000Mbps PoE+ output port.Compatible with IEEE802.3at and IEEE802.3af. Auto-sensing technology conveniently delivers the correct wattage needed to power your PoE (15.4W) or PoE+ (30W) device.Extends a PoE / PoE+ network connection an additional 100m for a total distance of up to 200m (656 ft.) from the PoE power source equipment.Daisy chain support connect up to 3 PoE Extenders for a total PoE+ network extension of 400m (1,312 ft.).Wall-Mount design, Plug and Play, no other settings required. No external power required. Pin Assignment and Polarity Input: 1/2 (-), 3/6 (+), 4/5(+), 7/8(-), Output: 1/2 (+), 3/6 (-).
Description

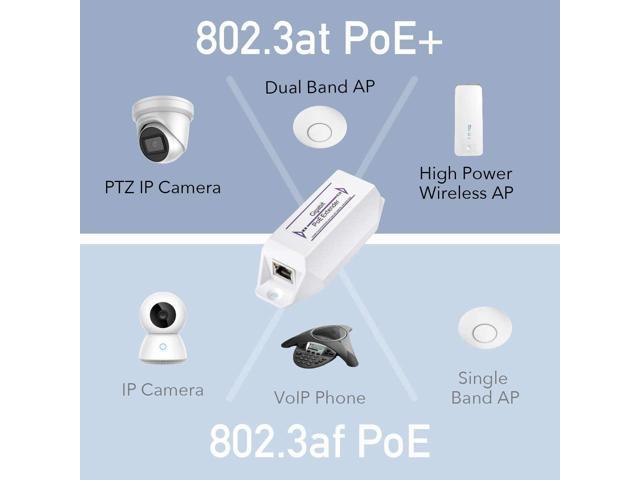

802.3 at/ 802.3 af Compliant
IEEE 802.3 at/ 802.3 af compliant, auto delivers the correct wattage needed to power your PoE ( 15.4W ) or PoE+ (30W) device.
IEEE 802.3 at/ 802.3 af compliant, auto delivers the correct wattage needed to power your PoE ( 15.4W ) or PoE+ (30W) device.
Gigabit Ports
The PoE Extender features one 10/100/1000Mbps PoE+ input port and one 10/100/1000Mbps PoE+ output port.

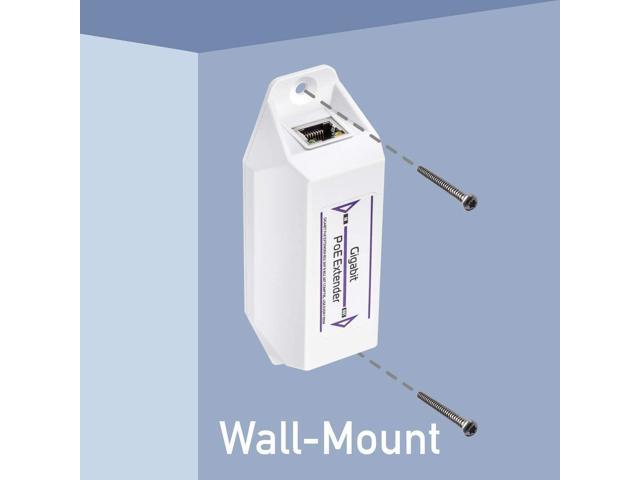

Wall Mount
The wall-mounted design is convenient for network deployment, allowing the extender to be installed in any position, and ensuring stability and avoiding damage.

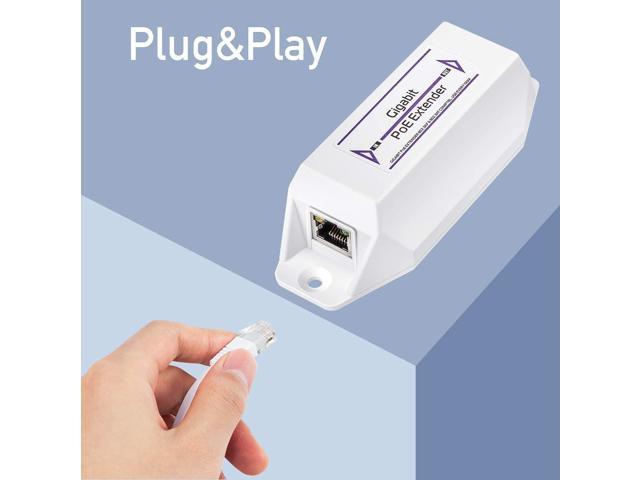

Plug and Play
Plug and Play, no other settings required. No external power required. Pin Assignment and
Polarity Input: 1/2 (-), 3/6 (+), 4/5(+), 7/8(-), Output: 1/2 (+), 3/6 (-).
Technical
Specifications
Number of Channels 1 PoE/PoE+ Input and 1 PoE/PoE+ Output
PoE Standard IEEE 802.3 at (PoE+)/IEEE 802.3 af (PoE)
Ethernet Speed 10/100/1000Mbps Half/Full Duplex
Connectors RJ-45 EIA 568A and 568B
Ethernet Cable Requirement Shielded category 5 (or higher)
Mounting Wall of shelf
Environment Indoor or Outdoor
Pin Assignment and Polarity Input: 1/2 (-) 3/6 (+) 7/8 (-) 4/5 (+)
Output: 1/2 (+)3/6 (-)
Environmental Conditions Operating Ambient Temperature: -25 to 55°C
Operating Humidity: Maximum 90%Non-condensing
Storage Temperature: -30 to 70°C
Storage Humidity: Maximum 95%Non-condensing
Learn more about the Detailed Specifications
| Kit Type | Hub + Adapter |
|---|
| Date First Available | October 30, 2022 |
|---|
