4 Port PoE Extender with 3 PoE Out, IEEE 802.3af/at Mini 4 Channel PoE Repeater 100Mbps, Wall and Din Rail Mount Passthrough POE Switch/Booster, Plug and Play
SKU: 9SIB7VEJAD14411.676.025₫
4 Channel PoE ExtenderThis 4 port PoE extender include 3 PoE out and 1 PoE in. It can provides PoE power to up to three PoE devices, 10/100Mbps speed. Each PoE extender has an transmission distance of 330ft(100m).IEEE802.3af and IEEE802.3atThis 3 channel PoE extender works with all standard IEEE802.3af/at POE switches, POE injectors and POE NVRs. PoE voltage is 44-57V. The Max input is 30W, and the Max output is 24W. Each port can power standard PoE devices less than 8W like IP phones, IP security, IP speakers, etc.Extend PoE+ Data Up To 1,312FTExtra 330ft(100m) PoE+ data transmission can be extended through a YuanLey PoE repeater. And it supports 3 levels cascade, therefore, it can achieve PoE data transmission up to 1312ft with 3 PoE extender.Unmanaged PoE RepeaterNo setup is required, no power, just need a network cable to expand PoE network, plug and play. Supports automatic detection of devices and powers compliant standard PDs.
Description

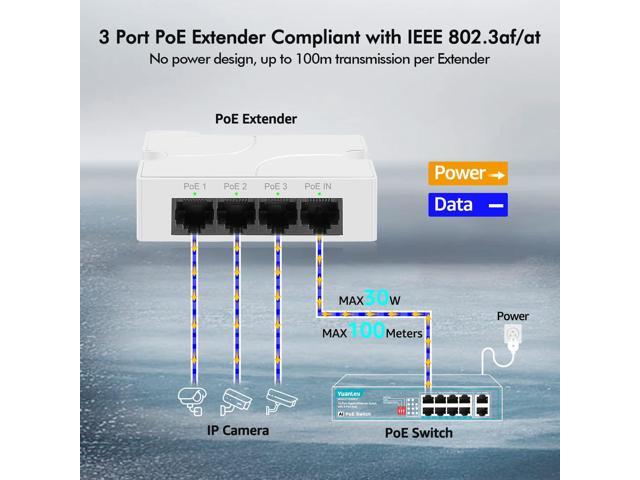

Extend Additional 100m Distance
Usually the transmission distance of the switch is 100m, using YuanLey PoE extender can extend the additional 100 meters distance.
Usually the transmission distance of the switch is 100m, using YuanLey PoE extender can extend the additional 100 meters distance.
PoE Extender

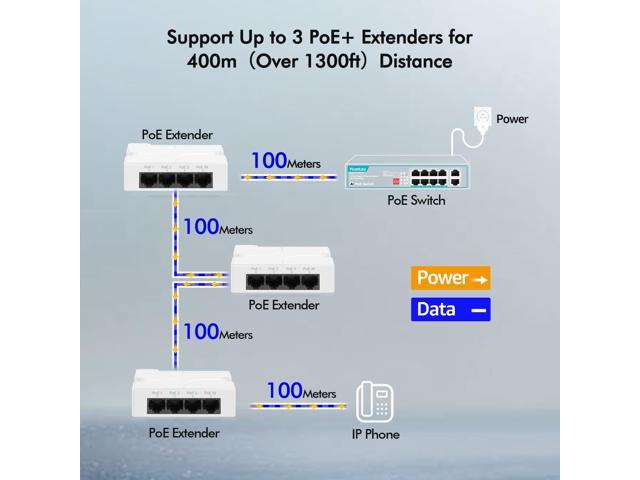

Support 3 Level Cascading
Each YuanLey PoE extender can extend an additional 100m distance, and support up to 3 PoE extenders connected at the same time, extending the distance over 1300 feet.
PoE Extender
LED Indicators
LED indicators on each port allow you to quickly check the port’s working status and troubleshoot. Green (work well), Off (no power).
PoE Extender

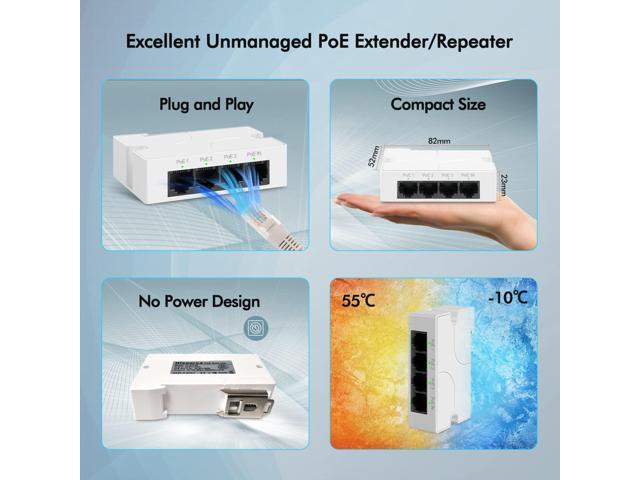

Compact Size
Compact dimension (82mm * 52mm * 23mm). The compact and compact body design allows you to install it in any corner of the room.
PoE Extender
Plug and Play
This PoE Extender does not need any set up, plug & play, easy to use. All ports support automatic device detection to protect the device from damage.
PoE Extender

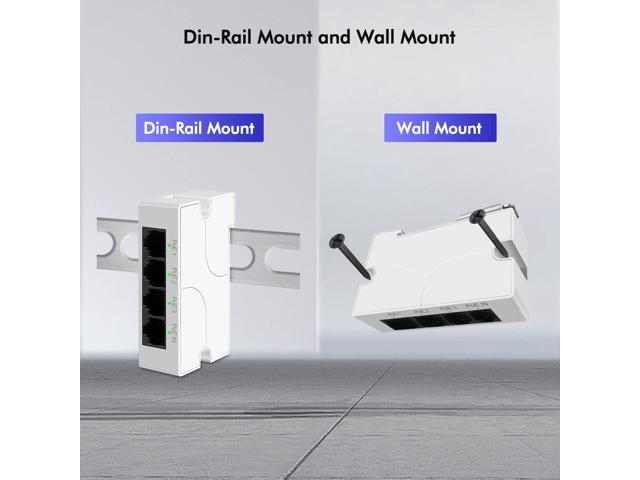

Two Installation Methods
It supports wall mounting and din-rail mounting at the same time to meet any of your installation needs, easy to use and save time and space.
Technical
Specifications
Model PE-AT13F
Product Name YuanLey 4 Port PoE Extender
Network Transmission Medium 10Base-T: Cat5e or above
UTP (100m); 100Base-TX: Cat, 5e or above UTP (100m)
Ethernet 3*10/100Mbps PoE Port+1*10/100Mbps Ethernet Port
Transmission Distance Up to 1000ft (300m) per Extender, support 3 level cascading
Network Protocol IEEE 802.3, IEEE 802.3 u, IEEE 802.3 x
PoE Protocol IEEE 802.3 at (30W), IEEE 802.3 af ( 15.4W )
Backplane Bandwidth 1Gbps
POE Pin 1/2 (-), 3/6 (+), 4/5(+), 7/8(-)
Forwarding Rate 0.74M pps
Working Temperature -10~55°C

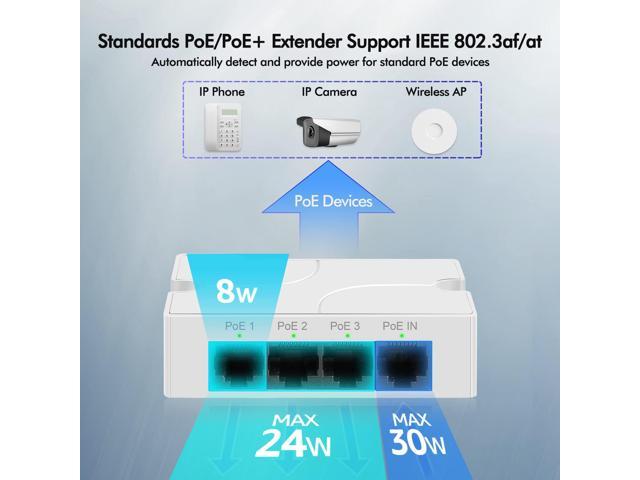

PoE Power Input Max 30W, Output Max 24W, Average 8W per port
PoE Voltage 44-57 Vdc
Product Size 82*52*23mm
Product Weight 55g
MAC 1K
Learn more about the Detailed Specifications
| Kit Type | Hub + Adapter |
|---|
| Date First Available | October 30, 2022 |
|---|
