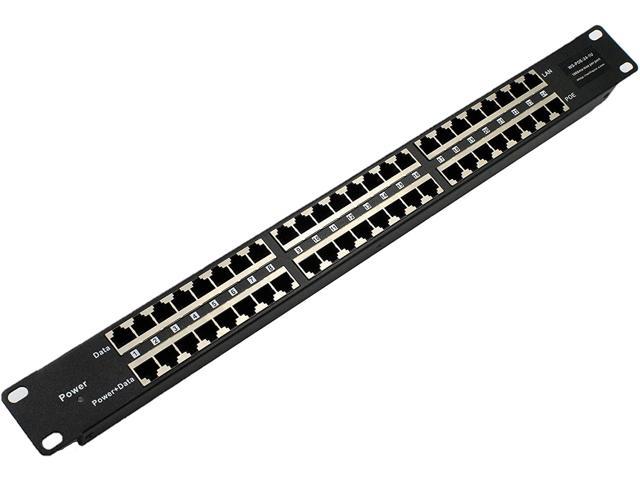

24 Port Passive PoE Injector with 48V 120W Power Supply for 802.3af Devices – 10/100 Fast Ethernet Capability
SKU: 9SIB7VEJ8H91669.646.455₫
Instantly upgrade your network to PoE using this 24 Port, 1U Rack mount Power over Ethernet midspan injectorUse to power 802.3af compliant IP Phones, Cameras, WiFi Access Points and morePassive Always-on Power with Mode B operation; 10/100 Fast Ethernet capabilityIncludes a 48 volt, 2.5 amp, 120 watt UL/FCC/CE approved power supply – or use the direct wire terminals with a larger DC power supply to expand your power budget
Description
Add PoE to any switch
Replace up to 24 individual injectors with this single 10/100 POE module
Replace up to 24 individual injectors with this single 10/100 POE module
Features
Extend power to 328 ft or 100 meters
Rack mounted PoE injector
24 shielded RJ45 ports with Data + Power out
Power per port limited to 350 ma, self resetting PTC fuse per port
24 shielded RJ45 LAN Ports for data input from your switch
Dual DC power jacks – primary and secondary DC power
LED power status
10/100 operation
802.3 af compatibility with Mode B power pinout (pins +4, 5 -7, 8)
Compatible Devices:
WiFi Access points
IP Cameras
IP Phones
Other 802.3 af devices
Included in the box:
48-volt, 120-watt UL/CE/FCC certified power supplies
24 Port Midspan PoE Injector
NOTE: All devices receive the same voltage (48 volts) and share power up to 120 watts. Check your device specifications for power needs, most IP phones require under 4 watts. To add additional power, use the secondary screw terminal to add a 2nd 48v120w power supply (sold under product name WS-PS-48v120w) for redundant operation or higher power
Other products from WiFi-Texas
We offer 10/100 and gigabit midspan injectors, PoE switches, and PoE splitter/converters for non-PoE devices.
GPOES-8-7AB-48v60w: 8 port gigabit switch
POE-8-48v60w: 8-port midspan injector with 10/100 speed data
GPOE-16A-48v120w: 16-port gigabit midspan injector
POE-12-48v120w: 12-port midspan injector with 10/100 speeds
PoE-Tester-Gen2: Voltmeter to display power used by a device
5v and 12v splitters
Learn more about the Detailed Specifications
| Kit Type | Hub + Adapter |
|---|
| Date First Available | October 08, 2022 |
|---|
