Planet HPOE-1200G 12-Port Gigabit IEEE 802.3at PoE+ Managed Injector Hub (360 watts)

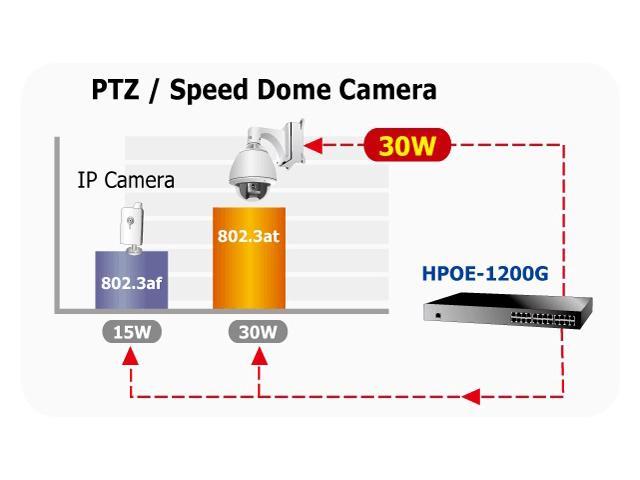

High Power PoE for Public Service PoE Applications PLANET HPOE-1200G, the next generation 12-Port Gigabit IEEE 802.3 at High Power PoE Web Management Injector Hub, features both IEEE 802.3 af and High Power IEEE 802.3 at Power over Ethernet (PoE) that combines up to 30-watt power output and data per port over one CAT 5E/6 Ethernet cable. It is designed specifically to satisfy the growing demand for higher power consuming network PD (powered devices) such as PTZ (Pan, Tilt & Zoom) / Speed Dome network cameras, multi-channel ( 802.11 a/b/g/n) wireless LAN access points and other network devices by providing double amount of PoE power, more than the conventional 802.3 af PoE PSE.

IEEE 802.3 at PoE Standard Compliance Till today, the IEEE 802.3 af Power over Ethernet Standard has become popular yet the PoE demand still grows for increasing network-powered applications. With many critical applications increases, the demand for higher power appears. Hence, the IEEE 802.3 at High Power over Ethernet standard is defined to allow delivery of maximum up to 30-watt input power to per PoE device. Compliant with IEEE 802.3 at, the HPOE-1200G possesses stronger power capability than the existing 802.3 af PoE PSE and is an ideal solution to meeting the high power requirements directly via the RJ-45 port interface.

Intelligent Powered Device Alive Check The HPOE-1200G can be configured to monitor connected PD (Powered Device) status in real time via ping action. Once the PD stops working and is without response, the HPOE-1200G will resume the PoE port power and bring the PD back to work. It will greatly enhance the network reliability through the PoE port resetting the PD’s power source and reduce administrator management burden. PoE Schedule for Energy Saving Under the trend of energy saving worldwide and contributing to environment protection on the Earth, the HPOE-1200G can effectively control the power supply besides its capability of giving high watts power.

The “PoE Schedule” function provided by the HPOE-1200G helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs or enterprises save power and money. Advanced Power Management To facilitate power management, the HPOE-1200G comes with such powerful PoE management features as over temperature protection, usage threshold alert and auto power allocation to prevent power budget overloading. The PoE power budget can be allocated by priorities or classification and can send alert event logs when power usage reaches the defined threshold.

The HPOE-1200G enables centralization of the power supply and optimizes the installation and power management of remote network devices; therefore, it eliminates costs for additional AC wiring and reduces installation time. Quick and Easy PoE Network Deployment The HPOE-1200G complies with IEEE 802.3, IEEE 802.3 u, IEEE 802.3 ab, IEEE 802.3 af and IEEE 802.3 at standards. With 12 10/100/1000Base-T Gigabit Ethernet ports, the HPOE-1200G supports 52V DC power for any remote 802.3 af / 802.3 at powered device (PD). Supporting total PoE power budget of 360 watts, the HPOE-1200G provides sufficient 15.4 – / 30.8 -watt PoE power to up to 12 remote PD devices.

24-Port RJ-45 • 12 -Port 10/100/1000Mbps “Data input” • 12 -Port 10/100/1000Mbps “Data + Power output” • 1-Port 10/100Base-TX Management Port • Reset button for system management Power over Ethernet • Complies with IEEE 802.3, IEEE 802.3 at and IEEE 802.3 af Power over Ethernet Mid-Span PSE • Up to 12 IEEE 802.3 at / 802.3 af devices powered • 360-watt PoE Budget • Supports PoE power up to 30.8 watts ( 802.3 at PoE) / 15.4 watts ( 802.3 af PoE) for each PoE port • Automatically detects powered device (PD) • Circuit protection prevents power interference between ports • Remote power feeding up to 100m PoE Management • Total PoE power budget control • Per port PoE power schedule • PoE function enable / disable • Per port PoE function enable / disable • Per port 802.3 at / 802.3 af mode • PoE port power feeding priority • Per PoE port power limit • PD classification detection • Over temperature protection • PoE temperature threshold • PoE power usage threshold • PD alive-check Management • Web interface for remote management • Supports Network Time Protocol (NTP) • Firmware upgrade through Web interface • PLANET Smart Discovery utility automatically finds PLANET devices on the network • SNMP Trap for alarm notification of events • System Log / Remote Syslog Hardware • 19-inch rack mountable; 1U height • Reset button for reset to default setting and system reboot • LED indicators for PoE ready and PoE activity • LED indicators for Power Alert and Fan Alert • FCC Part 15 Class A, CE Standard Compliance • IEEE 802.3 10Base-T • IEEE 802.3 u 100Base-TX • IEEE 802.3 ab 1000Base-T • IEEE 802.3 at High Power over Ethernet • IEEE 802.3 af Power over
Ethernet • RFC 768: UDP
• RFC 791: IP • RFC 2068 HTTP • RFC 1157: SNMP
v1 • RFC 1902: SNMP
v2c • RFC 5424: Syslog
