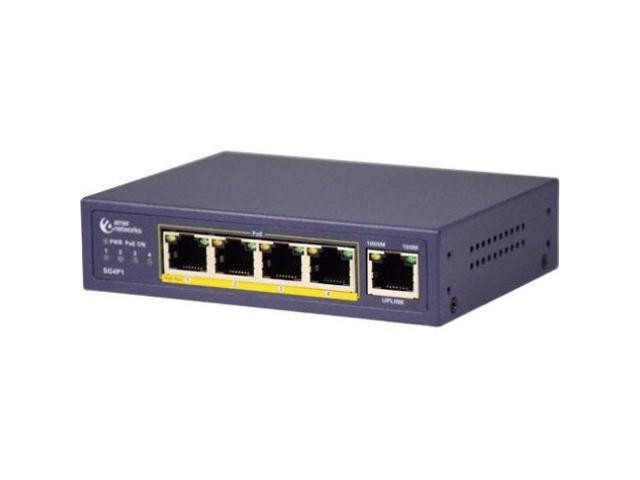

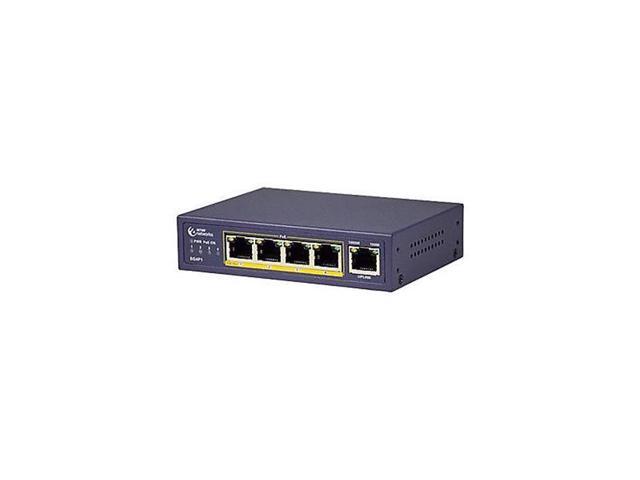

Amer 5 Port 10/100/1000 Desktop Switch with 4 PoE ports
SKU: 9SIA4H18R765762.234.700₫
Switch capacity: 8 Gbps MAC Address Table Size:K MAC address entries per deviceNetworking Standards: EEE802.3i 10 BASE-T; IEEE802.3u 100 BASE-TX, IEEE802.3x Flow control; IEEE802.3ab/z 1000 BASE -TX IEEE802.3af Power over EthernetRJ-45 10/100/1000 Base-T: 4 x 1 Gigabit PoE Ethernet Ports 1 x 1 Gigabit Ethernet PortPoE Features: Up to 15.4W per PoE port (IEEE802.3af) PoE pin pairs 1/2 and 3/6Forwarding Mode: Store and ForwardFlow Control:Half-duplex back pressure and IEEE802.3X full-duplex flow controlLED Indicator: System: Power,PoE max. power; Per port: Link, speed, PoE active, PoE errorMinimum Cable Requirement: UTP cat5 or higherEmissions: CE, FCC, ROHsPower Supply:External cUL 48V 1.25APower Consumption: Total power consumption: 70W Total PoE power budget: 60WOperating Temperature Range:32° to 104° F (0° to 40° C)Storage Temperature Range:14° to 158° F (-10° to 70° C)Operating Humidity Range: 20%-85%, Non-condensingWidth x Depth x Height: 18 x 85 x 28 mm 4” 5/8 x 3”
Description
Designed for use with Power over Ethernet (PoE) devices, the SG4P1 switch provides up to 15.4W of power to 802.3af PoE compatible devices connected to the switch’s PoE ports. The Switch allows these devices to draw power from the switch and remove the need for a power adapter. Some devices that may have support for 802.3af are Wireless Access Points, IP Phones and IP Cameras. The Ethernet ports automatically negotiate between 10BASE-T and 100BASE-TX network speeds, as well as between full and half duplex modes, so any port can connect to a Fast Ethernet or Ethernet network. The ports also support Auto MDIX, allowing the automatic detection of a straight through or cross-over cable, this feature reduces support problems commonly caused by incorrect cable usage. Package Contents: 5 Port 10/100/1000 Desktop Switch with 4 PoE ports Wall Mounting Kit Product Type: Ethernet Switch Power Source: AC Adapter Layer Supported: 2 Product Type: Ethernet Switch Manufacturer Part Number: SG4P1 Packaged Quantity: 1 Power Source: AC Adapter Limited Warranty: 3 Year Layer Supported: 2 Weight (Approximate): 10.88 oz Form Factor: Under Table Form Factor: Wall Mountable Form Factor: Desktop Network Technology: 10/100/1000Base-T Form Factor: Under Table Form Factor: Wall Mountable Form Factor: Desktop Manufacturer: Amer Networks, Inc Product Model: SG4P1 Product Name: 5 Port 10/100/1000 Desktop Switch with 4 PoE ports Network Technology: 10/100/1000Base-T Brand Name: Amer Brand Name: Amer Height: 1.1 Width: 4.6 Depth: 3.3 Manageable: No Ethernet Technology: Gigabit Ethernet Stack Port: No Media Type Supported: Twisted Pair Total Number of Network Ports: 5 Port/Expansion Slot Details: Gigabit Ethernet Manageable: No Environmentally Friendly: Yes Environmental Certification: RoHS Ethernet Technology: Gigabit Ethernet Modular: No Uplink Port: Yes Stack Port: No Media Type Supported: Twisted Pair Total Number of Network Ports: 5 Port/Expansion Slot Details: 1 x Gigabit Ethernet Uplink Port/Expansion Slot Details: 4 x Gigabit Ethernet Network
Learn more about the Amer Networks, Inc SG4P1
| Brand | Amer |
|---|---|
| Model | SG4P1 |
| Format | Under Table
Desktop |
|---|---|
| Network Management Type Network Management Type | Unmanaged |
| Primary Port Speed | 10/100/1000Base-T |
|---|
| Protocols | TCP/IP |
|---|
| Weight | 10.88 oz |
|---|
| Package Contents | Package Contents: 5 Port 10/100/1000 Desktop Switch with 4 PoE ports Wall Mounting Kit |
|---|
| Date First Available | February 01, 2019 |
|---|
