YuanLey 10 Port PoE Switch, 8 PoE+ Port 100Mbps, 2 Gigabit Uplink, 120W 802.3af/at, Extend Function, Metal, Fanless, Plug and Play
SKU: 9SIAHEW91U43272.569.905₫
[Port and rate] The Switch includes 8 POE ports and 2 UpLink port, all 1-8 POE ports up to 10/100Mbps speed and data distance up to 100m in normal mode. The Uplink port 1-2 support 10/100/1000Mbps speed.[120W Power Supply Internal] Support IEEE 802.3af/at. Max 120W(52V 2.3A) power built-in, each port max power supply reached 30W and can support 8 ports each 15.4W in the same time.[Unmanaged Switch] Power Detection ports automatically detect devices. Plug and Play, no configuration required, easy to use.[250m and VLAN support] When the extend mode is enabled, single POE port supports 250m transmission distances and 10Mbps speed. 1-8 ports support VLAN isolation, improve the network safety.[Wide Applications] Built-in power supply. Compact design. Durable Metal. Bilateral heat dissipation. LED activity indicator lights. Widely used in IP cameras, Wireless Access Point, IP Phone and Computer Networks devices.
Description
What’s included
1 x 8 Ports PoE+ Switch
1 x AC Power Cable
4 x Screws with nuts
2 x Hanger
4 x Mats
1 x User Manual
1 x 8 Ports PoE+ Switch
1 x AC Power Cable
4 x Screws with nuts
2 x Hanger
4 x Mats
1 x User Manual
Specifications
8×10/100Mbps PoE port
2×10/100/1000Mbps RJ45 UpLink port
Support IEEE802.3af/at PoE
High Whole Power 120W, Each port max reached 30W
Support Extend Function: port isolation and 250m long distance
Switch Capability up to 10Gbps
Working Temperature:-10°–55°C
Auto Detect Device
Automatically detect powered devices, support IEEE802.3af/at PoE(include PoE cameras, APs, etc.) and Non-PoE device, does not support 24V passive PoE.
If you are not sure whether it is compatible, please contact our support email.

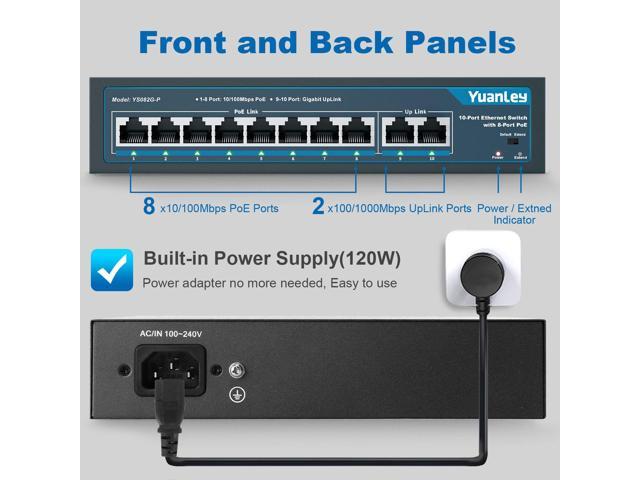

2 Gigabit UpLink Port
2 Gigabit uplink ethernet port, can provide more bandwidth than 100mpbs uplink port.
Durable Metal Housing
Compact design, sturdy metal case makes it safe to use in various environments
Built-in Power Supply
Use the built-in industrial power supply to connect directly to the outlet through the power cord. It does not require an external large power adapter, making installation easier and saving space.
No Noise
Bilateral heat dissipation, fanless design, keeps stable and quiet.

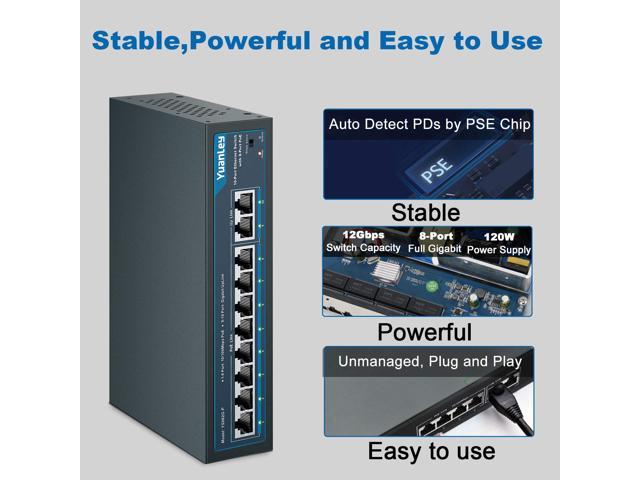

Easy to Use
Requires no configuration, just plug-and-play, automatic connect to device.
Extend Function
When the extended mode is enabled, all PoE ports support port isolation, suppress broadcast storms, supports 250 meter and 10Mbps, effectively improving the jamming and mosaic phenomenon in the surveillance network.
After Sales Service
All our products have been rigorously tested and provide quality assurance. If you have any questions, please contact us, we will provide you with the best after-sales service, please rest assured to buy, thanks!
Learn more about the Detailed Specifications
| Brand | YuanLey |
|---|
| Format | Desktop |
|---|---|
| Standards | IEEE 802.3af, IEEE 802.3at |
| Network Management Type Network Management Type | Unmanaged |
| Uplink Ports Uplink Ports | 2 |
|---|---|
| Uplink Interface | RJ45 |
| Primary Ports | 10 x RJ45 |
| Primary Port Speed | 10/100/1000Mbps |
| Switching Method | Store and Forward |
|---|---|
| VLAN Support VLAN Support | Yes |
| Uplink Speed | 10/100/1000 Mbps |
| PoE PoE | Yes |
|---|---|
| SNMP | No |
| Layer | Layer 2 Only |
| Date First Available | March 19, 2019 |
|---|
Related products
Yên tâm mua sắm
NGUỒN HÀNG ĐẢM BẢO
Hàng hóa trên HQG.VN được bán bởi các các nhà cung cấp lớn và uy tín nhất thế giới.
GIÁ CẢ CẠNH TRANH
HQG.VN đem đến cơ hội mua sắm hàng hóa chất lượng quốc tế, giá Việt Nam cho tất cả mọi người.
GIAO HÀNG TOÀN QUỐC
HQG.VN giao hàng miễn phí tới tất cả 63 tỉnh thành trên toàn quốc.
THANH TOÁN THUẬN TIỆN
Hỗ trợ nhiều phương thức thanh toán. Được đảm bảo an toàn tuyệt đối bởi nganluong.vn
BẢO HÀNH SẢN PHẨM
HQG.VN có chính sách bảo hành chính hãng cho các sản phẩm
HỖ TRỢ 24/7
Tổng đài hỗ trợ: 028.7309.6999
Bảo hành 24/7: 1900636106
Description
What’s included
1 x 8 Ports PoE+ Switch
1 x AC Power Cable
4 x Screws with nuts
2 x Hanger
4 x Mats
1 x User Manual
1 x 8 Ports PoE+ Switch
1 x AC Power Cable
4 x Screws with nuts
2 x Hanger
4 x Mats
1 x User Manual
Specifications
8×10/100Mbps PoE port
2×10/100/1000Mbps RJ45 UpLink port
Support IEEE802.3af/at PoE
High Whole Power 120W, Each port max reached 30W
Support Extend Function: port isolation and 250m long distance
Switch Capability up to 10Gbps

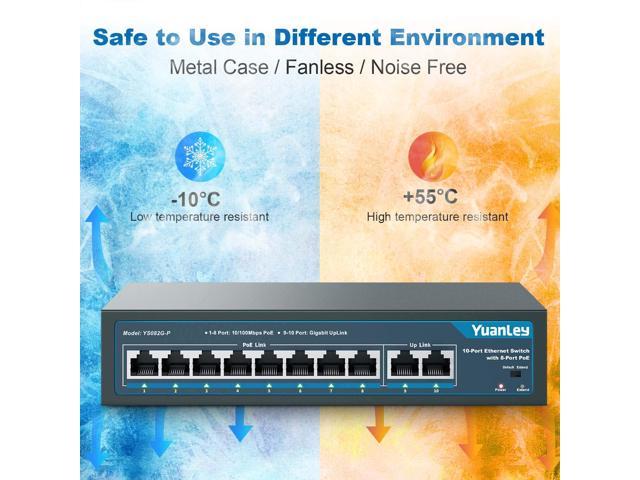

Working Temperature:-10°–55°C
