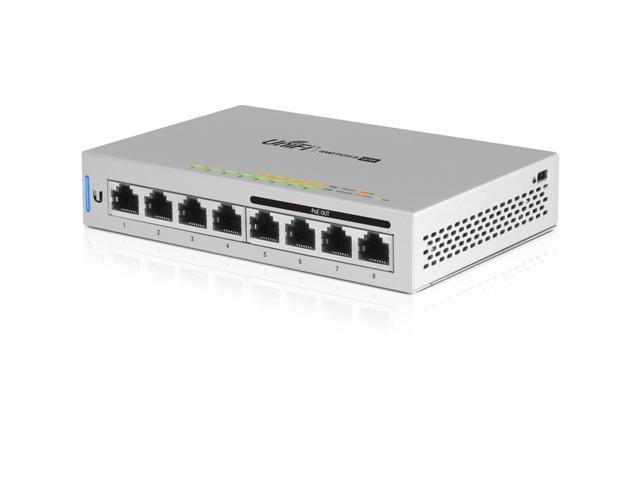

Ubiquiti Networks US-8-60W-US Fully Managed Gigabit Switches with 4-PoE Ports
SKU: 9SIAWFGJPA81307.383.597.780₫
8 x Gigabit RJ45 Ports4 x Auto-Sensing IEEE 802.3af PoE PortsNon-Blocking Throughput: 8 GbpsSwitching Capacity: 16 GbpsForwarding Rate: 11.9 MppsMaximum Power Consumption: 12W
Description
#overview-content.sku-0XP-000A-000T8 .banner {width:100%;height:132px;margin-bottom:0;background:url(‘//images10.newegg.com/BizIntell/item/0XP/000A/0XP-000A-000T8/logo_030217.jpg’) no-repeat left center;}
#overview-content.sku-0XP-000A-000T8 .bg{width:100%;height:302px;margin-bottom:30px;background:url(‘//images10.newegg.com/BizIntell/item/0XP/000A/0XP-000A-000T8/bg_030217.jpg’) no-repeat right center;}
#overview-content .line{border-bottom:1px solid #ccc;}
#overview-content{background:#fafafa;}
#overview-content h4{font-size:16px;color:#ccc;}
#overview-content h3{font-size:22px;font-weight:normal;margin:10px 0;text-align:center;color:#000;}
#overview-content .text{padding:20px 0 0 20px;width:40%;}
#overview-content p{line-height:20px;}
#overview-content .features.l-grid .features-box {display:inline-block; width:350px;padding:5; vertical-align:top; }
#overview-content .features.l-grid .features-box p {text-align:left; width:300px; margin:auto; }
#overview-content .specifications table {margin:0 auto;line-height:26px;border-collapse:collapse;width:98%;}
#overview-content .specifications table td{border:0;border-bottom:1px solid #f0f0f0;padding-left:10px;text-align:left;width:20%;}
Fully Managed Gigabit Switch
The UniFi Switch 8-port models feature Gigabit Ethernet ports in a compact form factor. The switches are fully manageable, delivering robust performance and intelligent switching for your networks.
8-Port Managed Gigabit Switches

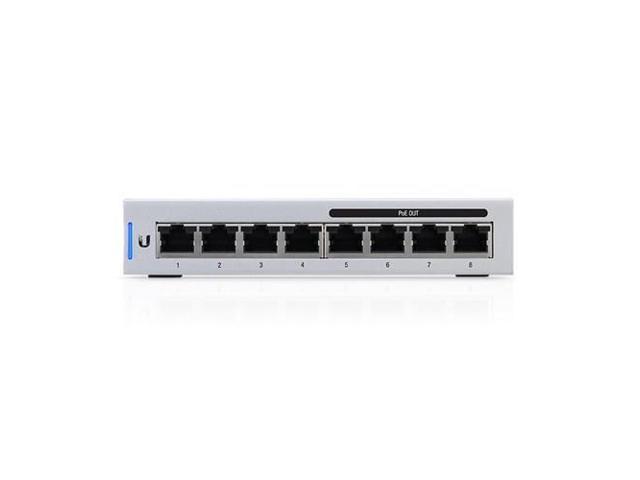

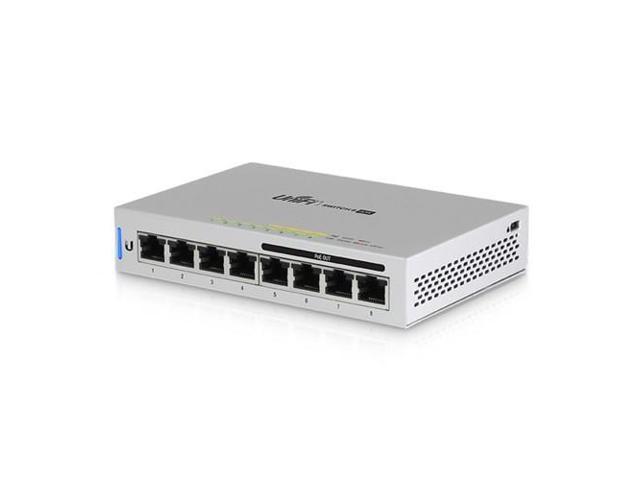

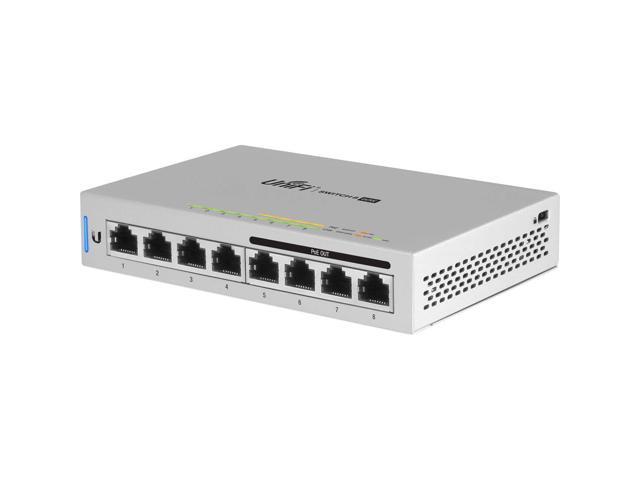

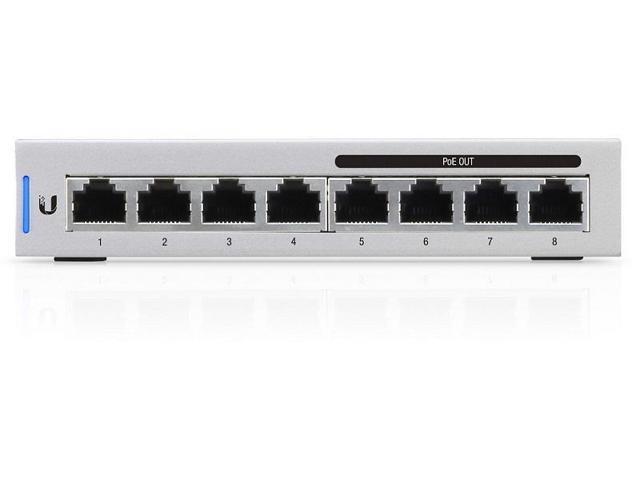

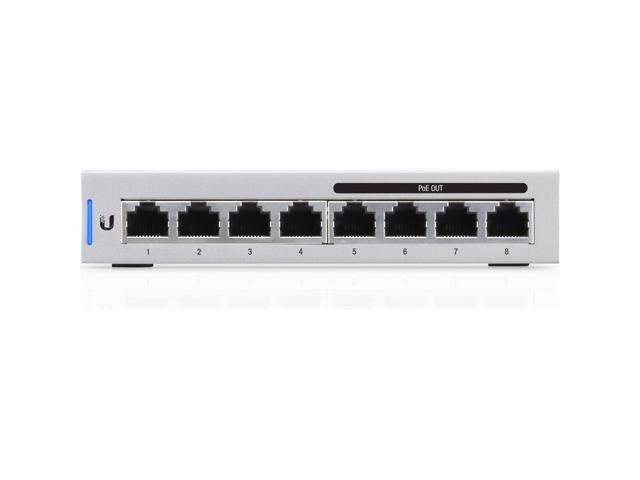

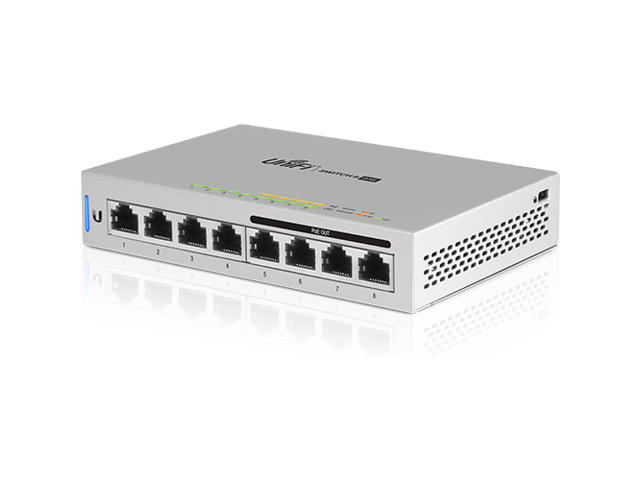

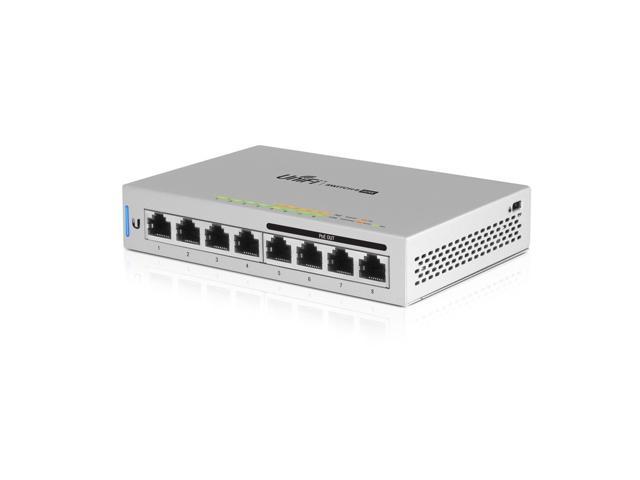

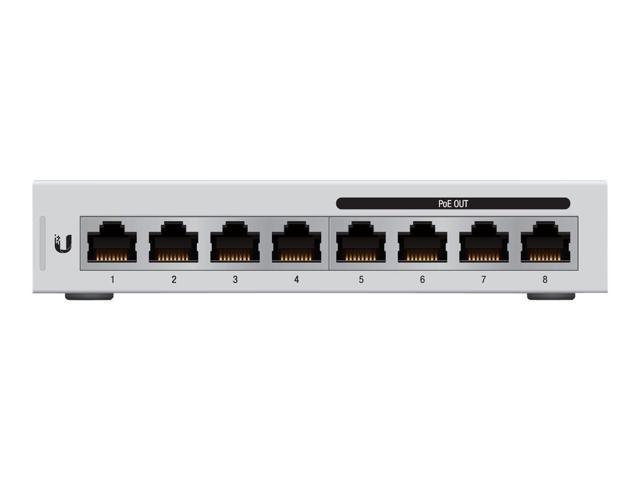

The US-8-60W is an 8-port gigabit switch with four 802.3af PoE ports. Its auto-sensing PoE ports deliver up to 15.4W of power per port.

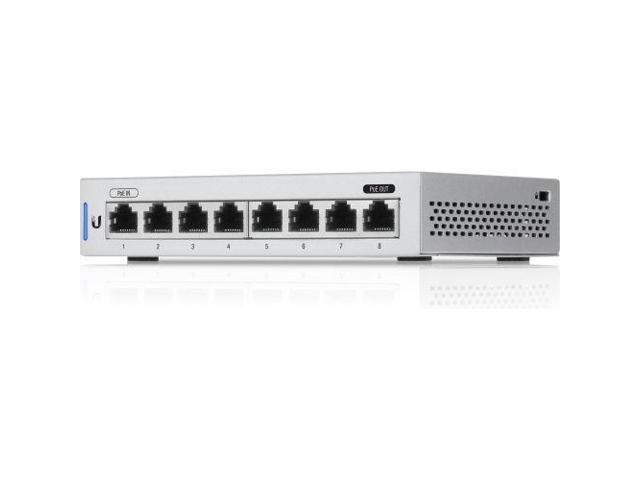

The US-8 is a PoE Powered 8-port gigabit switch with PoE Passthrough. Perfect for cleanly adding Ethernet ports where needed, with passthrough to keep your PoE device powered.
Non-Blocking Throughput
The new 8-port models feature Gigabit Ethernet ports in a compact form factor. For its total, non-blocking throughput, each UniFi Switch supports up to 8 Gbps.
Switching Capacity
The UniFi Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss, with a switching capacity of 16 Gbps.
Seamless Integration

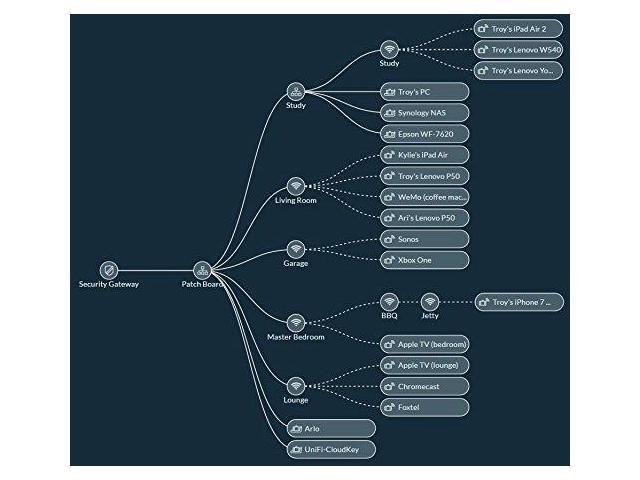

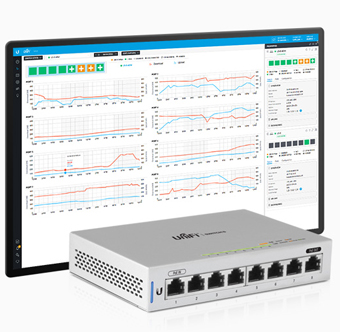

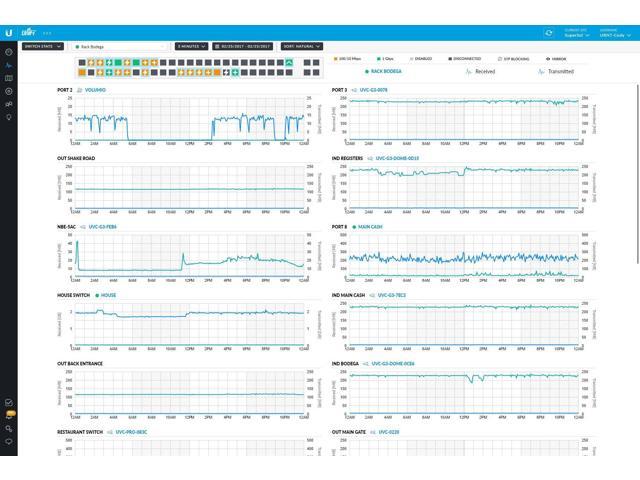

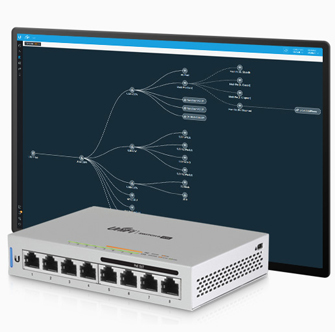

A single instance of the UniFi Controller running in the cloud can manage multiple UniFi sites within a centralized interface. Each site is logically separated and has its own network monitoring, configuration, maps, statistics, and admin accounts.
Model Comparison
 |
 |
|
| US-8 | US-8-60W | |
| Total Non-Blocking Throughput | 8 Gbps | 8 Gbps |
| Gigabit RJ45 Ports | 8 | 8 |
| PoE Ports | 1 PoE Passthrough Port | 4 Auto-Sensing IEEE 802.3af PoE Ports |
| Switching Capacity | 16 Gbps | 16 Gbps |
| Max. Power Consumption | 12W | 12W |
Learn more about the Ubiquiti Networks US-8-60W
| Brand | Ubiquiti |
|---|---|
| Model | US-8-60W |
| Format | Desktop |
|---|---|
| Network Management Type Network Management Type | Managed |
| Primary Ports | 8 x RJ45 |
|---|---|
| Primary Port Speed | 10/100/1000Mbps |
| VLAN Support VLAN Support | Yes |
|---|
| Protocols | TCP/IP |
|---|---|
| PoE PoE | Yes |
| LEDs | PoE (Port 8), Speed / Link / Activity (All Ports) |

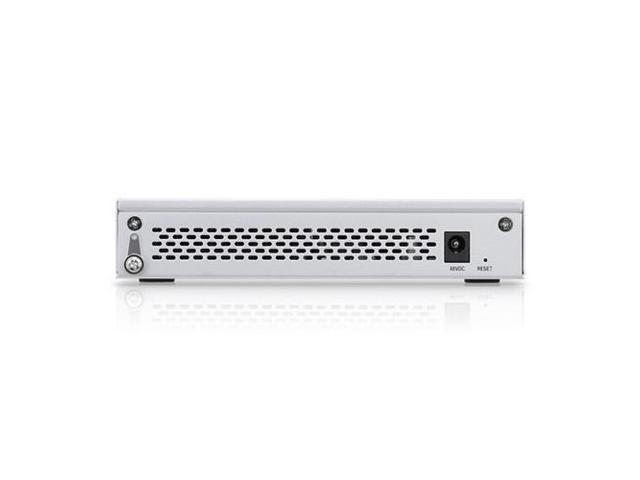

| Power | Max. Power Consumption: 12W (Excluding PoE Output) Max. PoE Wattage per Port: 15.4W Power Method: 48V DC, Max. 2A Supported Voltage Range: 57V DC to 44V DC Power Supply: External AC / DC Adapter, 48V, 1.25A |
| Features | Non-Blocking Throughput Switching Performance
Gigabit Ethernet RJ45 Ports Robust Performance for Enterprise Networks |
|---|

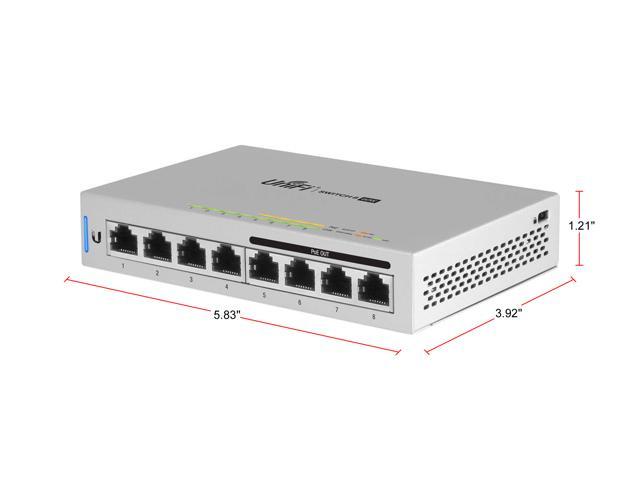

| Dimensions | 1.21″ x 5.83″ x 3.92″ |
|---|---|
| Weight | 0.95 lb. |
| Temperature | Operating Temperature: -5 ~ 45 degree Celsius (23 ~ 113 degree Fahrenheit) |
|---|---|
| Humidity | Operating Humidity: 5 to 95% Noncondensing |
| Package Contents | UniFi US-8-60W Ethernet Switch AC Adapter |
|---|
| Case | None |
|---|---|
| Class | 8 Port 60W |
| Version | N/A |
| Model | N/A |
| Primary Port | N/A |
| Date First Available | November 06, 2022 |
|---|
Customer Reviews of the Ubiquiti Networks US-8-60W
