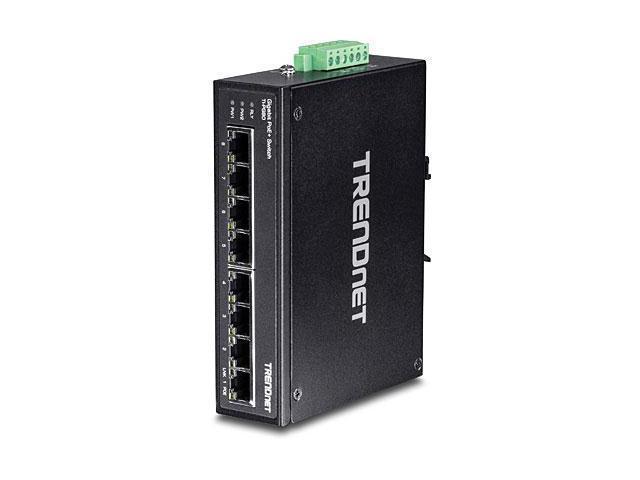

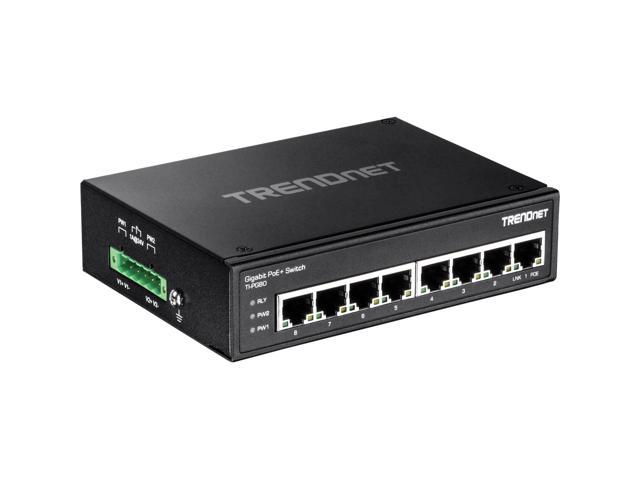

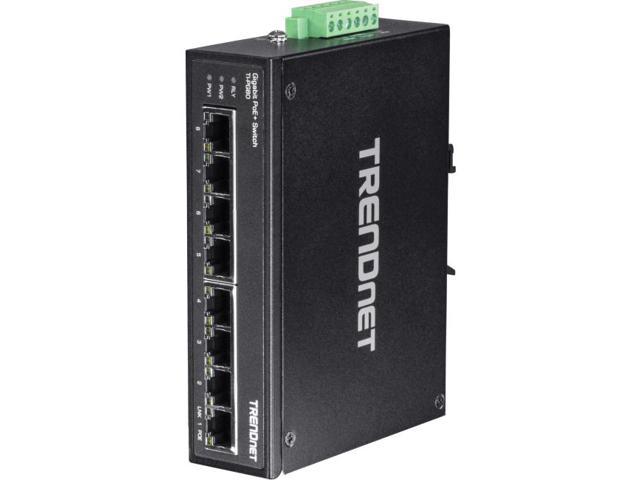

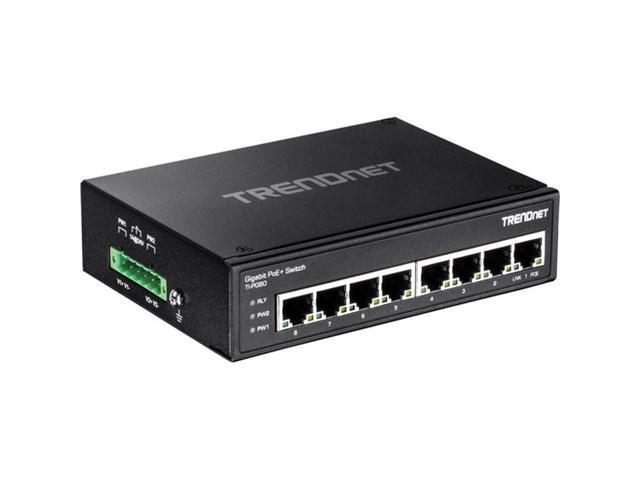

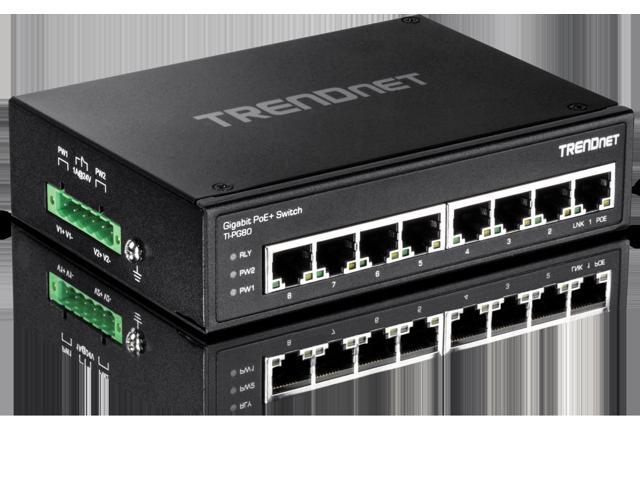

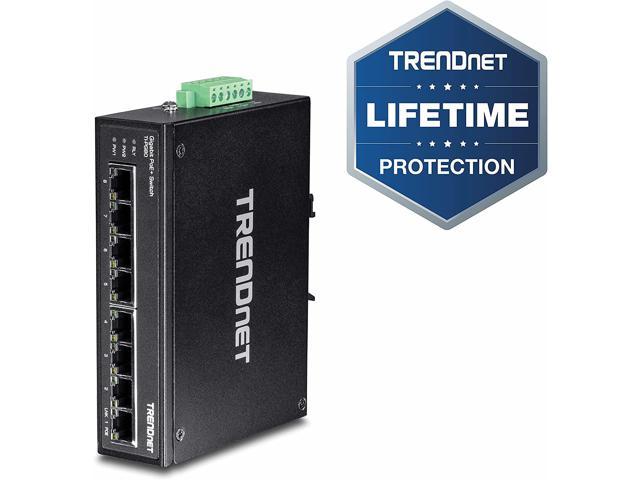

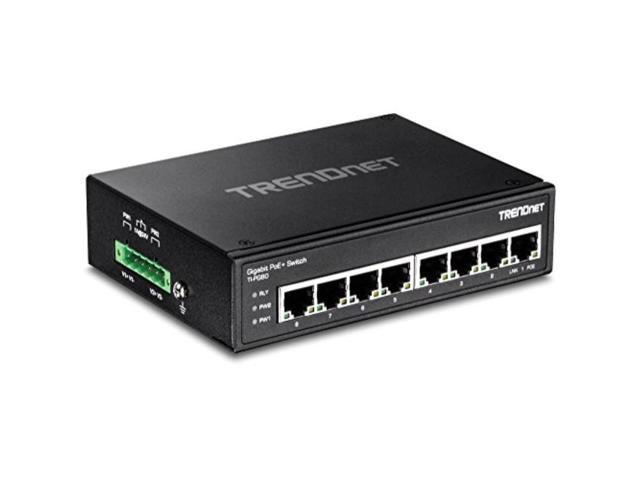

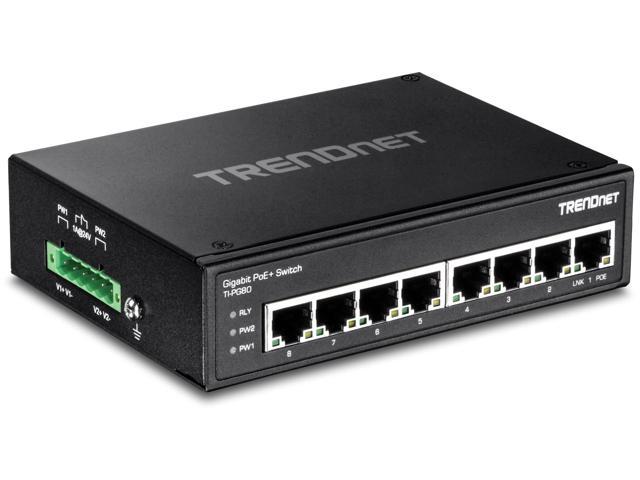

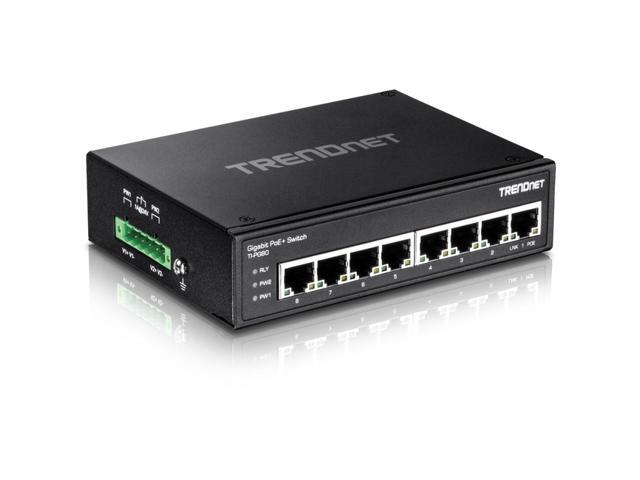

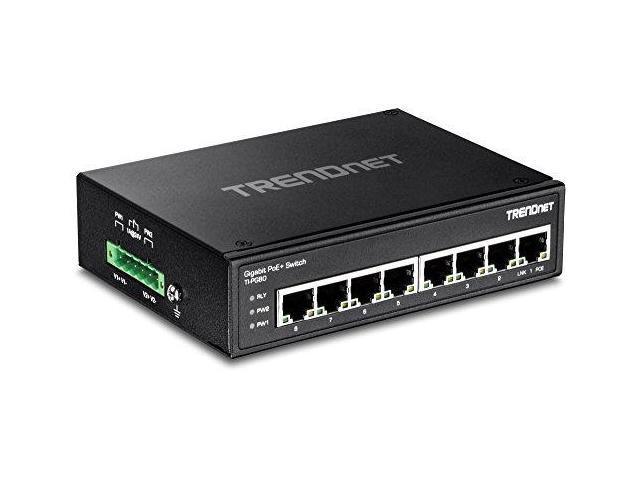

TRENDnet 8-Port Hardened Industrial Gigabit PoE+ DIN-Rail Switch Limited Lifetime Warranty
SKU: 9SIA0ZX3H234198.901.555₫
8 x Gigabit PoE+ Ethernet ports
Up to a 200 Watt full PoE+ power budget
16 Gbps switching capacity
Hardened IP30 rated metal switch
Includes DIN-rail and wall mounts
Extreme -40 to 75 C (-40 to 167 F) operating temperature range
Dual redundant power inputs with overload current protection
Powers supply sold separately (Model TI-S24048)
Description
Learn more about the TRENDnet TI-PG80
| Brand | TRENDnet |
|---|---|
| Model | TI-PG80 |
| Switch Type | Switches |
| Format | Includes DIN-rail and wall mounts Wall Mountable |
|---|---|
| Standards | IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3x IEEE 802.3af PoE IEEE 802.3at PoE+ |
| Network Management Type Network Management Type | Unmanaged |
| Primary Ports | 8 x Gigabit PoE+ ports |
|---|---|
| Primary Port Speed | Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex) Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex) Gigabit: 2000 Mbps (full duplex) |
| MAC Address Table MAC Address Table | 8K |
|---|---|
| Jumbo Frames Jumbo Frames | 9KB |
| Buffer Memory Buffer Memory | 1MB |
|---|---|
| PoE PoE | PoE budget: 200 Watts Pin 1,2 for power+ and pin 3,6 for power- (mode A) |
| LEDs | LED indicators |
| Power | Input: 48 – 56 V DC Compatible power supply: TI-S24048 (sold separately) Consumption: Max. 5.76 Watts (without PD) |

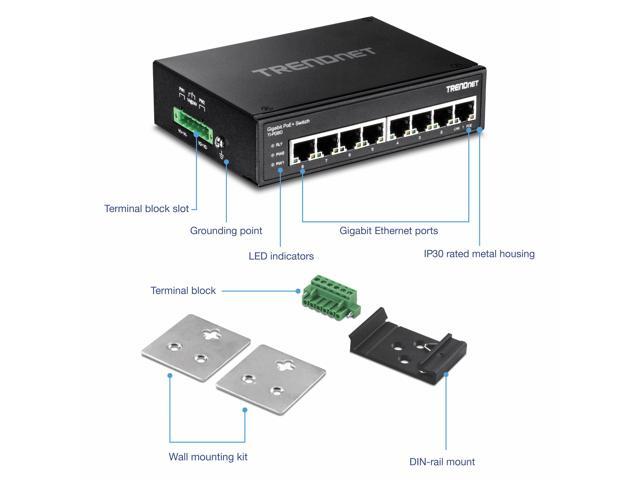

| Features | • ETHERNET PORT INTERFACE: 8 x Gigabit PoE+ Ethernet ports • FULL POE+ POWER BUDGET & SWITCHING CAPACITY: The Gigabit PoE+ switch supplies up to 30 Watts of PoE / PoE+ power per port with a 200 Watt PoE power budget and allows for a 16 Gbps switching capacity. • DIN-RAIL & WALL MOUNT KIT: This 8-Port Gigabit PoE+ network switch comes with an integrated DIN-Rail mount and mounting hardware. • EXTREME TEMPERATURE SWITCH: The metal hardened IP30 rated Gigabit PoE+ Ethernet switch is equipped with a rugged IP30 rated enclosure and designed to withstand a high degree of vibration, shock, protection against ESD/EMI/surge, and operate with a wide temperature range (- 40 – 75 °C (- 40 – 167 °F)) for harsh environments. • REDUNDANT POWER: The 8 port switch has dual redundant power inputs with overload current protection (power supply sold separately: model: (TI-S24048) • TRENDnet LIFETIME PROTECTION: All metal TRENDnet switches come with lifetime manufacturer protection. |
|---|
| Dimensions | 1.40″ x 5.60″ x 4.10″ |
|---|---|
| Weight | 1.22 lbs. |
| Temperature | Operating Temperature: – 40 to 75 degrees Celsius (-40 to 167 degrees Fahrenheit) |
|---|---|
| Humidity | Max. 95 % non-condensing |
| Date First Available | December 07, 2018 |
|---|
