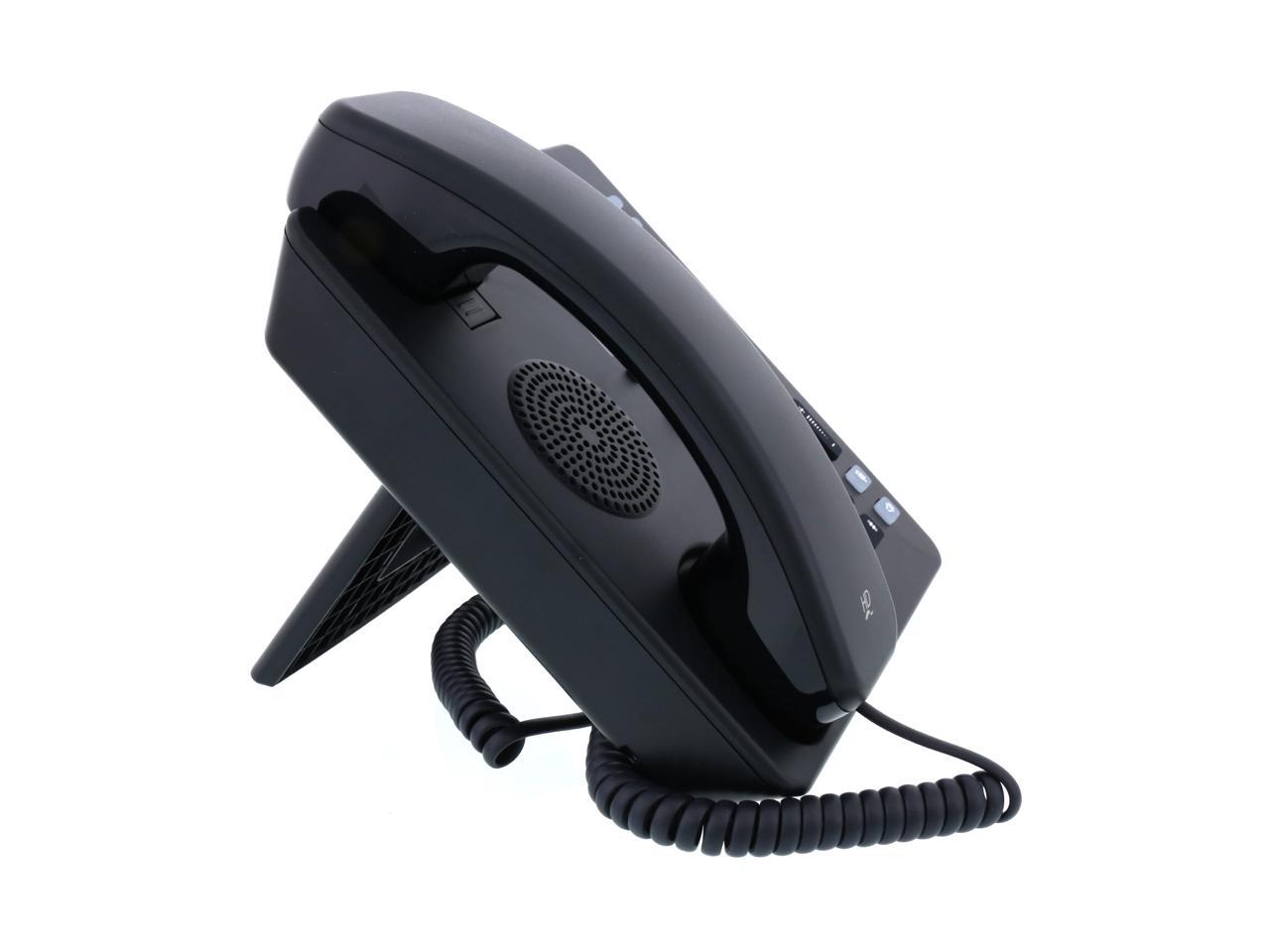

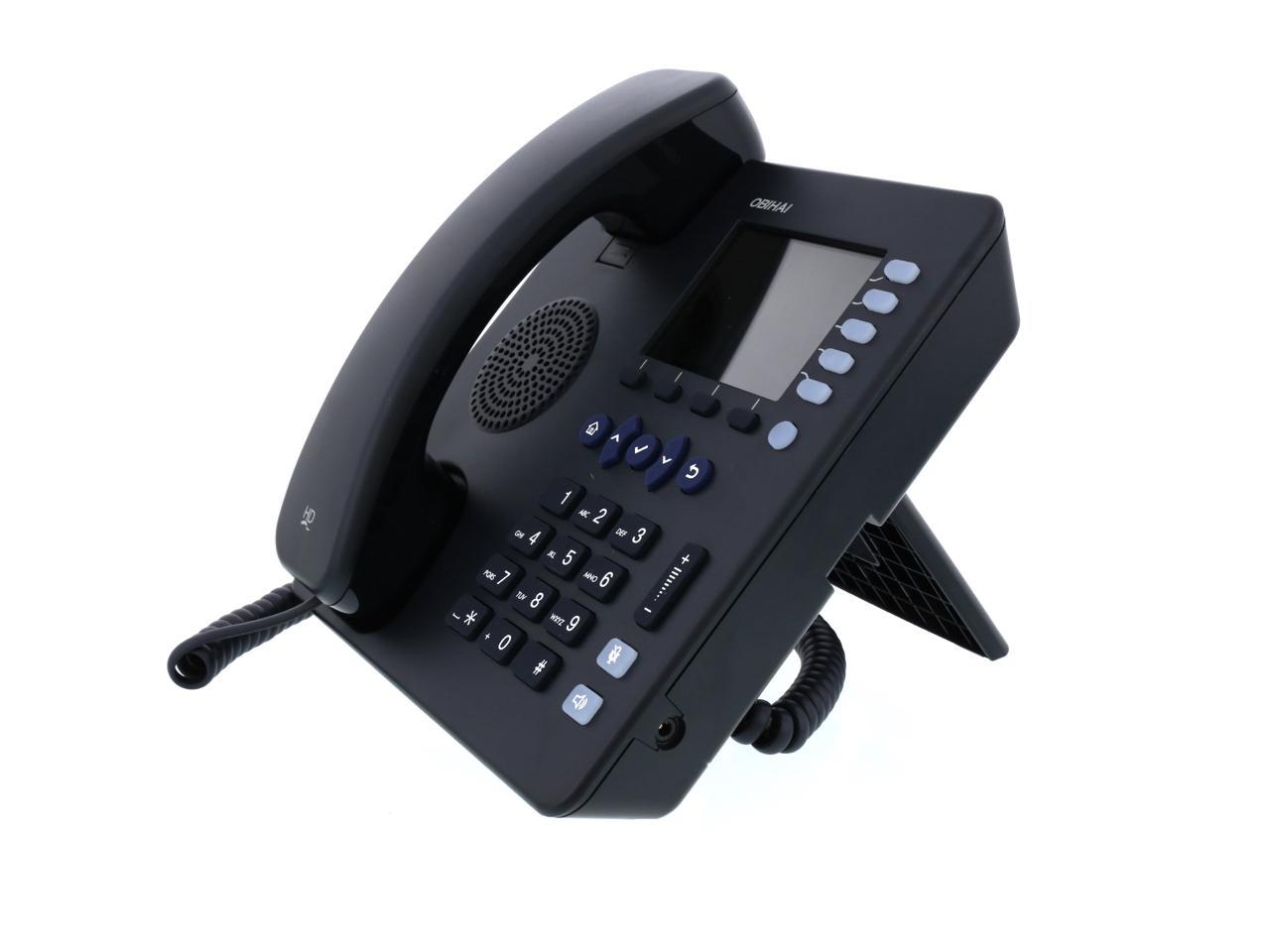

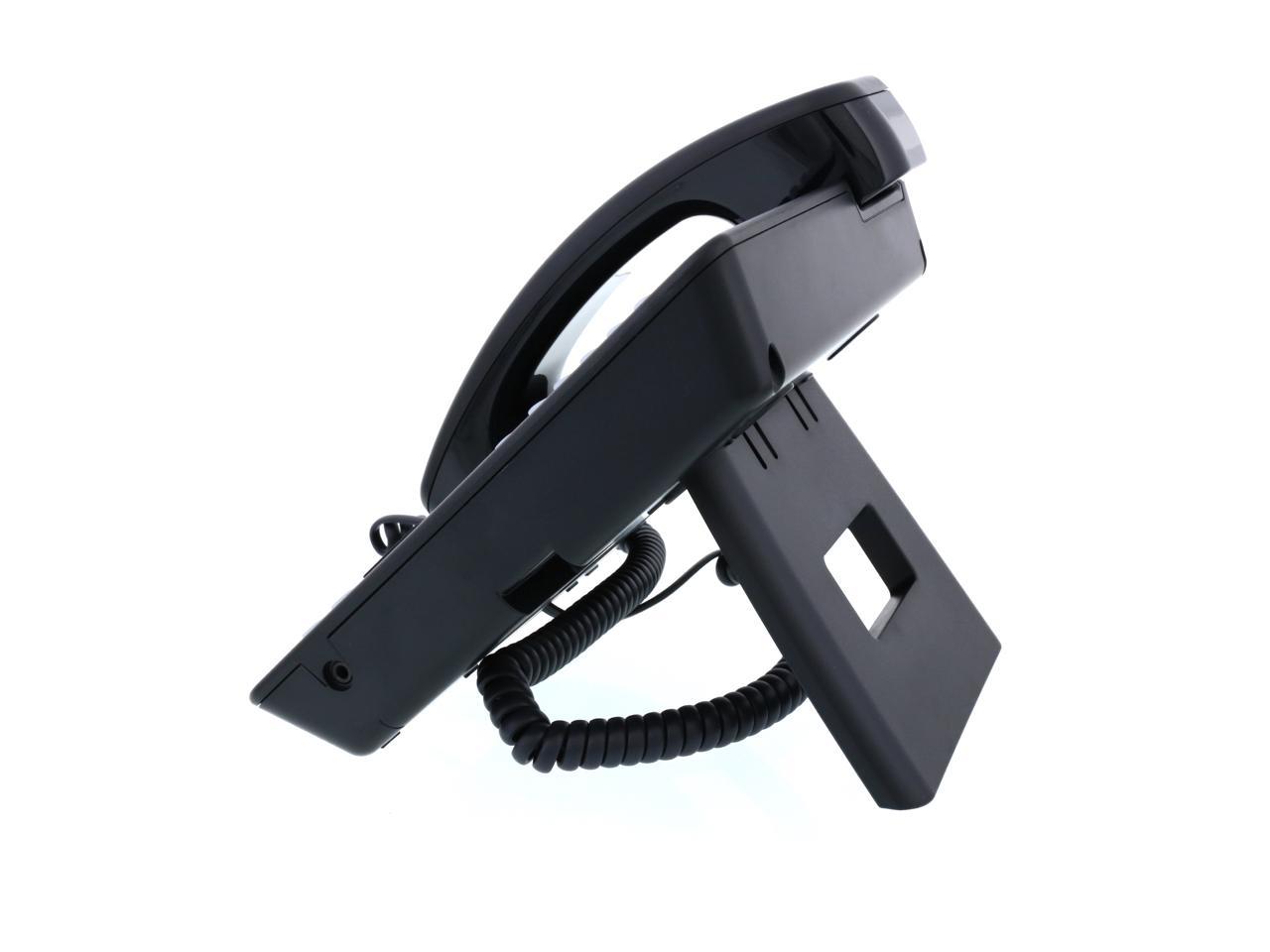

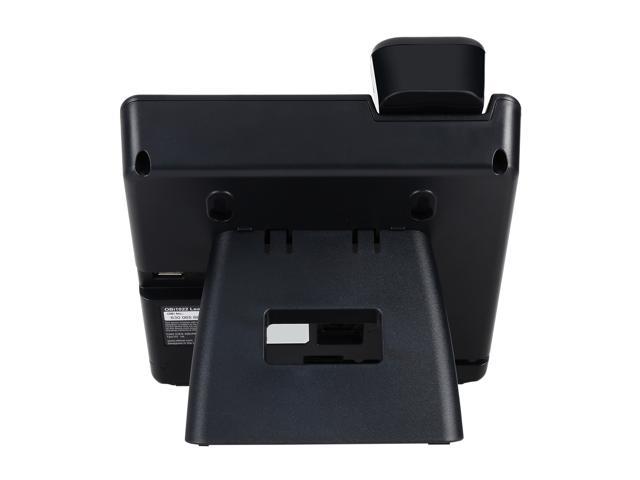

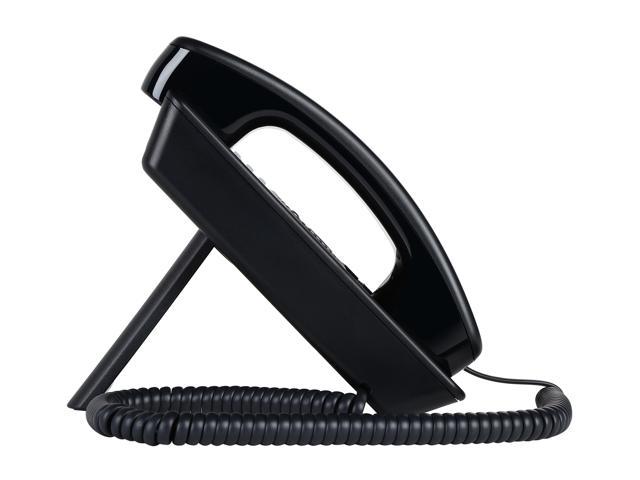

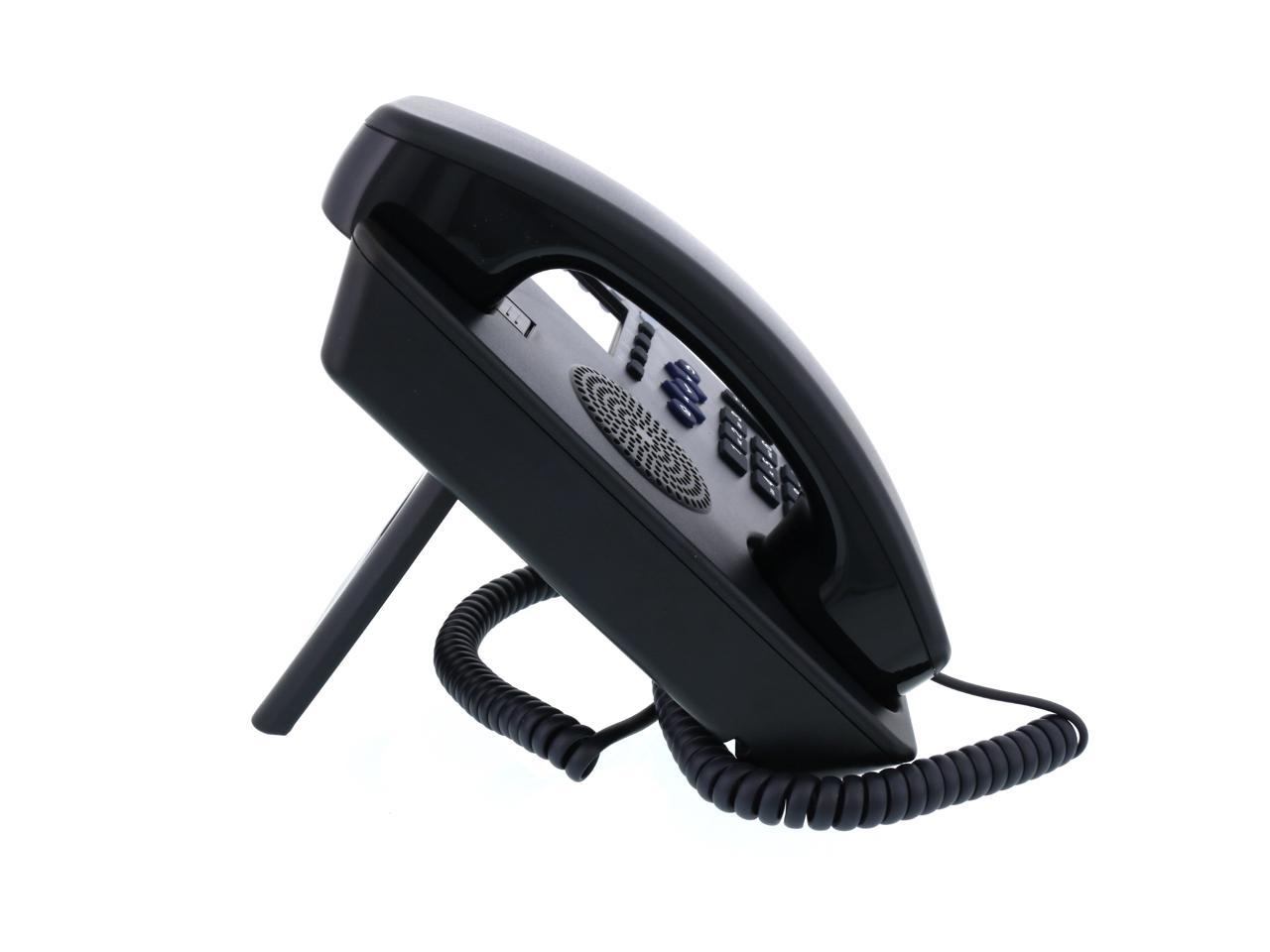

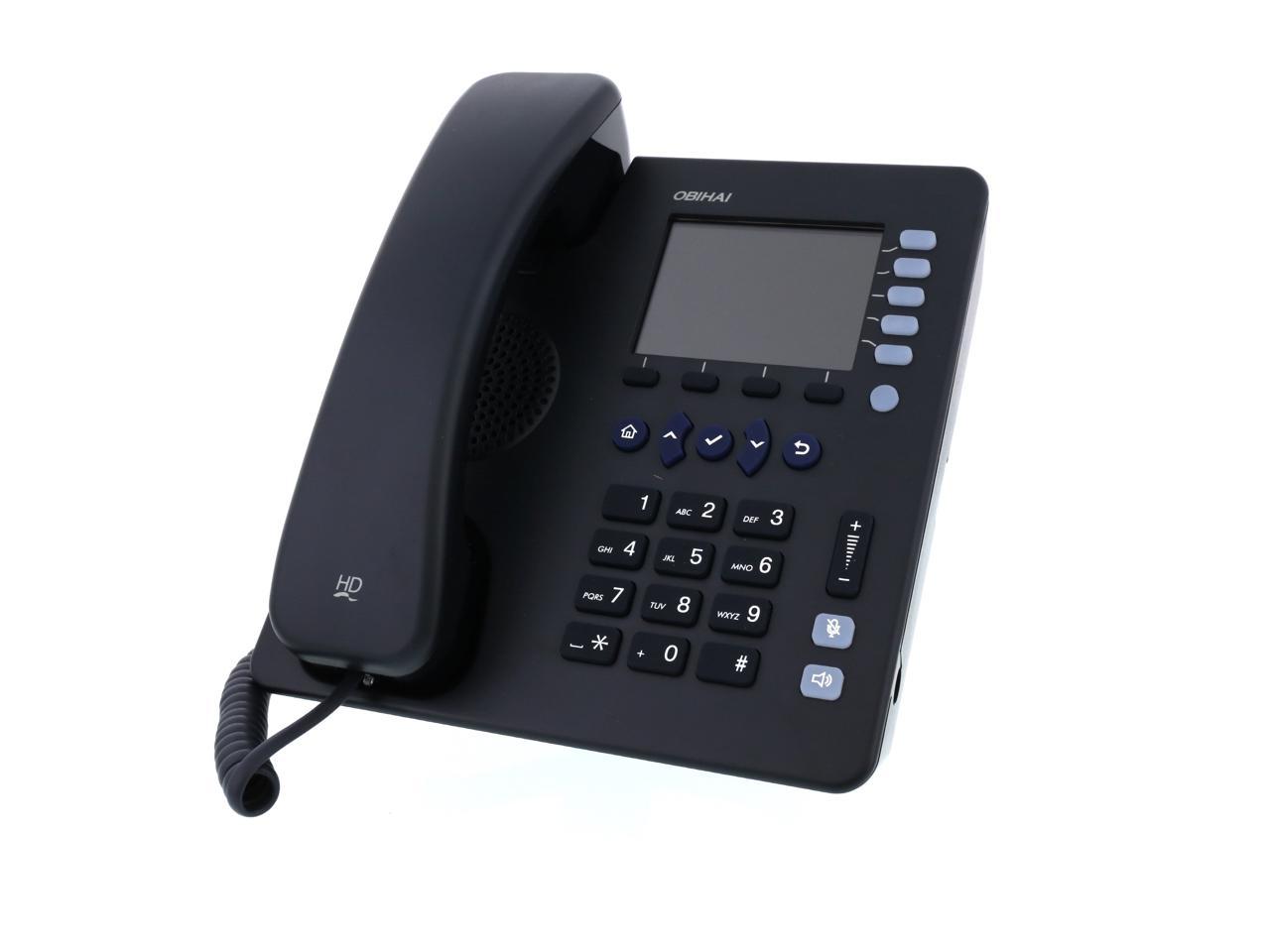

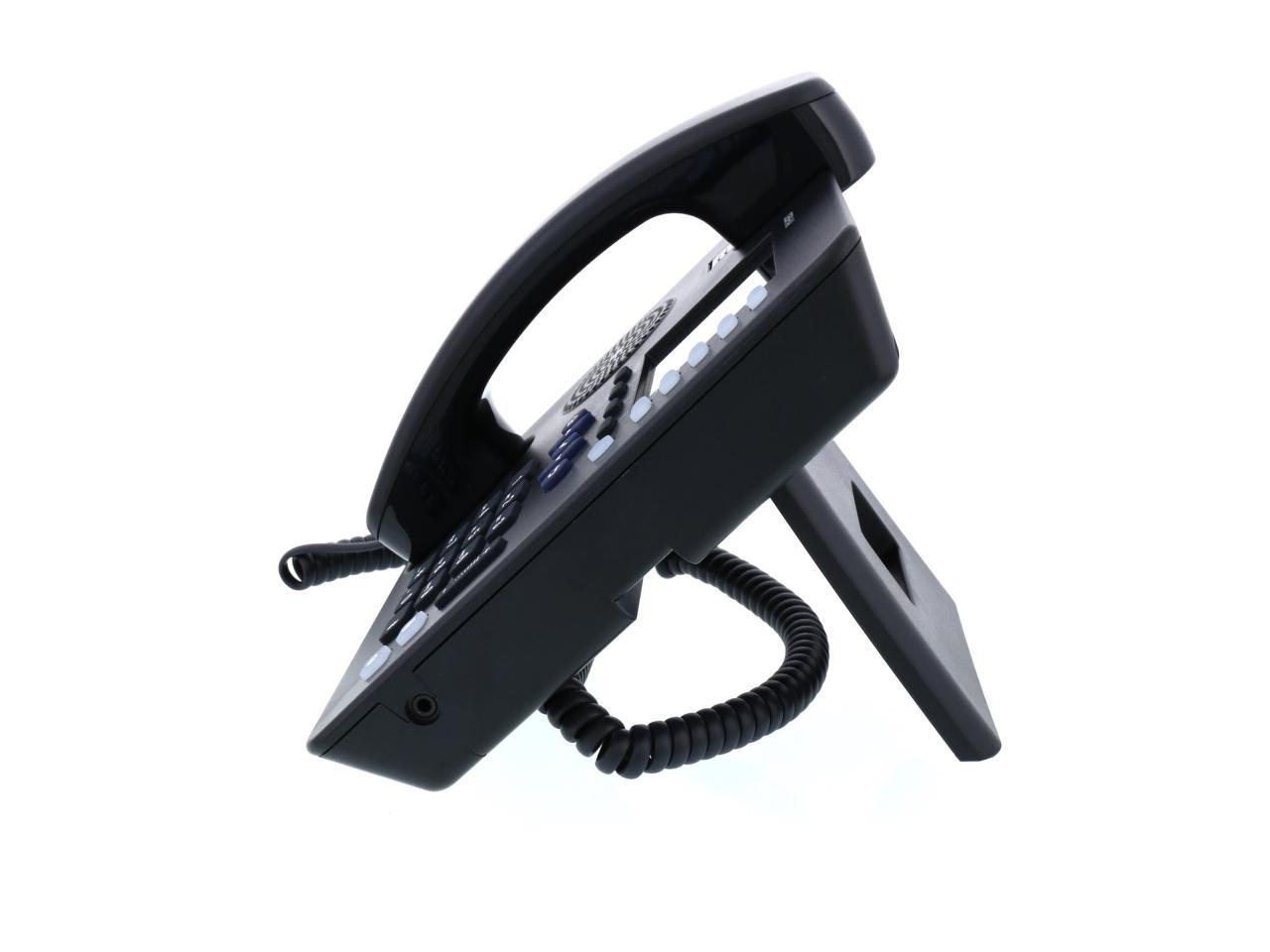

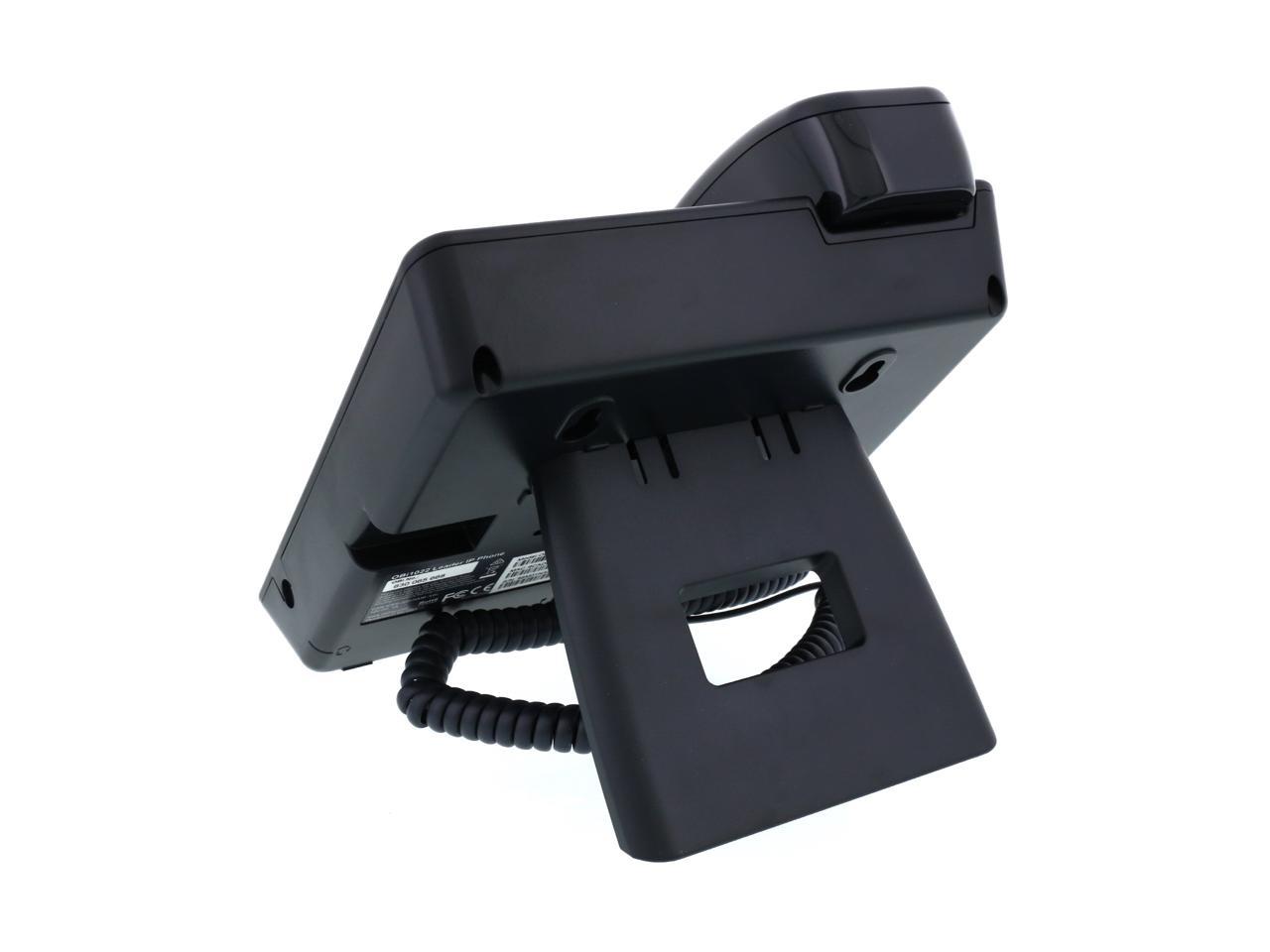

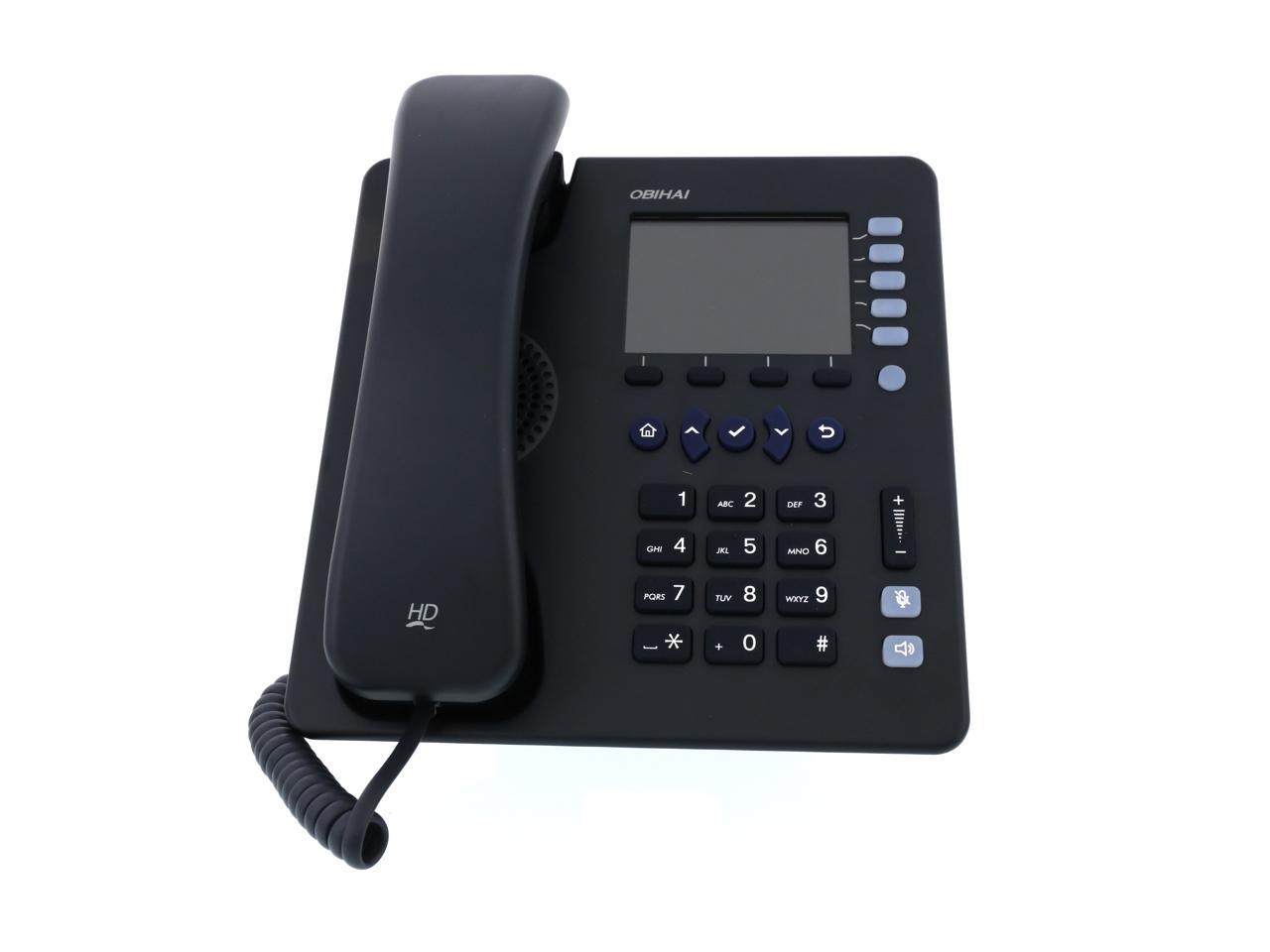

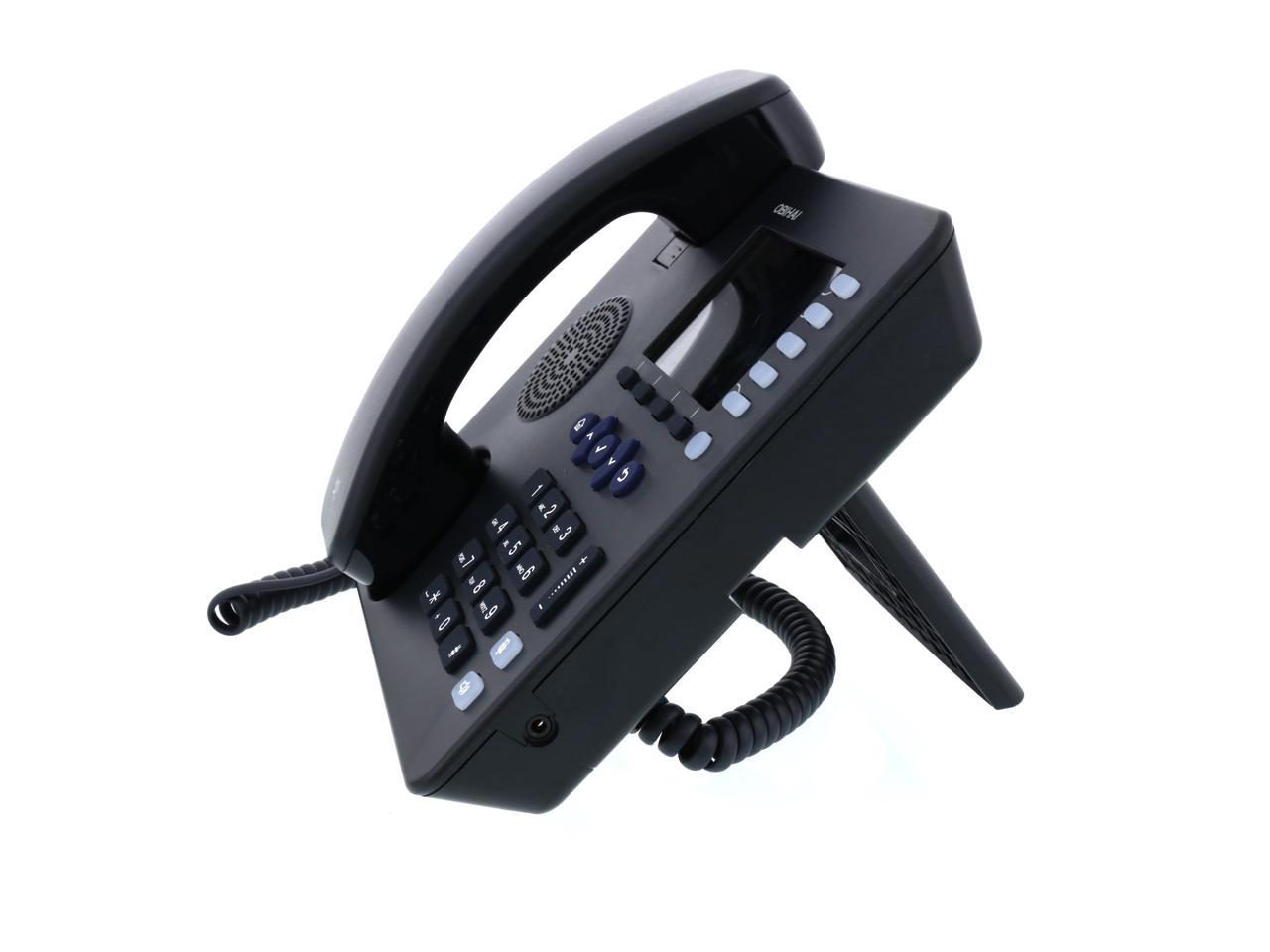

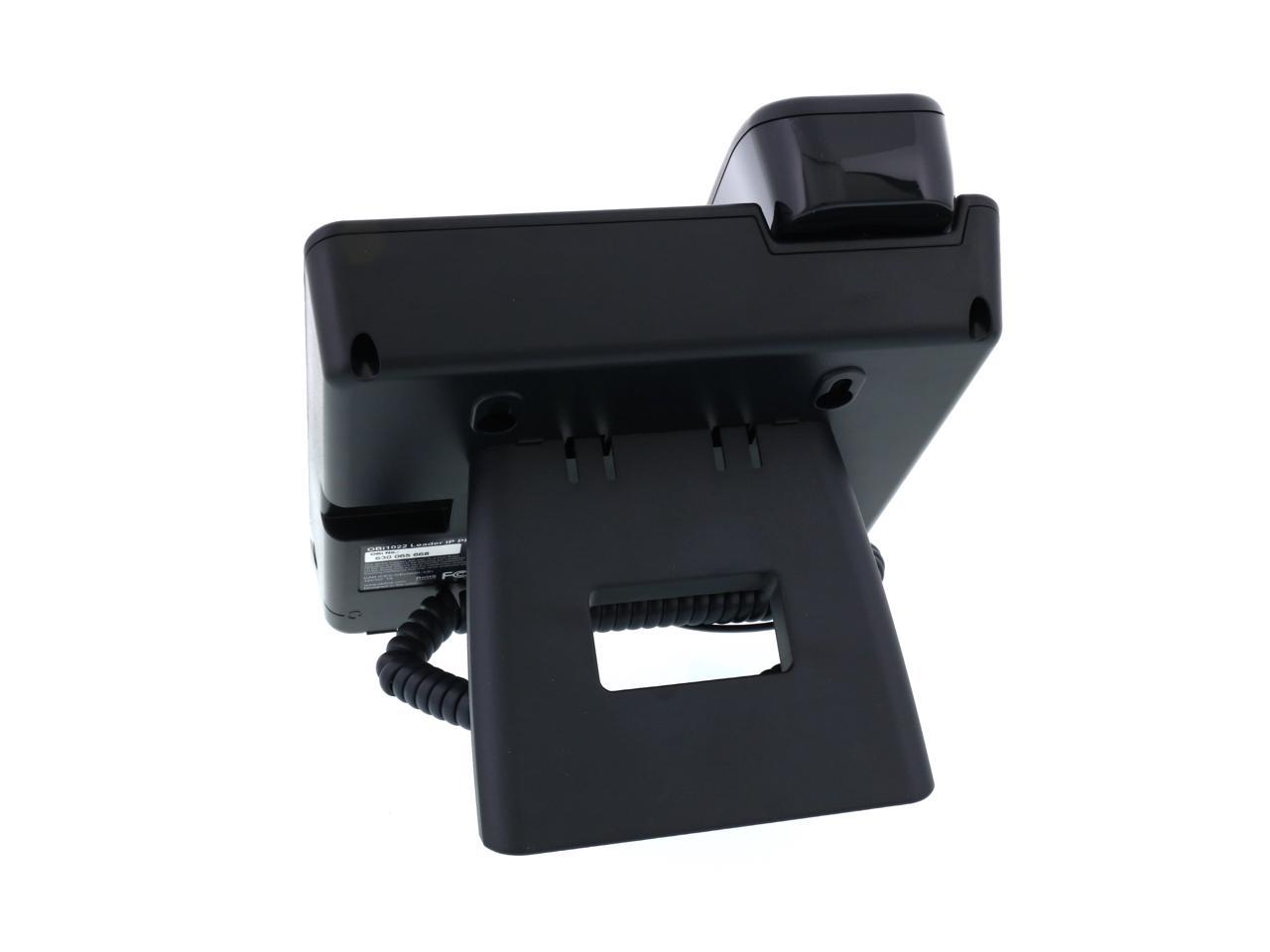

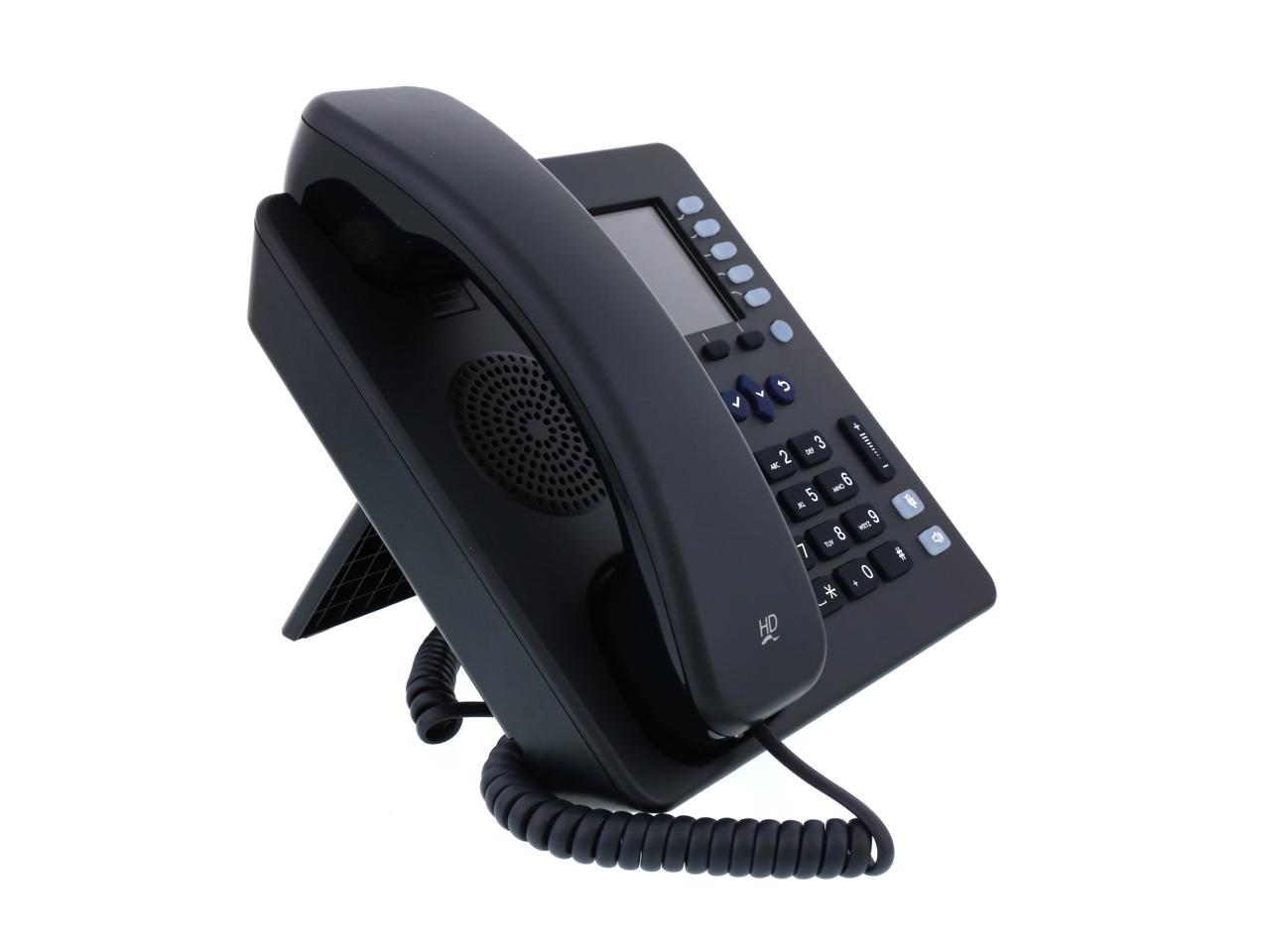

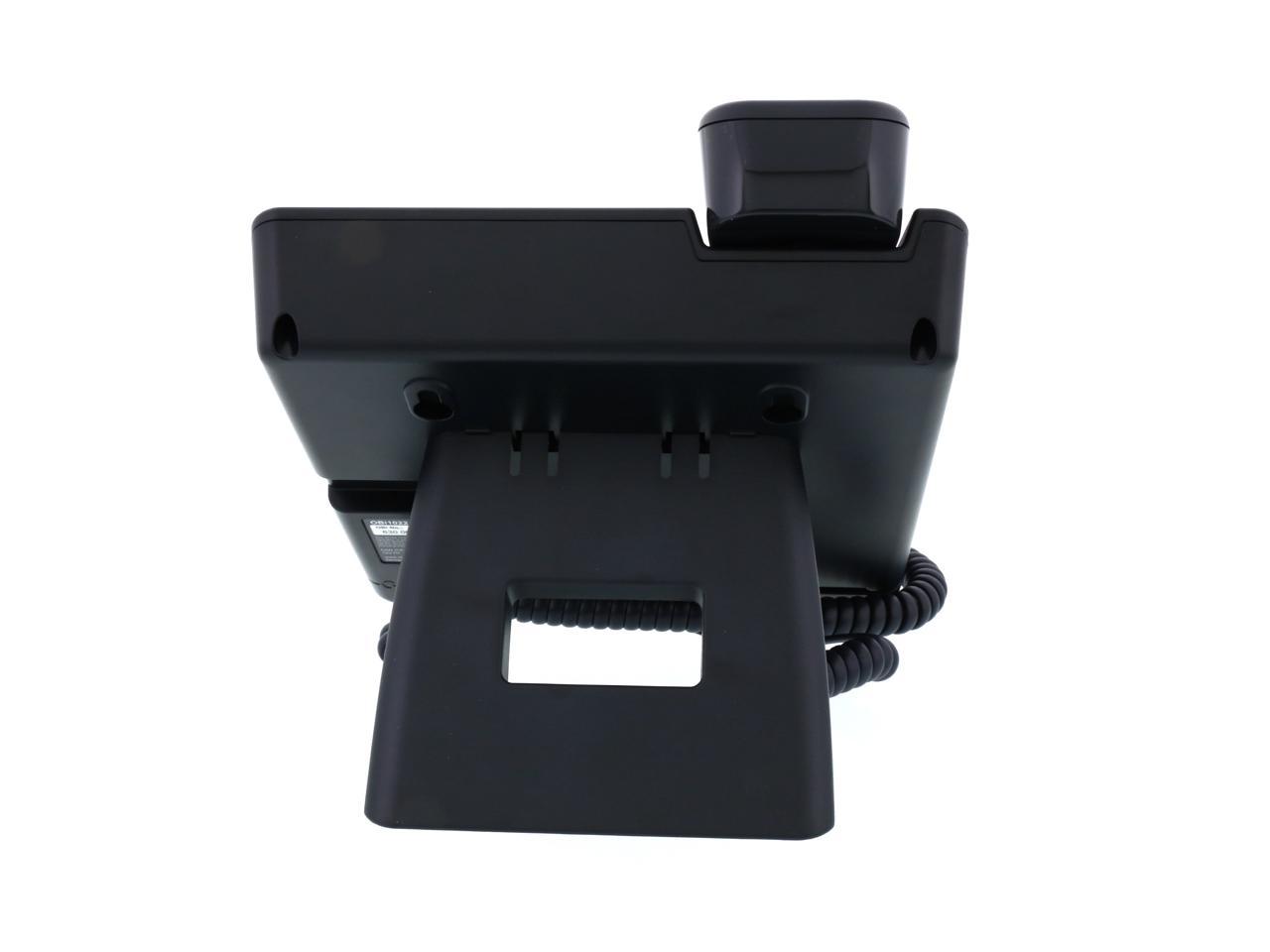

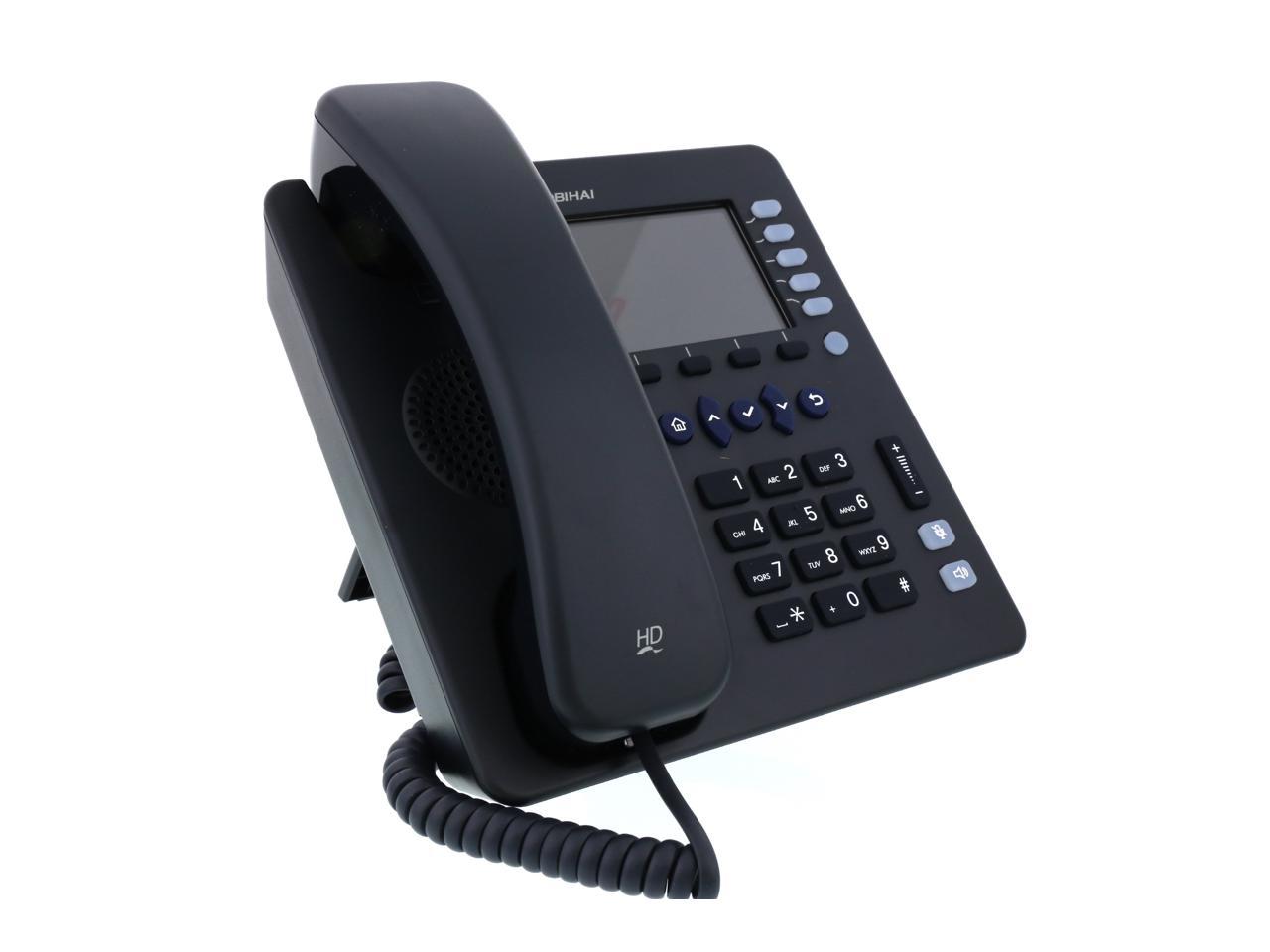

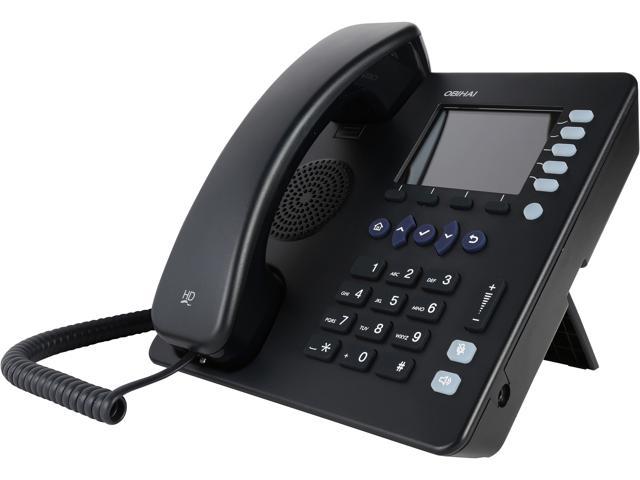

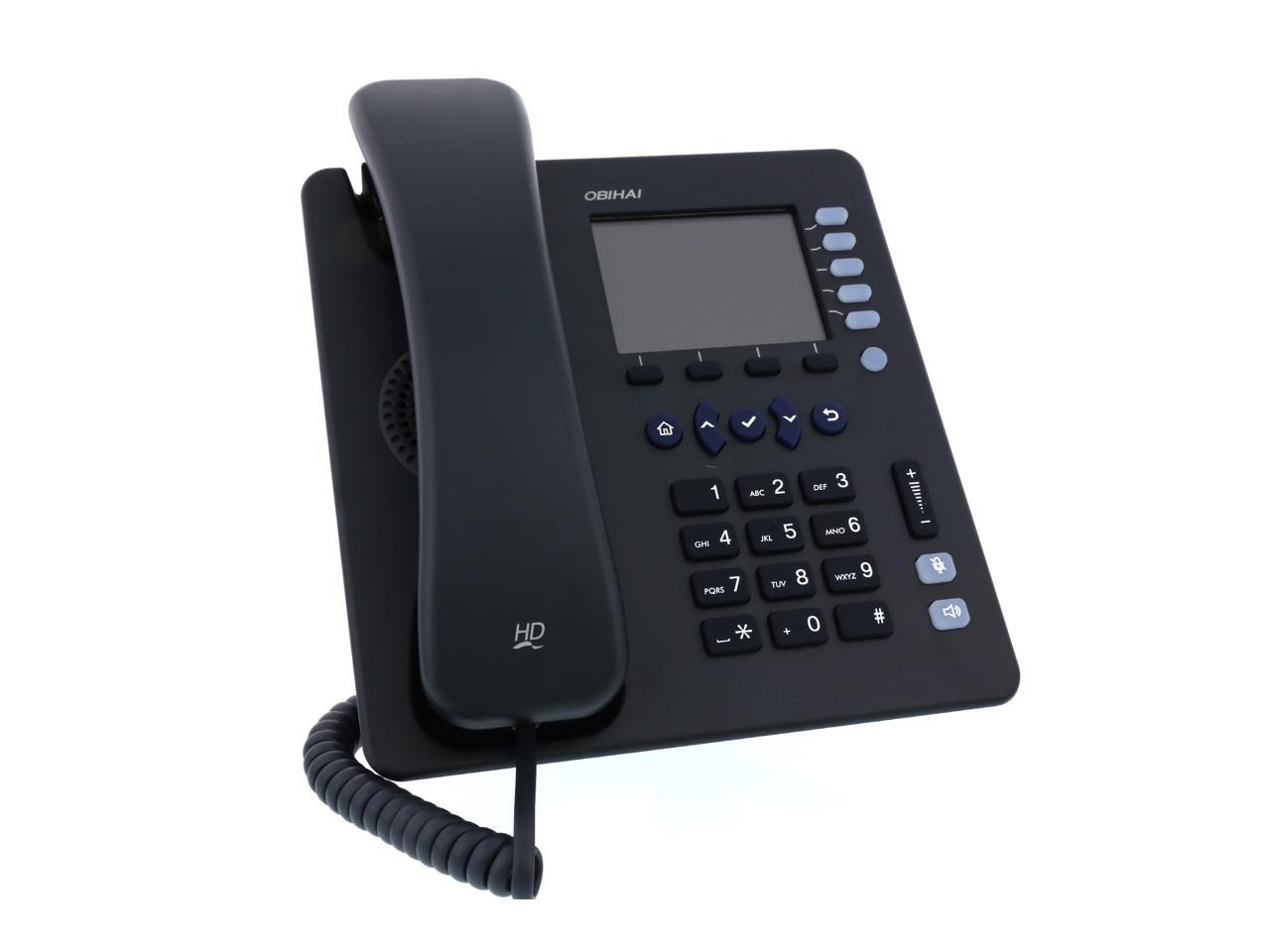

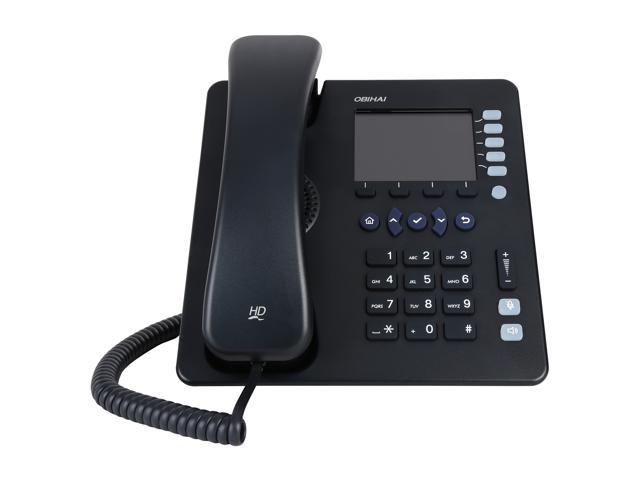

Obihai OBI1022PA VoIP IP Phone and Device

OBi1000 Series Business-Class Color IP Phones

With Support for Up to 24* Lines and Up to Six SIP, Google Voice™ and One OBiTALK VoIP Services

High-Definition ‘HD’ Voice for Crystal-Clear Calls

OBi 1000 Series IP phones are designed from the outset to support High Definition (HD) voice calling. From the device’s physical acoustics through to the digital conversion of audio, Obihai’s engineers have fine-tuned every element to ensure a crystal clear calling experience.

OBi Phones and OBiTALK Cloud Management

OBi 1000 Series IP phones are managed remotely via the OBiTALK cloud-management portal using any mainstream browser, enabling fast and easy deployment and maintenance. The always-on remote management and diagnostic capabilities enable IT and support staff to manage and troubleshoot devices regardless of location and even deploy new devices without the requirement for a site visit. Additionally, OBiTALK can help keep device firmware up-to-date with new features as they are released, further enhancing the user’s experience and the enterprise’s investment.

Functionality That’s Easy to Use

Commonly used call functions such as putting a caller on hold, transferring, picking-up or conferencing calls are intuitive to use and set-up. Other calling and user features are easily programmed into either the line keys next to the display – in total, there are up to 24* – or the eight (8) programmable keys within easy reach on the right side of the phone body. This allows for a customizable user experience based on the intended use of the device. The OBi 1000 Series IP phones are adaptable to the user and their job role, though creating a more efficient call management platform for the business and conveying a more professional image to its customers.

Features of the OBi1000 Series Business IP Phones:

• Large Vivid Color Display – User Configured Themes and Multi-Dimensional Navigation with Top-Anchored Time and Date
• Remotely Customizable via XML Download – User Interface Labelling, Key/Button Functionality, Applications
• Up to 24 Lines or Call Appearances* – Programmable Across Six (6) VoIP Services (SIP and Google Voice) + OBiTALK
• Universal Interoperability with SIP and VoLTE Call Control Platforms
• Secure Remote Provisioning and Management Versatility via SP’s In-House System and/or OBiTALK Cloud-Management
• Zero-Touch Customization and Service Activation APIs to Minimize Deployment Costs / Complexity
• High Definition Speech Technology for Crystal-Clear Conversations – VoIP Codecs Supported: G.722, G.711, G.726, G.729, iLBC, OPUS8
• Full-Duplex Speakerphone with Built-In Class D Amplifier and Audio Equalizer
• Headset Support via RJ9, 3.5mm Jacks (EHS Support) or Bluetooth
• Dual Ethernet with Power over Ethernet (PoE): Gigabit Ethernet (OBi1062) or Fast Ethernet (OBi1032)
• Integrated WiFi Connectivity – Built-in or Via OBiWiFi USB Adapter
• 16-Key Side Car Option – Up to Two Side Cars per Phone
• Built-In Five Party Conference Bridge
• Personal Contact Phone Book with Import/Export/Sync Functions, Call History, Picture Caller ID
• Obihai Call Routing and Bridging Technology
• Global Deployment: Language Localization and Country-Specific Dialing, Ringing, In-Call Tones

Robust Telephony Features:

• Multi-Line / Multiple Calls
• Shared Call / Bridged Line Appearance
• Busy Lamp Field (BLF) – Regular, Pick-up and Speed Dial
• On-Hook Dialing
• Caller ID – Name & Number, Photo
• Call Waiting, Call Queued
• Multiple Distinctive Ringtones Based on Who is Calling
• Auto Answer Intercom Call, Page Call
• Page Groups (2)
• Call Hold
• Music on Hold
• Call Swap
• Call Park and Call Un-park
• Call Pick-Up – Selective and Group
• Message Waiting Indication – Visual and Tone Based
• Speed Dialing by code of 99 OBi Endpoints, Buddies or Numbers (E.164 or URI)
• Call Logs (200) – Dialing from Call Logs
• Personal Phone Book – Each Entry with Multiple Numbers, Photo, Grouping
• Hot Line and Warm Line Calling
• Five-Way Conference Calling with Local Mixing
• Call Forward – Unconditional
• Call Forward on Busy
• Call Forward on No Answer
• Call Transfer — Blind or Attended
• Anonymous Call
• Block Anonymous Call
• Do Not Disturb – Do Not Ring
• Call Return – Call Back on Busy
• Repeat Dialing
• Immediate Divert
• Multiple Ringtones – Upload Custom Ringtones
• Screen Saver – Upload Screen Saver with Slideshow Image(s)
• Secure Encrypted Voice Communication Support
• Independent Mic and Speaker Volume Adjustment: Speaker, Handset, RJ9 Headset, 3.5mm Headset, Bluetooth Headset
• Administrator Password Protected Factory Reset
• Zero-Touch Customization – Factory Defaults Defined by Service Provider
• OBiTALK Cloud Management / Troubleshooting
• Syslog Event Logging
