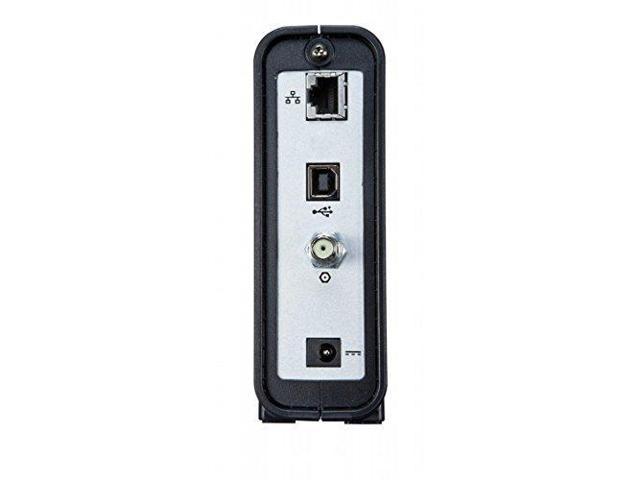

MOTOROLA SB6141 SURFboard DOCSIS 3.0 Cable Modem 10/100/1000Base-T Ethernet (RJ-45)

Utilizing the power of DOCSIS 3.0, the SB6141 enables channel bonding of up to eight downstream channels and four upstream channels, which allows an operator to offer its customers advanced multimedia services with data rates of over 300 Mbps for received data and over 100 Mbps when sending data.

Data Protocol: TCP/IP

Dimensions: 5.24″ x 5.24″ x 1.65″

Input Power: North America 105 to 125 VAC, 60 Hz

Downstream:
Modulation: 64 or 256 QAM
Capture Bandwidth: Dual 96 MHz Capture windows
Bandwidth: DOCSIS <= 48 MHz, EuroDOCSIS <= 64 MHz
Operating Level Range: -15 to 15 dBmV
Bonded Channel RF: Level Tolerance 10dBmV, Input Impedance 75 ohm (nominal)
Frequency Range: DOCSIS and EuroDOCSIS 108 to 1002 MHz (edge to edge)
Security: DOCSIS 3.0 Security (BPI+, EAE, SSD)
Network Management: SNMP v2 & v3
Provisioning: Supports IP addressing using IPv4 and/or IPv6 (dual stack)
MoCA Interference Rejection: 1 GHz Low Pass filter at tuners input

Upstream:
Modulation: QPSK and 8, 16, 32, 64, 128 QAM
Channel Width: 200 kHz, 400 kHz, 800 kHz, 1.6 MHz, 3.2 MHz, 6.4 MHz
Symbol Rates: 160, 320, 640, 1280, 2560, 5120 ksym/s
Output Impedance: 75 ohm (nominal)
Frequency Range: DOCSIS 5-42 MHz (edge to edge), EuroDOCSIS and optional DOCSIS 5 to 65 MHz (edge to edge), Optional DOCSIS and EuroDOCIS 5-85 MHz

Compatibility:
PC: Windows Vista, 2000, XP or 7 or Linux with Ethernet connection (older versions of Windows, although not specifically supported, will work with this cable modem)
Macintosh: Power PC or later; OS 9 or higher, Ethernet connection
UNIX: Ethernet connection
Home Networking: Ethernet router or wireless access point.
