globalstar stx3 simplex modem
SKU: 9SIAZF8J9911145.921.955₫

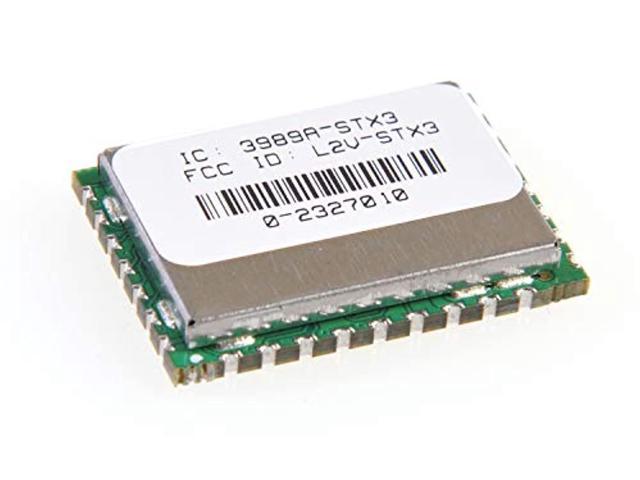

The Globalstar STX3 module is the latest simplex modem offered by Globalstar. At around one third the size of the previous STX2, it is designed to transmit reliable one-way digital data communications through the Globalstar satellite network. It is suitable for integration into remote tracking and monitoring hardware. The STX3 is a surface mount module designed to attach to a user defined host PCB which must provide power, an RF connection to the transmit antenna, and communications with a host processor which will control the operation of the STX3. All electrical connections are provided via the castellated pads on the perimeter of the PCB. Increase reliability through multiple transmissions Quick and easy installation into your OEM devices via standard AT commands Programmable time of transmission or event
Description
The Globalstar STX3 module is the latest simplex modem offered by Globalstar. At around one third the size of the previous STX2, it is designed to transmit reliable one-way digital data communications through the Globalstar satellite network. It is suitable for integration into remote tracking and monitoring hardware. The STX 3 is a simplex satellite transmitter designed to send small packets of user defined data to a network of low earth orbiting (LEO) satellites using the Globalstar simplex satellite network. Data can be sent automatically, on a time or event driven basis. The received data is then forwarded to a user defined network interface that may be in the form of an FTP host, email account, or HTTP host where the user will interpret the data for further processing.
The STX3 is a surface mount module designed to attach to a user defined host PCB which must provide power, an RF connection to the transmit antenna, and communications with a host processor which will control the operation of the STX3. All electrical connections are provided via the castellated pads on the perimeter of the PCB. The STX3’s low-power consumption and small size make it a highly efficient device ready for integration in a wide variety of applications. The module can be used in a wide range of assets including liquid petroleum gas (LPG) tanks, water tanks, pipelines, electricity meters, cars, trucks, boats, human tracking devices and sea or land containers.
Learn more about the Detailed Specifications
| Type | Cable Modem |
|---|
| Date First Available | October 19, 2022 |
|---|
