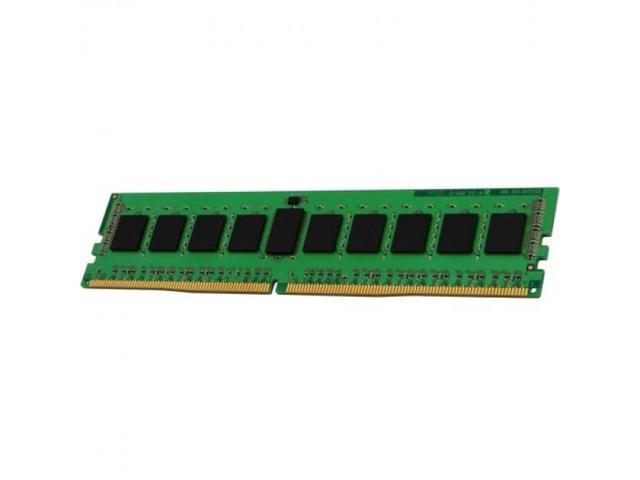

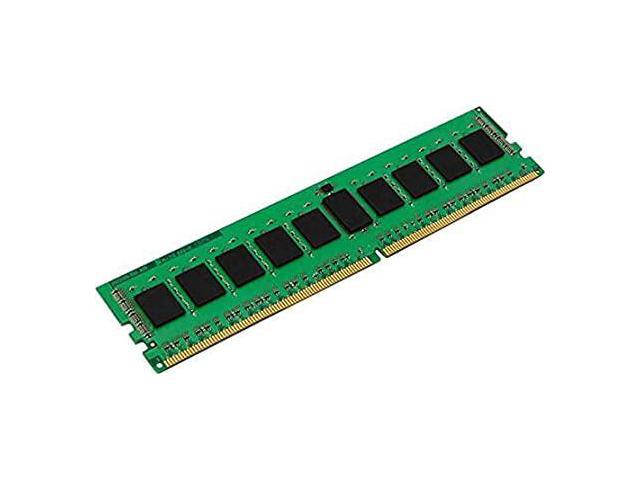

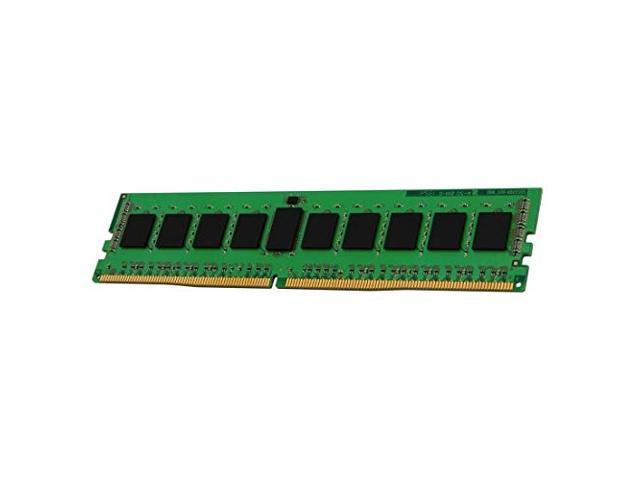

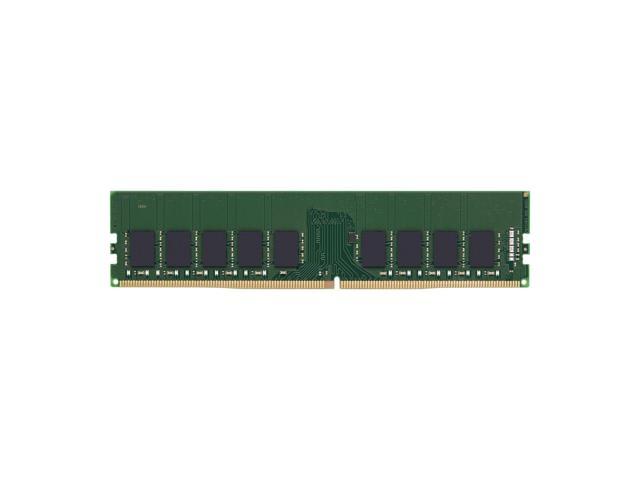

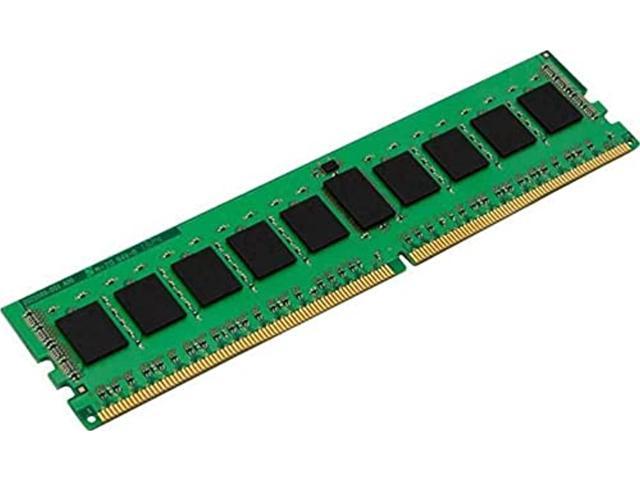

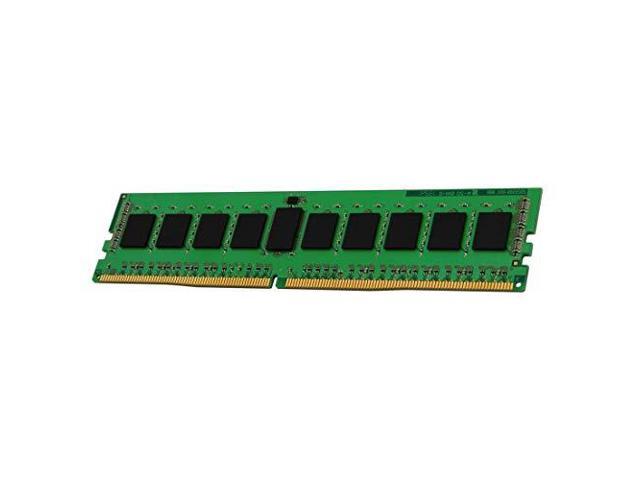

Kingston 32GB DDR4 3200Mhz CL22 2Rx8 ECC Unbuffered Memory
Kingston’s KSM32ED8/32ME is a 4G x 72-bit (32GB) DDR4-3200
CL22 SDRAM (Synchronous DRAM), 2Rx8, ECC, memory module,
based on eighteen 2G x 8-bit FBGA components. The SPD is
programmed to JEDEC standard latency DDR4-3200 timing of
22-22-22 at 1.2V. Each 288-pin DIMM uses gold contact fingers.
FEATURES
- Power Supply: VDD = 1.2V Typical
- VDDQ = 1.2V Typical
- VPP = 2.5V Typical
- VDDSPD = 2.2V to 3.6V
- Nominal and dynamic on-die termination (ODT) for
data, strobe, and mask signals
- Low-power auto self refresh (LPASR)
- Data bus inversion (DBI) for data bus
- On-die VREFDQ generation and calibration
- Dual-rank
- On-board I2 serial presence-detect (SPD) EEPROM
- Temperature sensor with integrated SPD
- 16 internal banks; 4 groups of 4 banks each
- Fixed burst chop (BC) of 4 and burst length (BL) of 8
via the mode register set (MRS)
- Selectable BC4 or BL8 on-the-fly (OTF)
- Fly-by topology
- Terminated control command and address bus
- PCB: Height 1.23” (31.25mm)
- RoHS Compliant and Halogen-Free
