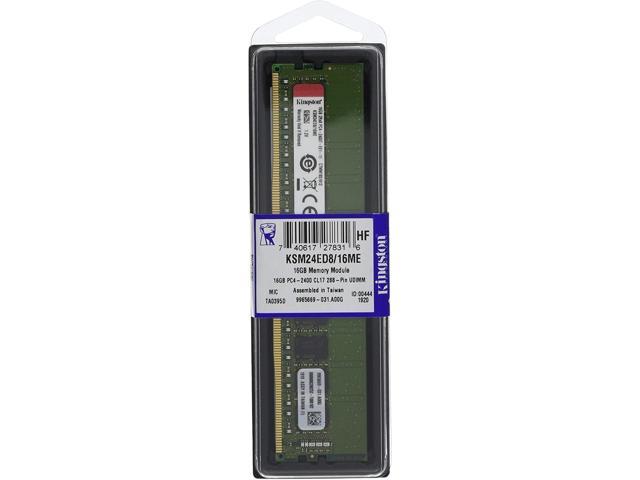

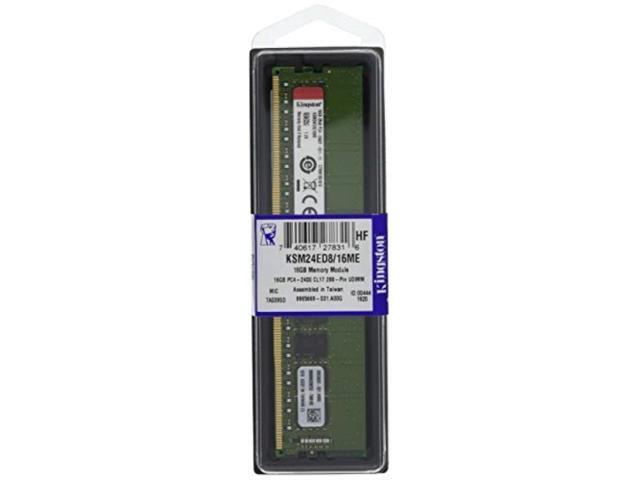

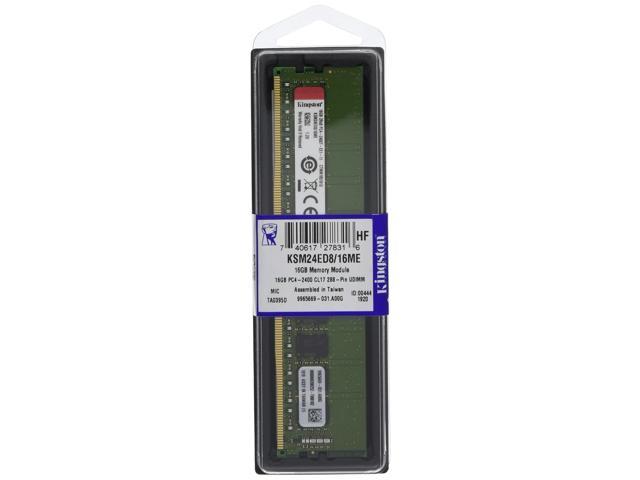

KSM24ED8/16ME
16GB 2Rx8 2G x 72-Bit PC4-2400
CL17 288-Pin DIMM

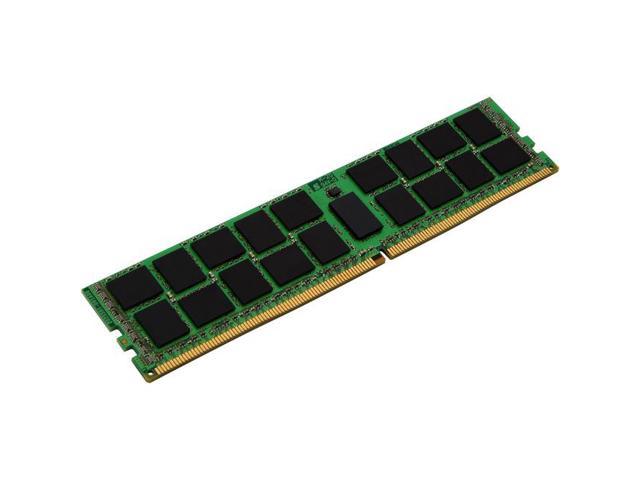

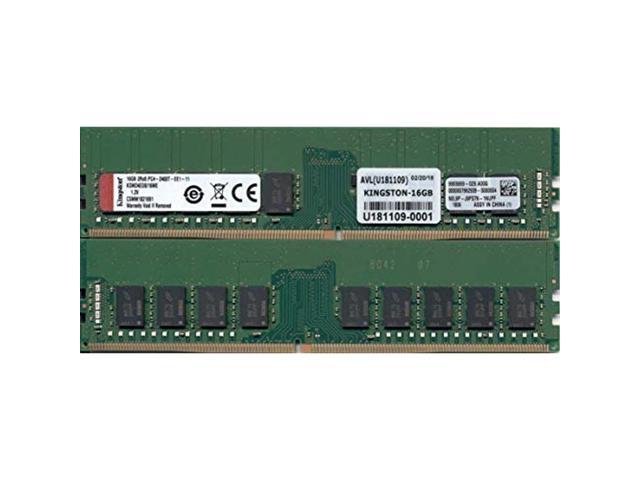

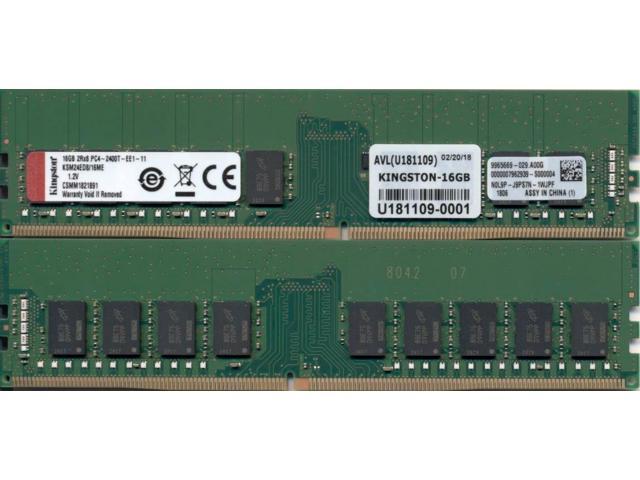

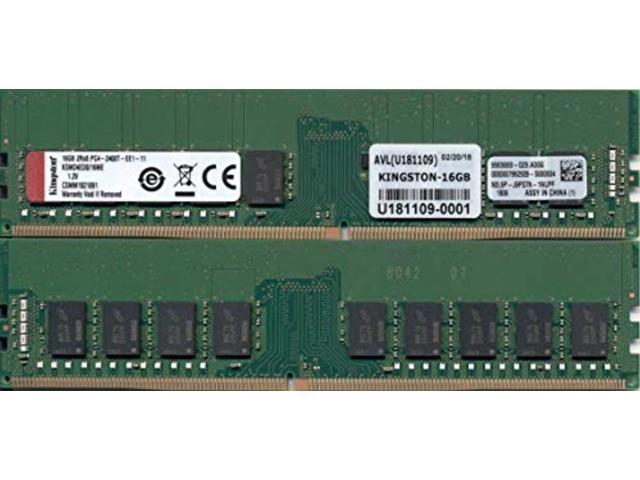

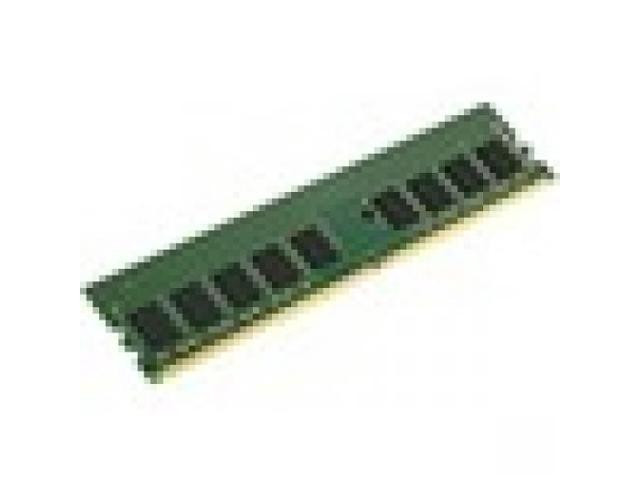

Kingston’s HyperX KSM24ED8/16ME is a 2G x 72-bit (16GB) DDR4-2400
CL17 SDRAM (Synchronous DRAM), 2Rx8, ECC memory module
based on eighteen 1G x 8-bit FBGA components. The SPD is
programmed to the JEDEC standard latency DDR4-2400 timing of
17-17-17 at 1.2V. Each 288-pin DIMM uses gold contact fingers.
FEATURES
- Power supply: VDD = 1.2V typical
- VDDQ = 1.2V typical
- VPP = 2.5V typical
- VDDSPD = 2.2V~3.6V
- Nominal and dynamic on-die termination (ODT) for
data, strobe and mask signals
- Low-power auto self refresh (LPASR)
- Data bus inversion (DBI) for data bus
- On-die VREFDQ generation and calibration
- Dual-rank
- On-board I2 serial presence-detect (SPD) EEPROM
- Temperature sensor with integrated SPD
- 16 internal banks; 4 groups of 4 banks each
- Fixed burst chop (BC) of 4 and burst length (BL) of 8
via the mode register set (MRS)
- Selectable BC4 or BL8 on-the-fly (OTF)
- Fly-by topology
- Terminated control command and address bus
- PCB: 1.23” (31.25mm) height
- RoHS-compliant and halogen-free
SPECIFICATIONS
| CL(IDD) |
17 cycles |
| Row Cycle Time (tRCmin) |
46.16ns(min.) |
Refresh to Active/Refresh
Command Time (tRFCmin) |
350ns(min.) |
| Row Active Time (tRASmin) |
32ns(min.) |
| Maximum Operating Power |
Up to 1836mA |
| UL Rating |
94 V – 0 |
| Operating Temperature |
0 ℃ to +85 ℃ |
| Storage Temperature |
-55 ℃ to +100 ℃ |
