NavePoint 9U Wall-Mount Open Frame Network Equipment Rack, 24.81 Inch Depth, AV Rack, Home Network, 19″ Rack-Mount Equipment, Includes Built-In Cable Management Slots, Server Rack, Steel, Black
SKU: 9SIA4FHFY256114.692.870₫
The NavePoint Open Frame Network Rack with 24.81″ depth has a robust open frame design with reversible rack rails (threaded and cage nut), cable management & enables maximum airflow & easy servicing
Description

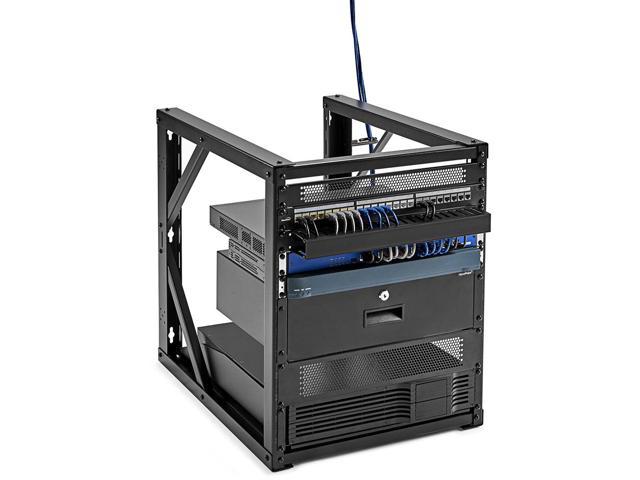

The NavePoint 9U Wall-Mount Open Frame Network Rack offers superior strength and structural intensity. This server rack is ideal for home networks, AV, as well as for mounting patch panels, rack-mounted power strips, shelves, and all other standard 19″ server rack-mount equipment.
The open frame design enables maximum airflow and passive cooling for network equipment and great overall access, from all sides, for installation and maintenance. The design also incorporates cable management options such as rear slots for cable ties as well as holes for cable management rings.
The network rack is constructed of heavy duty cold rolled steel with double reinforced wall-anchor mounting holes to achieve the highest load capacity on wood studs to support heavy A/V equipment, such as amplifiers. The rack has a traditional black powder coated finish.

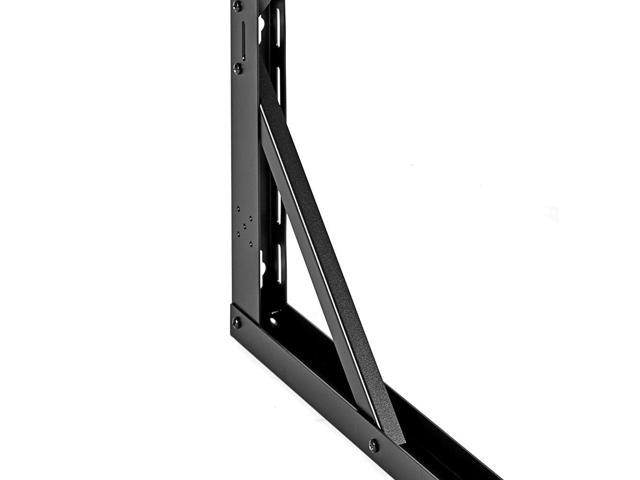

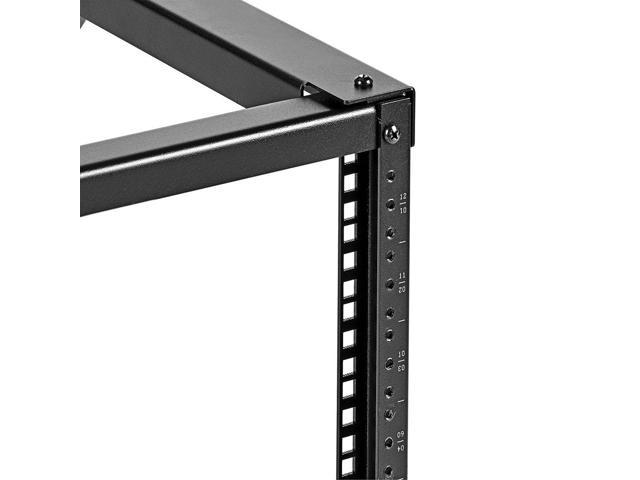

When assembling the open frame rack, the mounting rails are reversible, providing pre-tapped 12-24 threaded holes on one side and square rack holes on the other, to support essentially any rack-mounted equipment. Rack-mount spaces are clearly marked and numbered.
The wall-mount open frame network rack includes assembly, installation, and mounting hardware: 54 x 12-24 Cage Nuts;54 x 12-24 Screws;4 x M6 Washers;4 X M6 Wall Mounting Screws
Assembly is required; the product comes flat-packed.
The rack is compliant with: CE, DIN 41494, EIA/ECA-310-E, IEC-60297-3-100, RoHS
Maximum Weight Capacity: 198 lbs
Dimensions: 24.81″L x 19.83″W x 18.93″H.
Max Mounting Depth is 23.6″
Learn more about the Detailed Specifications
| Brand | NavePoint |
|---|
| Type | Wall-Mounted |
|---|---|
| Rack Units | 9U |
| Color | Black |
| Date First Available | September 29, 2021 |
|---|
