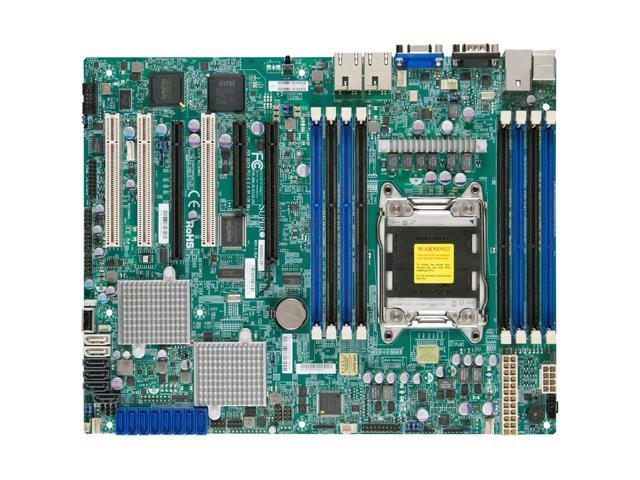

X9Srh-7Tf-O Lga2011/ Intel C602J/ Ddr3/ Sata3&Sas2/ V&2Gbe/ Atx Server Motherboard
SKU: 9SIA575JNW114242.012.360₫
Description
?CPU: LGA2011
?Supports Intel Xeon E5-2600/E5-1600 Processors
?Supports up to 8 cores
?Supports up to 135W
?Chipset: Intel C602J
?Memory: 8x 240pin DDR3-1600/1333/1066 DIMM Slots; Supports up to 256GB ECC/REG Memory or up to 64GB ECC/Non-ECC Unbuffered Memory
?Slots: 2x PCI-Express 3.0 x16 Slots (one runs at x8), 1x PCI-Express 2.0 x8 Slot (runs at x4), 2x PCI-32 Slots
?SATA: 2x SATA3 Ports, 4x SATA2 Ports; Support RAID 0, 1, 5, 1
?SAS: 8x SAS2 Ports; Support RAID 0, 1, 1
?Video: Matrox G200eW Graphics Controller w/ 16MB DDR2 Video Memory
?LAN: Intel X540 Dual Port Gigabit Ethernet Controller; 1x Realtek RTL8201N PHY (dedicated IPMI)
?Ports: 9x USB 2.0 Ports (2 rear, 6 via headers, 1 Type A), 1x PS/2 Keyboad Port, 1x PS/2 Mouse Port, 1x VGA Port, 2x Serial Ports (1 rear, 1 via header), 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
?Form Factor: ATX; 12.0 x 9.6 inch / 30.5 x 24.4 cm
?RoHS Compliant
?Supports Intel Xeon E5-2600/E5-1600 Processors
?Supports up to 8 cores
?Supports up to 135W
?Chipset: Intel C602J
?Memory: 8x 240pin DDR3-1600/1333/1066 DIMM Slots; Supports up to 256GB ECC/REG Memory or up to 64GB ECC/Non-ECC Unbuffered Memory
?Slots: 2x PCI-Express 3.0 x16 Slots (one runs at x8), 1x PCI-Express 2.0 x8 Slot (runs at x4), 2x PCI-32 Slots
?SATA: 2x SATA3 Ports, 4x SATA2 Ports; Support RAID 0, 1, 5, 1
?SAS: 8x SAS2 Ports; Support RAID 0, 1, 1
?Video: Matrox G200eW Graphics Controller w/ 16MB DDR2 Video Memory
?LAN: Intel X540 Dual Port Gigabit Ethernet Controller; 1x Realtek RTL8201N PHY (dedicated IPMI)
?Ports: 9x USB 2.0 Ports (2 rear, 6 via headers, 1 Type A), 1x PS/2 Keyboad Port, 1x PS/2 Mouse Port, 1x VGA Port, 2x Serial Ports (1 rear, 1 via header), 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
?Form Factor: ATX; 12.0 x 9.6 inch / 30.5 x 24.4 cm
?RoHS Compliant
Learn more about the Supermicro X9SRH-7TF-O
| Brand | SuperMicro |
|---|---|
| Model | X9SRH-7TF-O |
| Date First Available | October 27, 2022 |
|---|
