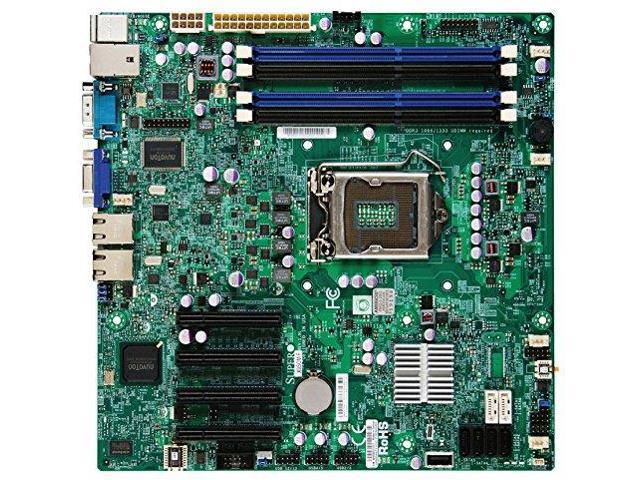

Supermicro X9Scm-F-O Lga1155/ Intel C204 Pch/ Ddr3/ Sata3/ V&2Gbe/ Matx Server Motherboard
SKU: 9SIA575JNW07466.033.690₫
Description
? CPU: Socket 1155, Supports Xeon E3-1200 Family and 2nd Generation Intel Core i3 / Pentium Processors
? Chipset: Intel C204 PCH Chipset
? Memory: 4x 240pin DDR3-1333/1066/800 DIMMs, Dual Channel, ECC, Unbuffered, Max Capacity up to 32GB
? Slots: 4x PCI-Express 2.0 x8 Slots (two run at x4)
? SATA: 4x SATA2 Ports, Support RAID 0/1/5/10; 2x SATA3 Ports, Support RAID 0/1
? Video: Nuvoton WPCM450RA0BX Graphics Controller
? LAN: Intel 82579LM & 82574L Gigabit Ethernet Controller, 1x Realtek RTL8201N PHY (dedicated IPMI)
? Ports: 9x USB 2.0 Ports (2 rear, 6 via header, 1 type A); 1x PS/2 Keyboard Port; 1x PS/2 Mouse Port; 2x Serial Ports (1 rear, 1 via header); 1x VGA Port; 2x RJ45 LAN Ports; 1x RJ45 Dedicated IPMI LAN Port
? Form Factor: Micro ATX, 9.6 x 9.6 inch / 24.4 x 24.4 cm
? RoHS Compliant
? Chipset: Intel C204 PCH Chipset
? Memory: 4x 240pin DDR3-1333/1066/800 DIMMs, Dual Channel, ECC, Unbuffered, Max Capacity up to 32GB
? Slots: 4x PCI-Express 2.0 x8 Slots (two run at x4)
? SATA: 4x SATA2 Ports, Support RAID 0/1/5/10; 2x SATA3 Ports, Support RAID 0/1
? Video: Nuvoton WPCM450RA0BX Graphics Controller
? LAN: Intel 82579LM & 82574L Gigabit Ethernet Controller, 1x Realtek RTL8201N PHY (dedicated IPMI)
? Ports: 9x USB 2.0 Ports (2 rear, 6 via header, 1 type A); 1x PS/2 Keyboard Port; 1x PS/2 Mouse Port; 2x Serial Ports (1 rear, 1 via header); 1x VGA Port; 2x RJ45 LAN Ports; 1x RJ45 Dedicated IPMI LAN Port
? Form Factor: Micro ATX, 9.6 x 9.6 inch / 24.4 x 24.4 cm
? RoHS Compliant
Learn more about the Supermicro X9SCM-F-O
| Brand | SuperMicro |
|---|---|
| Model | X9SCM-F-O |
| Date First Available | October 27, 2022 |
|---|
