Supermicro X11SSH-GF-1585 Server Motherboard – Intel Chipset – Socket BGA-1440 – Intel Xeon E3-1585 v5 Quad-core (4 Core) – 1 x Retail Pack
SKU: 296-0002-003A839.070.005₫
Intel® Xeon® processor E3-1585 v5,
Single socket FCBGA 1440,
4-Core, 8 Threads, 65W
Intel® C236 chipset
Up to 64GB ECC Unbuffered SO-DIMM,
DDR4 2133MHz; 4 DIMM slots
Expansion slots:
1 PCI-E 3.0 x8 (in x16),
1 PCI-E 3.0 x8,
1 PCI-E 3.0 x4 (in x8)
M.2 NGFF connector
M.2 Interface: PCI-E 3.0 x4 and SATA
Form Factor: 2242, 2280, 22110
Key: M-Key
Double Height Connector
6 SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10
Support Intel® Iris Pro Graphics P580 (GT4e) ,
for VHD and Quick Sync Video
2 SuperDOM with built-in power
5 USB 3.0 (2 rear, 1 Type A, 2 internal)
Description
UP Xeon® Motherboards – Socket FCBGA 1440
Xeon E3-1500 v5 Family Boards / FCBGA 1440
Introducing Supermicro’s latest single processor design which features the Intel C236/CM236 chipset and supports an onboard Intel Xeon E3-1500 v5 series BGA processor. The new 14nm microarchitecture offers up to 32GB of fast DDR4 SO-DIMM in 2 slots, 12V DC input, onboard IPMI or AMT vPro, USB3.0, M.2, mini PCI-E, PCI-E 3.0 x16, and SATA 3.0 (6Gbps) HDD. The BGA processor also provides GT4e Iris Pro graphics for outstanding 4K HD graphics performance, improved media hardware acceleration (VHD), up to 128MB eDRAM for increased system efficiency, all while keeping power consumption to a minimum.
Features
* Product Type: Server Motherboard
* Maximum Memory: 64 GB
* Product Type: Server Motherboard
* Compatibility: Supermicro SuperChassis
1U:
- SC813MFTQC-350CB
- SC813MFTQC-R407CB
- SC113MFAC2-605CB
- SC113MFAC2-R606CB
- SC512F-350B
- SC813MTQ-350CB
2U:
- SC823TQ-653LPB
- SC213LT-563LPB
3U:
- SC833T-653B
Mid/Mini-Tower:
- SC731i-300B
- SC732I-500B
4U/Tower:
- SC842i-500B
* Maximum Memory: 64 GB
* Packaged Quantity: 1
* Form Factor: Micro ATX
* Total Processor Supported: 1
* Controller Type: Serial ATA/600
* Form Factor: Micro ATX
* Product Model: X11SSH-GF-1585
* Product Name: X11SSH-GF-1585 Server Motherboard
* Package Type: Retail
* RAID Levels: 10
* RAID Levels: 5
* RAID Levels: 1
* RAID Levels: 0
* Total Processor Supported: 1
* Controller Type: Serial ATA/600
* Processor Socket: Socket BGA-1440
* Brand Name: Supermicro
* Processor Socket: Socket BGA-1440
* Brand Name: Supermicro
* Memory Technology: DDR4 SDRAM
* Memory Technology: DDR4 SDRAM

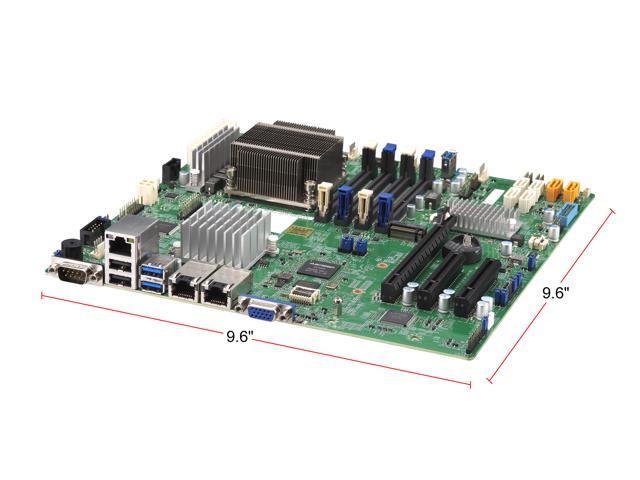

* Width: 9.6″
* Depth: 9.6″
* Chipset Manufacturer: Intel
* Number of Memory Slots: 4
* Gigabit Ethernet: Yes
* Number of SATA Interfaces: 6
* Onboard Video: On-board Video Chipset
* RAID Supported: Yes
* Number of Total Expansion Slots: 3
* Number of PCI Express x8 Slots: 2
* Number of PCI Express x16 Slots: 1
* Total Number of USB Ports: 4
* Number of USB 3.0 Ports: 2
* Total Number of Onboard USB Ports: 9
* Number of Onboard USB 3.0 Ports: 3
* Total Number of PCI Exp
Learn more about the Supermicro MBD-X11SSH-GF-1585-O
| Brand | SUPERMICRO |
|---|---|
| Model | MBD-X11SSH-GF-1585-O |
| CPU Socket Type | FCBGA1440 |
|---|---|
| CPU Type | Supports Intel Xeon processor E3-1585 v5 Socket FCBGA1440 supported, CPU TDP support 65W |
| North Bridge | Intel C236 |
|---|
| DDR4 Standard | DDR4 2133 / 1866 / 1600 MHz ECC DDR4 SODIMMs |
|---|---|
| Maximum Memory Supported | 64GB Unbuffered ECC SO-DIMM, DDR4-2133 MHz, in 4 x DIMM slots |
| PCI Express x8 | 1 x PCI-E 3.0 x8 (in x16 slot) 1 x PCI-E 3.0 x8 |
|---|---|
| PCI Express x4 | 1 x PCI-E 3.0 x4 (in x8 slot) |
| SATA | 6 x SATA 6.0Gb/s |
|---|---|
| SATA RAID | 0/1/5/10 |
| Onboard Video Chipset Onboard Video Chipset | Aspeed AST2400 BMC |
|---|
| LAN Chipset | Intel I350 |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| Second LAN Chipset | Intel I350 |
| Second LAN Speed | 10/100/1000Mbps |
| Max LAN Speed | Dual 10/100/1000Mbps |
| COM | 1 |
|---|---|
| USB 1.1/2.0 | 2 x USB 2.0 |
| USB 3.0 USB 3.0 | 2 x USB 3.0 |
| Features | Intel Xeon processor E3-1585 v5, Single socket FCBGA 1440, 4-Core, 8 Threads, 65W
Intel C236 chipset Up to 64GB ECC Unbuffered SO-DIMM, DDR4 2133 MHz; 4 x DIMM slots Support Intel Iris Pro Graphics P580 (GT4e), for VHD and Quick Sync Video Expansion slots: 6 x SATA3 (6 Gbps) via C236; RAID 0, 1, 5, 10 2 x SuperDOM with built-in power 5 x USB 3.0 (2 x rear, 1 x Type A, 2 x internal) M.2 NGFF connector |
|---|
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6″ x 9.6″ |
| Date First Available | February 11, 2019 |
|---|
