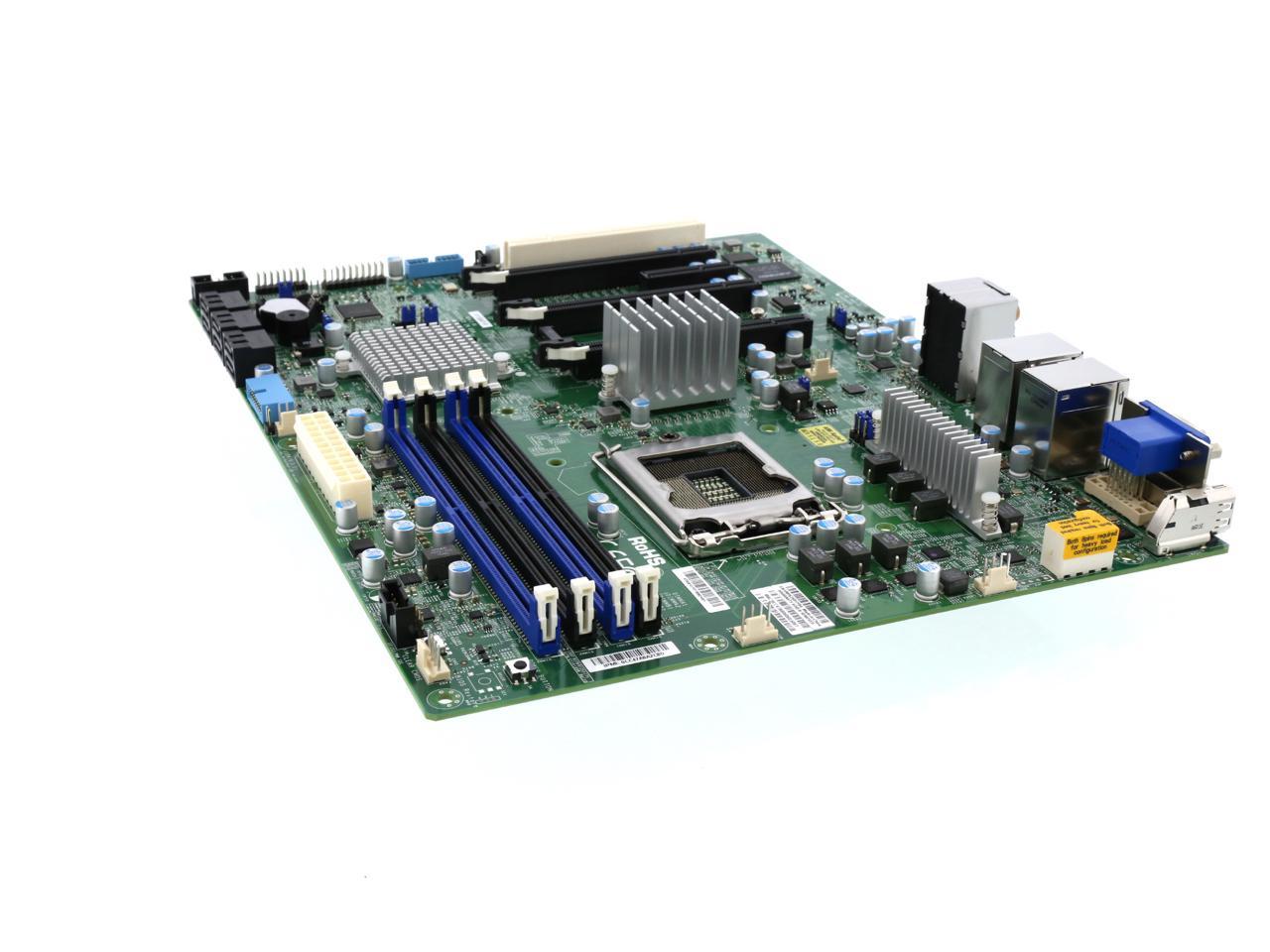

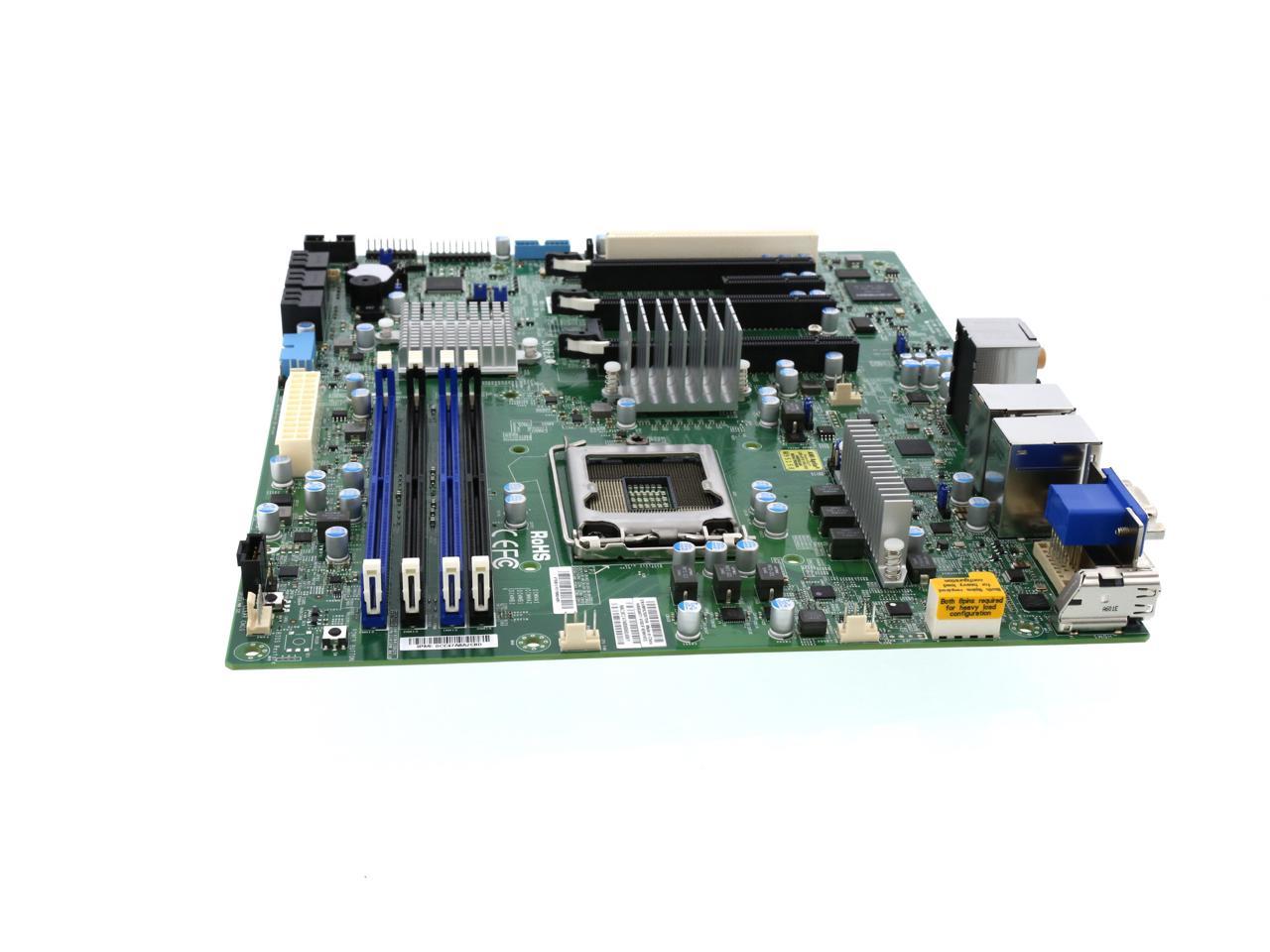

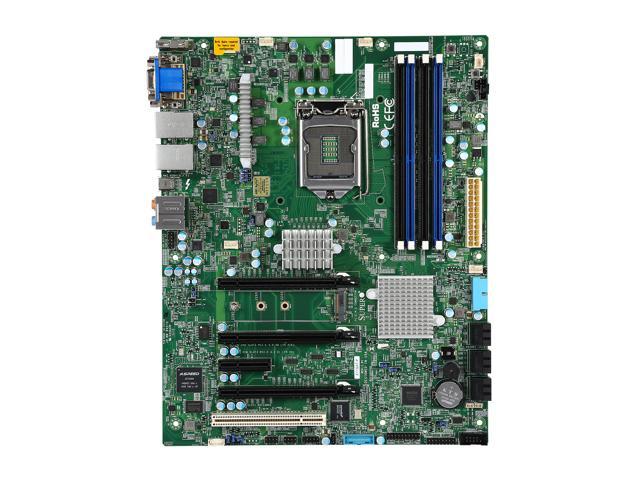

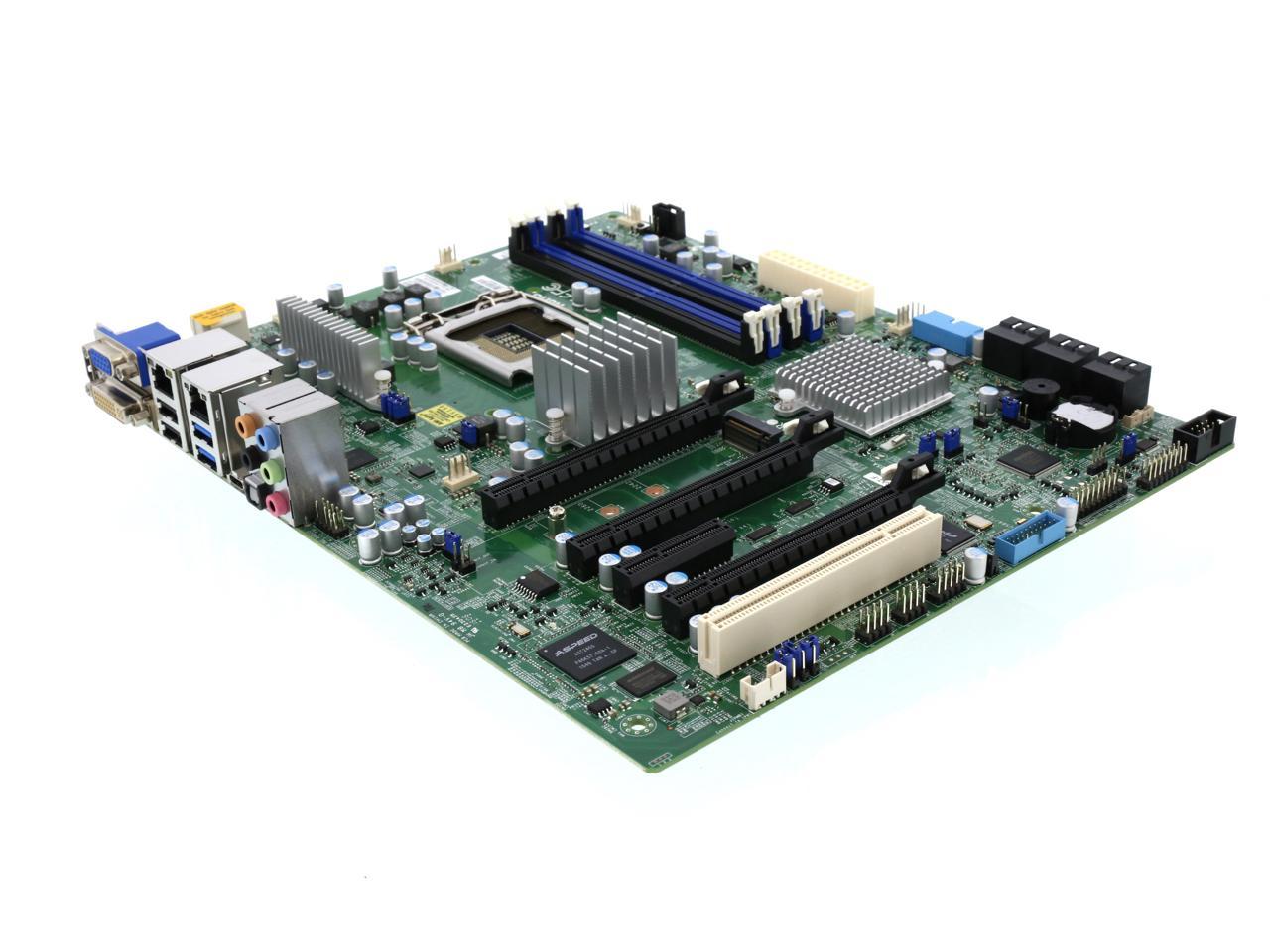

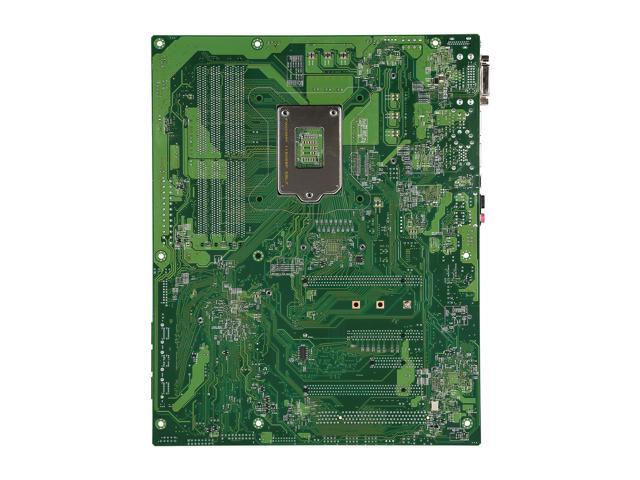

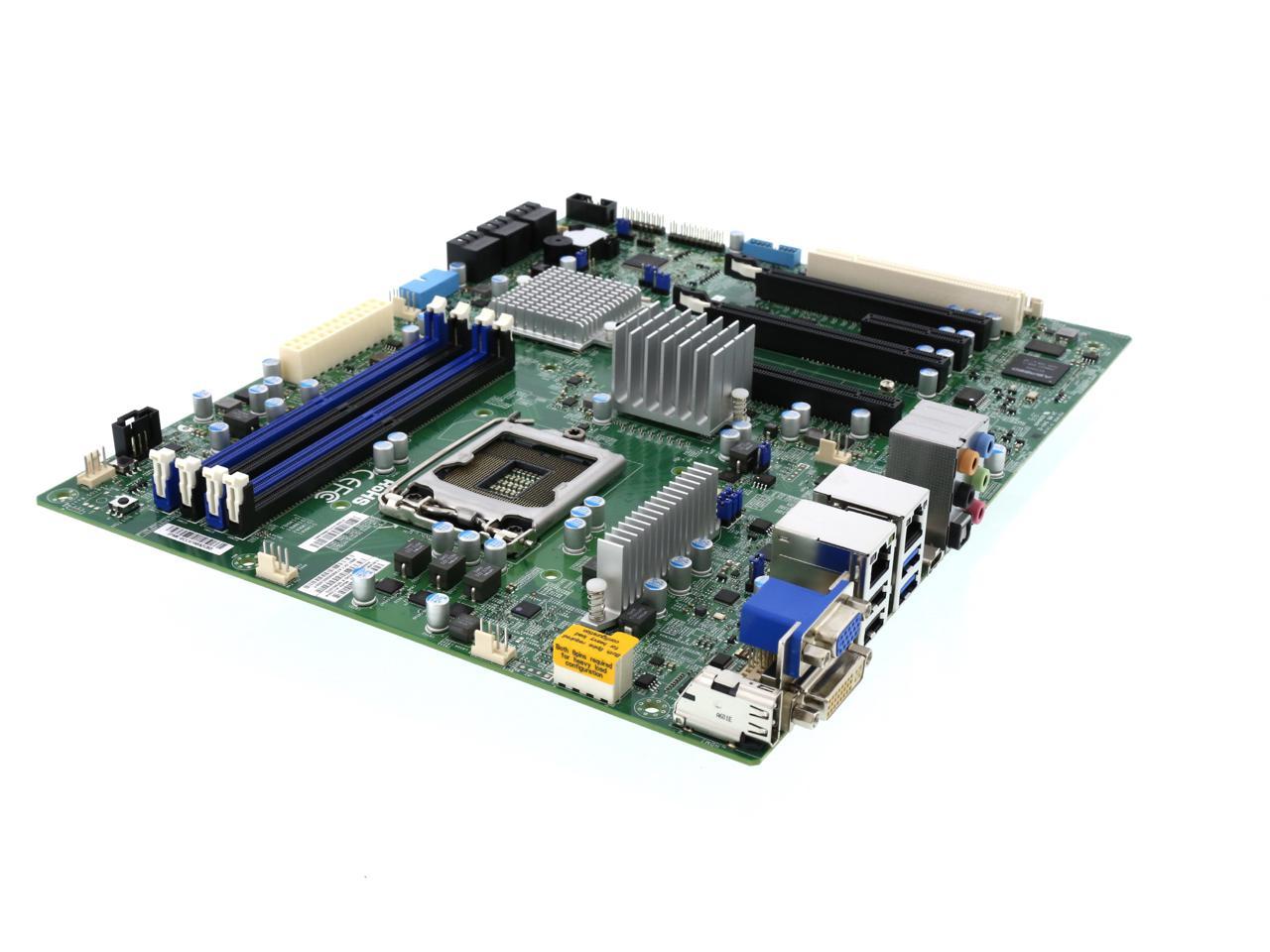

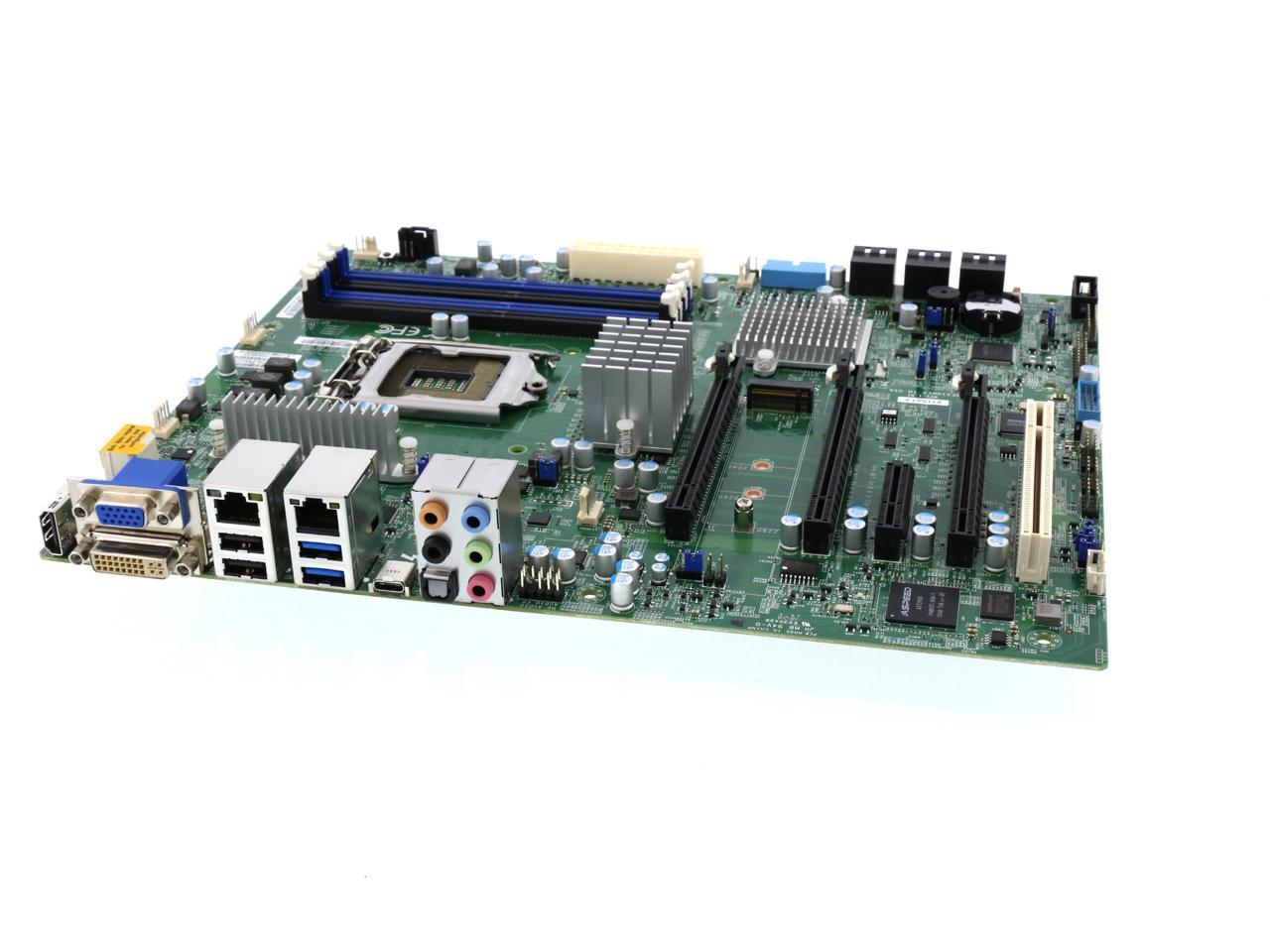

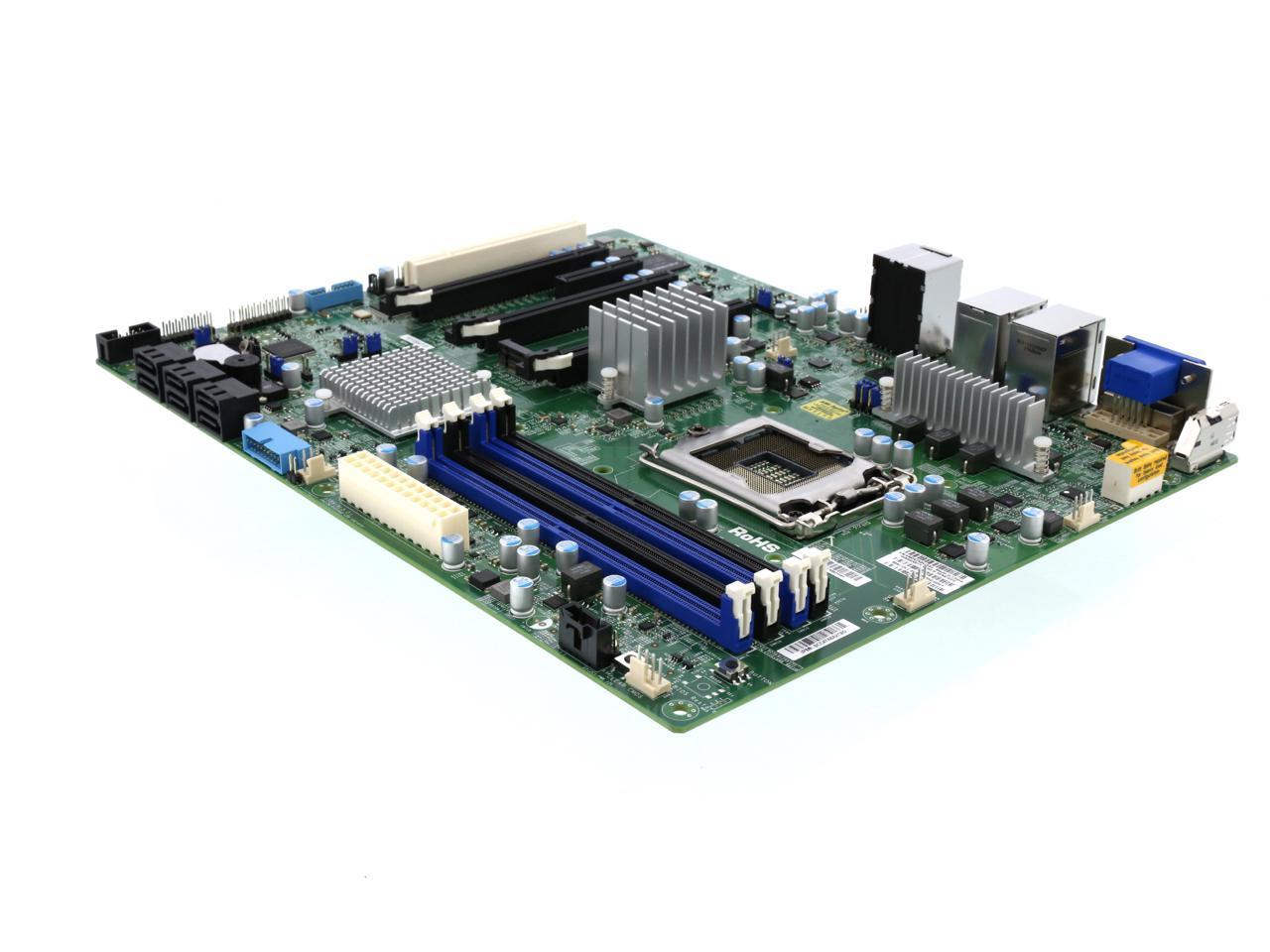

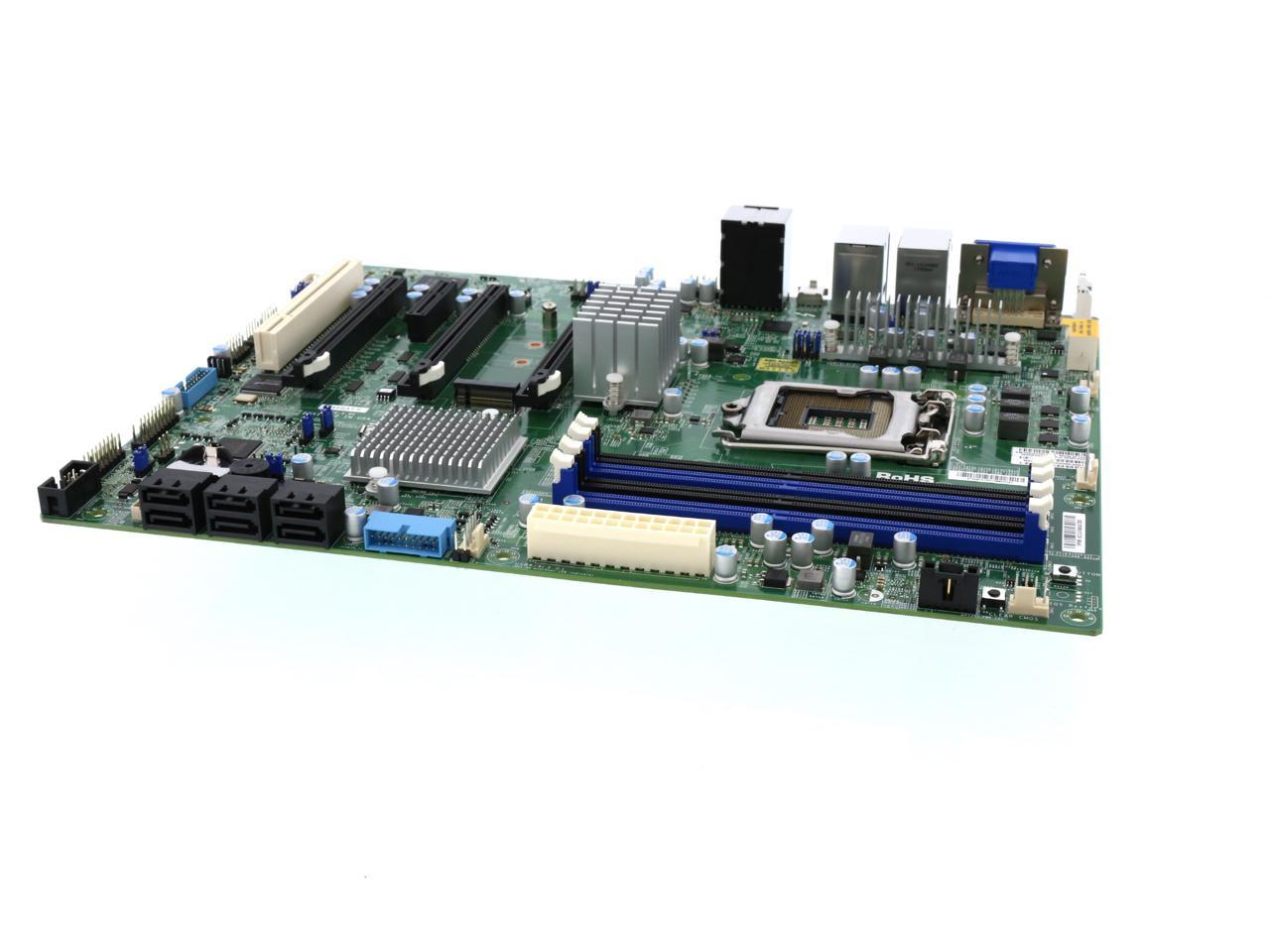

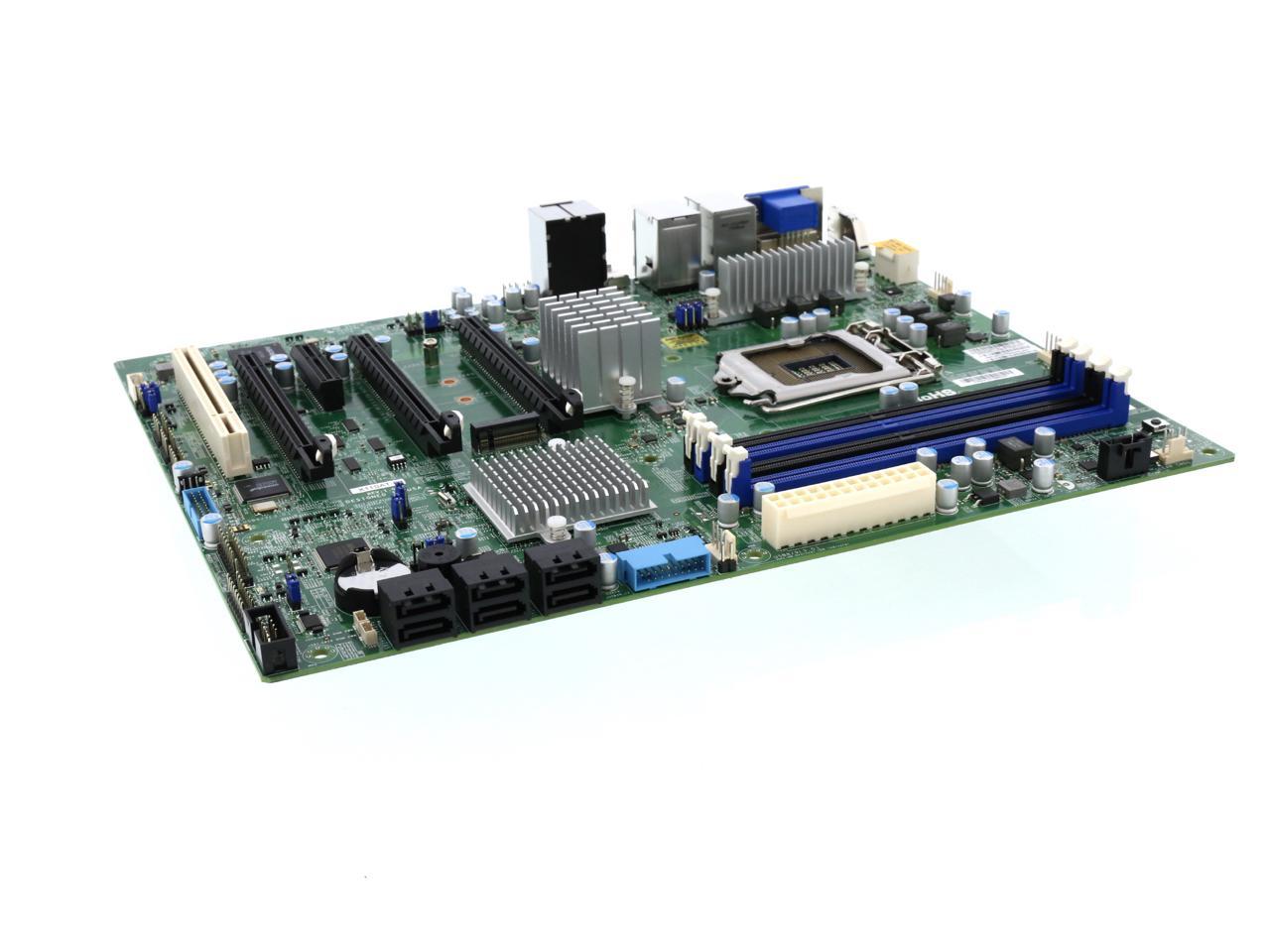

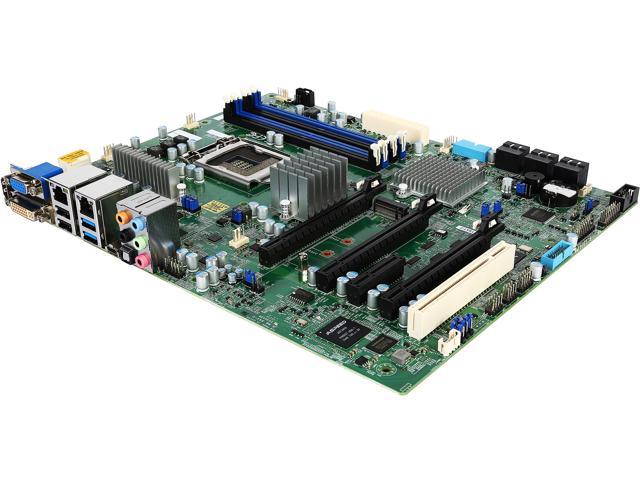

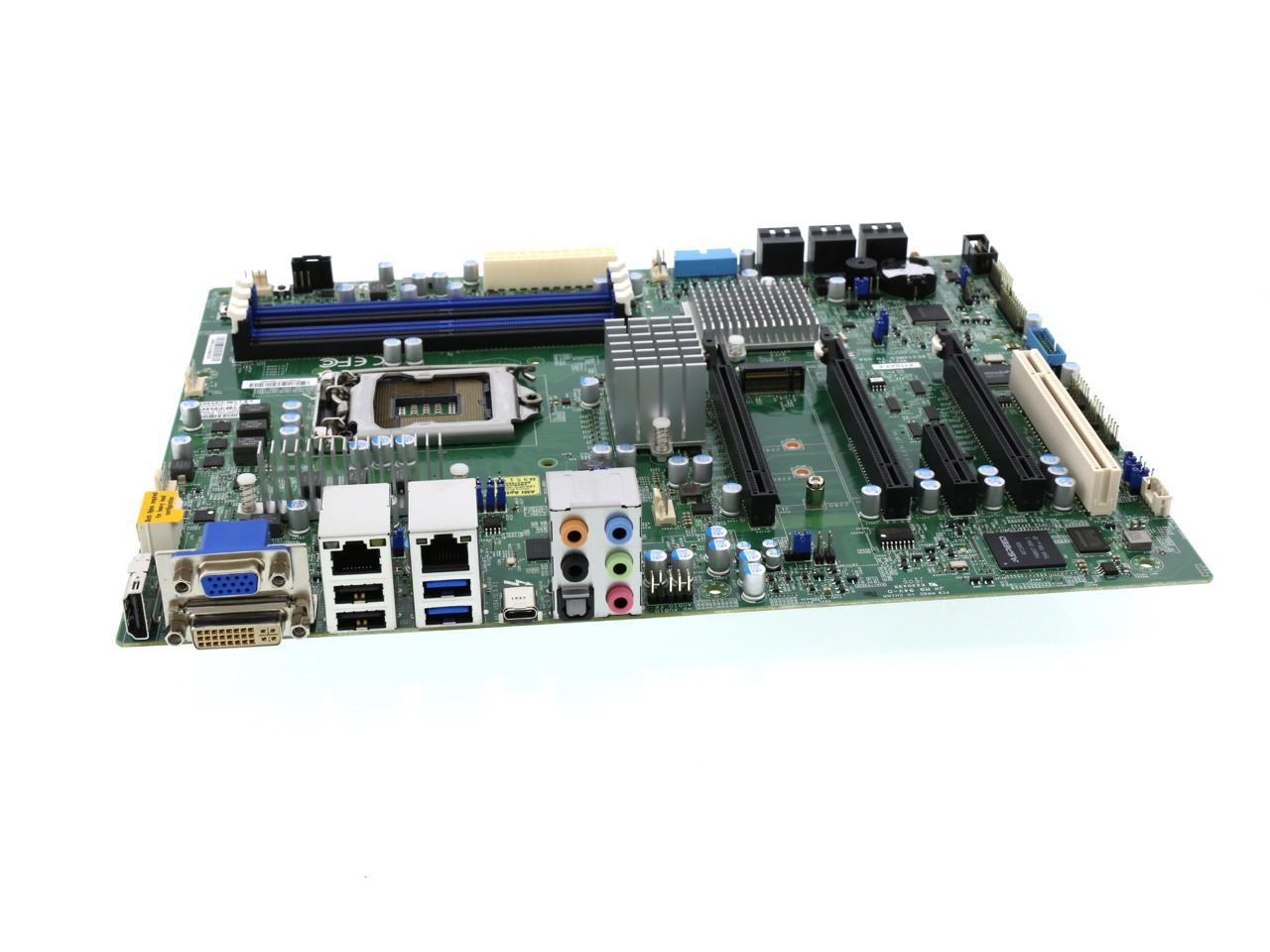

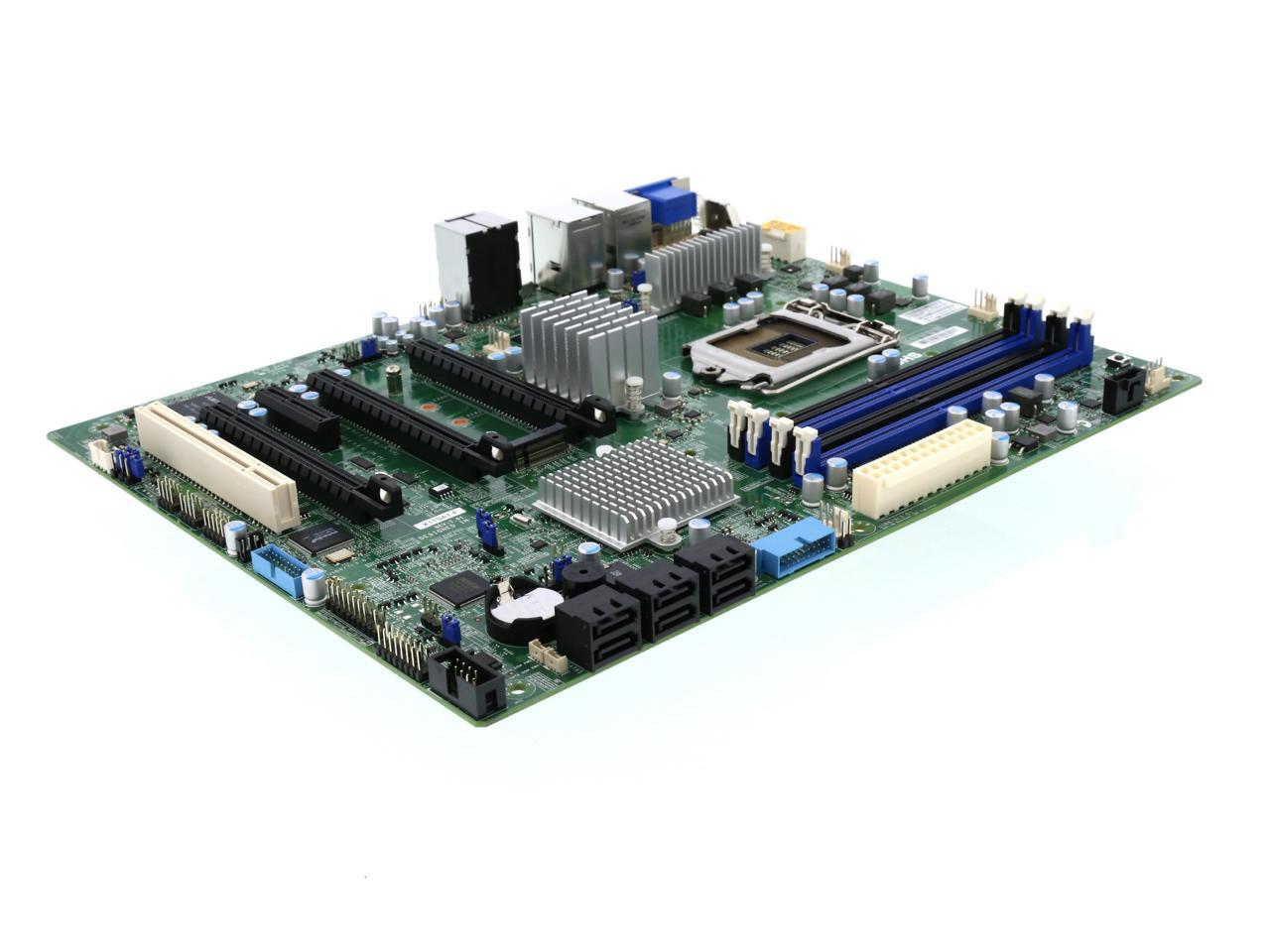

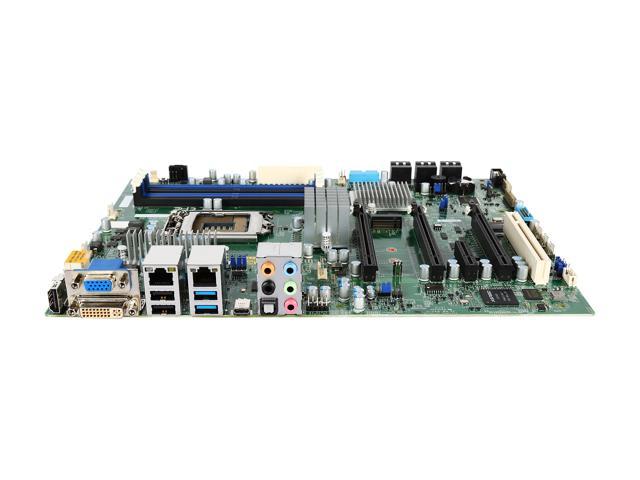

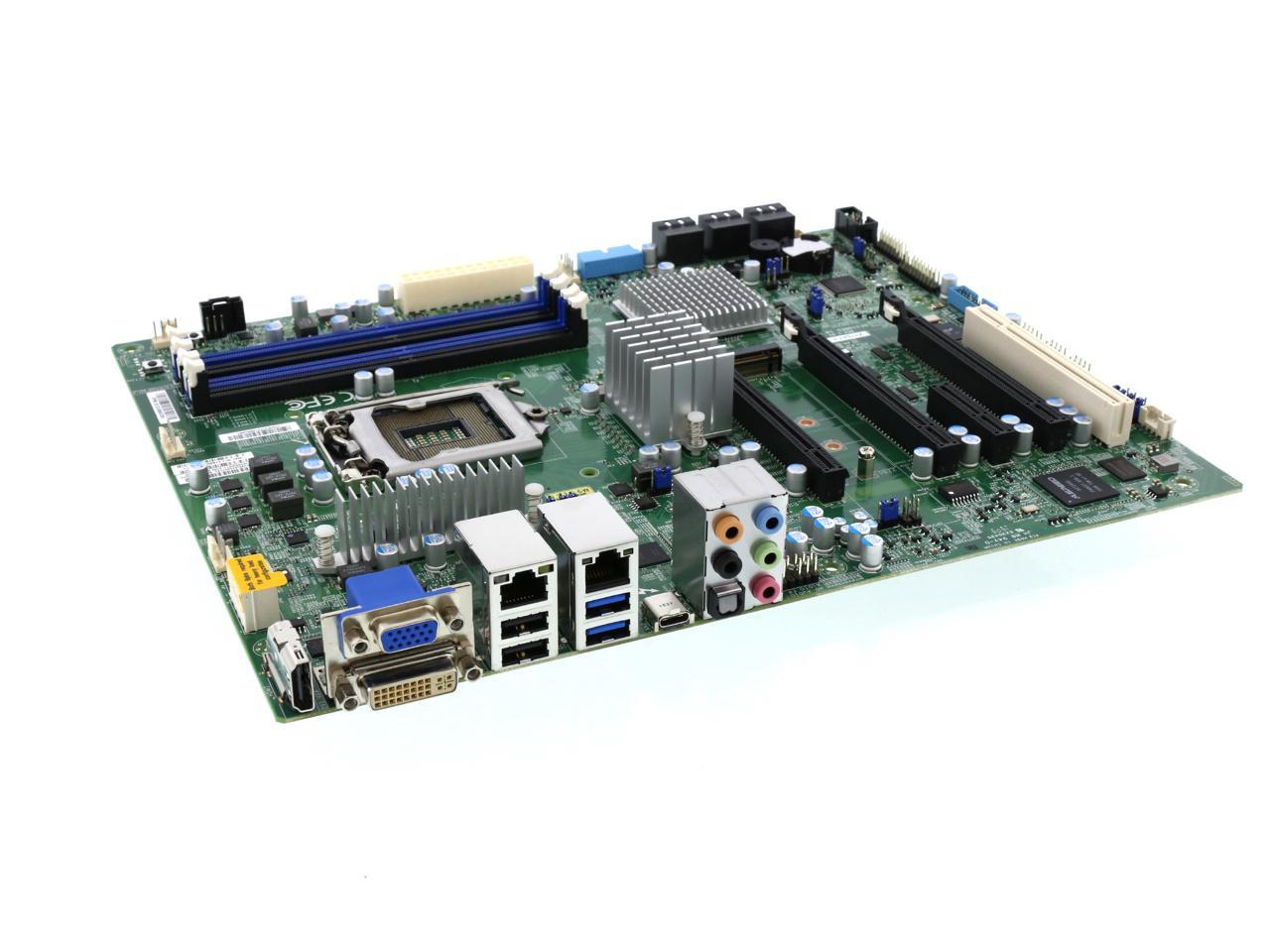

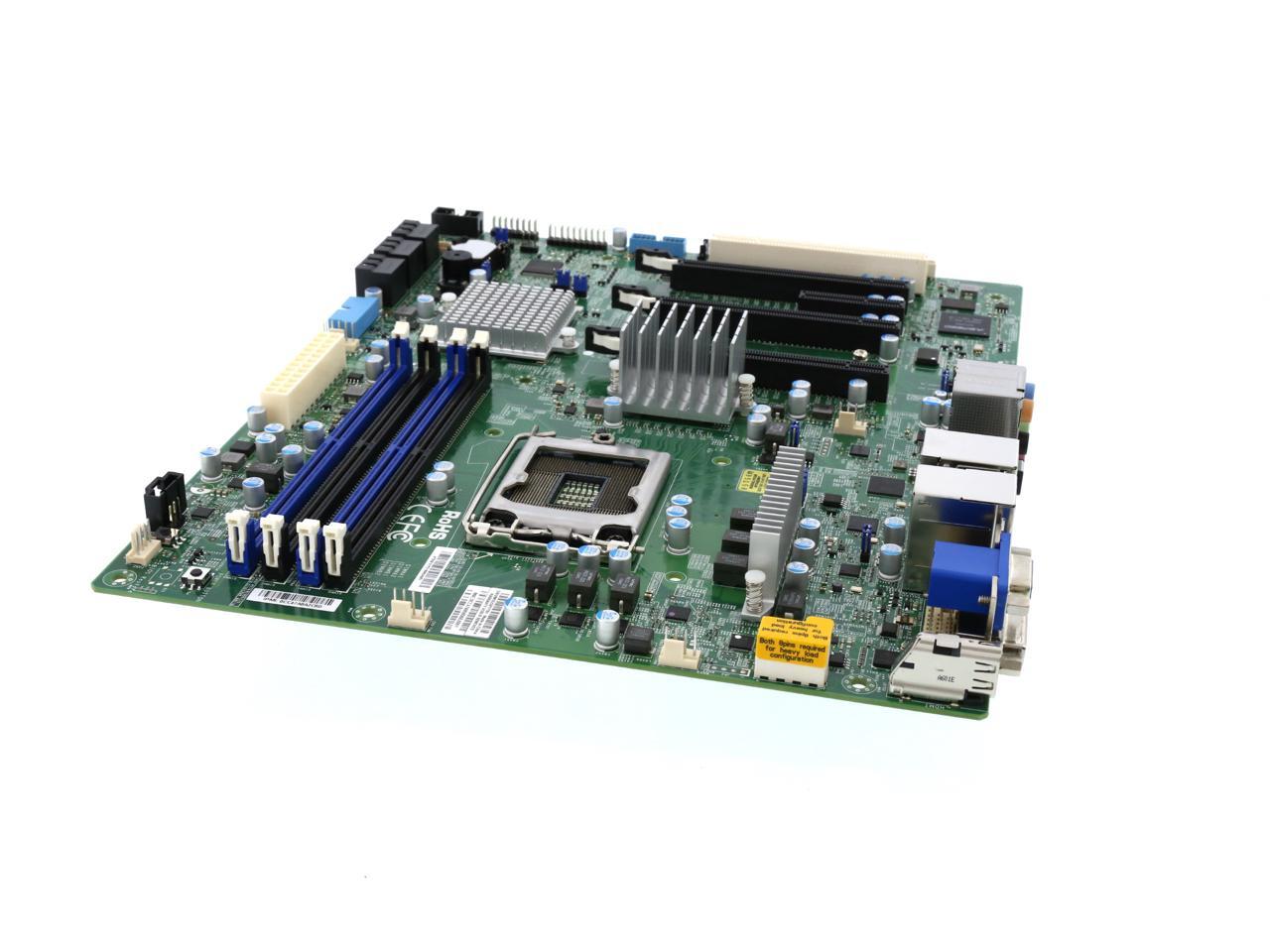

Supermicro X11SAT-F Workstation Motherboard – Intel C236 Chipset – Socket H4 LGA-1151 – Retail Pack
SKU: N82E1681318301615.568.410₫
Single Socket H4 (LGA 1151)
Intel C236 chipset
Description
/* Insert SKU number in place of “sku-13-183-016” */
#overview-content.sku-13-183-016 .banner {width:100%; height:60px; margin-bottom:0; background:url(//images10.newegg.com/BizIntell/item/13/183/13-183-016/SUPERMICRO_101216.jpg) no-repeat left; }
#overview-content .bt{ color: #333333;font-size: 24px; font-weight: bold; line-height: 30px; text-align:center}
#overview-content .blank20{clear:both;display:block;margin:0;padding:0;width:100%;height:20px;background:none;}
#overview-content .st {margin:0 auto 20px;background:url(//images10.newegg.com/BizIntell/item/13/183/13-183-016/title_101216.jpg) no-repeat center center; text-align:center; font-size:20px; font-weight:bold; color: #ffffff; text-transform: uppercase; height:35px; line-height:35px; }
#overview-content table.specs { width:100%; margin:0 auto; border:#CCC 1px solid; border-collapse:collapse; font-size:12px;}
#overview-content table.specs td{ border:#CCC 1px solid; border-collapse:collapse;}
#overview-content h2{ color: #333333;font-weight: bold;font-size: 24px;text-transform: uppercase;}

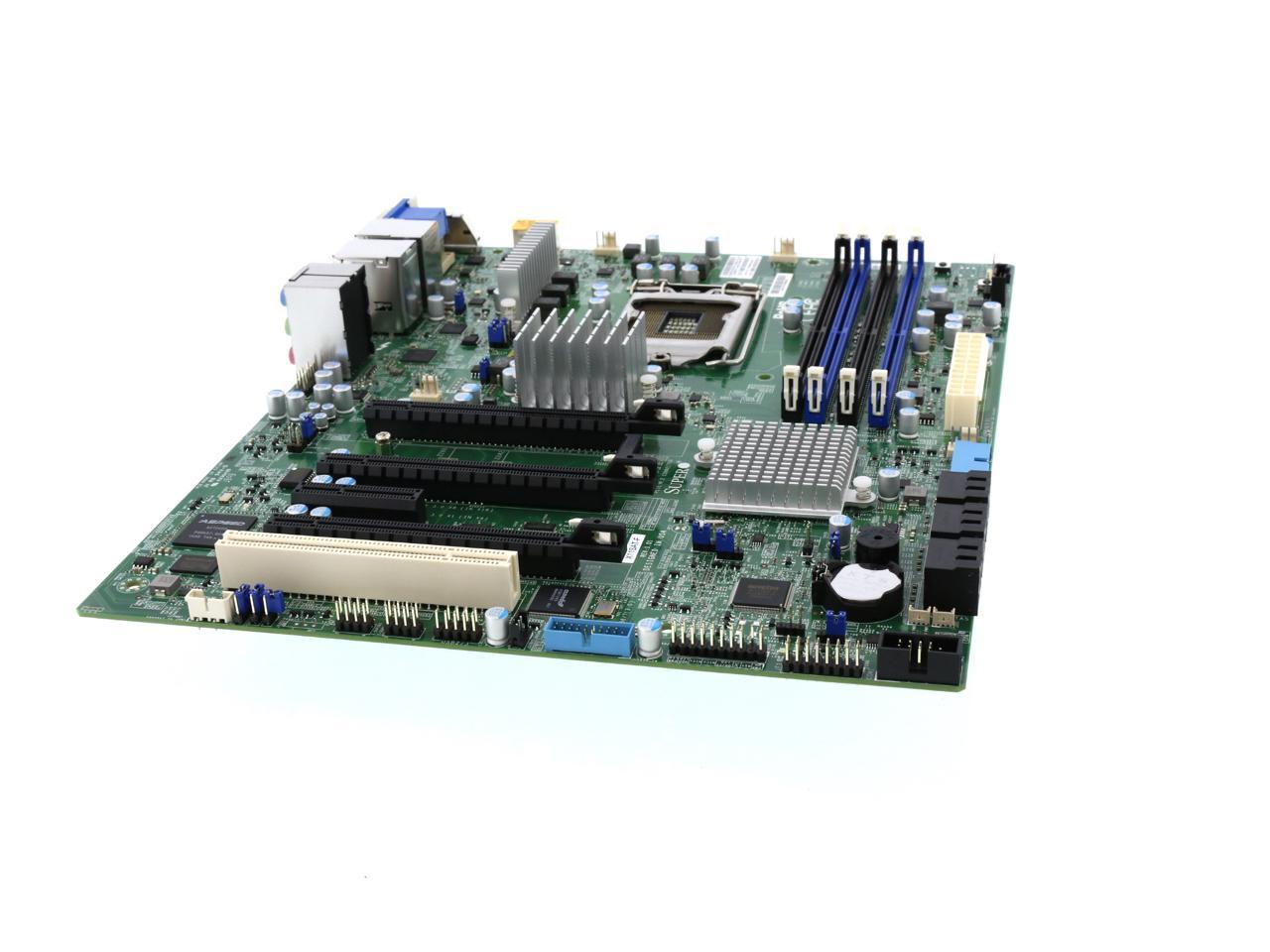

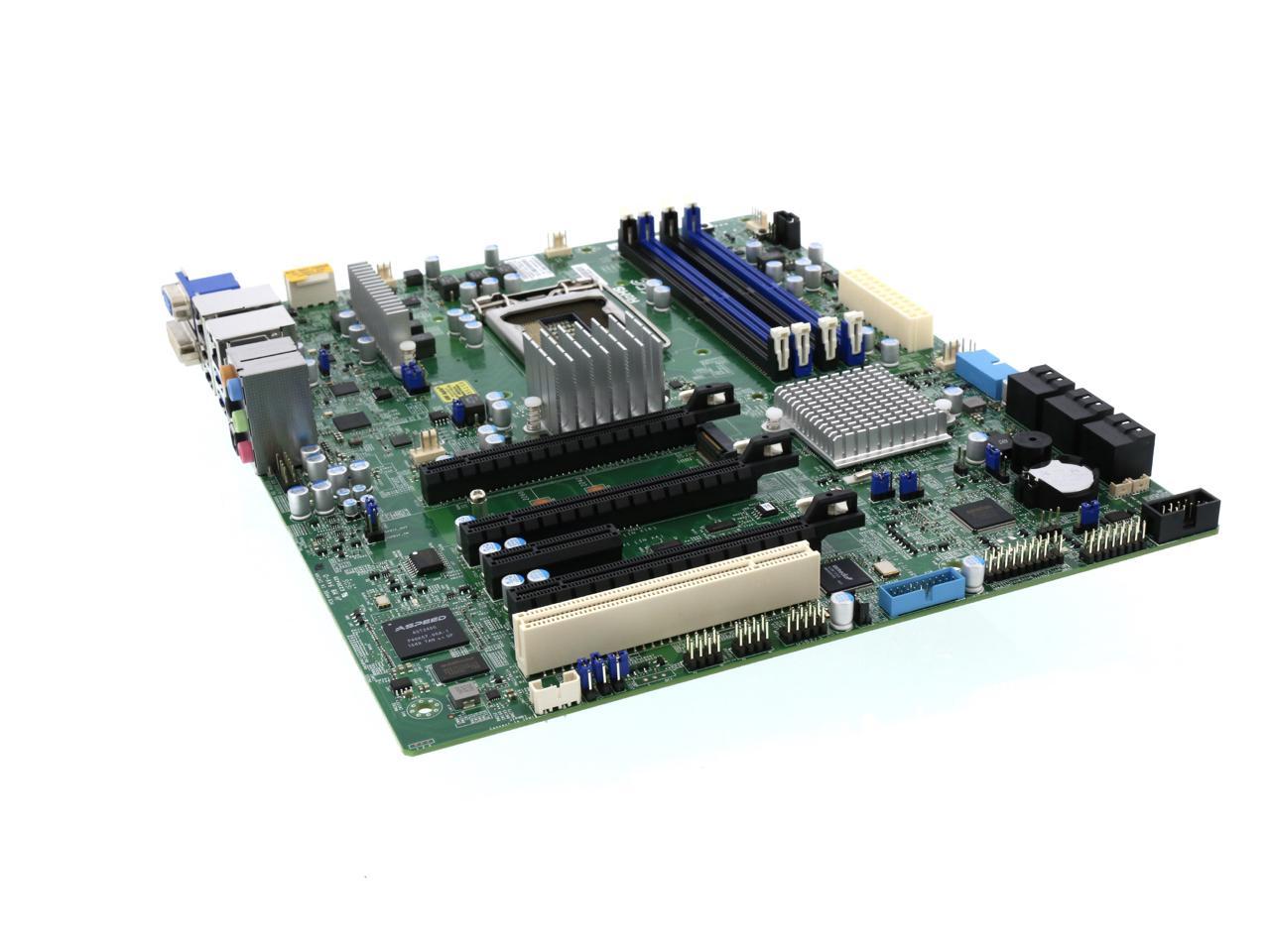

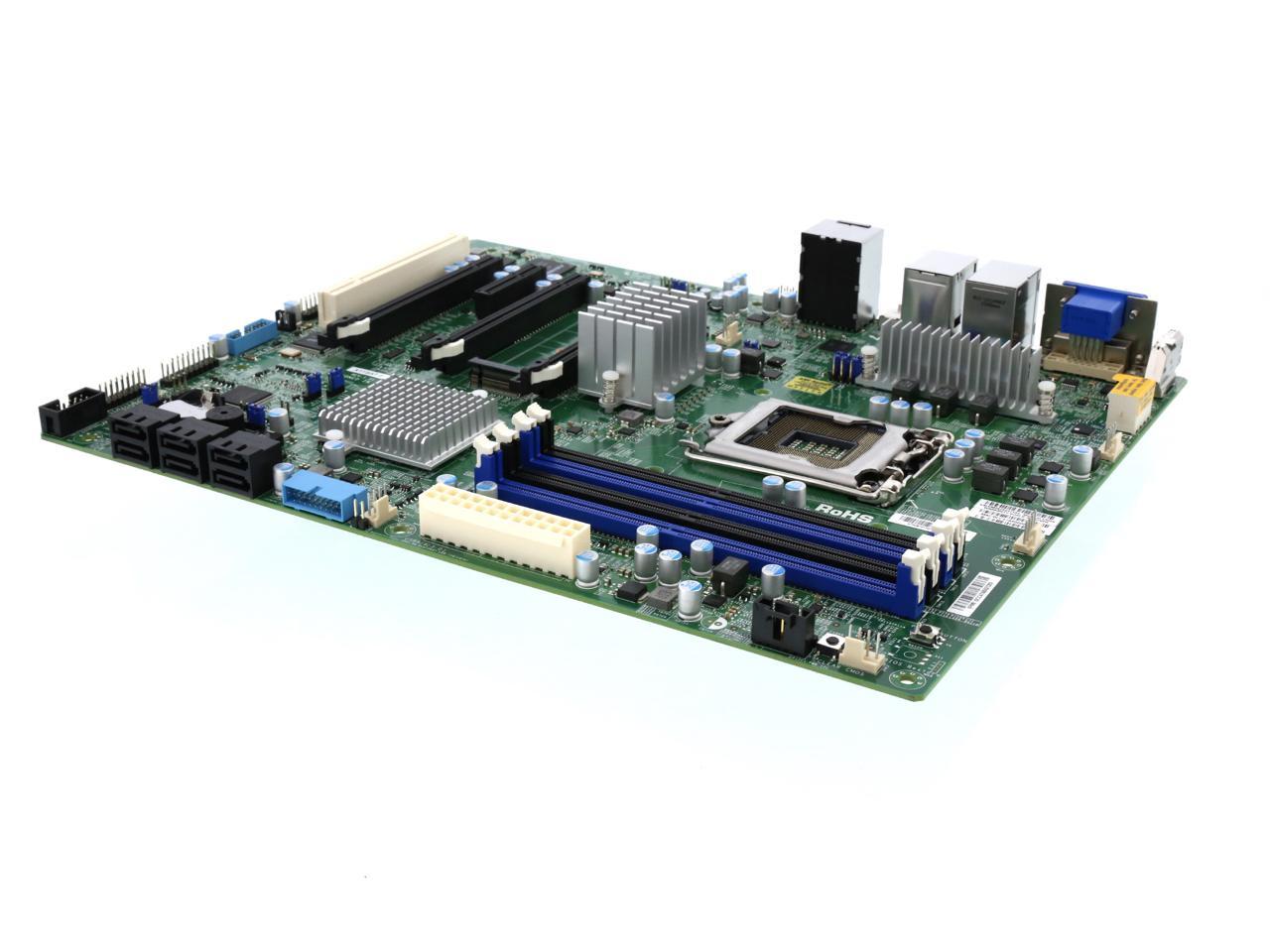

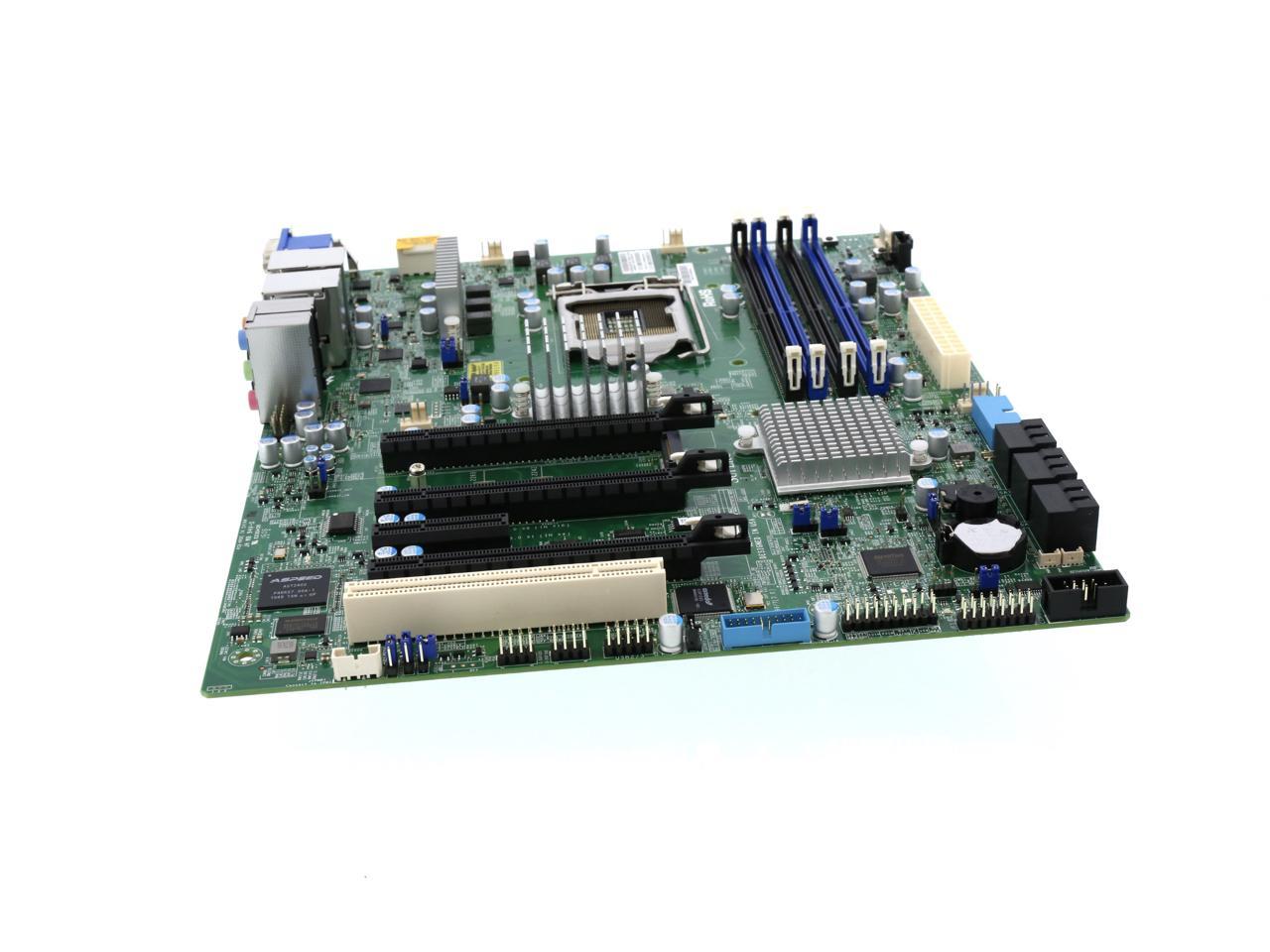

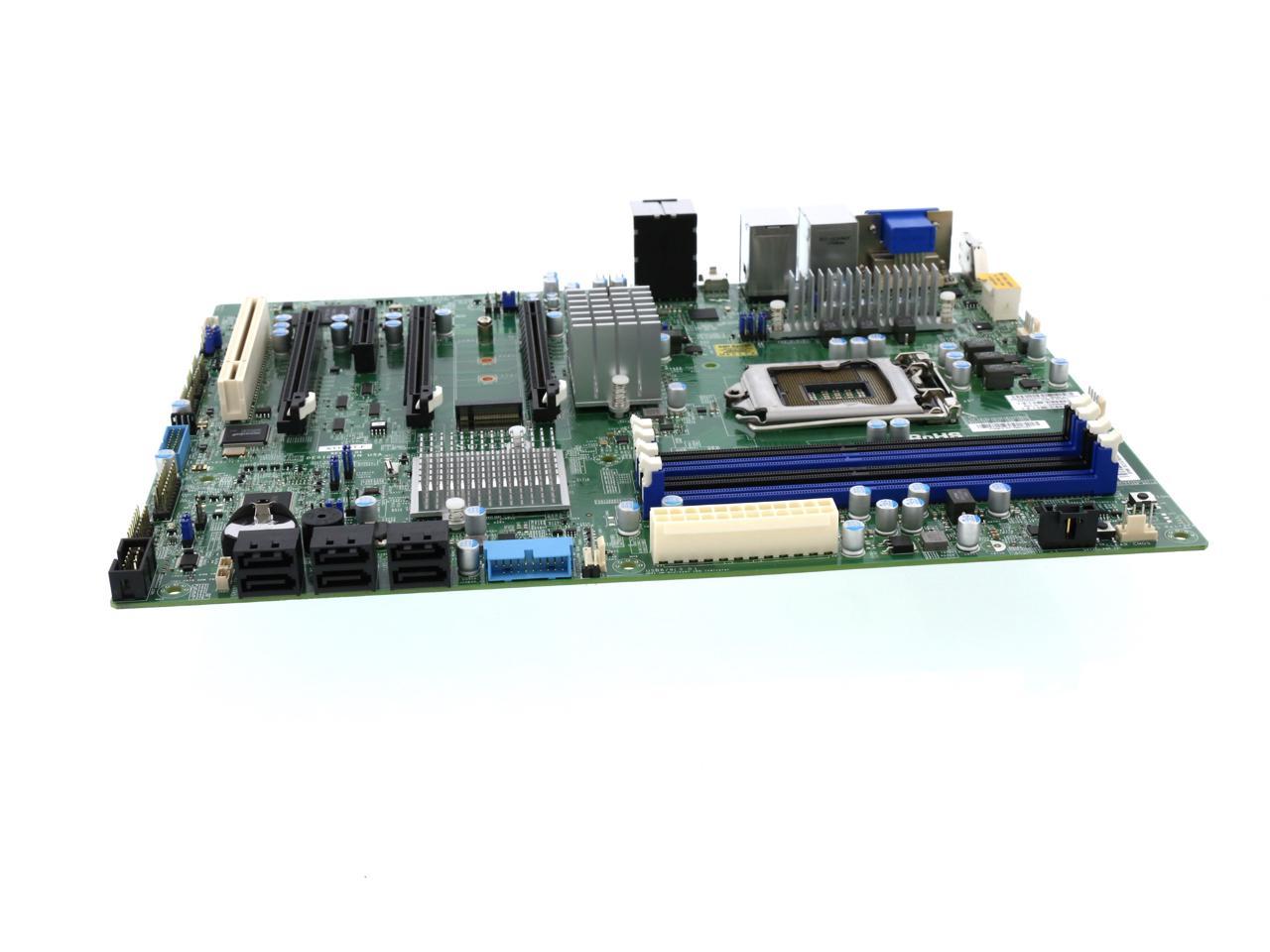

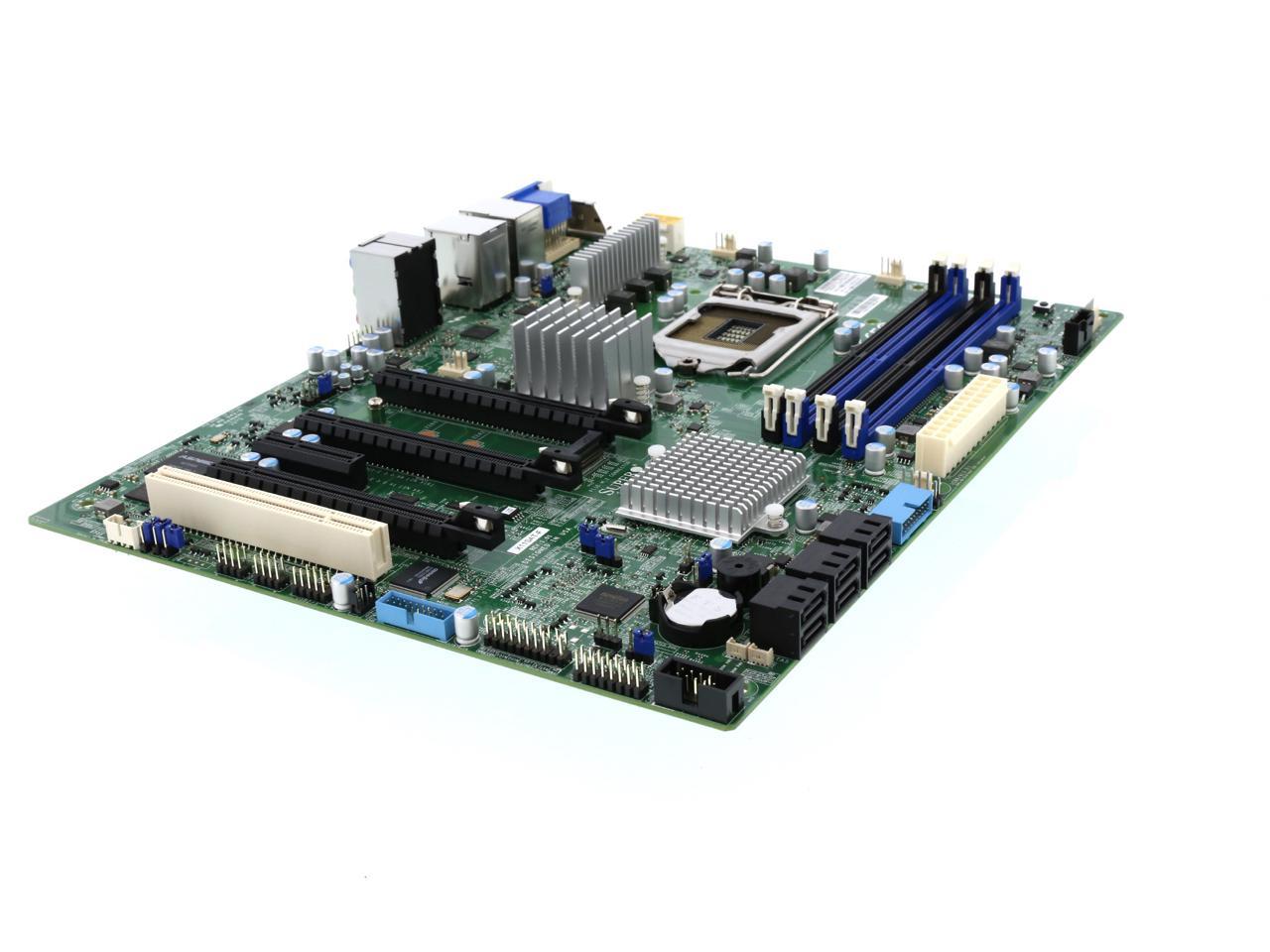

Supermicro X11SAT-F Workstation Motherboard
Features
- Single socket H4 (LGA 1151) supports Intel® Xeon® processor E3-1200 v5, Intel® 6th Gen. Core™ i7/i5/i3 series
- Intel® C236 chipset
- Up to 64GB Unbuffered ECC/non-ECC UDIMM DDR4 2133MHz; 4x DIMM slots
- 3x PCI-E 3.0 x16 (run at 16/NA/16 or 16/8/8), 1x PCI-E 3.0 x1 (in x4), and 1x 5V PCI 32-bit slots
- Single GbE LAN with Intel® i210-AT,
Single GbE LAN with Intel® i219LM - 6x SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10
- I/O: 1x VGA, 1x COM, TPM header
- 2x SuperDOM with built-in power
- 6x USB 3.0 (2 rear + 4 via header) ,
4x USB 2.0 (2 rear + 2 via header),
1x USB 3.1 (10Gbps) Type C ports (rear, share with Thunderbolt and display port) - M.2 NGFF connector
Specifications
| Product SKUs | |
| MBD-X11SAT-F | X11SAT-F (Bulk Pack) |
| Physical Stats | |
| Form Factor | ATX |
| Dimensions | 12″ x 9.6″ (30.48cm x 24.38cm) |
| Processor/Cache | |
| CPU |
|
| System Memory | |
| Memory Capacity | Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2133MHz, in 4 DIMM slots |
| Memory Type | 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs |
| DIMM Sizes | 4GB, 8GB, 16GB |
| Memory Voltage | 1.2 V |
| Error Detection |
|
| On-Board Devices | |
| Chipset | Intel® C236 |
| SATA | Intel® C236 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10; + 1 PCIe M.2(PCIe x4, 2242/2260/2280)(No Raid Support) |
| Network Controllers | Single LAN with Intel® Ethernet Controller I210-AT + Single Intel Ethernet PHY i219LM |
| Audio | ALC 888S HD Audio |
| Graphics | Aspeed AST2400 BMC |
| Expansion Slots | |
| PCI-E |
|
| Input / Output | |
| USB |
|
| Video Output |
|
| Serial Port / Header | 1 COM Ports (1 header) |
| TPM | 1 TPM 2.0 Header |
| System BIOS | |
| BIOS Type | AMI UEFI |
| BIOS Features |
|
| PC Health Monitoring | |
| Voltage | +12V, +3.3V, +5V, +5V standby, Chassis intrusion header, Monitors CPU voltages, VBAT |
| FAN |
|
| Temperature |
|
| LED |
|
| Other Features | 8-pin 12v DC power connector, ATX Power connector, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Intel Smart Response Technology, WOL |
| Management | |
| Software | IPMI2.0, SPM, SuperDoctor® 5, Watchdog |
| Power Configurations |
|
What’s in the Box
Learn more about the Supermicro MBD-X11SAT-F-O
| Best Seller Ranking | #72 in Server Motherboards |
|---|
| Brand | SUPERMICRO |
|---|---|
| Model | MBD-X11SAT-F-O |
| CPU Socket Type | Single Socket H4 (LGA 1151) |
|---|---|
| CPU Type | Supports: Intel 6th/7th Generation Core i3 / i5 / i7 Intel Xeon processor E3-1200 v6/v5 |
| North Bridge | Intel C236 chipset |
|---|
| Number of DDR4 Slots | 4 x 288-pin |
|---|---|
| DDR4 Standard | DDR4 2133 / 1866 / 1600 MHz |
| Maximum Memory Supported | 64GB |
| ECC Supported | Yes |
| Other Slots | 3x PCI-E 3.0 x16 slots (run at 16 / NA / 16 or 16 / 8 / 8) 1x PCI-E 3.0 x1 (in x4) slot 1x 5V PCI 32bit slot |
|---|
| SATA | 6 x SATA 6.0Gb/s |
|---|
| Onboard Video Chipset Onboard Video Chipset | ASPEED AST2400 BMC |
|---|
| Audio Chipset Audio Chipset | ALC 888S HD Audio |
|---|
| LAN Chipset | Intel I210-AT + Intel PHY i219V |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| RJ45 | 2 x RJ45 Gigabit Ethernet LAN ports |
|---|---|
| USB 1.1/2.0 | 2 x USB 2.0 |
| USB 3.0 USB 3.0 | 2 x USB 3.0 |
| USB 3.1 | 1 x USB 3.1 |
| Features | Single socket H4 (LGA 1151) supports Intel Xeon processor E3-1200 v5, Intel 6th Gen. Core i7 / i5 / i3 series
Intel C236 chipset Up to 64GB Unbuffered ECC / non-ECC UDIMM DDR4 2133 MHz; 4x DIMM slots 3x PCI-E 3.0 x16 (run at 16 / NA / 16 or 16 / 8 / 8), 1x PCI-E 3.0 x1 (in x4), and 1x 5V PCI 32-bit slots Single GbE LAN with Intel i210-AT, Single GbE LAN with Intel i219V 6 x SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10 I/O: 1x VGA, 1x COM, TPM 1.2 header 2 x SuperDOM with built-in power 6 x USB 3.0 (2 rear + 4 via header), 4 x USB 2.0 (2 rear + 2 via header), 1 x USB 3.1 (10Gbps) Type C ports(rear, share with Thunderbolt and display port) M.2 NGFF connector |
|---|
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0″ x 8.6″ |
| Date First Available | March 10, 2016 |
|---|
