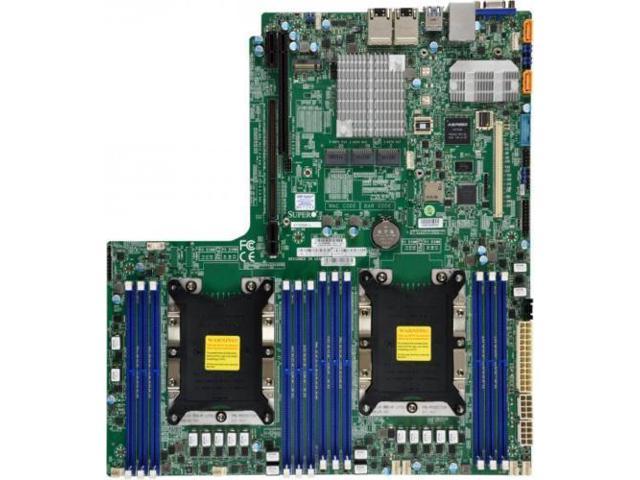

SuperMicro X11DDW-L Server Motherboard
SKU: 9SIA5EM610765327.561.300₫
2nd Generation Intel Xeon Scalable Processors (Cascade Lake-SP)
Dual Socket P (LGA 3647) supported, CPU TDP support 205W, 2 UPI up to 10.4 GT/s
Intel C621 controller for 14 x SATA3 (6 Gbps) ports; RAID 0, 1, 5, 10
Dual LAN with GbE from C621
Description
- Supermicro Cascade Lake X11DDW-L I/O flexible in 1U/2U chassis, Dual Socket 3647, C621, Dual LAN with GbE , DDR4-2933 up to 3TB 3DS ECC LRDIMM in 12 DIMM slots; up to 2TB Intel Optane™ DC Persistent Memory in memory mode (Cascade Lake only)
- Provides max I/O flexible and density in 1U (up to 3 PCI-E) and 2U (up to 6 PCI-E)
- Storage and appliance customers; Customers who look for maximum I/O expansion in 1U/2U system design
Learn more about the Supermicro X11DDW-L
| Brand | SUPERMICRO |
|---|---|
| Model | X11DDW-L |
| CPU Socket Type | Dual LGA 3647 |
|---|---|
| CPU Type | 2nd Generation Intel Xeon Scalable Processors (Cascade Lake-SP), Intel Xeon Scalable Processors. Dual Socket P (LGA 3647) supported, CPU TDP support 205W, 2 UPI up to 10.4 GT/s |
| North Bridge | Intel C621 |
|---|
| DDR4 Standard | DDR4 2666 / 2400 / 2133 / 1866 / 1600 MHz ECC SDRAM 72-bit 288-pin RDIMM / LRDIMM |
|---|---|
| Maximum Memory Supported | Up to 3TB 3DS ECC RDIMM, DDR4-2933 MHz; Up to 3TB 3DS ECC LRDIMM, DDR4-2933 MHz, in 12 x DIMM slots; Up to 2TB Intel Optane DC Persistent Memory in memory mode (Cascade Lake only) |
| Other Slots | PCI-E: 1 x PCI-E 3.0 x32 Left Riser Slot, 1 x PCI-E 3.0 x16 Right Riser Slot, 1 x PCI-E 3.0 x16 for Add-On-Module (AOM) (Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.) M.2: M.2 Interface: PCI-E 3.0 x4 Form Factor: 2242, 2260, 2280, 22110 Key: M-Key |
|---|
| SATA | 14 x SATA 6.0Gb/s |
|---|---|
| SATA RAID | 0/1/5/10 |
| Onboard Video Chipset Onboard Video Chipset | Aspeed AST2500 BMC |
|---|
| Number of LAN | Dual LAN with GbE from C621 |
|---|
| RJ45 | 2 x RJ45 Gigabit Ethernet LAN ports |
|---|---|
| USB 3.0 USB 3.0 | 4 x USB 3.0 |
| Features | 2nd Generation Intel Xeon Scalable Processors (Cascade Lake-SP), Intel Xeon Scalable Processors. Dual Socket P (LGA 3647) supported, CPU TDP support 205W, 2 UPI up to 10.4 GT/s
Intel C621 Up to 3TB 3DS ECC RDIMM, DDR4-2933 MHz; Up to 3TB 3DS ECC LRDIMM, DDR4-2933 MHz, in 12 x DIMM slots; Up to 2TB Intel Optane DC Persistent Memory in memory mode (Cascade Lake only) 1 x PCI-E 3.0 x32 Left Riser Slot, 1 x PCI-E 3.0 x16 Right Riser Slot, 1 x PCI-E 3.0 x16 for Add-On-Module (AOM) 1 x VGA port Intel C621 controller for 14 x SATA3 (6 Gbps) ports; RAID 0, 1, 5, 10 Dual LAN with GbE from C621 |
|---|
| Form Factor | Proprietary |
|---|---|
| Dimensions (W x L) | 12.3″ x 13.4″ |
| Date First Available | July 20, 2017 |
|---|
Customer Reviews of the Supermicro X11DDW-L
