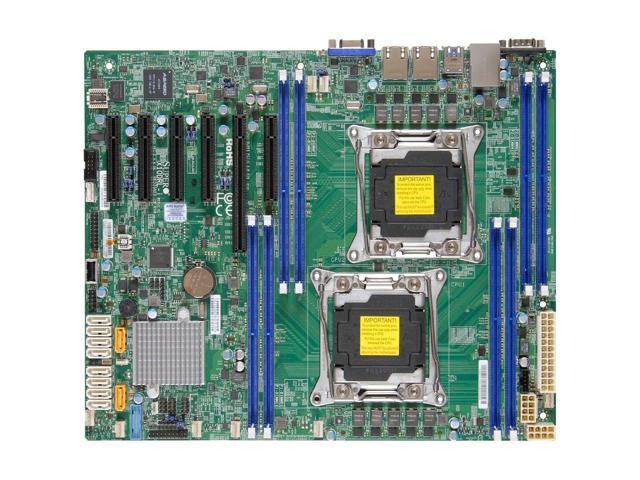

Supermicro X10drl-i Server – Intel C612 Chipset – Socket R3 Motherboard

Supermicro X10drl-i Server Motherboard – Intel C612 Chipset – Socket R3 [lga2011-3] – Bulk Pack – Atx – 2 X Processor Support – 512 Gb Ddr4 Sdram Maximum Ram – 8 X Memory Slots – Serial (158143) nterfaces/Ports Number of USB 3.0 Ports 2 VGA Yes Total Number of USB Ports 4 General Information Product Type Server Motherboard Product Name X10DRL-i Server Motherboard Manufacturer Part Number MBD-X10DRL-I-B Manufacturer Supermicro Computer, Inc Product Model X10DRL-i Marketing Information Xeon® E5 Family BOARDS / Socket R3 (LGA 2011) Introducing Supermicro’s latest generation of dual processor motherboard technology based on Intel’s E5-2600 v3 Haswell processor.

Supermicro’s X10 motherboards are specifically designed to meet the demanding needs of today’s complex computational workloads. Feature rich and highly expandable, our X10 motherboards provide the latest advanced integrated and expandable storage and networking technologies. Features like lightning fast DDR4 memory, NVMe/SAS3/SATA3 storage interfaces, 1G/10GBASE-T, 10G SFP+, 40GbE, and Infiniband QDR/FDR. With its unprecedented set of features, each X10 motherboard is specifically tailored to provide optimal performance while helping to reduce deployment and operational costs over the lifespan of the product. Brand Name Supermicro Package Type Bulk Memory Memory Standard DDR4-2133/PC4-17000 DDR4-1866/PC4-14900 DDR4-1600/PC4-12800 Memory Technology DDR4 SDRAM Memory Speed Supported 2.13 GHz 1.87 GHz 1.60 GHz Maximum Memory 512 GB Number of Memory Slots 8 Memory Form Factor DIMM LRDIMM RDIMM Onboard Interfaces Number of Onboard USB 3.0 Ports 2 Number of SATA Interfaces 10 Total Number of Onboard USB Ports 5 Physical Characteristics Width 12″ Depth 10″ Form Factor ATX Processor & Chipset Chipset Manufacturer Intel Processor Supported Xeon Processor Socket Socket LGA 2011-v3 Total Processor Supported 2 I/O Expansions Number of Total Expansion Slots 6 Total Number of PCI Express Slots 6 Number of PCI Express x16 Slots 1 Number of PCI Express x8 Slots 5 I/O Controller RAID Levels 0 1 5 10 RAID Supported Yes Controller Type Serial ATA/600 Network & Communication Gigabit Ethernet Yes Video Onboard Video On-board Video Chipset Graphics Controller Model AST2400 Graphics Controller Manufacturer ASPEED
