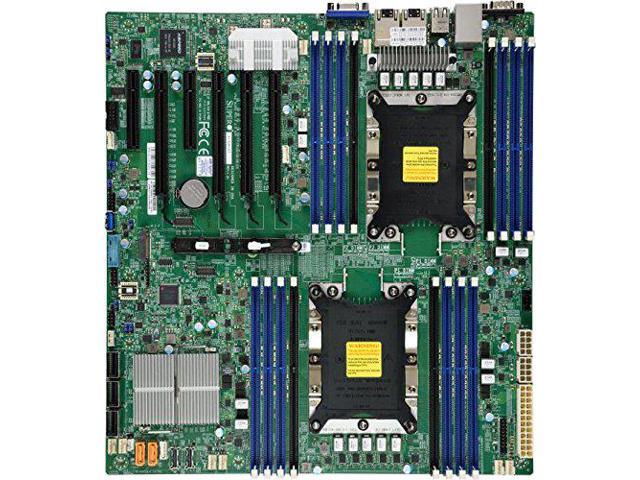

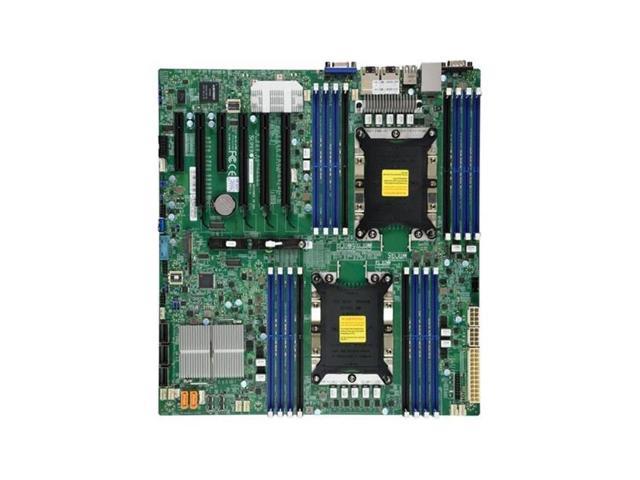

Supermicro MotherBoard MBD-X11DPI-N-B Xeon Dual Socket LGA 3647 C621 Max.2TB PCI Express E-ATX (MBD-X11DPI-N-B)
SKU: 9SIAH41HZ8279025.214.865₫
2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors
Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP, 2 UPI up to 10.4 GT/s
Intel® C621
Up to 4TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-2933MHz
Or 2TB Intel© PMem, DDR4-2666MHz, in 16 DIMM slots;
Up to 2TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only);
4 PCI-E 3.0 x16,
2 PCI-E 3.0 x8,
2 PCI-E 3.0 NVMe x4 Internal Port(s)
M.2 Interface: PCI-E 3.0 x4
M.2 Form Factor: 2260, 2280, 22110
M.2 Key: M-Key
Intel® C621 controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Dual LAN with 1GbE LAN with Intel® X722
1 VGA port
Description
Supermicro MotherBoard MBD-X11DPI-N-B Xeon Dual Socket S3647 C621 Max. 2TB PCI Exress EATX Brown Box
Learn more about the Supermicro MBD-X11DPI-N-B
| Best Seller Ranking | #51 in Server Motherboards |
|---|
| Brand | SUPERMICRO |
|---|---|
| Model | MBD-X11DPI-N-B |
| CPU Socket Type | Dual LGA 3647 |
|---|---|
| CPU Type | Supports 2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable Processors |
| North Bridge | Intel C621 |
|---|
| DDR4 Standard | 2666 / 2400 / 2133 MHz ECC DDR4 RDIMM, LRDIMM |
|---|---|
| Maximum Memory Supported | Up to 2TB 3DS ECC RDIMM, DDR4-2666 MHz; Up to 2TB 3DS ECC LRDIMM, in 16 DIMM slots |
| PCI Express 3.0 x16 | 4 |
|---|---|
| PCI Express x8 | 2 x PCI-E 3.0 x8 |
| SATA | 14 x SATA 6.0Gb/s |
|---|
| Onboard Video Chipset Onboard Video Chipset | Aspeed AST2500 |
|---|
| Number of LAN | Dual LAN with GbE from C621 |
|---|
| COM | 1 |
|---|---|
| RJ45 | 2 x RJ45 Gigabit Ethernet LAN ports |
| USB 1.1/2.0 | 2 x USB 2.0 |
| USB 3.0 USB 3.0 | 2 x USB 3.0 |
| Features | Intel Xeon Scalable Processors, Dual Socket P (LGA 3647) supported, CPU TDP support 205W, 2 UPI up to 10.4 GT/s
Intel C621 Up to 2TB 3DS ECC RDIMM, DDR4-2666 MHz; Up to 2TB 3DS ECC LRDIMM, in 16 DIMM slots 4 x PCI-E 3.0 x16, 2 x PCI-E 3.0 x8 1 x VGA port Intel C621 controller for 14 SATA3 (6 Gbps) ports; RAID 0, 1, 5, 10 Dual LAN with GbE from C621 |
|---|
| Form Factor | Extended ATX |
|---|---|
| Dimensions (W x L) | 12.0″ x 13.0″ |
| Date First Available | June 20, 2022 |
|---|
Customer Reviews of the Supermicro MBD-X11DPI-N-B
