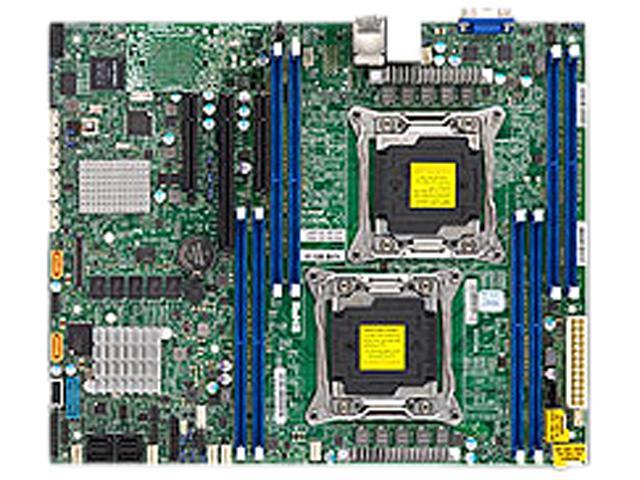

Supermicro Motherboard MBD-X10DRL-C-B LGA2011 Xeon E5-2600v3 C612 DDR4 PCI Express SATA ATX Brown Box

The Supermicro MBD-X10DRL-C-B server motherboard is an ideal foundation for professionals and SMBs to build a powerful workstation or a value-packed sever. Based on Intel C612 chipset, this model supports two Intel Xeon E5-2600 v4/v3 family CPUs in LGA 2011 package, featuring astounding processing capability and throughput to crunch through massive datasets used in video encoding, AutoCAD, SolidWorks, or other types of applications that need heavy duty power. Up to eight memory slots, one PCIe 3.0 x16 slot, two PCIe 3.0 x8 slots and a host of storage options address today’s needs and future upgrades.

• Dual socket R3 (LGA 2011) supports Intel Xeon processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
• Intel C612 chipset
• Up to 1TB ECC 3DS LRDIMM, up to DDR4- 2400MHz; 8x DIMM slots
• 1x PCI-E 3.0 x16, 2x PCI-E 3.0 x8
• Intel i210 Dual GbE LAN ports
• Integrated IPMI 2.0 and KVM with Dedicated LAN
• 8x SAS3 (12Gbps) via LSI 3108; HW RAID 0, 1, 5, 6, 10, 50, 60; SuperCap Option support
• 6x SATA3 (6Gbps); RAID 0, 1, 5, 10
• 4x USB 3.0 (2 rear, 2 via header); 3x USB 2.0 (2 via header, 1 Type A)
